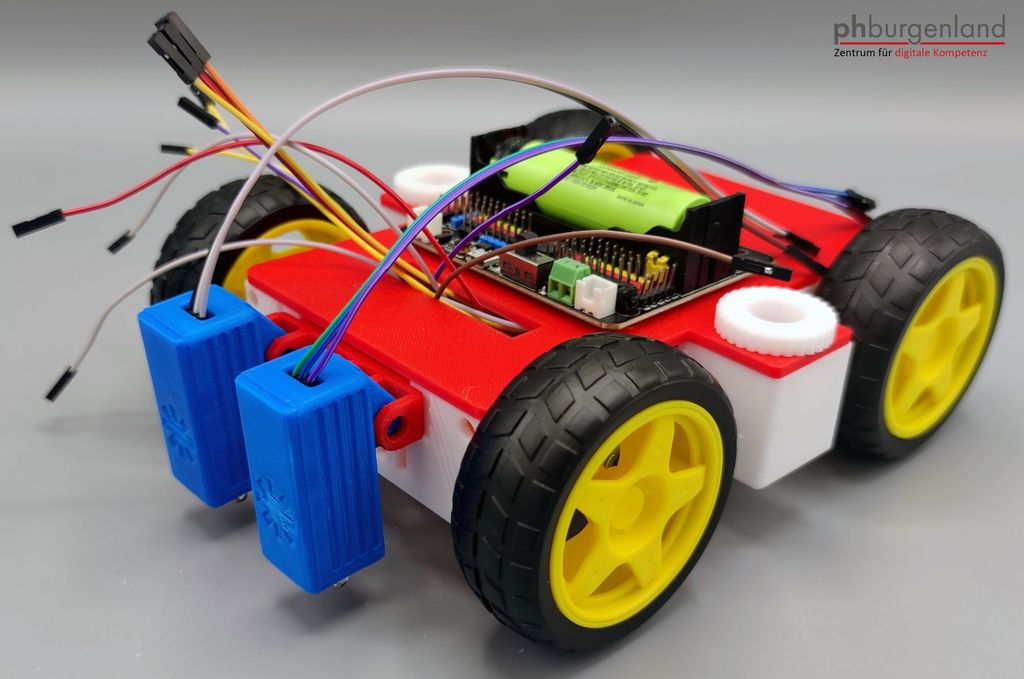

This Encode Disc is tested with the panBot.

[https://www.prusaprinters.org/de/prints/127617-panbot](https://www.prusaprinters.org/de/prints/127617-panbot)

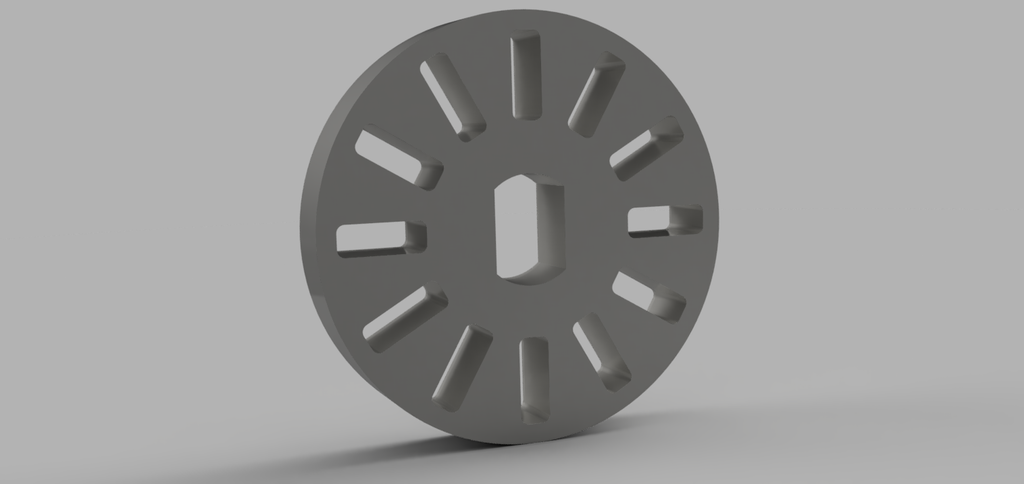

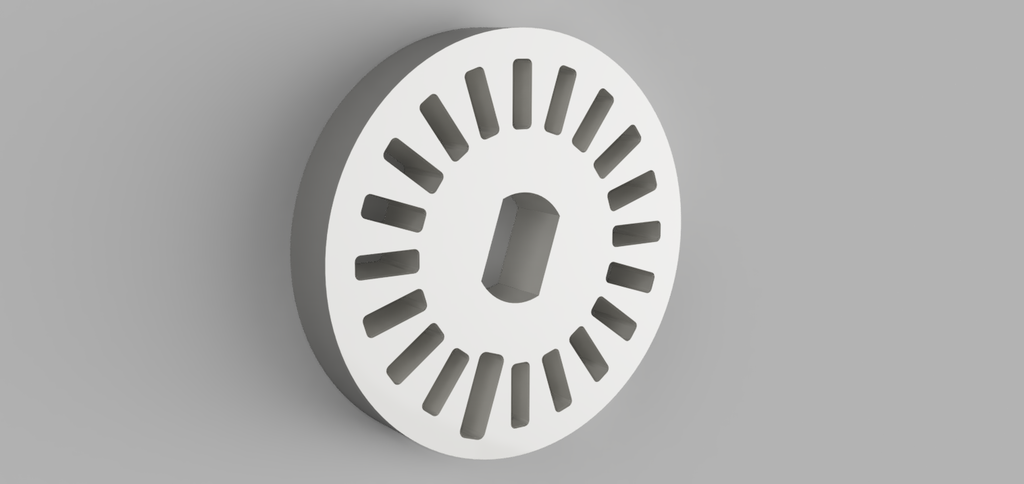

To find out how far a robot has to travel, you can use an encoder disc. This has a certain number of grids (here 12 and 20) with the help of which you can determine the rotation. The more grids the more precisely you can control. With 20 grids, we have a distance of 10.4 mm per grid that the robot travels.

Sample Code:

Calibration Lattice 12: [https://makecode.microbit.org/_h3z90uEqsdmz](https://makecode.microbit.org/_h3z90uEqsdmz)

Calibration Lattice 20: [https://makecode.microbit.org/_b9pPp7RhzKCE](https://makecode.microbit.org/_b9pPp7RhzKCE)

Sample Code Lattice 12: [https://makecode.microbit.org/_Vshe68K9VfrJ](https://makecode.microbit.org/_Vshe68K9VfrJ)

Sample Code Lattice 20: [https://makecode.microbit.org/_EjrRK2a0hHxy](https://makecode.microbit.org/_EjrRK2a0hHxy)

Videos:

[https://youtu.be/uXeBTf7sggU](https://youtu.be/uXeBTf7sggU) (Sample Code Lattice 20)

The print of the disc is required.

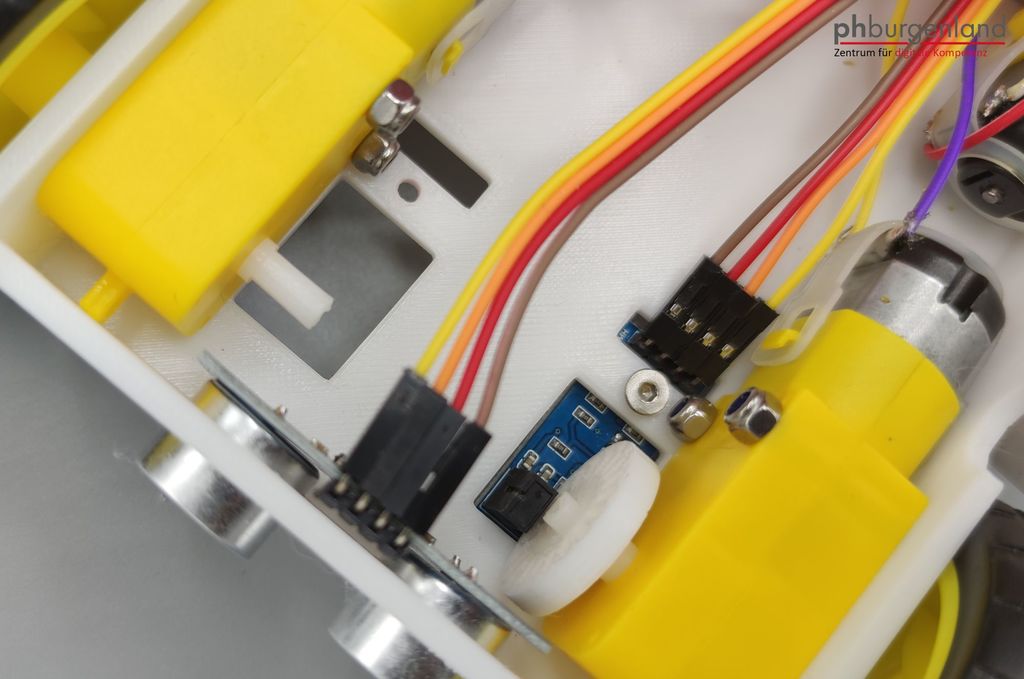

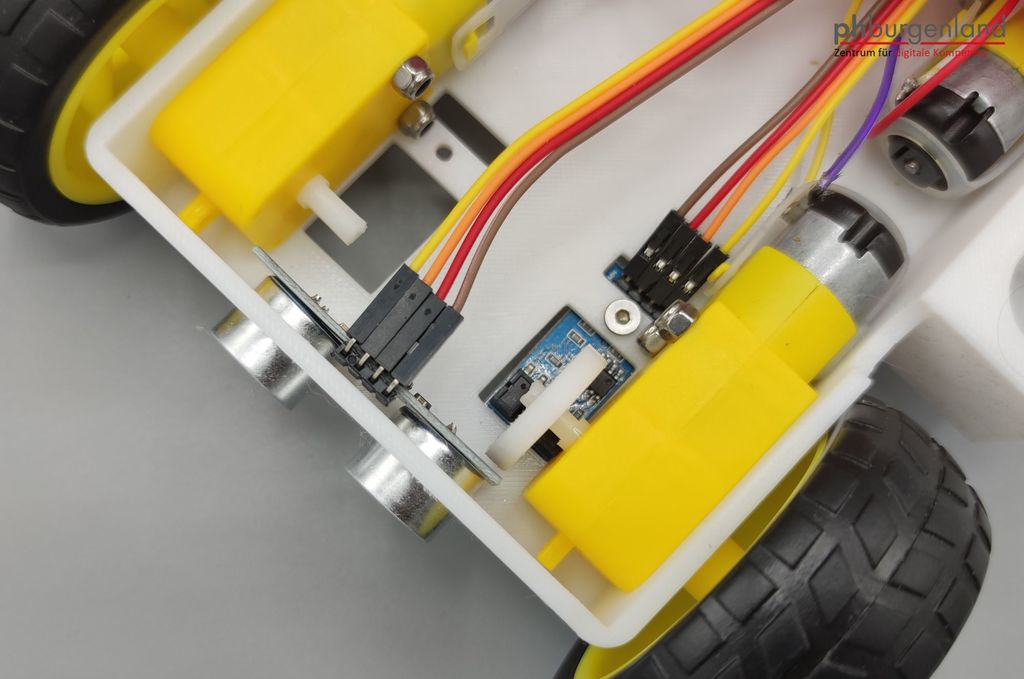

Furthermore, you need a sensor that recognizes the grid and sends a pulse to the controller. [https://www.amazon.de/gp/product/B07TZ78N8W/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1](https://www.amazon.de/gp/product/B07TZ78N8W/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1)

Connection:

VCC -> VCC

GND -> GND

Digital Output -> P0

Distance between 2 Frontwheels: 130 mm

Scope oft the Wheels: 208 mm

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

20%

Filament: gst3D PLA

Category: Robotics
