Held on a playseat challenge thanks to this design: [https://www.printables.com/model/302265-playseat-challenge-shifter-holder-shortened-attach](https://www.printables.com/model/302265-playseat-challenge-shifter-holder-shortened-attach)

The controller board and wires [https://retroactivearcade.ca/products/110-zero-delay-arcade-encoder?_pos=4&_sid=8b09b8038&_ss=r](https://retroactivearcade.ca/products/110-zero-delay-arcade-encoder?_pos=4&_sid=8b09b8038&_ss=r)

buttons [https://retroactivearcade.ca/products/sanwa-obsn-24mm-orange?_pos=40&_sid=6a8250a35&_ss=r](https://retroactivearcade.ca/products/sanwa-obsn-24mm-orange?_pos=40&_sid=6a8250a35&_ss=r)

Switches: Generic microswitches with metal blade

Springs: Generic

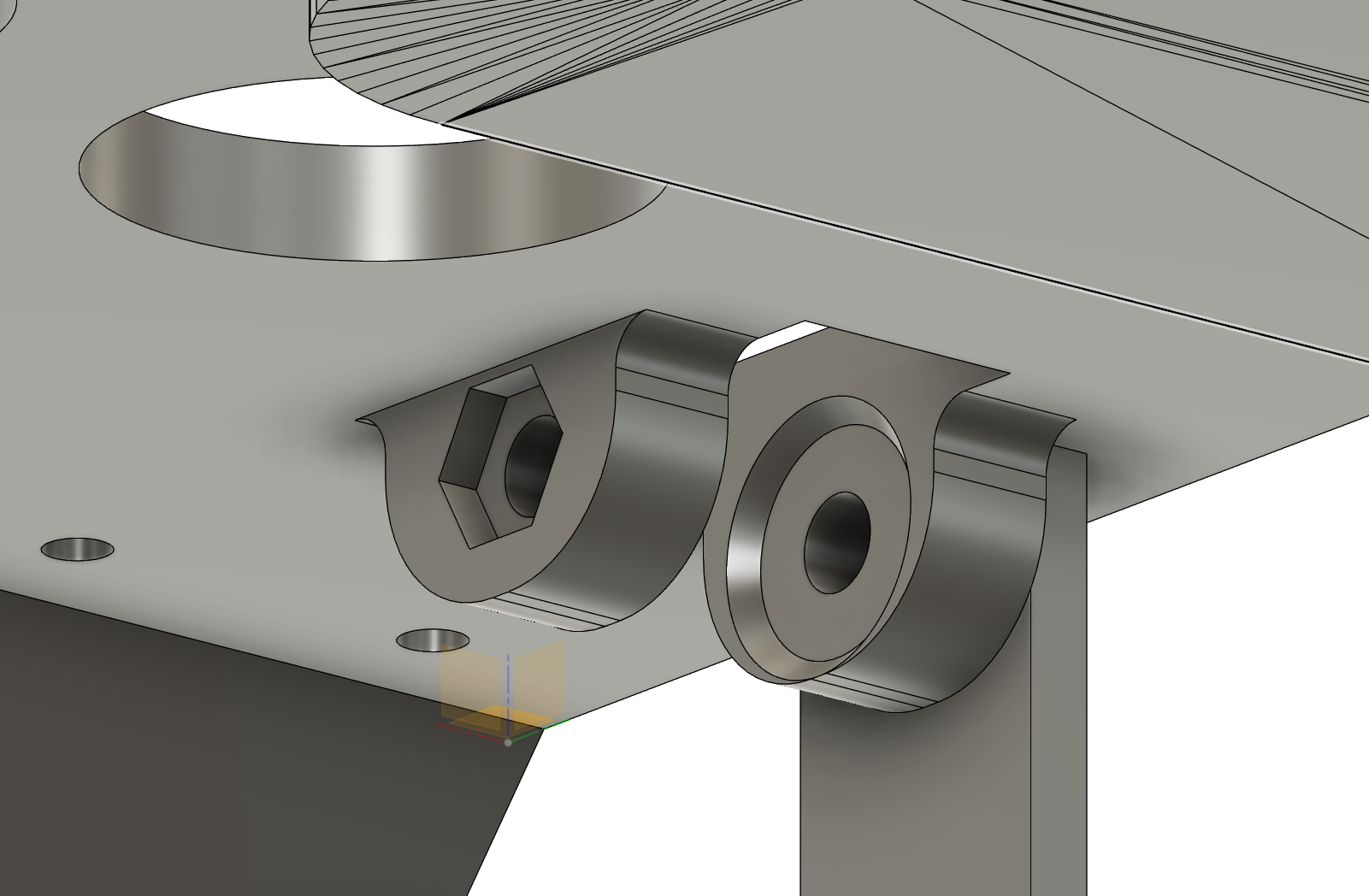

The levers are using M4 screws with 2 greased washers on each side of them to dampen

Same screw as the lever is used to hold the PCB tray

Can put springs on top or bottom of system, bottom springs use the switch brackets, top are held directly on the screws for the brackets (see pictures for top)

Either side can be a shifter or a handbrake, mine has the handbrake left and shifter right

Handles are printed at 100% infill because it feels good :)
