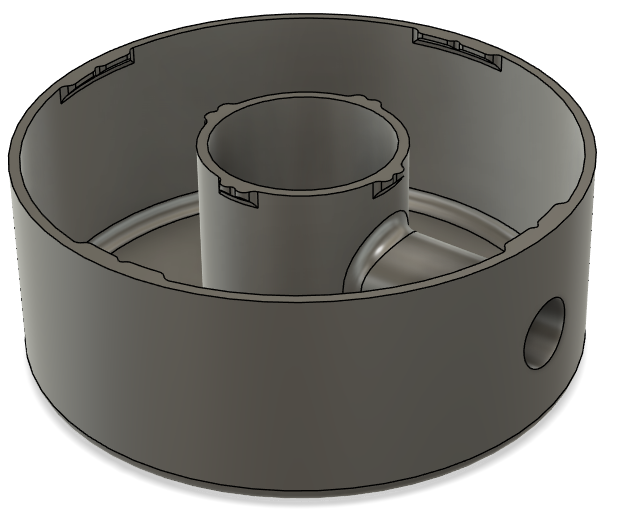

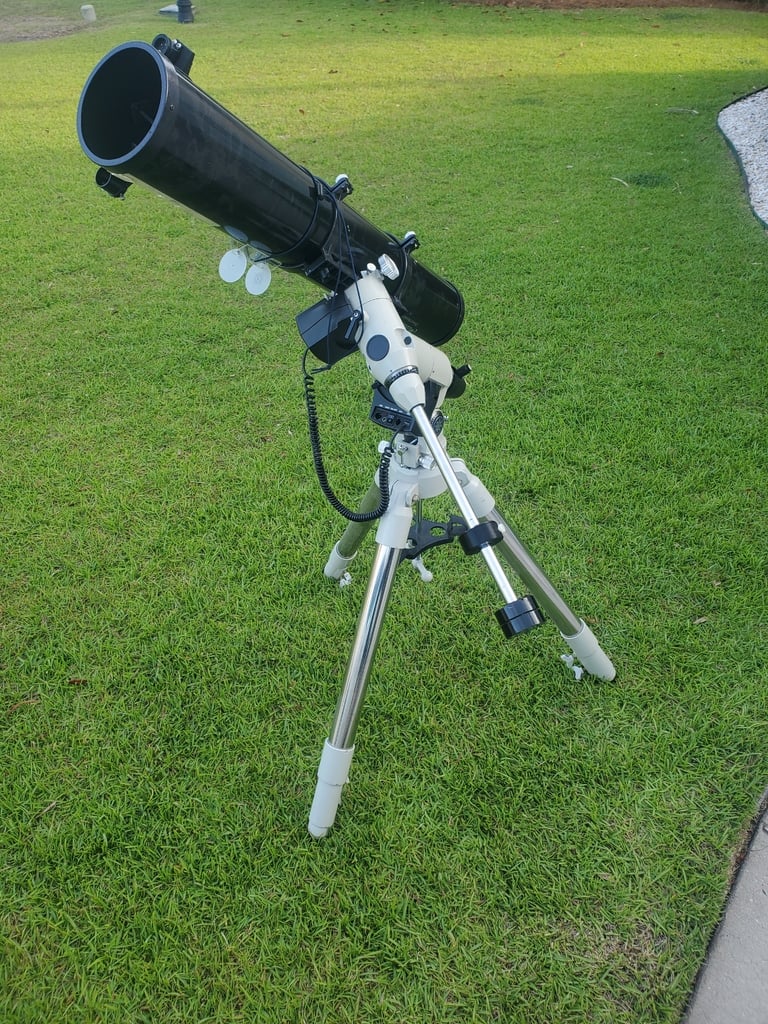

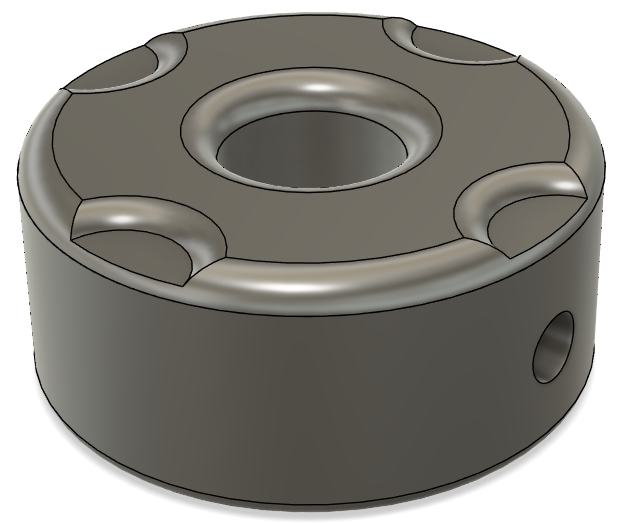

This is a3D-printable, customizable counterweight —ideal for astronomy gear, DIY rigs, or camera setups.

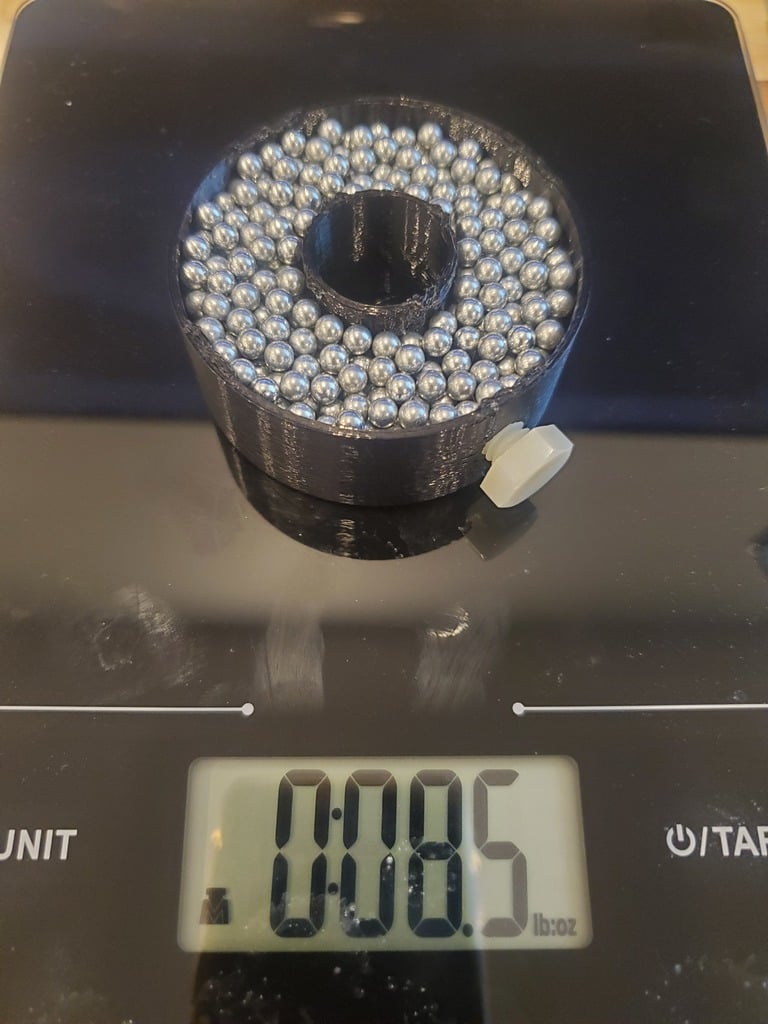

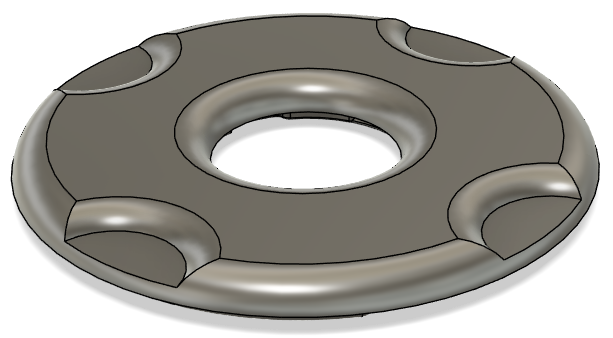

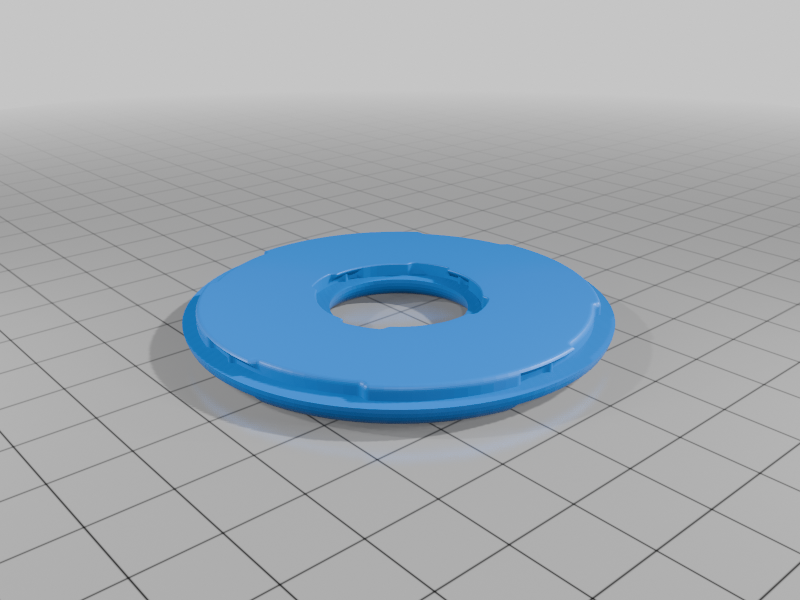

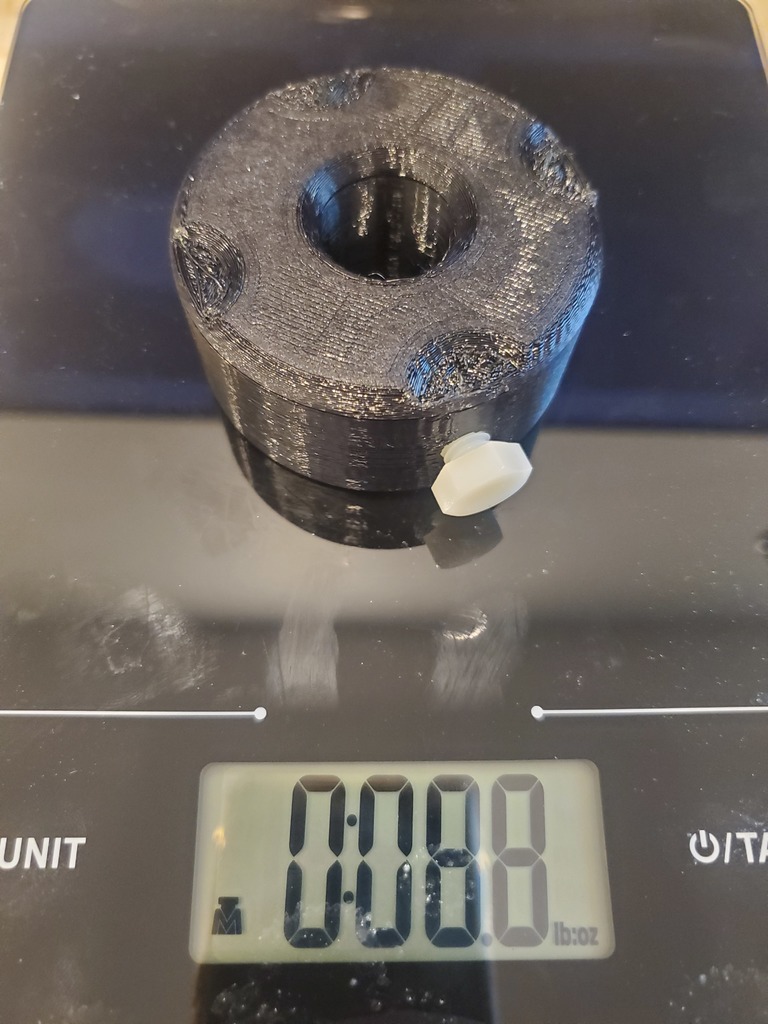

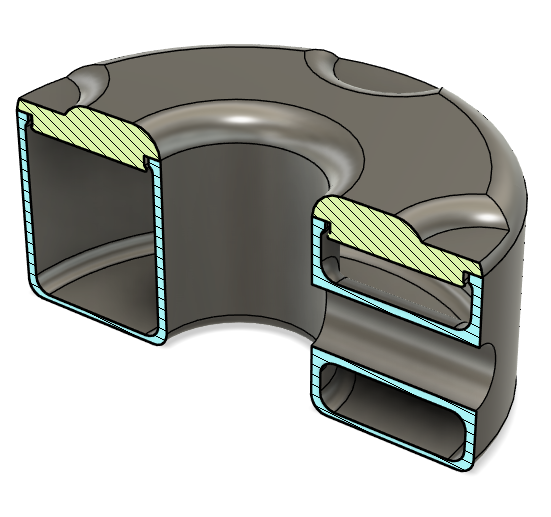

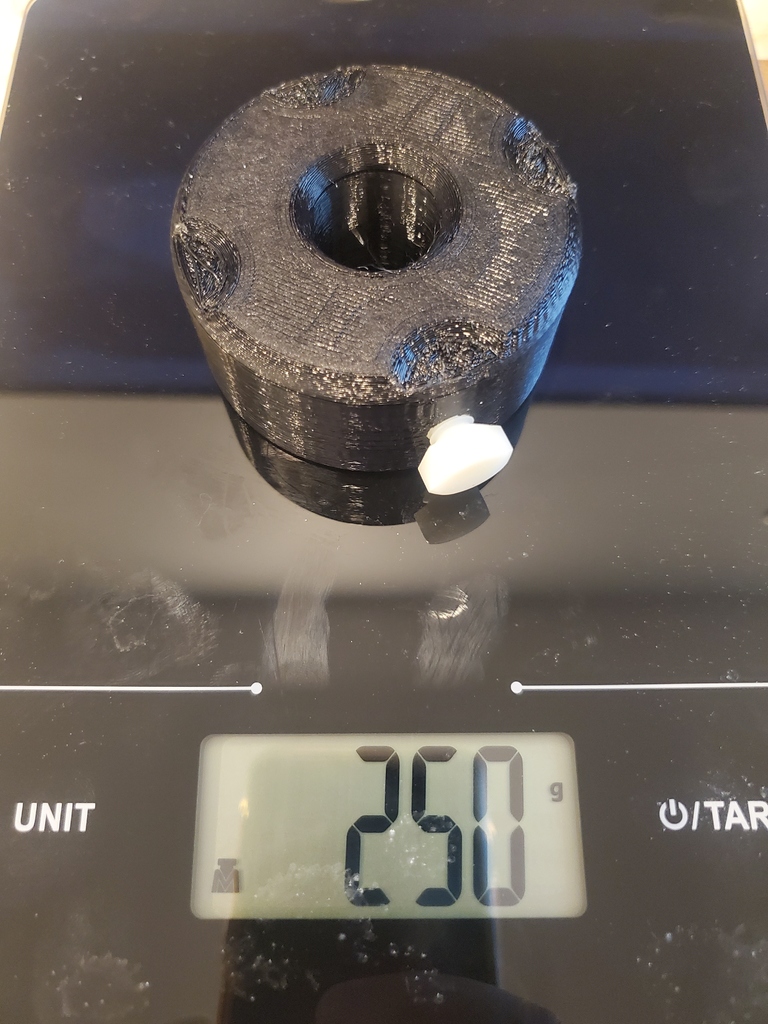

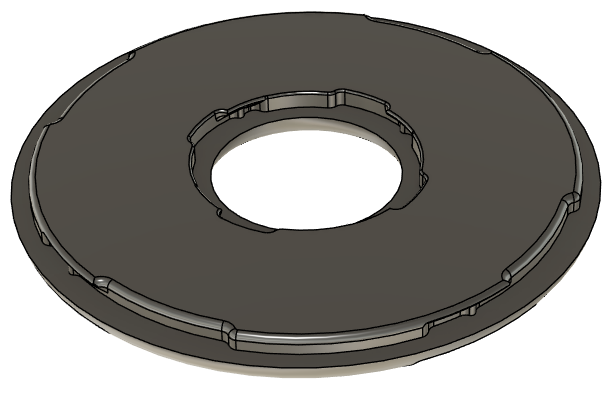

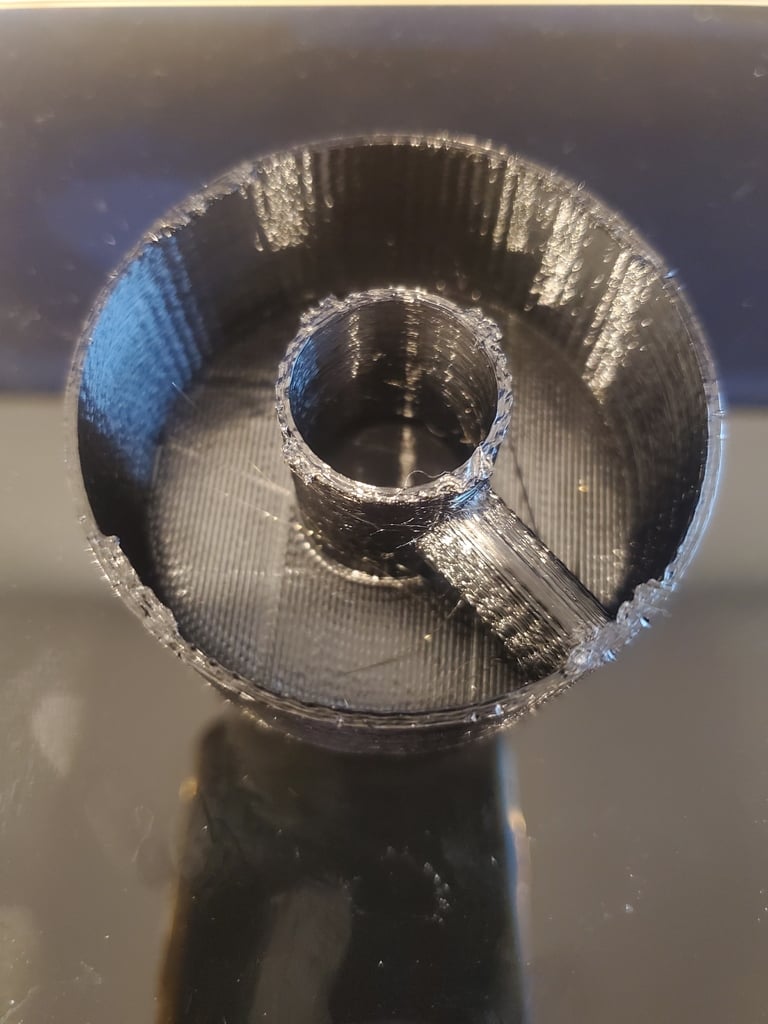

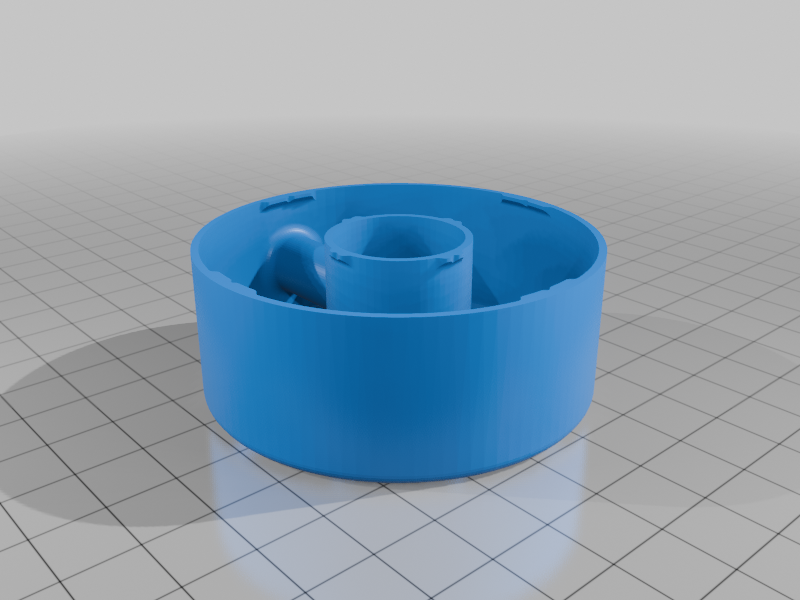

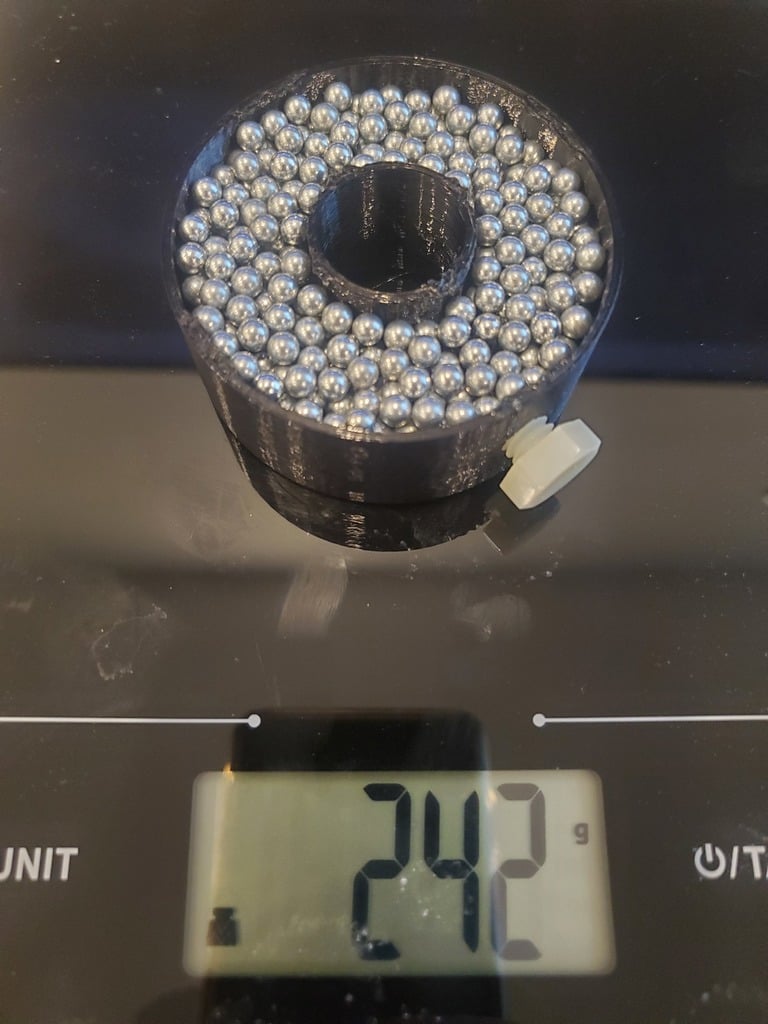

By default, it's designed to fit a standard20 mm counterweight shaft, and you can fill the container withBBs, sand, dirt, or similar materials to achieve a total weight of up to250 g (0.55 lbs). After filling, justtwist-lock the lid in place for a secure and convenient counterweight.

The mounting hole is designed to be tapped for either aM8x1.25 or5/16-18 nylon screw, 25 mm (1 inch) long, to firmly attach it to your bar.

Want to tweak it? You can easily adjust the following parameters to match your setup:

• counterweight_diameter
• counterweight_height
• counterweight_bar_diameter
• locking_screw_diameter

Print, fill, and balance—it’s that simple.

Print Settings

Printer Brand:

Wanhao

Printer:

No

Supports:

.2

Infill:

Notes:

Category: DIY
