Modelo 3D Raspberry Pi Zero case por LuluX no Printables

Descrição

One more case for Raspberry Pi Zero. This is simple, compact and quite rigid.

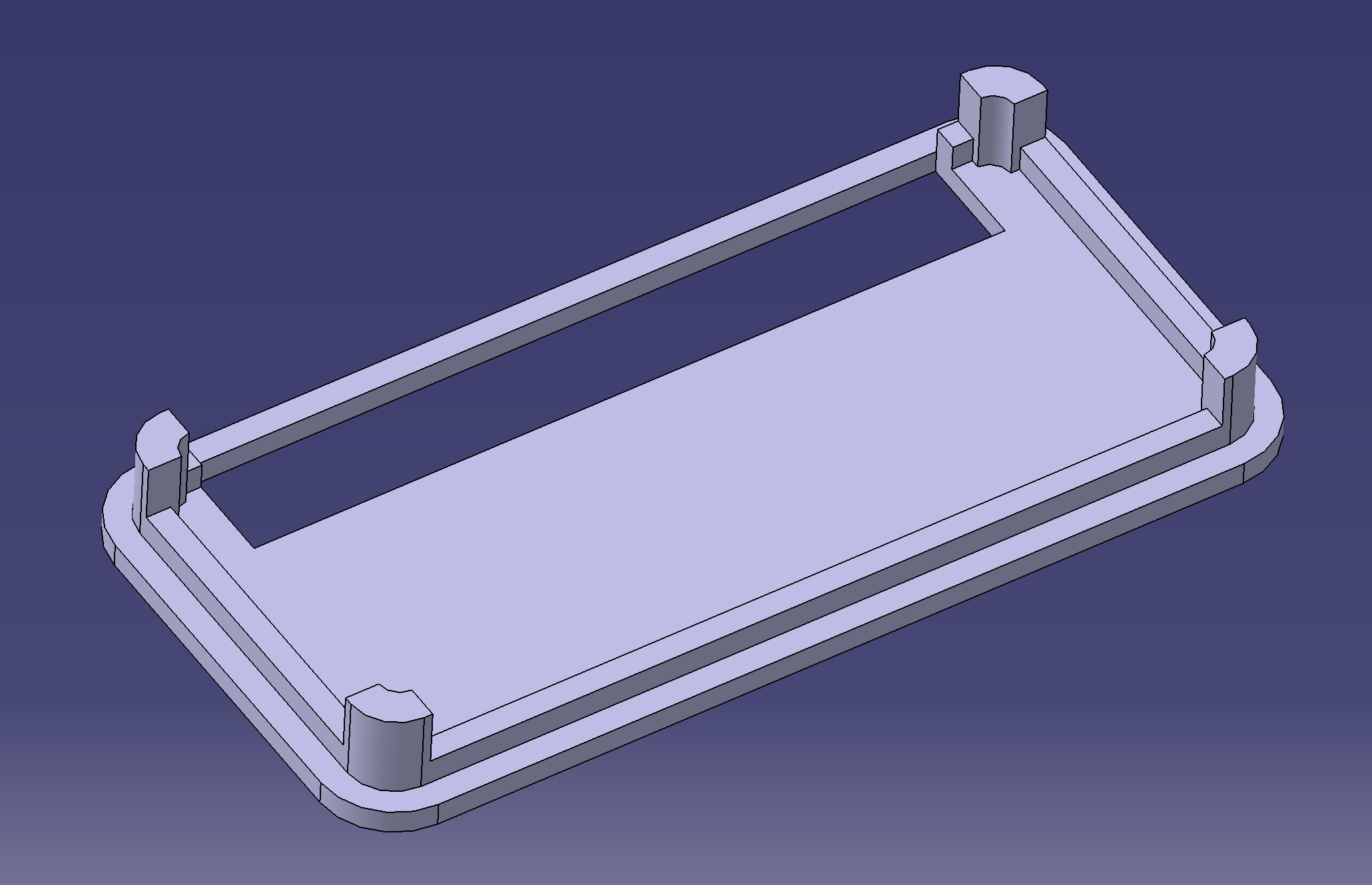

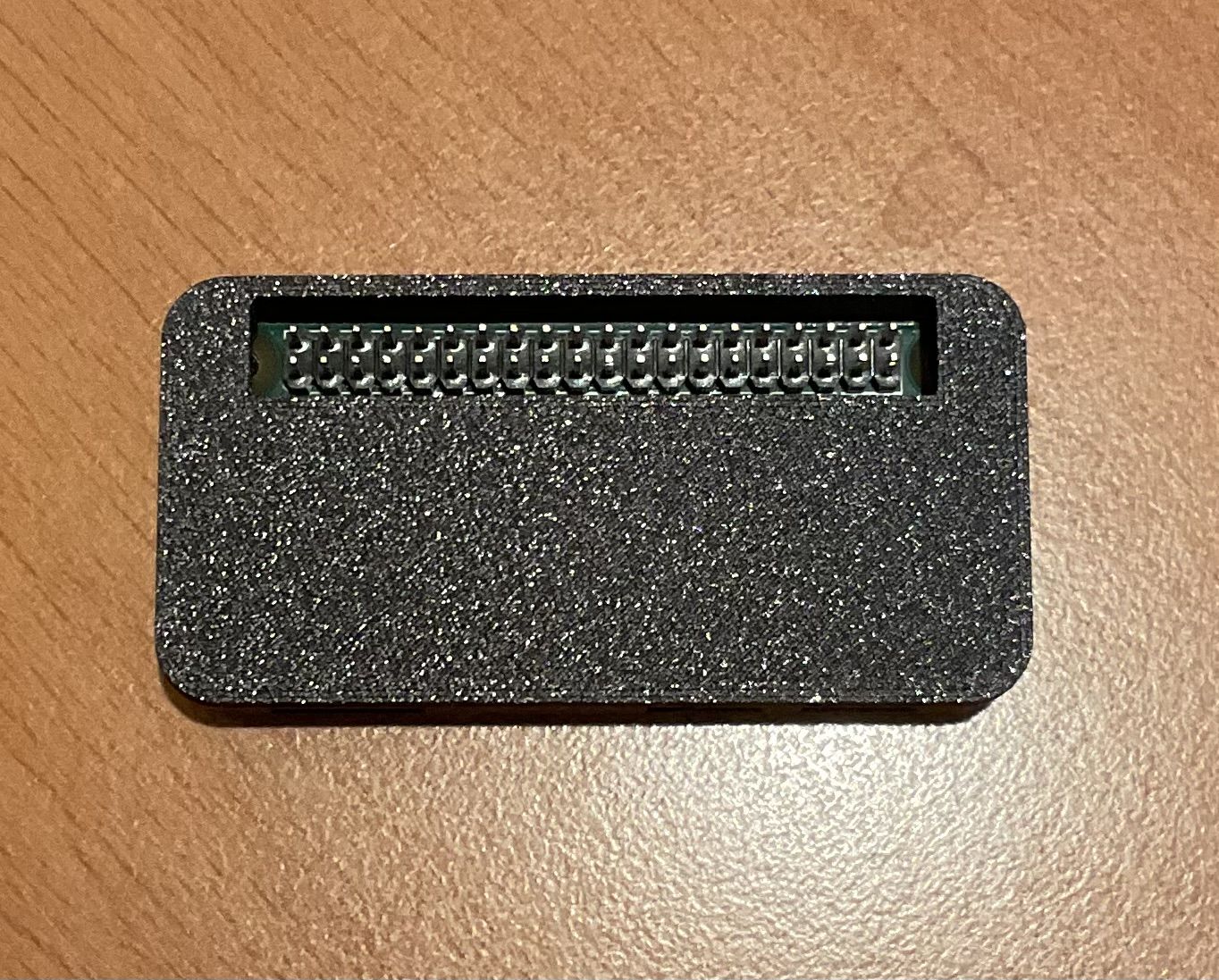

The cover part has press fit with the main case. The board sits on four pins and from top is pressed by the cover part. Nominal clearances between the board and the case are 0.5 mm, USB/HDMI ports stick out of the board - this forces the assembly in a certain way.
To insert the board into case, first push down the GPIO side and then gently push side with USB/HDMI ports. While pushing USB/HDMI side of the board , you could try to slightly bend out this side of the case.

The board sits firmly in casing without any screws. Press fit ensures that cover part don't fall out itself, but you could disassembly it easy if needed.


Print settings:

  • Layer height: 0.2 mm
  • Perimeters: 2
  • Infill: 20%
  • Supports: No



Update

Added model variant (only STL files) with increased clearance around the board :

  • Case.stl, CaseTop.stl - original model with 0.5 mm clearance to the board;
  • Case_vB, CaseTop_vB.stl, CaseTop_vB_Closed.stl - model with 1.5 mm clearance to the board.



CaseTop_vB_Closed - alternative closed lid for Raspberry Pi without pins.

Printables

Raspberry Pi Zero case

Publicado em 16 de abr de 2024

319
Curtidas
2,899
Downloads
49
Impressões
Categoria Computers
Tags
case raspberrypicase raspberrypizero raspberrypihousing
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (7)
RPIZEROCase.3mf 39 KB
Case.stl 73.5 KB
RPIZEROCaseTop.3mf 34.6 KB
CaseTop.stl 31.1 KB
Case_vB.stl 73.5 KB
CaseTop_vB.stl 30.9 KB
CaseTop_vB_Closed.stl 29.6 KB
