Toothpick case

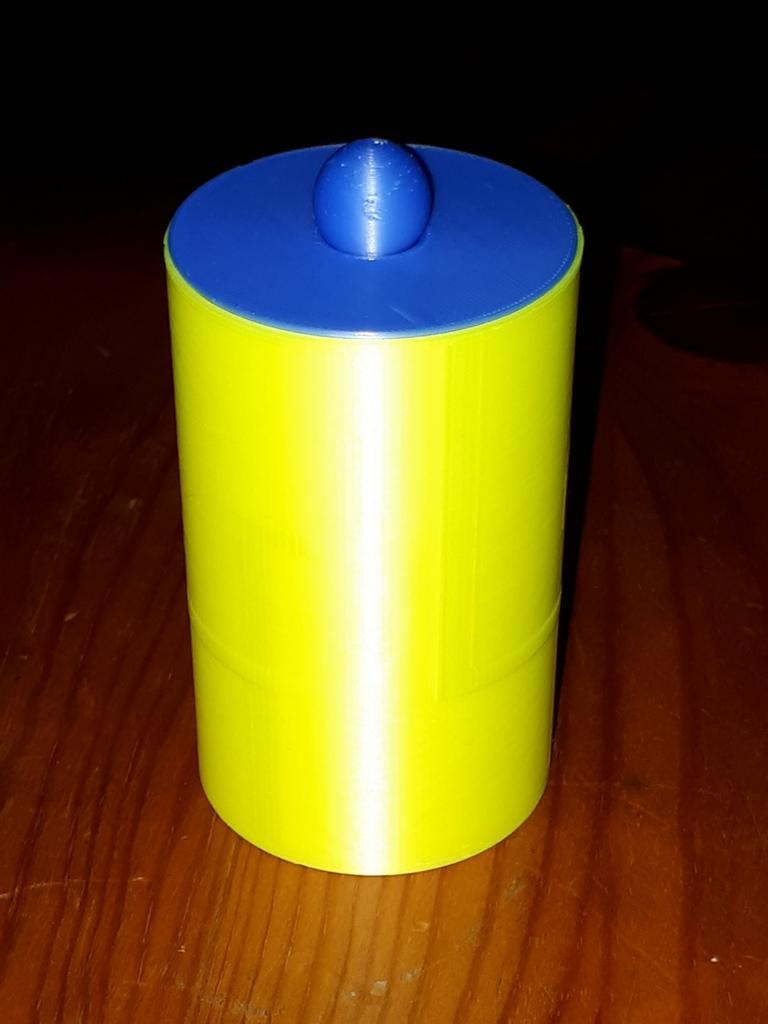

This is a toothpick box that, when opened spreads the toothpicks so that you can take one without touching all the others, and thus avoids spreading viruses.

Designed in OnShape:

[https://cad.onshape.com/documents/8a5869614fcdf58cf3fae1e3/w/8d87bc14dfb14bf048e7761b/e/8d17020d9865c5bba046e875](https://cad.onshape.com/documents/8a5869614fcdf58cf3fae1e3/w/8d87bc14dfb14bf048e7761b/e/8d17020d9865c5bba046e875)

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

Supports:

Resolution:

200

Infill:

Filament:

Generic PLA Blue and Yellow

Notes:

The print is quite straightforward. No supports required.

The overhangs in the horizontal rails inside of the case may need a bit of trimming.

To assemble:

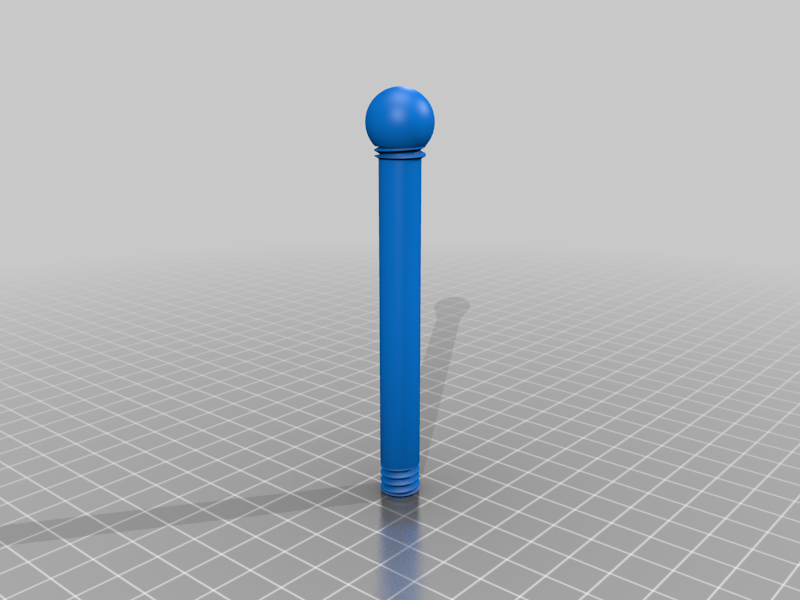

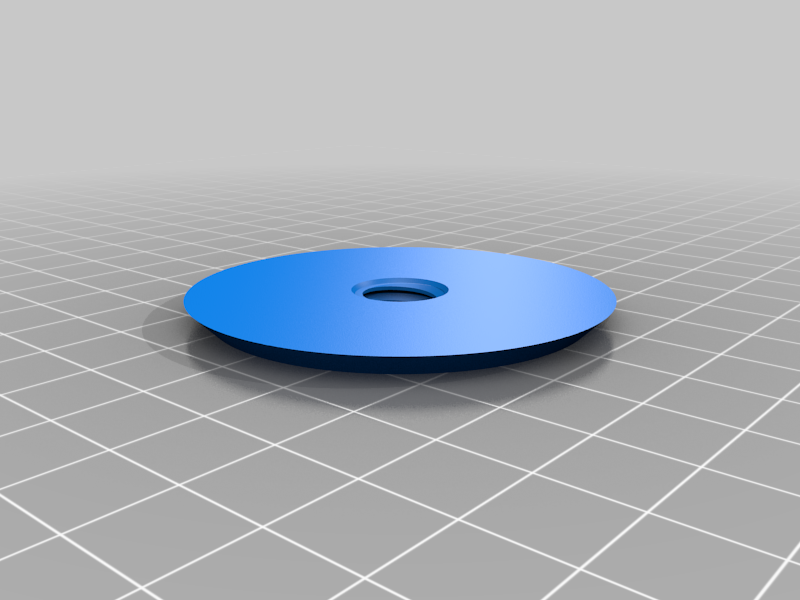

screw the cover to the top of the axis.

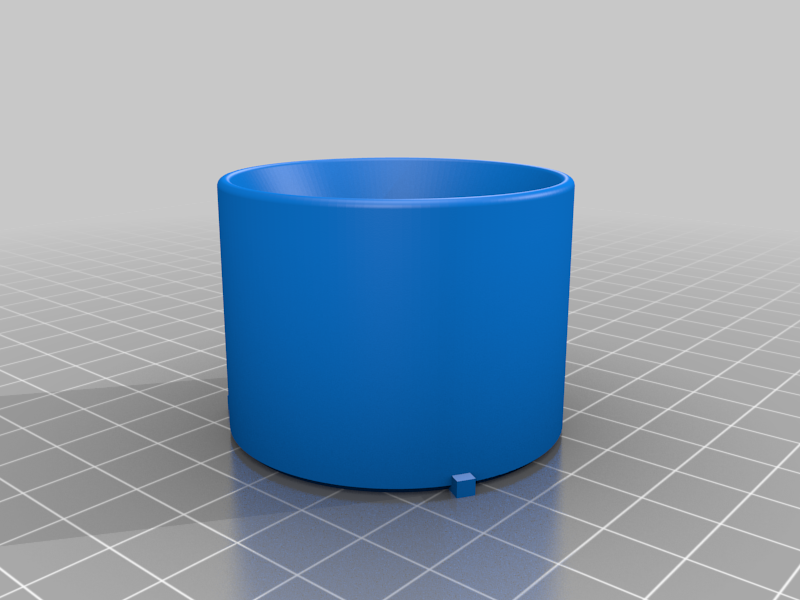

screw the piston to the bottom of the axis.

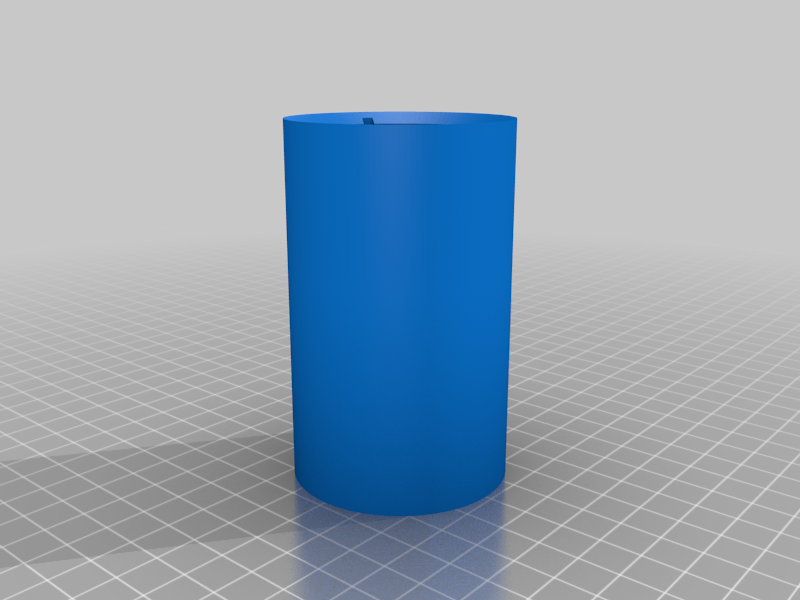

insert the piston into the case, aligning the 3 notches and rotate 1/8 turn to the left. It should fall into place by itself.
