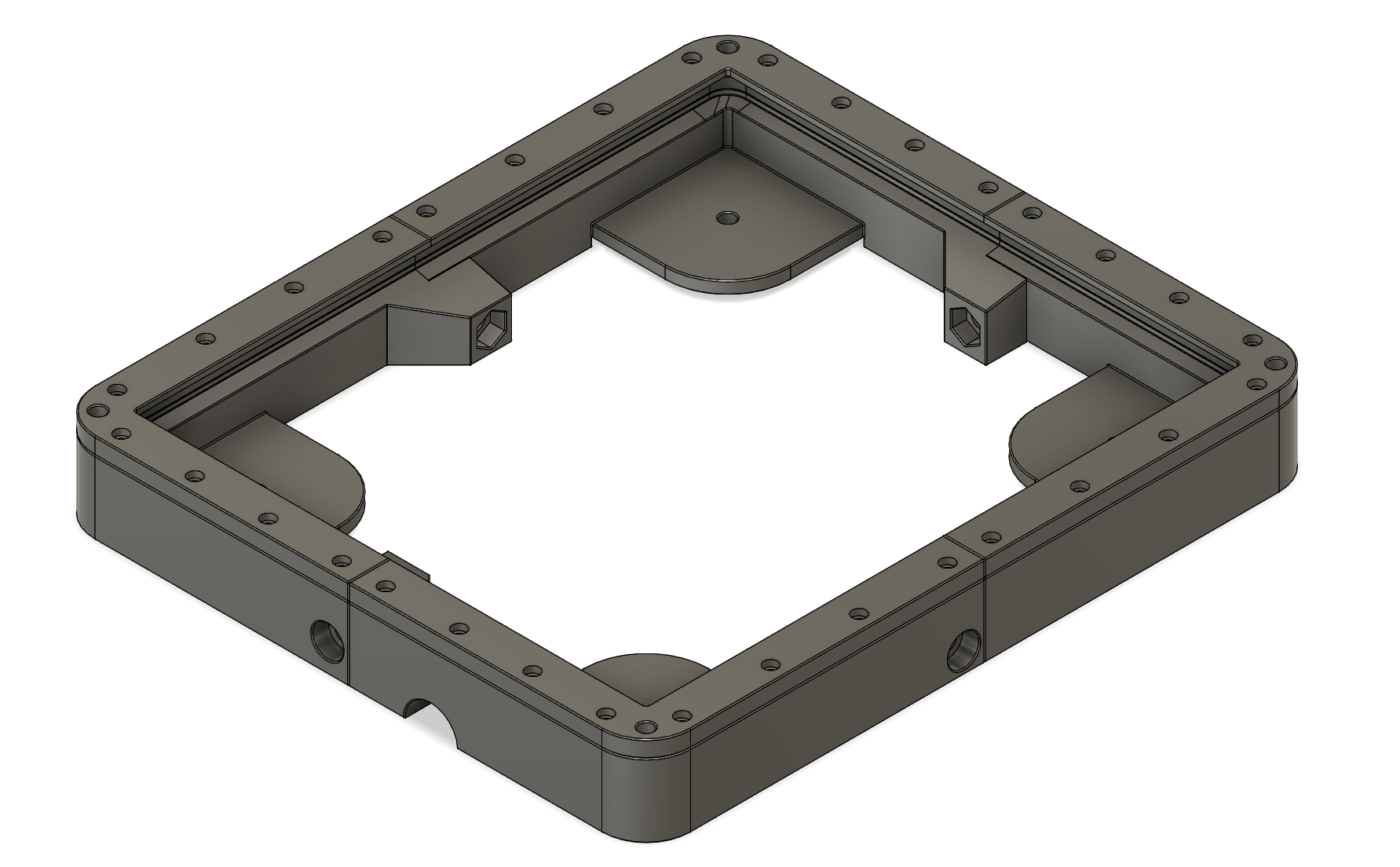

Starlink Mini Dishy Flat Mount

• 8 Piece Design

• Bottom pieces can be printed with or without magnet recesses

• Printed on Prusa MK4S

Print Settings:

• 0.2mm or 0.15mm layer height

• 30%-50% infill. Adaptive Cubic or Support Cubic

• 6 Wall loops. May get away with 4

• Need support from build plate for magnet mounts

• PETG recommended

Optional:

There are dot marks on the bottom of each bottom piece that can be printed in another color to help with assembly

Parts needed:

• x4 round puck magnets. I used these BQUKKIMAG 5Pack Rubber Coated Magnets D66x8mm M6 Round Magnets Strong Large Magnete with Thread, Flat Magnet with Hole Countersunk Head Pot Magnet for Screwing on Car Lights : Amazon.ca: Industrial & Scientific

• x32 M3x6 brass thread inserts. Holes are sized for these iplusmile Brass Nuts, Threaded Inserts Thread Brass Knurled Nuts Threaded Heat Set for Printing 3D Printer and More Projects, 100pcs : Amazon.ca: Tools & Home Improvement

• x32 M3x16mm screws

• x4 M8x35mm screws

• x4 M8 Nylon lock nut. I used these Hmevsafinect Nylon Insert Locknuts,25 Pack M8 304 Stainless Steel A2-70 Lock Nuts,Standard Metric Thread Nylock Nuts for Bolts (M8-25 Pack) : Amazon.ca: Tools & Home Improvement

Assembly instructions:

1. Heat set all 32 M3 brass inserts in the lower half of each piece of the flat mount.

2. Attach the 4 puck magnets to the magnet locations using the M6 screws

3. Assemble all 4 Pieces loosely using the 4 M8 screws and locknuts on a flat surface

4. Place the mini dishy in the loosely assembled mount.

5. Place the 4 top pieces on top to clamp the mini dishy in place. Screw down but do not tighten the 32 M3 screws

6. Tighten the M8 screws to lock the dish in the mount.

7. Tighten the 32 M3 screws.

8. Enjoy your newly mounted mini Dishy

See my Gen 3 flat mount as well.

Starlink Gen 3 Flat Mount by JB1991 | Download free STL model | Printables.com
