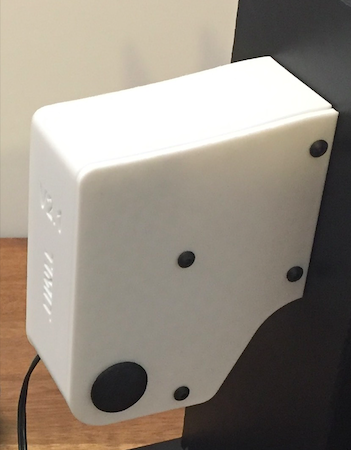

For my mature work, I created an automatic lock that I can open with a smartphone by wifi.

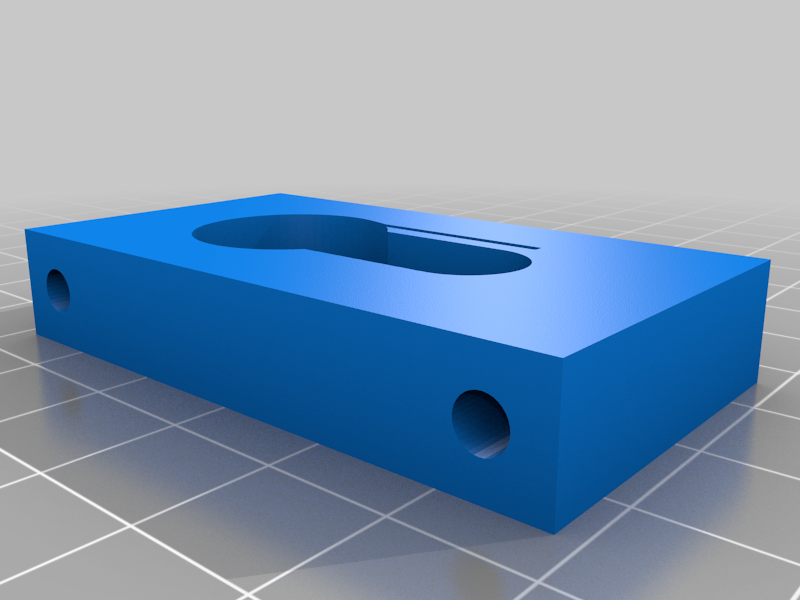

The parts must be printed separately. The fixation makes it possible to hang the box very simply on the door without making any changes on it.

You can read my work and the procedure for creating this project by opening the "TIMIT_TM" pdf. The video shows some images of the final rendering. I also provide my oral presentation under "TIMIT_Oral".

I hope you have fun reading this.

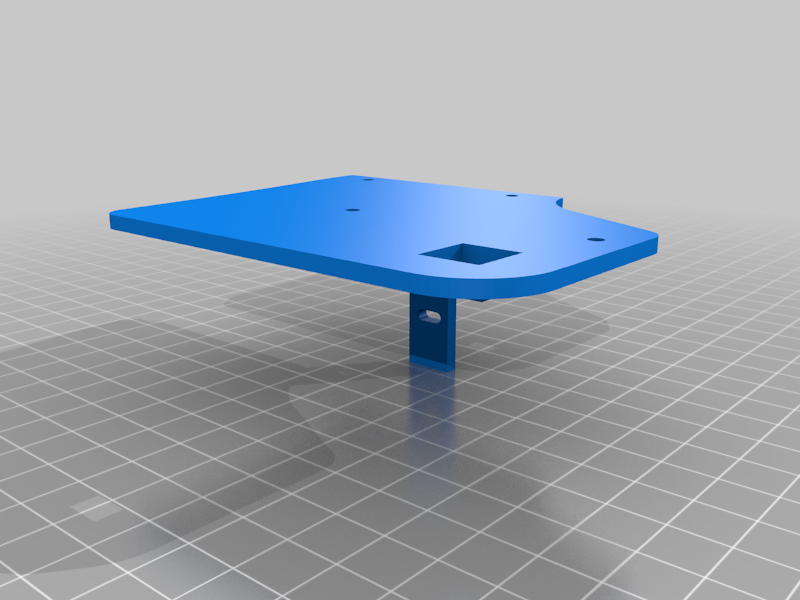

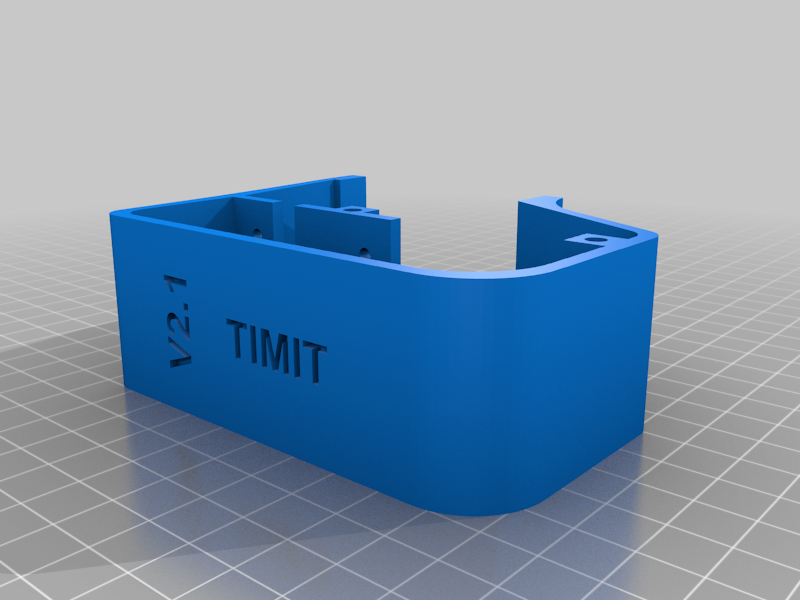

After printing the case I put M3 insert on it so I can screw the top part easily.

Print Settings

Printer Brand:

Creality

Printer:

Doesn't Matter

Supports:

0.2

Infill:

How I Designed This

9 months of work for a great project perfectly explained in my report "TIMIT_TM"

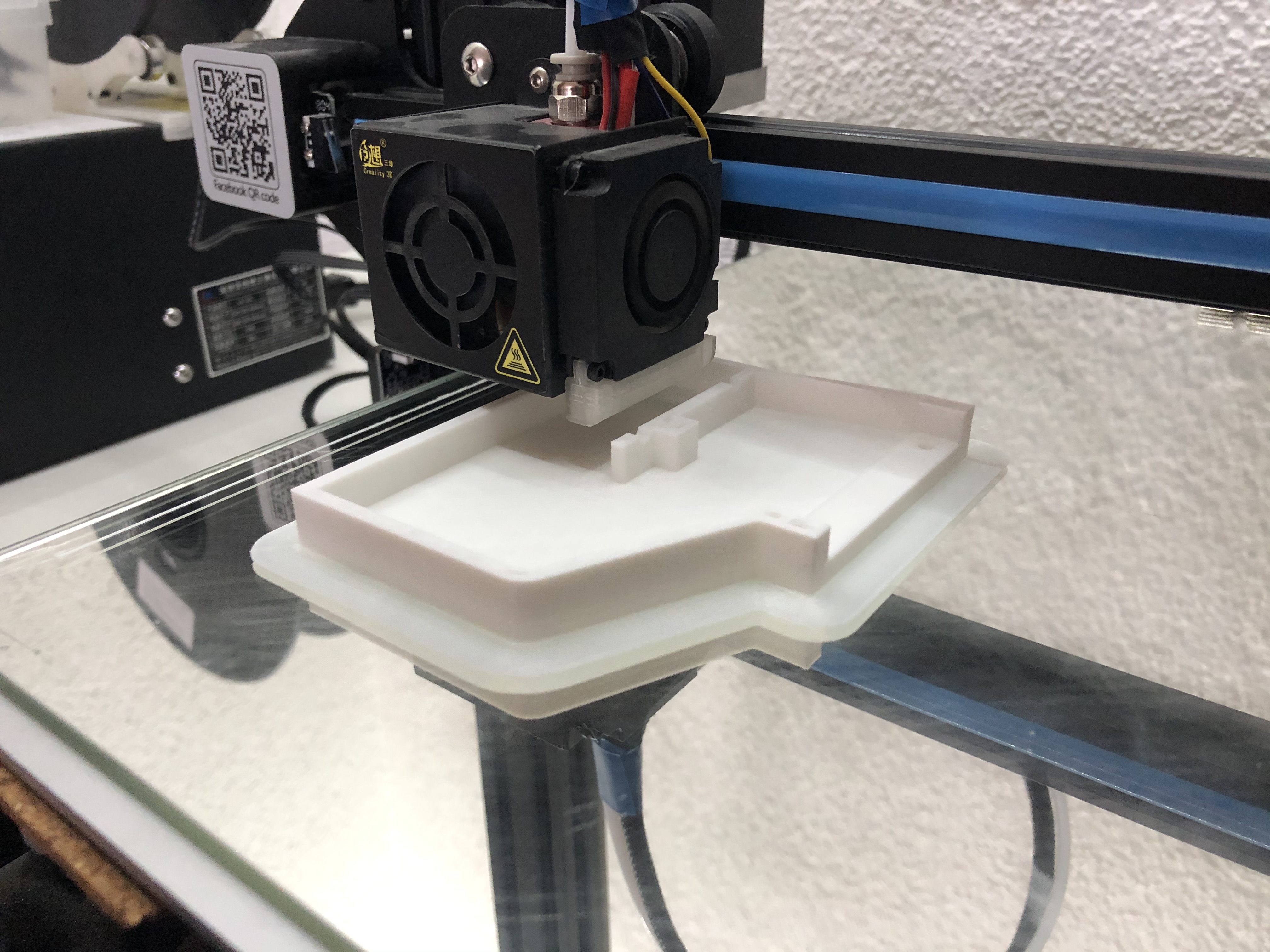

Printing a test box

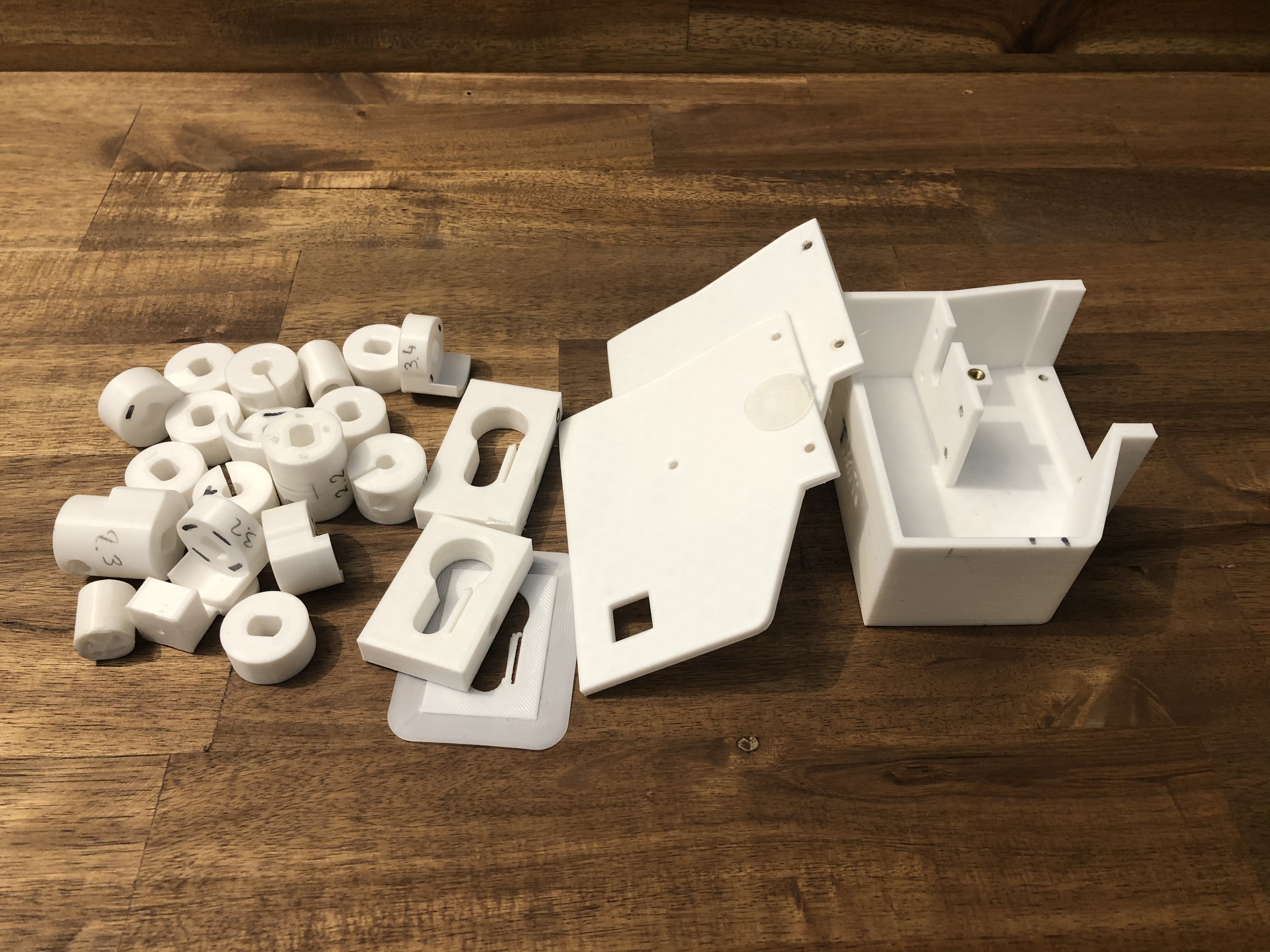

I made a lot of tests to find the perfect shape

View of the final product on fusion 360
