Descrição
I love the sharing culture so I created these fully parametric boxes. I will also provide some variants as STL files. If there are any requests, feel free to let me know.
The model can be freely customized and downloaded via the following OnShape link. Copies and modifications are fully allowed.

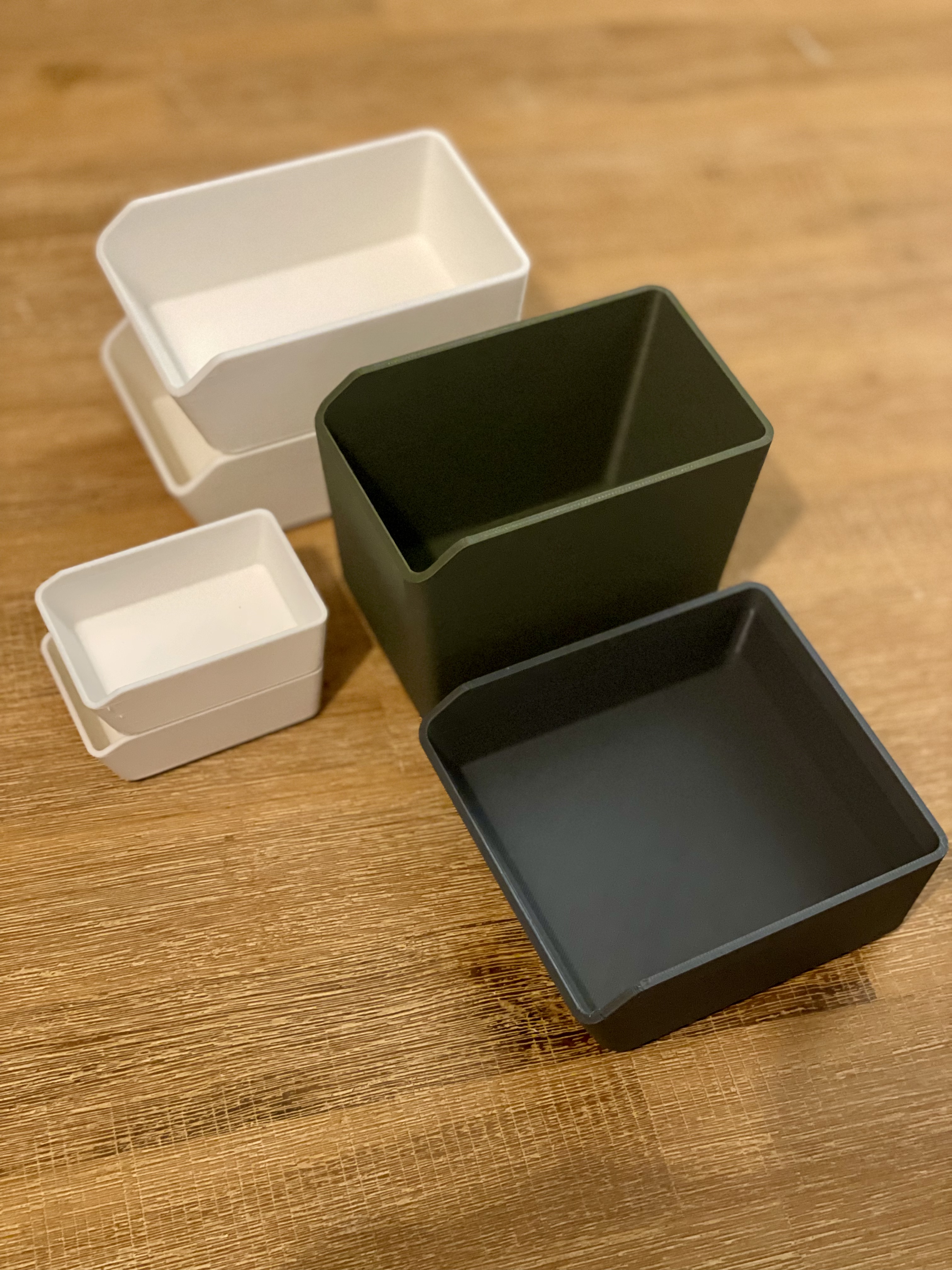

I attached a collection of bins with sizes optimized for Ikea Kallax and Skadis. Of cause they can be used for any other storage solution.

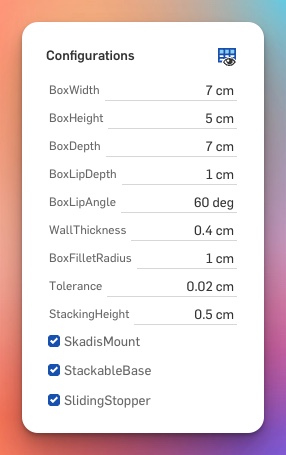

Possible Customizations in the Parametric Model
The following settings can easily be changed using parameters:
- Height, width, and depth of the box
- Wall thickness
- Size of the corner rounding
- Depth of the lip
- Angle of the lip
- Enable/disable stacking floor
- Enable/disable mounts for IKEA Skadis board
- Enable/disable sliding stopper (when stackable base is enabled)

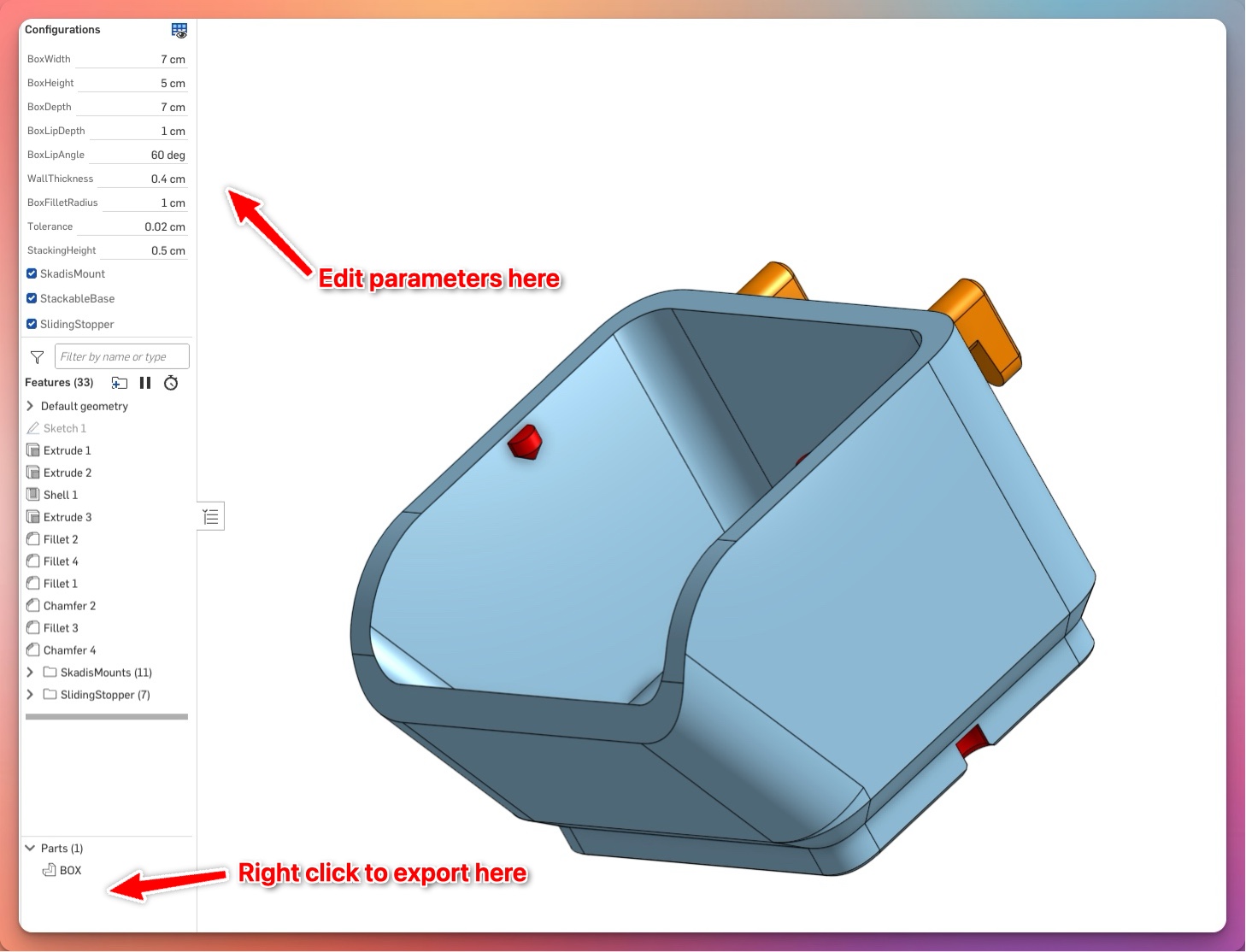

Create your own parametric versions
- Open the OnShape link
(consider downloading a model from this page too, to boost the ranking) - edit the parameters on the top left side
- right click the part on the bottom left side
- click export
- choose file name in the dialog and export the stl.
This model was inspired by [https://www.printables.com/model/1217269-stackable-box-formastudios-box001](https://www.printables.com/model/1217269-stackable-box-formastudios-box001) but turned out to be a much bigger project.
Feel free to post makes :)
