Modelo 3D Post-It Holder Box por Mr.Nobody no Printables

Descrição

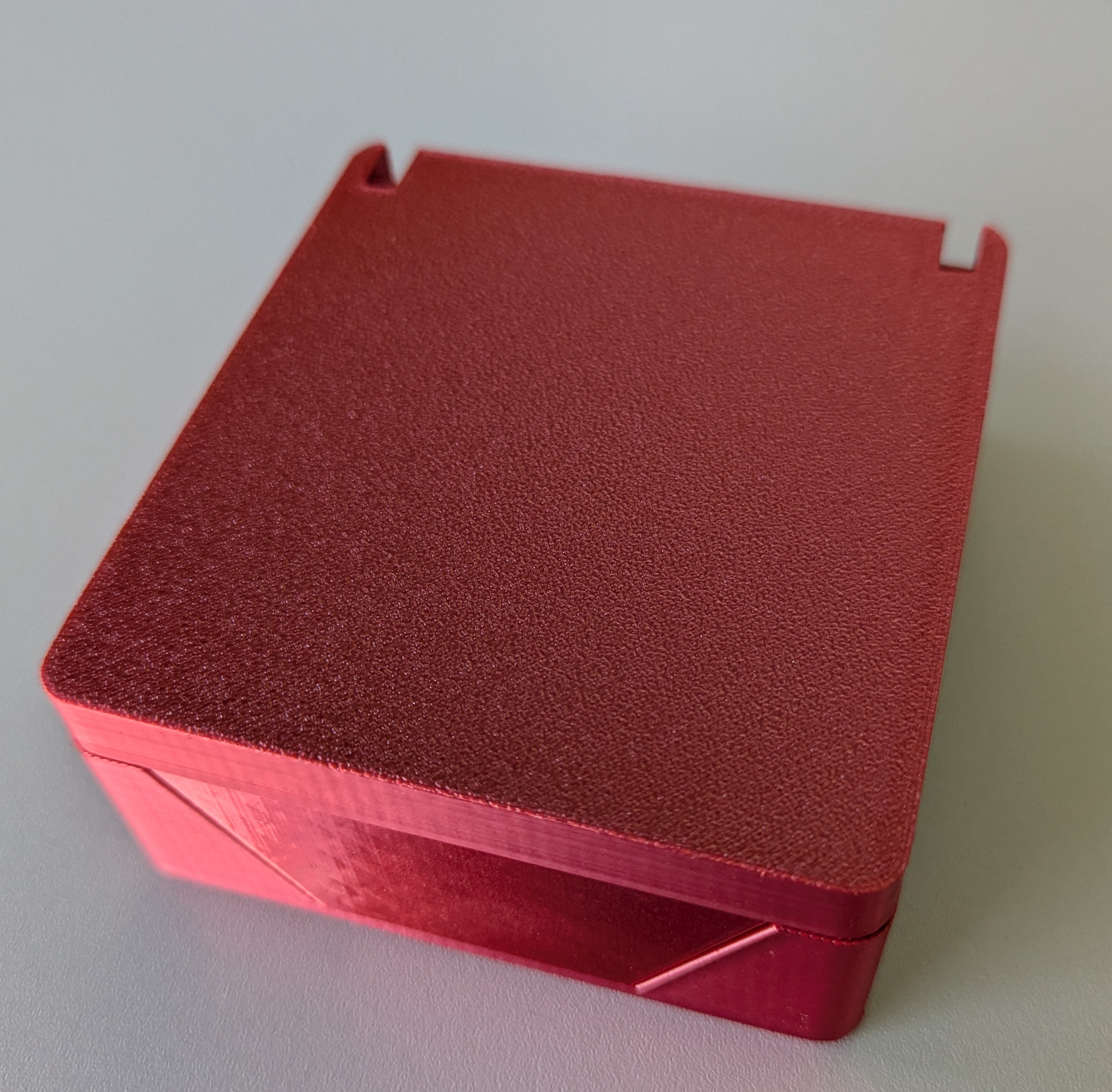

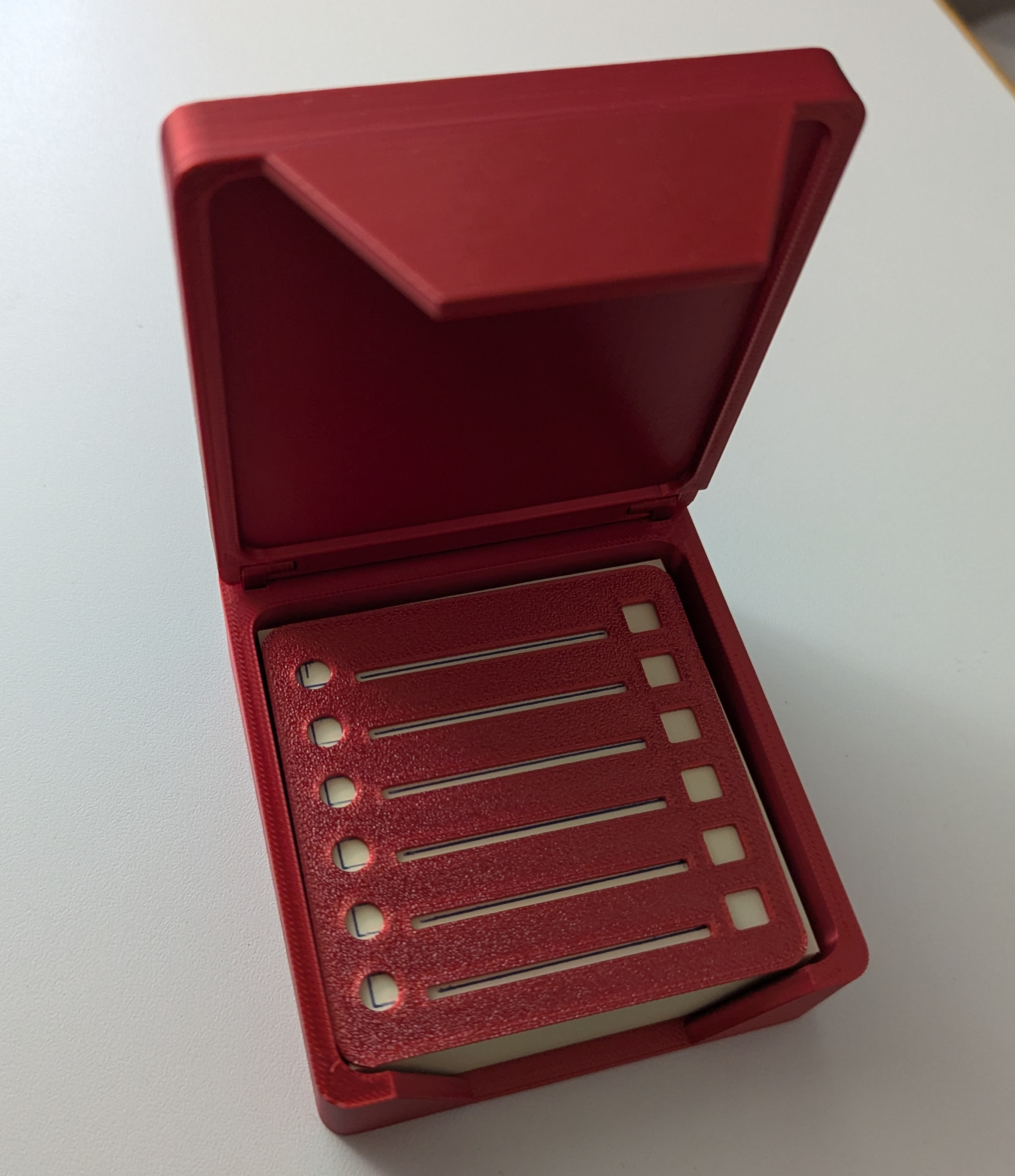

A Post-It box where the stencil for the to-do list can be placed inside. It was created for 76x76mm Post It's. A 70x70mm version has also been uploaded.
The hinge is the same for both (there are 2 version. One has the same dimensions as the hole and the other is slightly narrower to fit better).
It has also only been tested with PLA. I can't say anything about other materials.

Assembly instructions:

  1. Check whether both hinges fit into the recess. If necessary, rework with a file or knife so that it fits in at least a few millimeters. Do not put it in completely!
  2. Both hinges should be inserted into the recess in the ceiling. This can be a little fiddly. It is best to insert them at an angle from the side.
    (The design means that the cover cannot be removed so easily later).
  3. Both hinges should be inserted into the recess in the lid. This can be a little fiddly. It is best to insert them at an angle from the side.
    (Due to the design, the lid cannot be removed so easily later. You can also test whether it can be pushed on with pressure. This was initially planned. However, I had no confidence in it when printed out).
  4. Insert the hinges slightly into the box and press them in with the lid. The closed cover should seal the entire area. (except for the little bit at the back)

Maybe I'll create a slightly smaller box one day. I also thought about whether the template could perhaps be stored in the lid? Maybe I'll do that one day or maybe you will? :D

Printables

Post-It Holder Box

Publicado em 27 de abr de 2025

7
Curtidas
32
Downloads
2
Impressões
Categoria Office
Tags
box organizer postit todolist todo
Licença Creative Commons — Attribution
Arquivos (19)
2x_hinge_Same as hole.3mf 7.5 KB
2x_Schanier_0.1mm smaller.3mf 7.7 KB
2x_hinge_0.25mm smaller.3mf 7.6 KB
Deckel_70x70.3mf 27.9 KB
lid_70x70-Körper.3mf 13 KB
stencil_square_70x70.3mf 9.7 KB
stencil_both_70x70.3mf 35.2 KB
stencil_circel_70x70.3mf 33.7 KB
Box.step 38.3 KB
lid.step 61.2 KB
2x_hinge.step 8.3 KB
stencil_both.step 81.7 KB
stencil_square.step 74 KB
stencil_circel.step 51.6 KB
Box.3mf 12.9 KB
lid.3mf 25.6 KB
stencil_both.3mf 34.9 KB
stencil_square.3mf 9.5 KB
stencil_circel.3mf 33.8 KB
