Modelo 3D modular tilt drawer storage por Yezywezy no Printables

Descrição

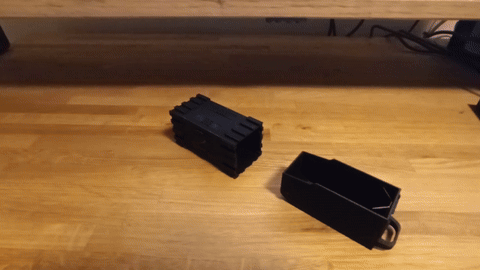

This is a modular storage system.
When opened, the dwarer conveniently drops to 30 deg angle and exposes the content.
There are 9 combinations available (width x height): 1x1, 1x1.5, 1x2, 1.5x1, 1.5x1.5, 1.5x2, 2x1, 2x1.5, 2x2 (let me know, if you are interested in more sizes). Each module is 42mm. The depth of the housing is 2 modules.

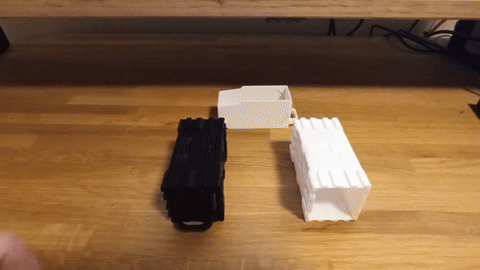

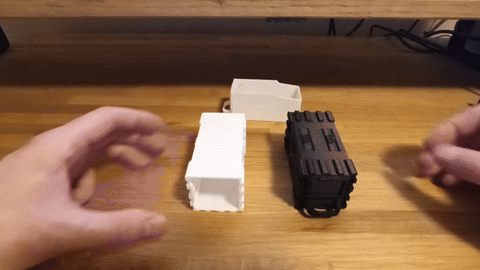

Housing name starts with module type and ends with rail direction (N - top; S- bottom; E- right; W- left).

Drawer has a module type in the name. Mount rail also identifies module type.

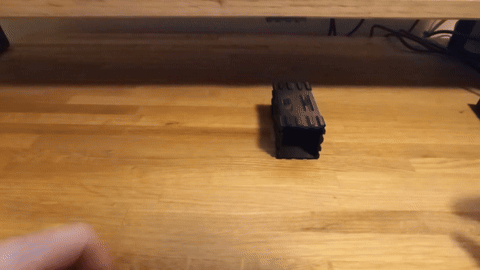

Mounting plate is also provided in increments of 1, 1.5, 2 modules, to allow interfacing with support surfaces.

Backplate mounting is also available.

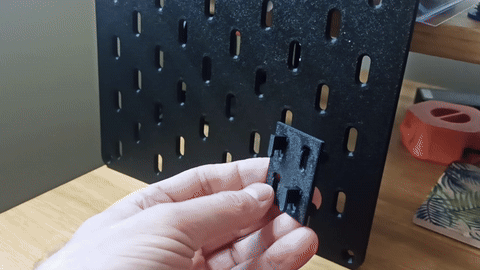

Backplate adapter can be attached to the module and slide on a backplate.
Backplate is available for skadis system.



Enjoy :)

Printables

modular tilt drawer storage

Publicado em 31 de dez de 2025

18
Curtidas
50
Downloads
Categoria Organizers
Tags
box modular storage tilt skadis drawer
Licença Creative Commons — Attribution — Noncommercial — NoDerivatives
Arquivos (6)
modularStorage_backplate_adapter_mount.3mf 766.9 KB
modularStorage_side_mount.3mf 186.2 KB
modularStorage_backplate_skadis_mount.3mf 1.1 MB
modularStorage_drawers.3mf 1.5 MB
modularStorage_housing.3mf 5.2 MB
modularStorage_leg.3mf 350.8 KB
