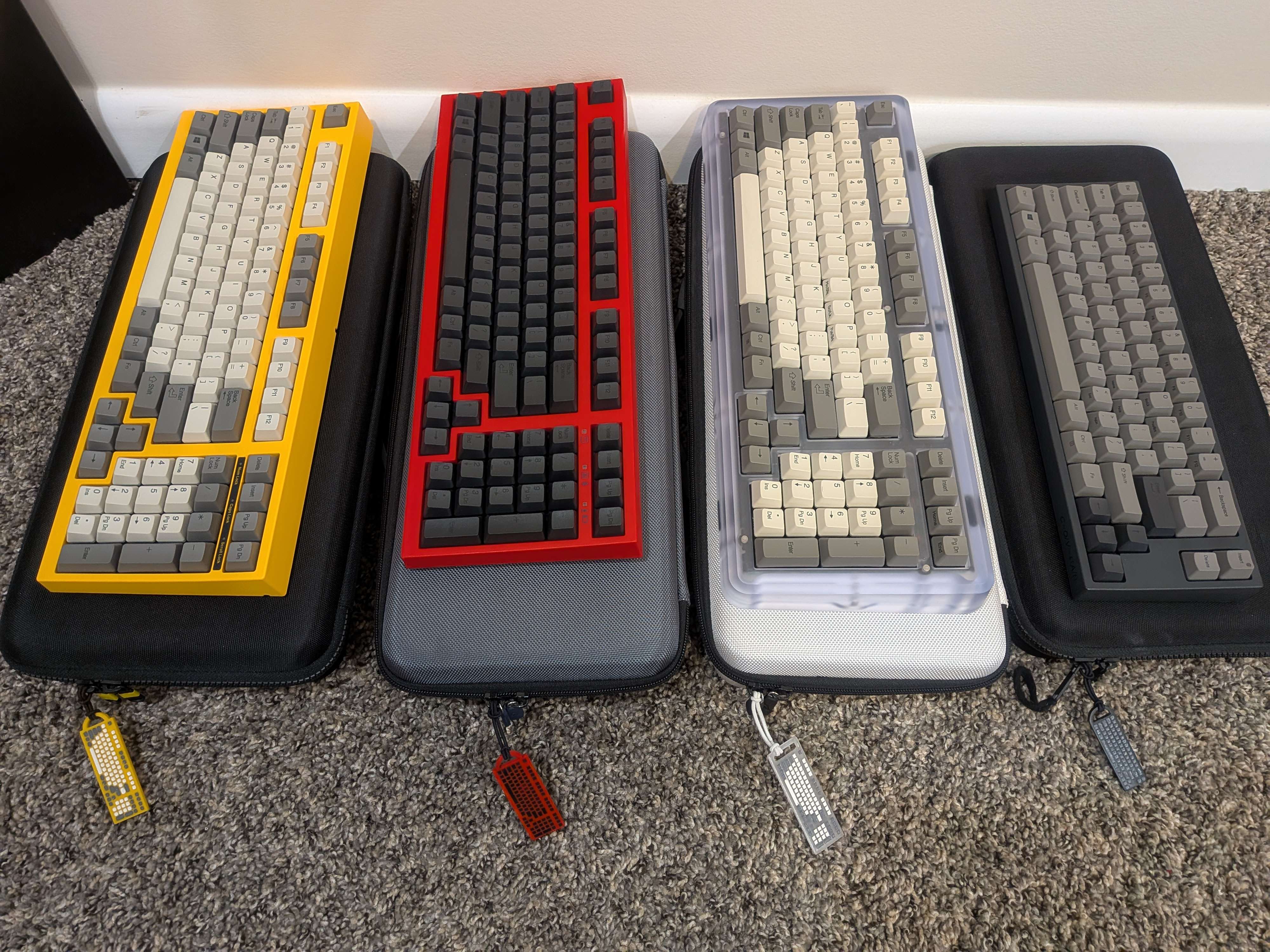

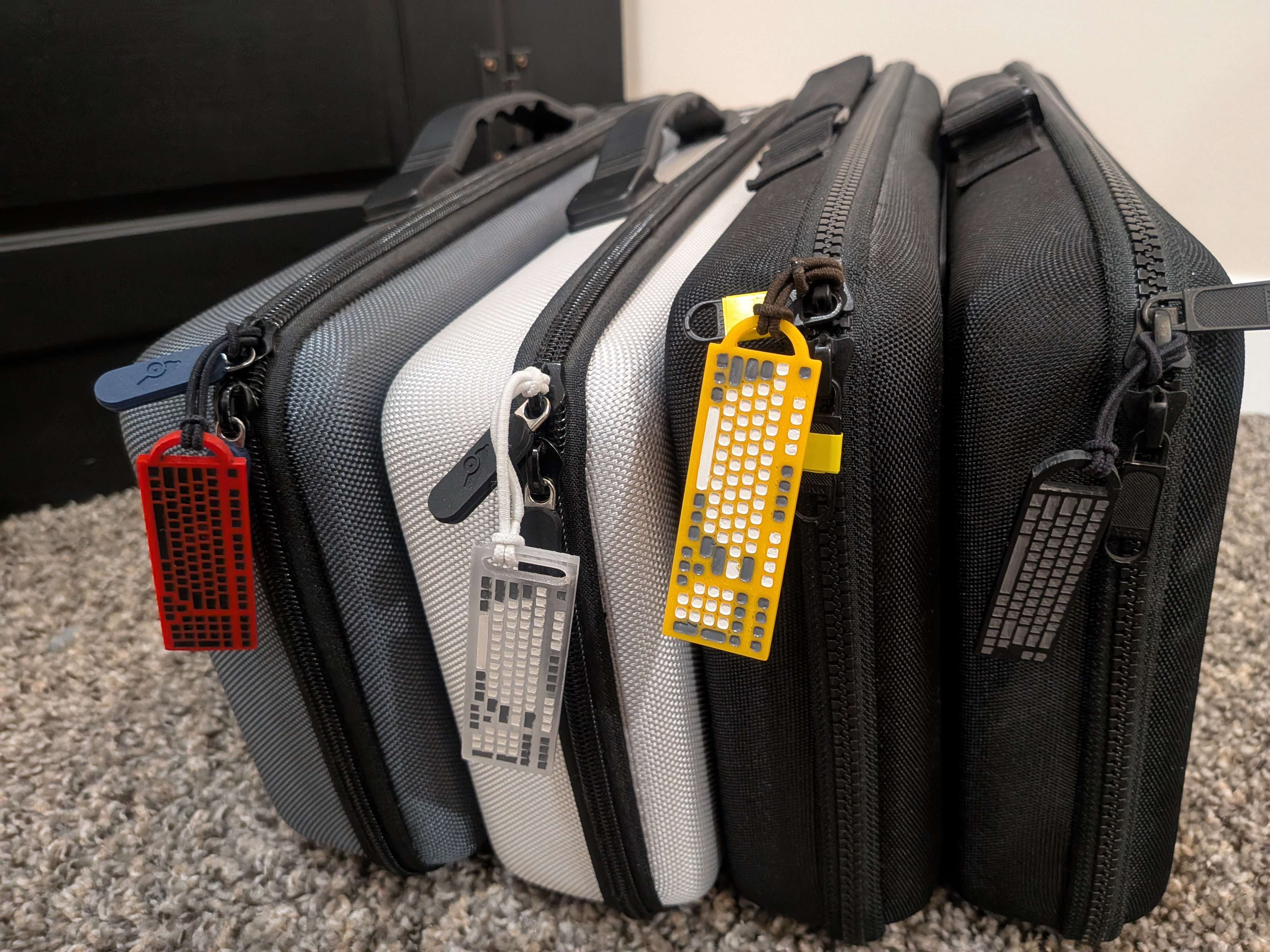

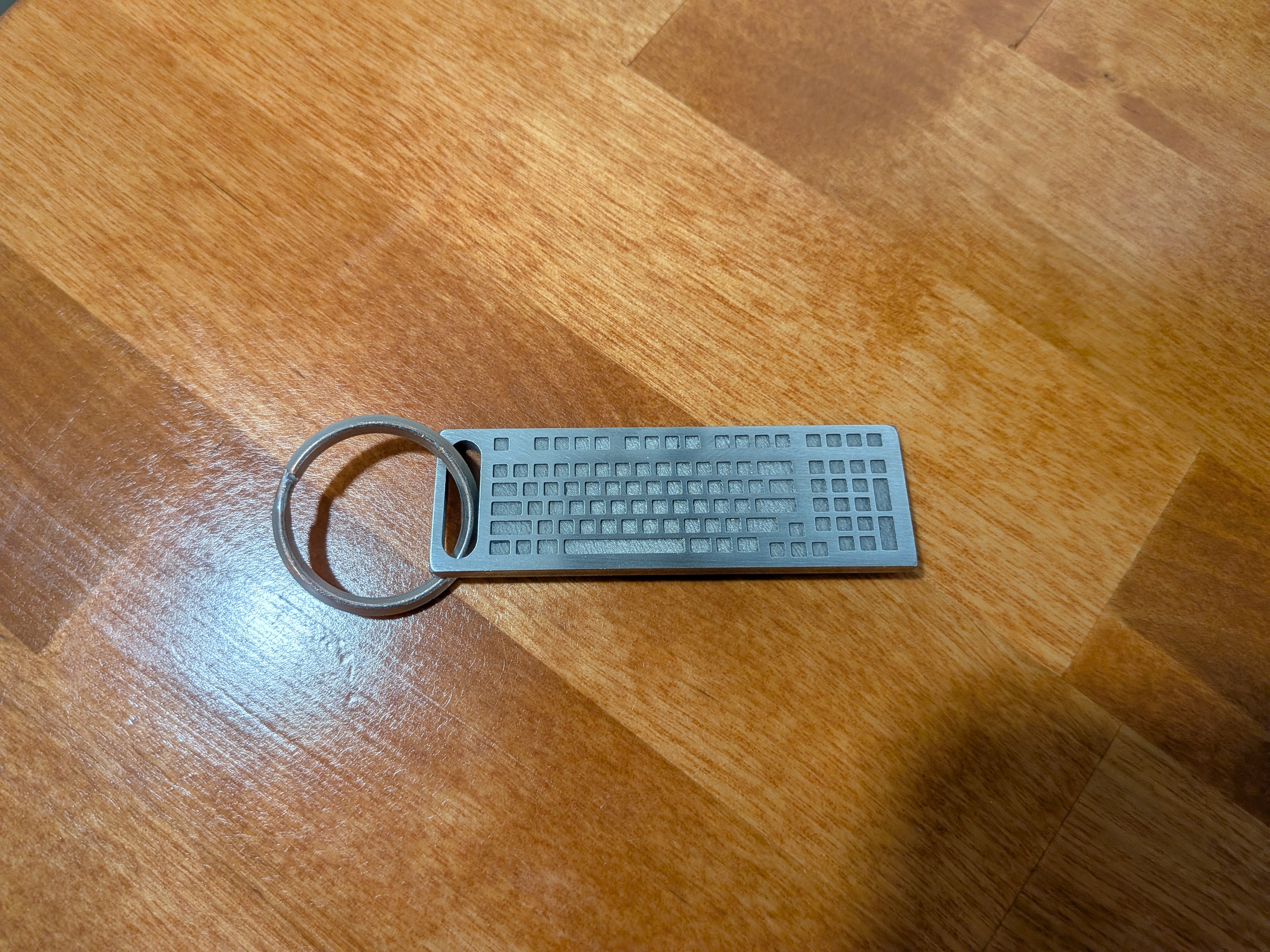

Keyboard Keychain/Tag

Included some keyboard models will add a couple in the future.  Follow customize section below to create your own.

Printing / Finishing

1. To embed a logo or text use a first layer height of 0.32mm so only one filament change is needed
2. Print (recommend vertical orientation rather than flat if printing single color)
3. Wet Sand with 220, 320, 600 & 1500 grit
4. To fill in the embedded keys used acrylic paint with a syringe (3 layers let dry between)
5. Let paint dry paint
6. Sand again to clean up paint
7. Rinse off with water & dry
8. Polish with wax to bring back some of the luster lost from sanding

Alternative: Could not quite get what I was looking for with ABS vapor smoothing but included the files and images because it was looking very neat

Customize with your layout

1. Use keyboard layout editor to design your layout
2. Download SVG (Experimental)
3. Remove all the rectangles from the SVG except the ones that contain inner class
   1. Made a helper page to do this: [http://davek184.github.io/keyboardkeychain](http://davek184.github.io/keyboardkeychain)
4. Import into 3d editor, TinkerCAD or Slicer (resized to 5.5% of original)

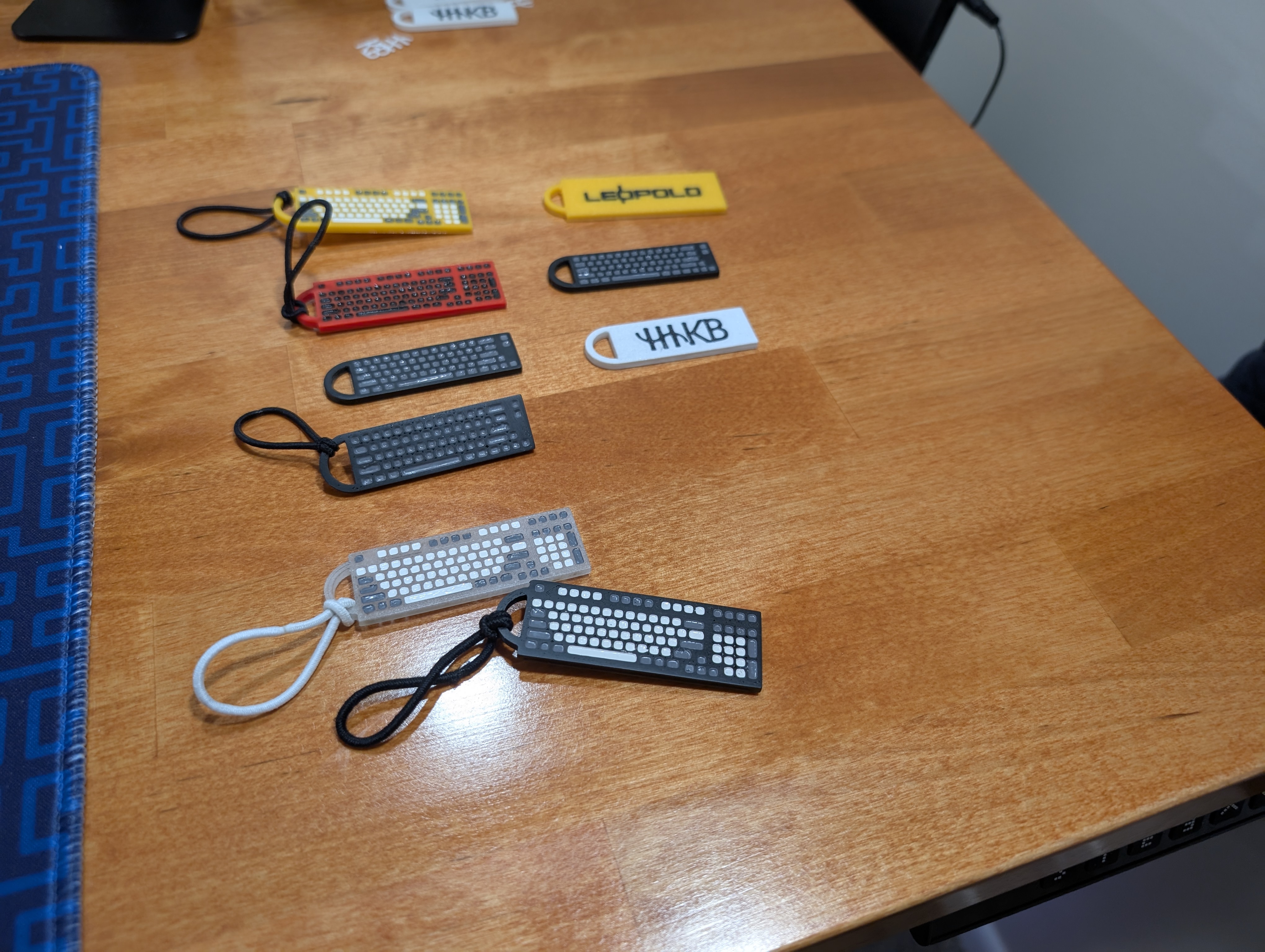

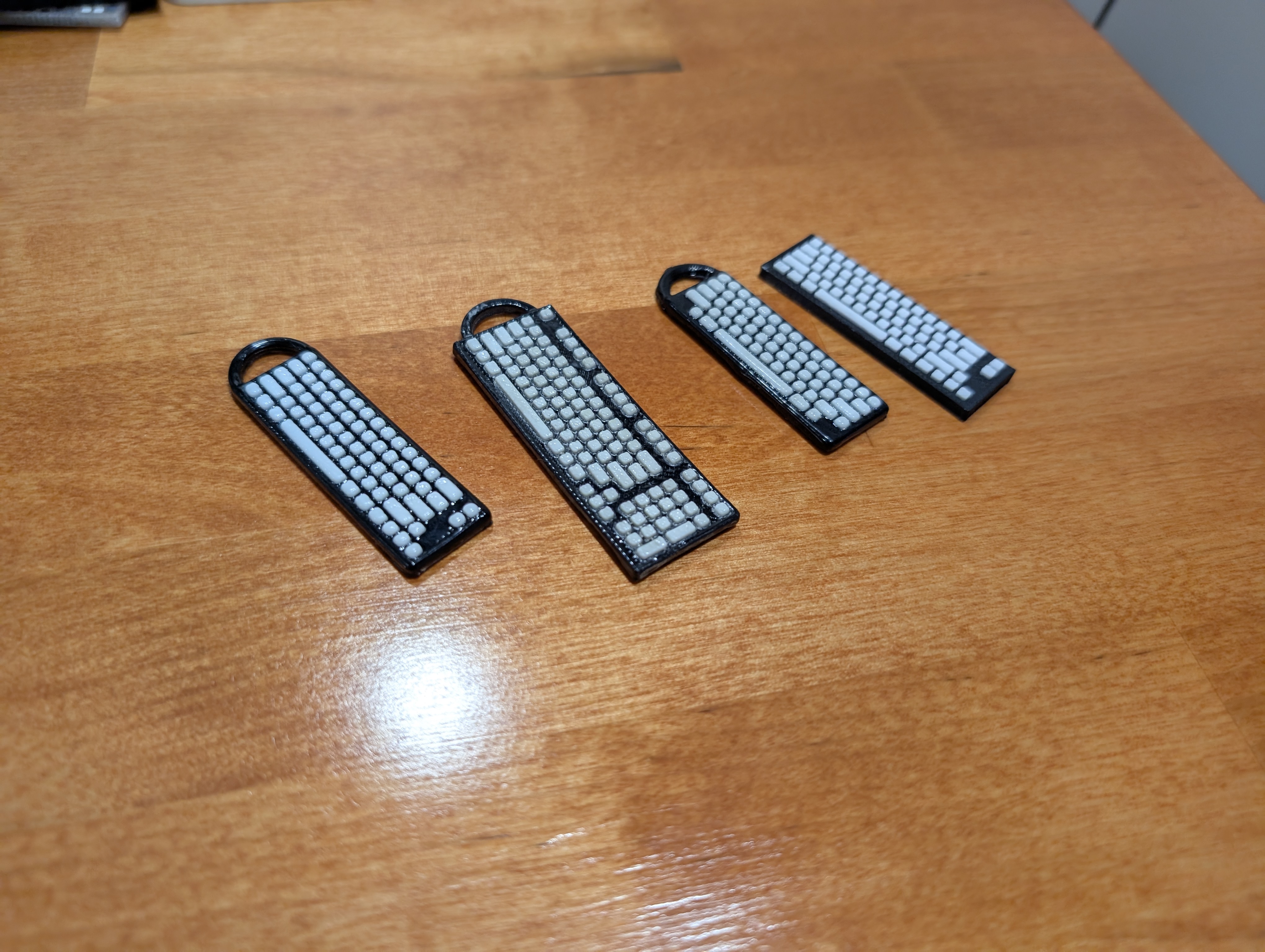

5. For the keys used either 0.75 embedded or raised
6. For the logo used a height of 0.32mm
7. Make a rectangle around the keycaps (3mm depth, height / width of keycaps +3mm)

KeyCAD

Design

Note: There are quite a few variations
