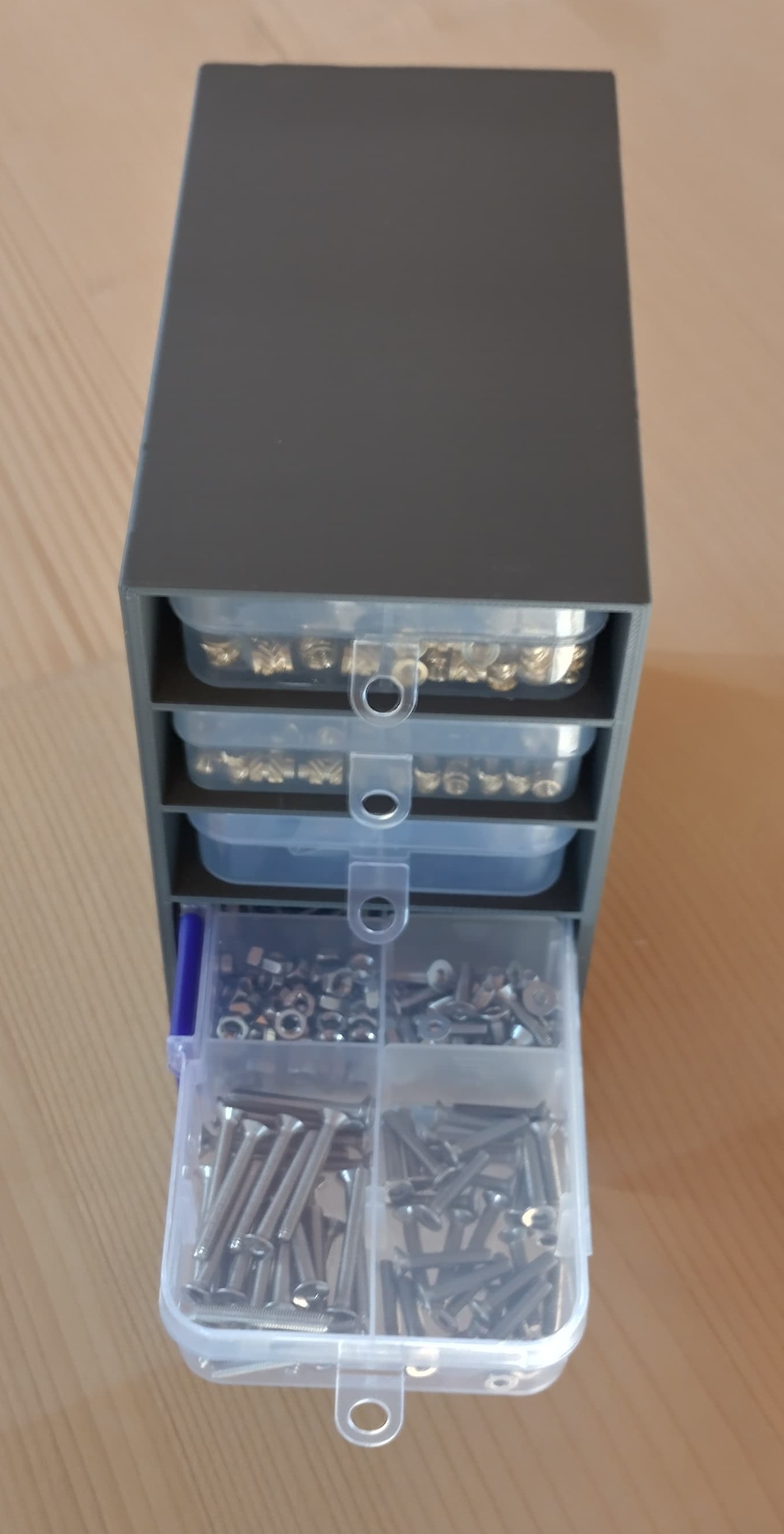

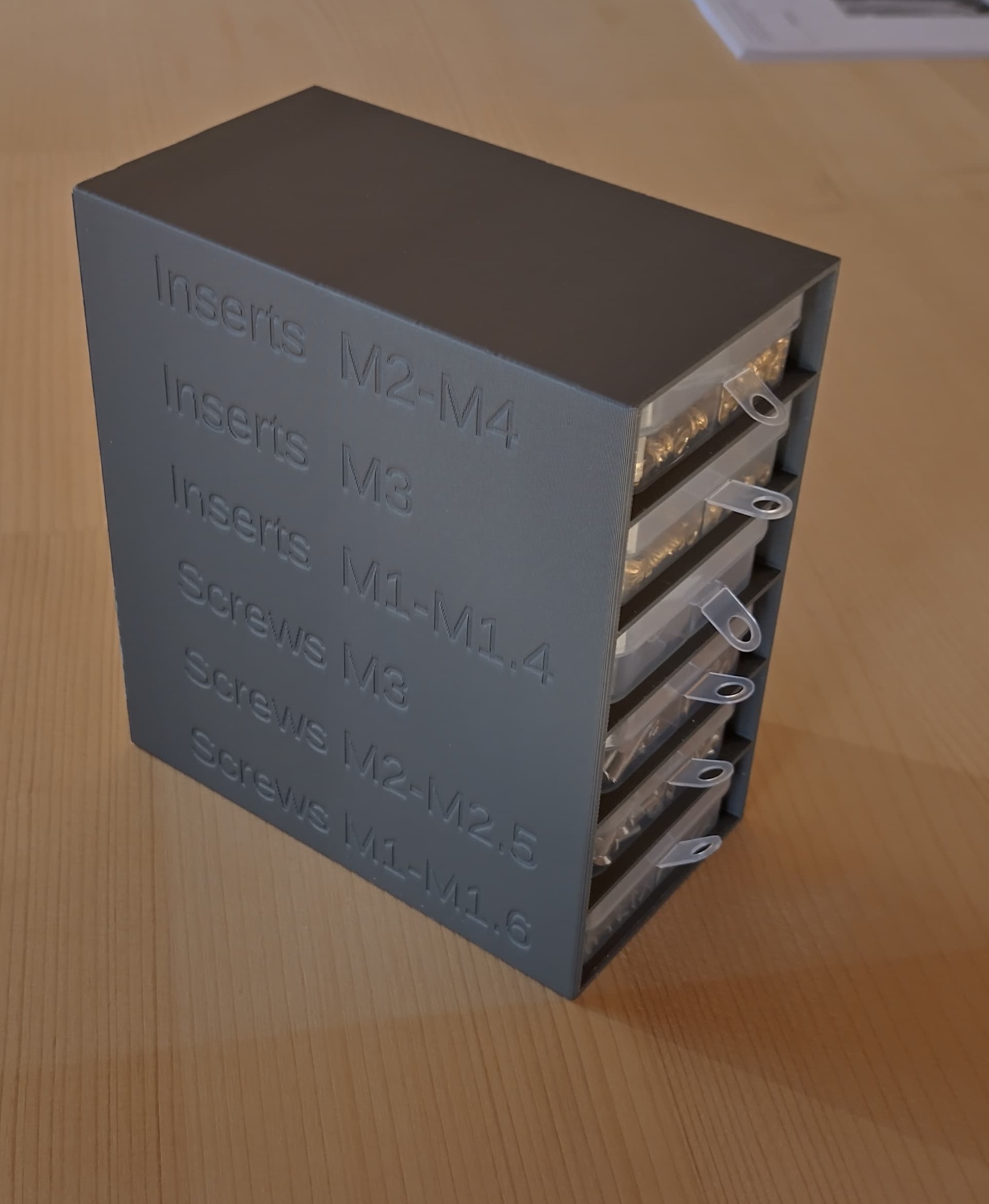

Openscad model for a small shelf to keep the 10-grid (23x70x130 mm) sets organised.

STL files work for most small sets, if not, just adapt it via the three variables cutout_length,
cutout_width and cutout_height.

Other parameters include amount of cells (num_blocks), wall thickness and rounding radius.

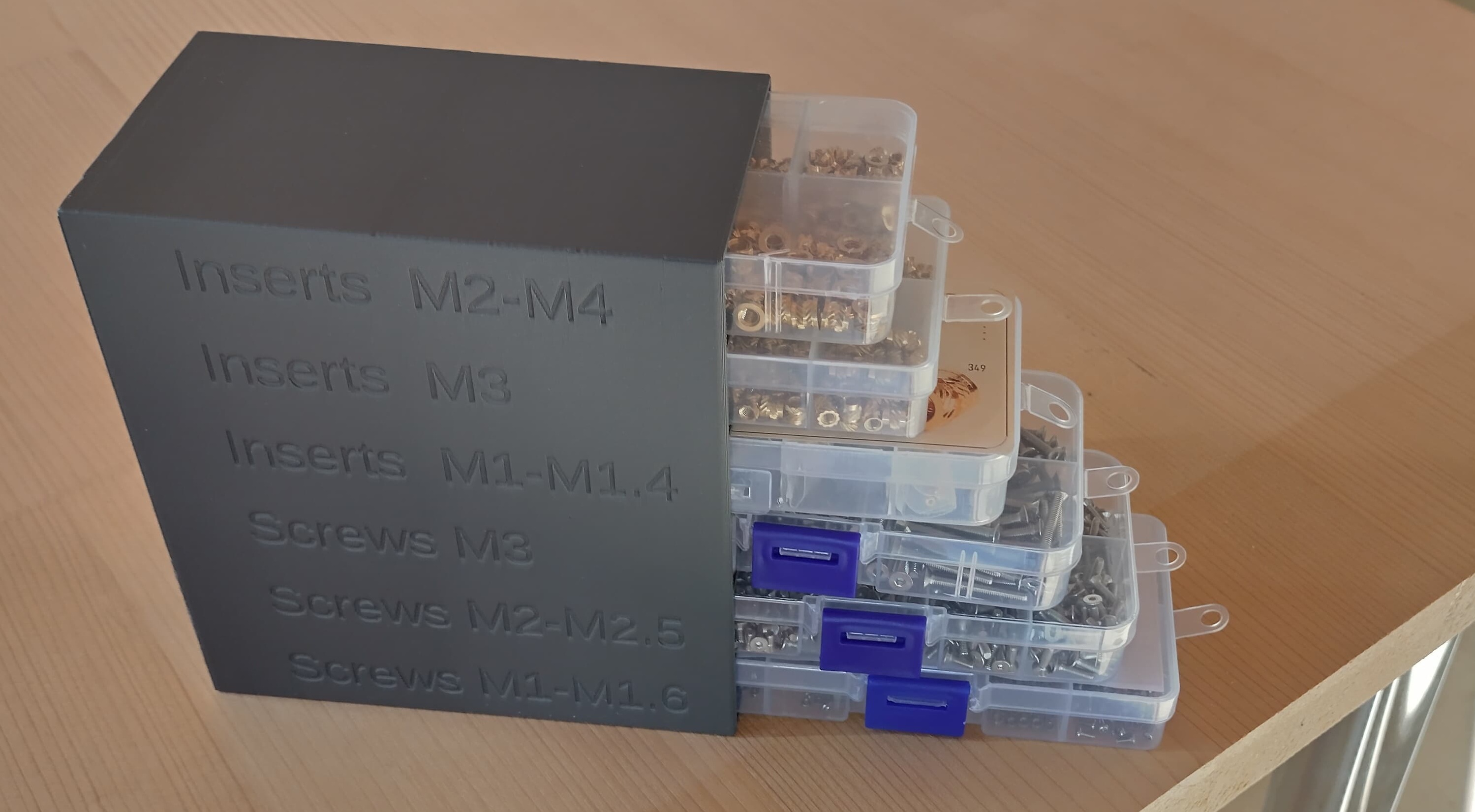

Text can be added in the array embossed_texts for a 6 cell shelf for example:

• embossed_texts = ["Screws M1-M1.6", "Screws M2-M2.5", "Screws M3", "Inserts  M1-M1.4", "Inserts  M3", "Inserts  M2-M4"];

The set boxes can be found if you google “10 Grid Set Box”.

Update 12.04.2025:

1. fixed emposs text depth
2. Added ECO STL and OpenSCAD which reduces the inner seperation walls, -100g for the 6 Slot design.
