Injection Molding Machine - Closing Unit — STL Grátis

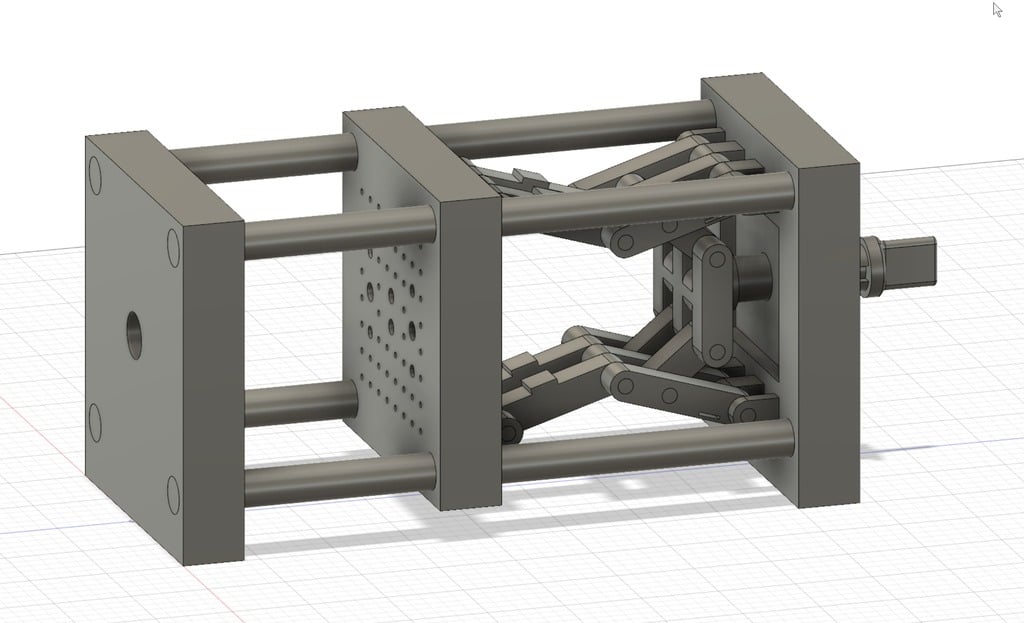

A small model of a Injection molding machine, reduced to the most necessary parts.

Please hit "like" if you download it.

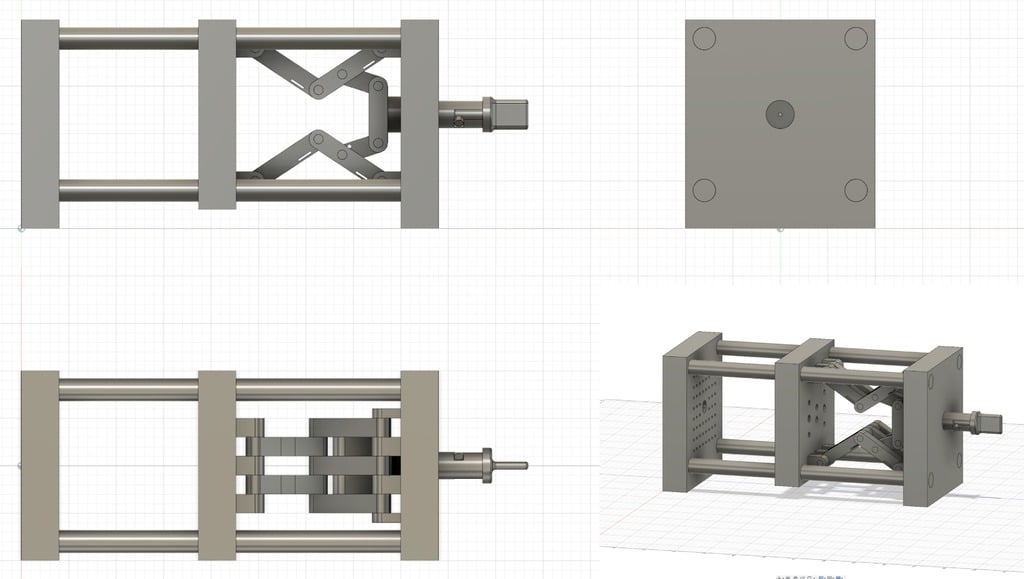

The lever translation is visible very nicely.

Sorry, I did a mistake on scaling. Repaired it.

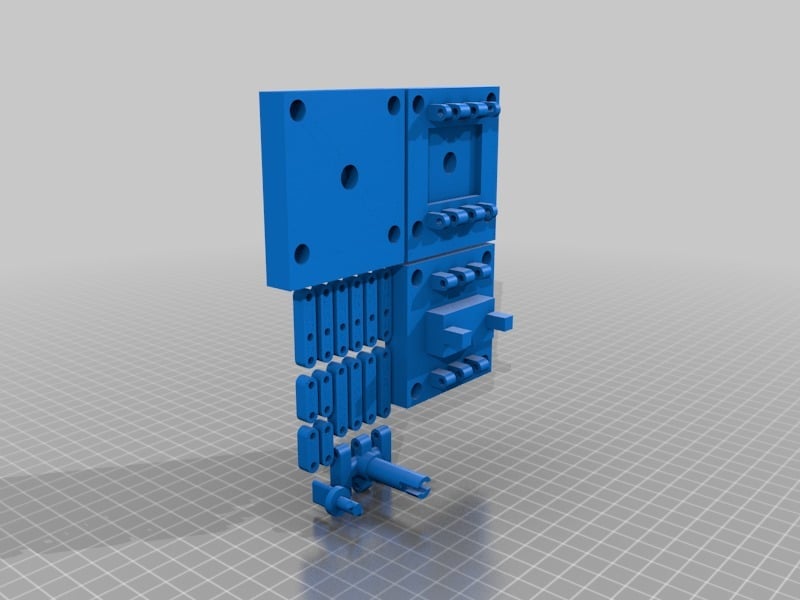

The fusion 360 model is 100%, the obj file and cura file is 60% for use with straws and Q-tips.

ATTENTION: change holes according to your straw size (LOL)

Printer Brand:

Creality

Printer:

CR-10S

**Rafts:**

Supports:

Yes

**Resolution:**

0,2

Infill:

**Filament:** 3D Hero PETG red

Notes:

Print: on blue tape, slower than PLA for PETG, I tried 42mm/s or m/s? lol, not sure, look in the 3mf or the g-code for details

Post-Printing =============

Material Needed: Drinking straws (Trinkhalme als Holme) Q-Tips

Use cut resistant gloves and safety goggles for your protection!

Remove "support" with cutter knife and a pair of pliers.

For assembly you have to get creative XD

Use q-tips for connecting the levers. Use drinking straws as columns.

All you have is the photo (at the moment, sorry)

As it seems different McDonalds have different straw suppliers -.-

Category: Other

Injection Molding Machine - Closing Unit
