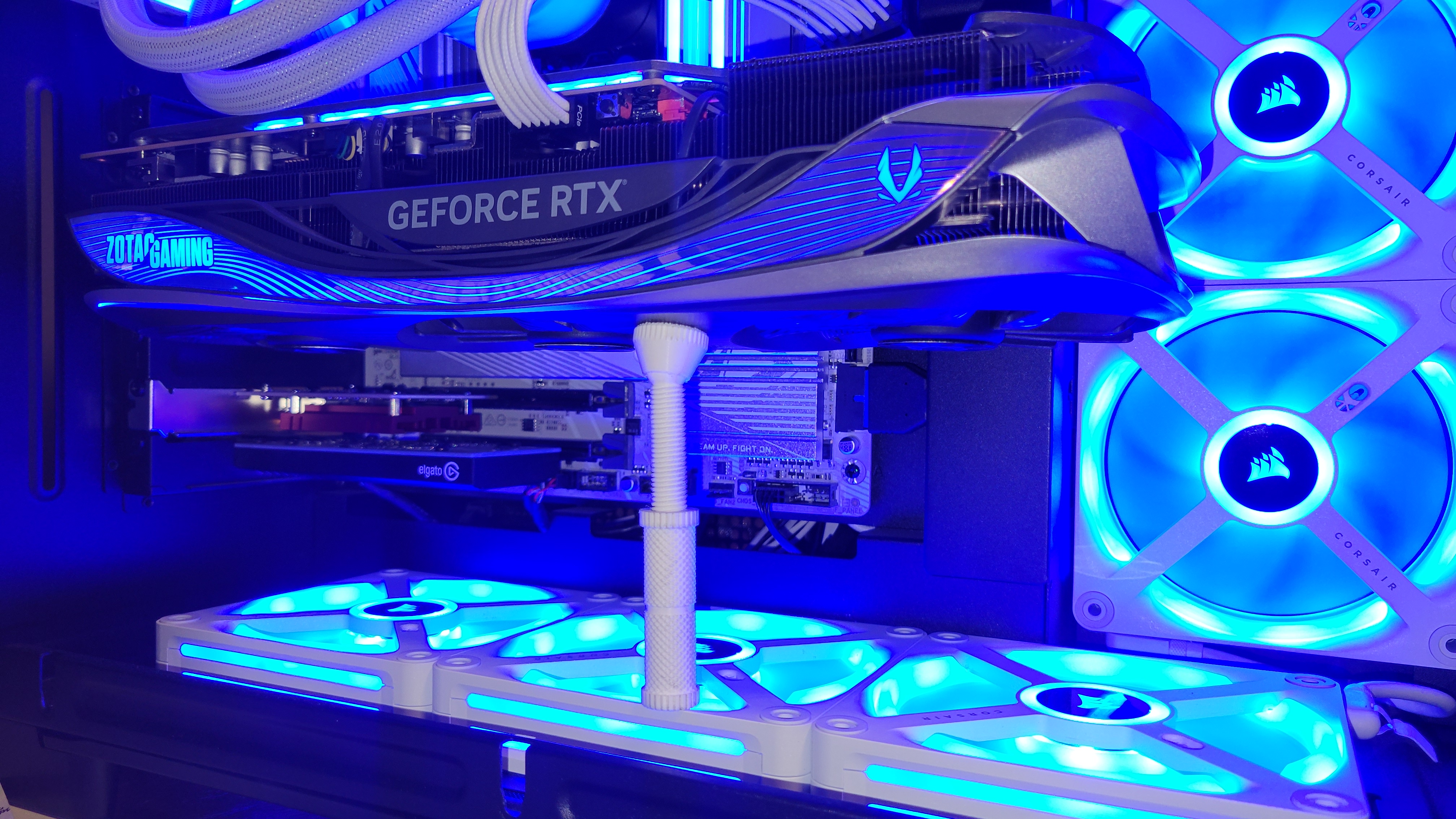

I designed this GPU support about a year ago (April 2024), because at the time I couldn't find any online with an aesthetic I liked and I felt would work with my setup. I wanted something that would work well with my Zotac RTX 4080 Amp Extreme in my NZXT H9 Flow case. I used some other GPU supports I found online as inspiration for this one and I really like the way it turned out. I designed it to adjust to different heights to accomodate different cases and also designed the support head on a ball joint so it can adjust to the countours of varying GPU's. There is also a locking ring that allows you to lock the support at the height you set it to.

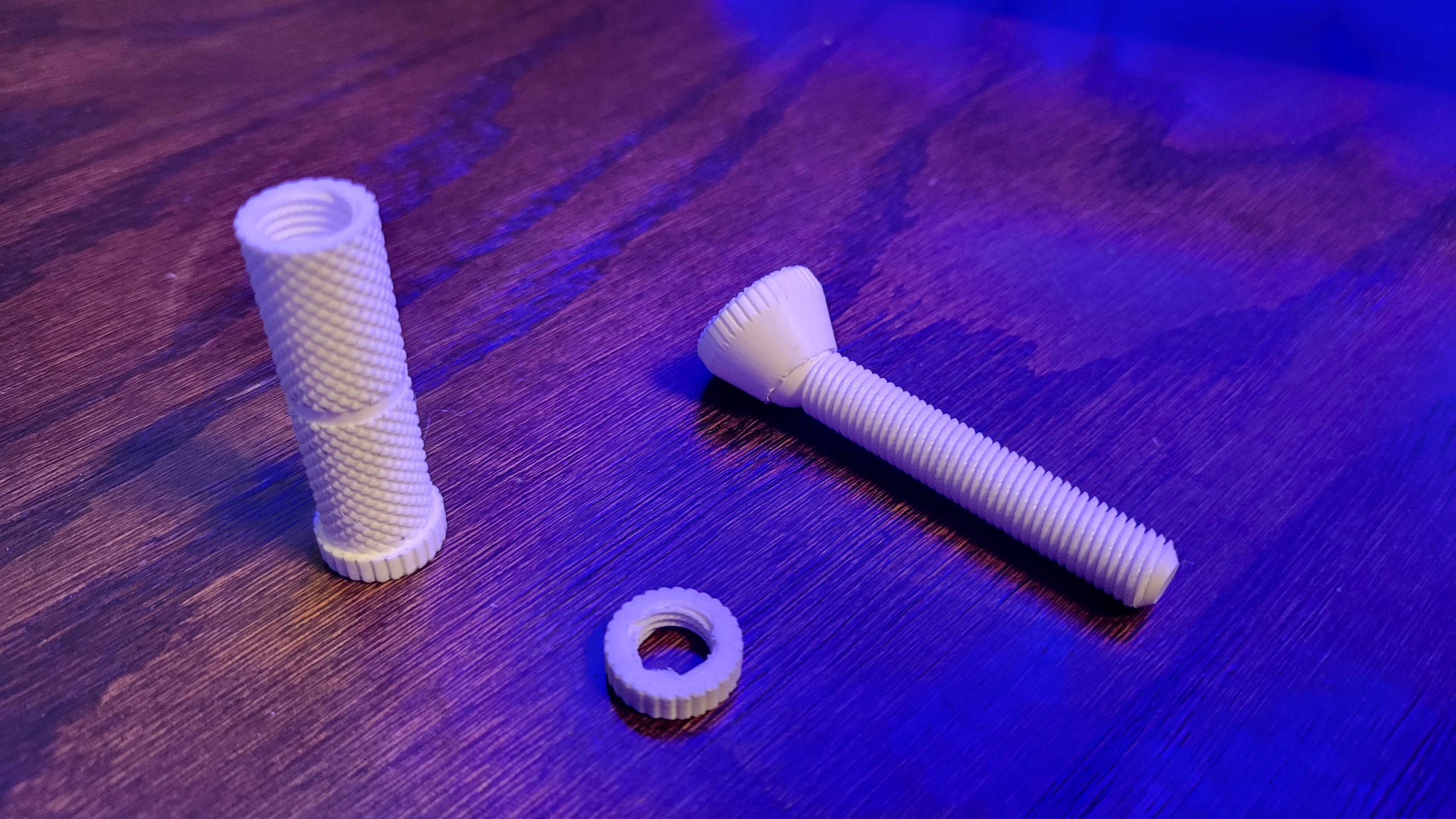

I designed two different screw lengths; 88mm and 67mm. When screwed into the base of the support, the 88mm screw allows for height adjustment between 95mm to 125mm and the 67mm screw allows for height adjustment between 75mm to 110mm.

Filament Type: I've used both eSun PLA+ and Bambu Lab PETG Basic and both have worked perfectly, so more robust materials such as ABS or ASA are not necessary, but you can use whatever you want.

My Printer: Bambu Lab P1S

Slicer: Bambu Studio

Print Settings I use:

• Layer height: 0.12mm
• Wall generator: Archane
• Seam position: Aligned
• Order of walls: outer/inner
• Only one wall on top sufaces: Top surfaces
• Only one wall on first layer: enabled
• Walls: 3
• Top shell layers: 3
• Bottom shell layers: 3
• Sparse infill density: 25%
• Sparse infill pattern Gyroid
• Support: enabled
• Type: Tree
• Threshold angle: 20
