Video about the Designing process, The functionality and the Assembly

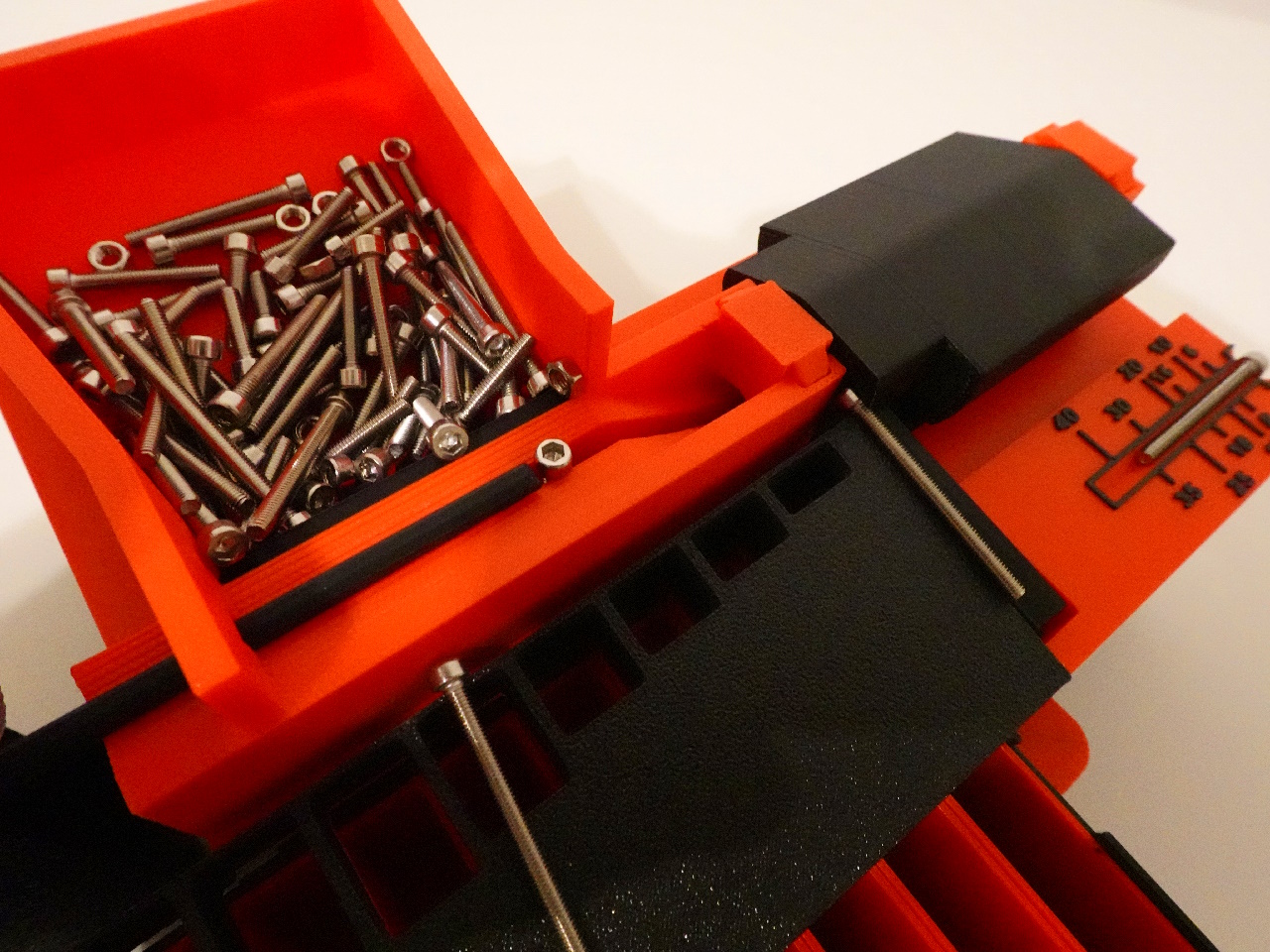

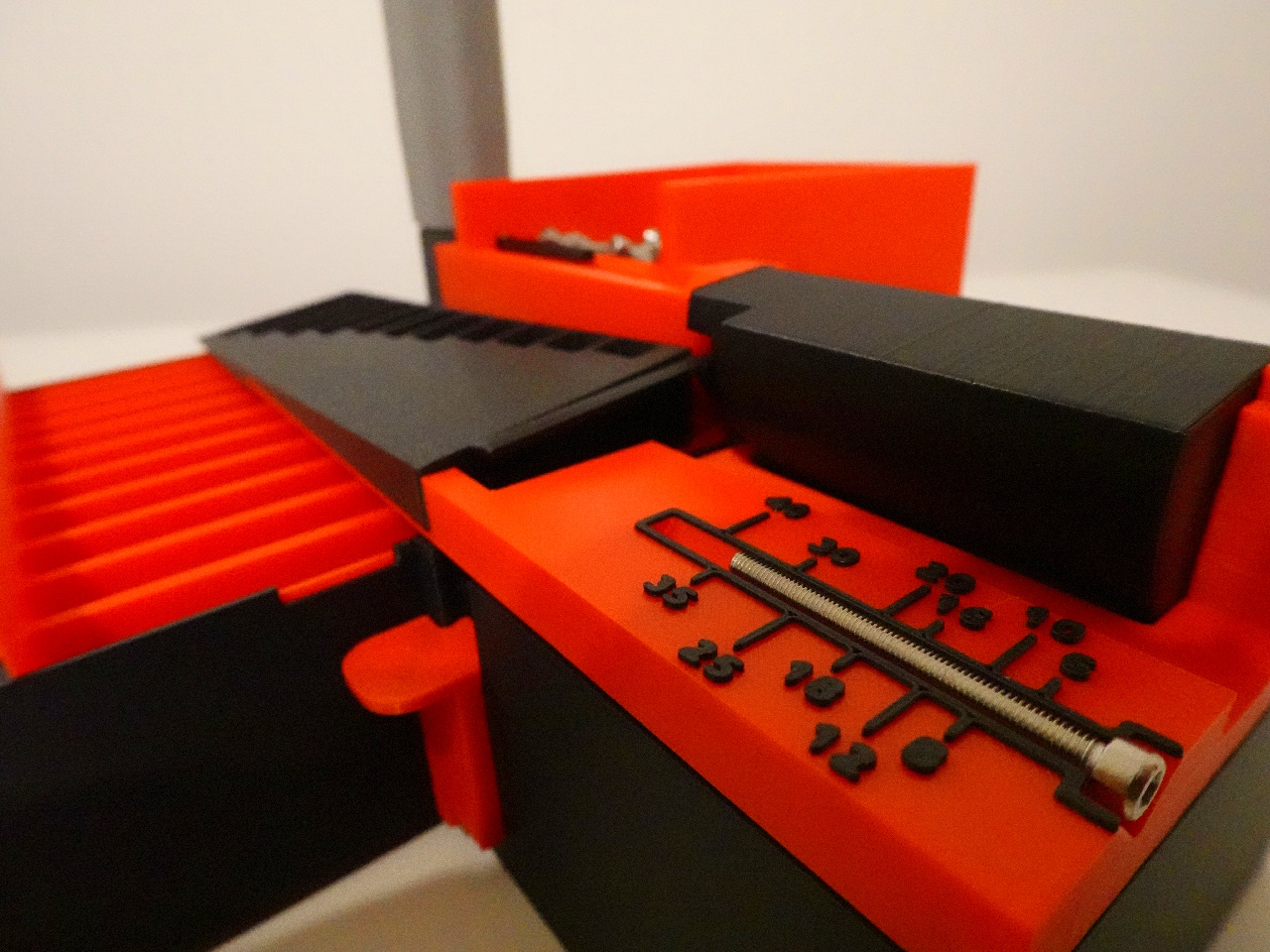

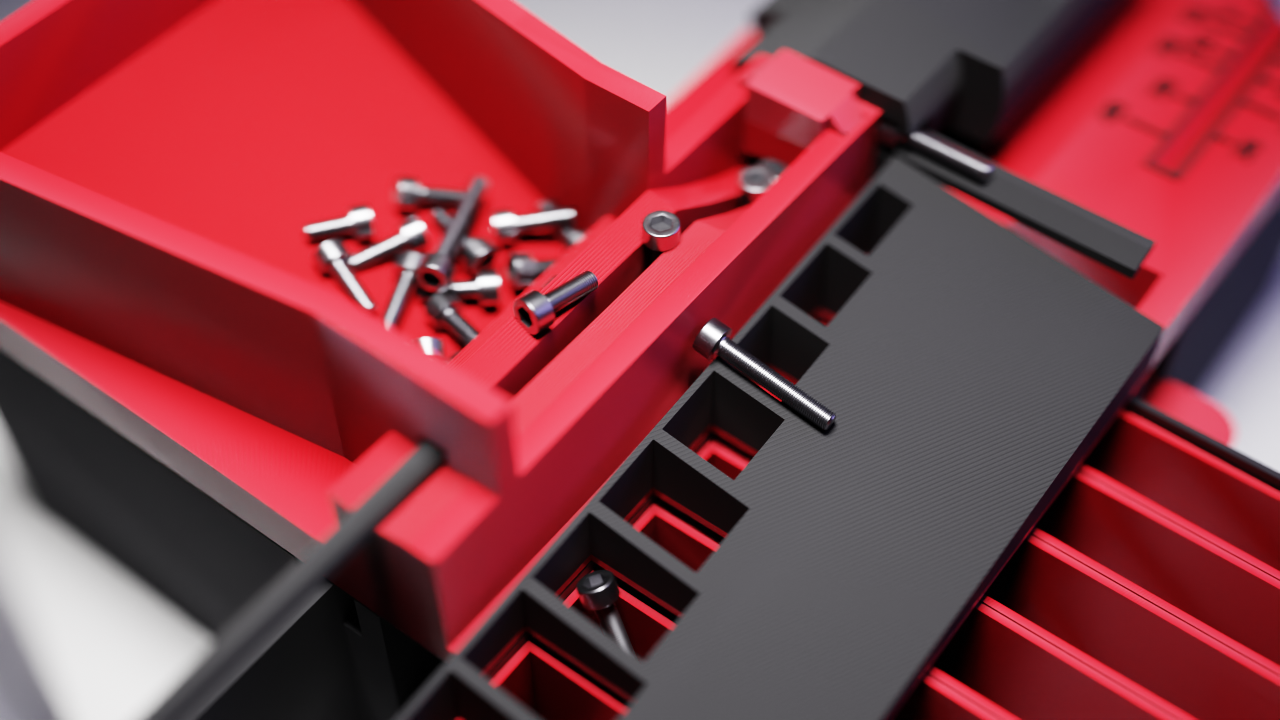

Mechanical Bolt Sorting Device for M3 bolts/Screws 6-40mm
End the struggle of manually sorting your cylinder head bolts
- Fully 3D Printed
- Operated by hand. No need for motors
- No other parts needed (Just a drop of glue)
- Printed with PLA
- High reliability
- Removable bins
Support my work by becoming a PATREON or Buy me a Coffee.
Supported Bolt Lengths:
- M3x6
- M3x8
- M3x10
- M3x12
- M3x16
- M3x18
- M3x20
- M3x25
- M3x30
- M3x35
- M3x40
PARTLIST:
- Base 1x
- Clamp 1x
- Container 11x
- Handle 1x
- LifterBig 1x
- LifterPin 2x
- LifterSmall 1x
- MainPlate 1x
- Rotator 1x
- Rotatorlid 2x
- Rotatorpin 2x
- SliderBottom 1x
- SliderTop 1x
- Sorter 1x
- Tray 1x
IMPORTANT:
- Operate the device slow for a reliable outcome. Swinging the handle too fast will cause failures
- Maker sure there is no elephant footing, brim or anything else on the rotator that can prevent the bolt from rolling out
FILAMENT I USED:
PLA+ from Elegoo (reflink)
Assembly:
