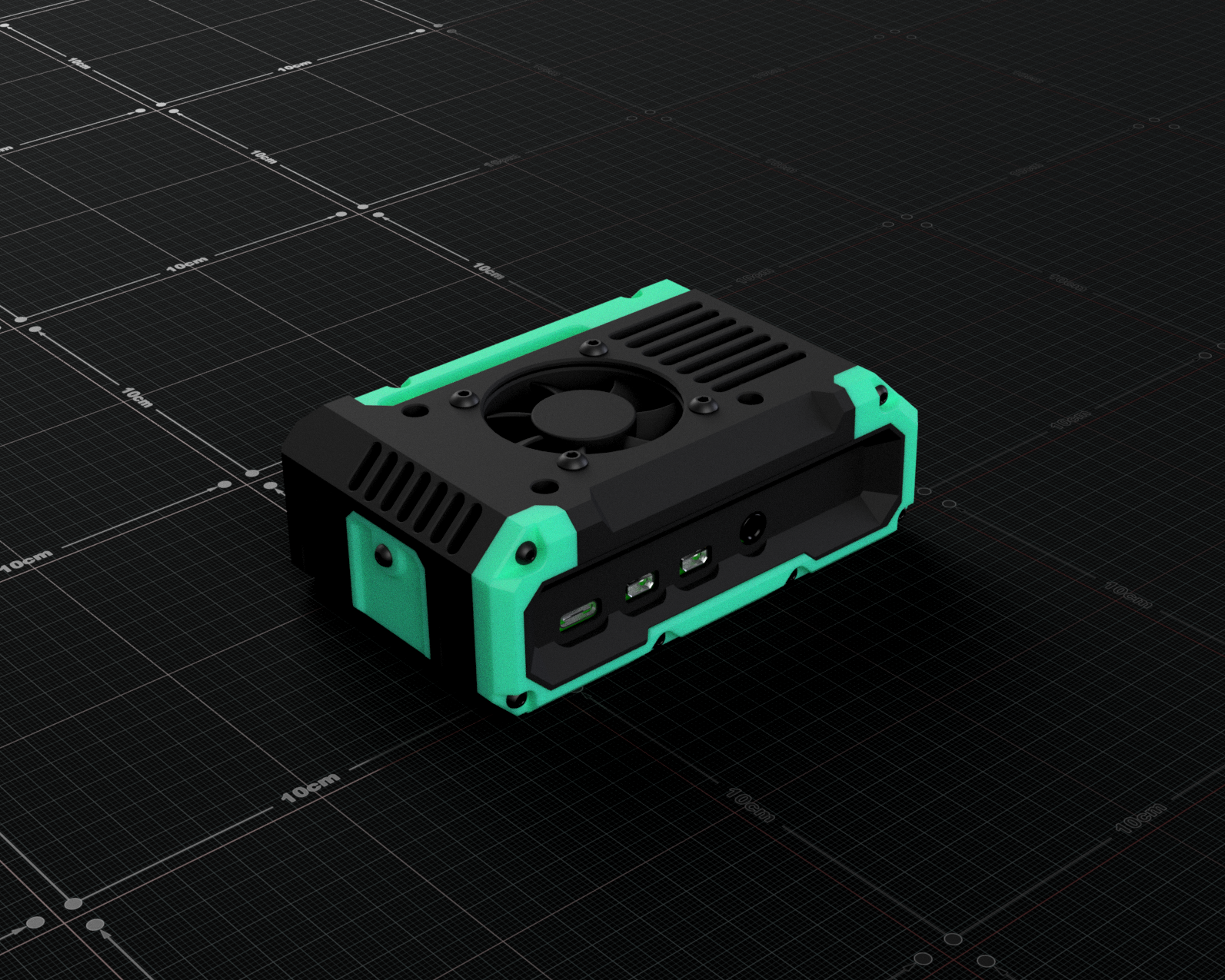

Made some updates to my Raspberry pi 4 case.

The updates include:

• micro-SD card access panel, requires x1 M2.5x6-10

• Extended the Case housing to give clearance for the SD Card when removing PI

• Removed material on the Pi mount making the installation/removal easier

• Case mounting holes now spaced 20mm apart

• Removed material around the front cable port access

 Here is a Accu Components link for all fixing listed above.

U will need:

• Case - M2.5x10 self-tapping screws X13

• Pi - M2.5x6-8 self-tapping screws X4

• Mounting Case - M5x10 BHCS or SHCS X2-4

• 4010 Fan - M3x12 BHCS X4 + M3 Heatset inserts X4

Here is a Accu Components link for all fixing listed above.

No supports are needed for this design.
