Spools for electrical wire roles

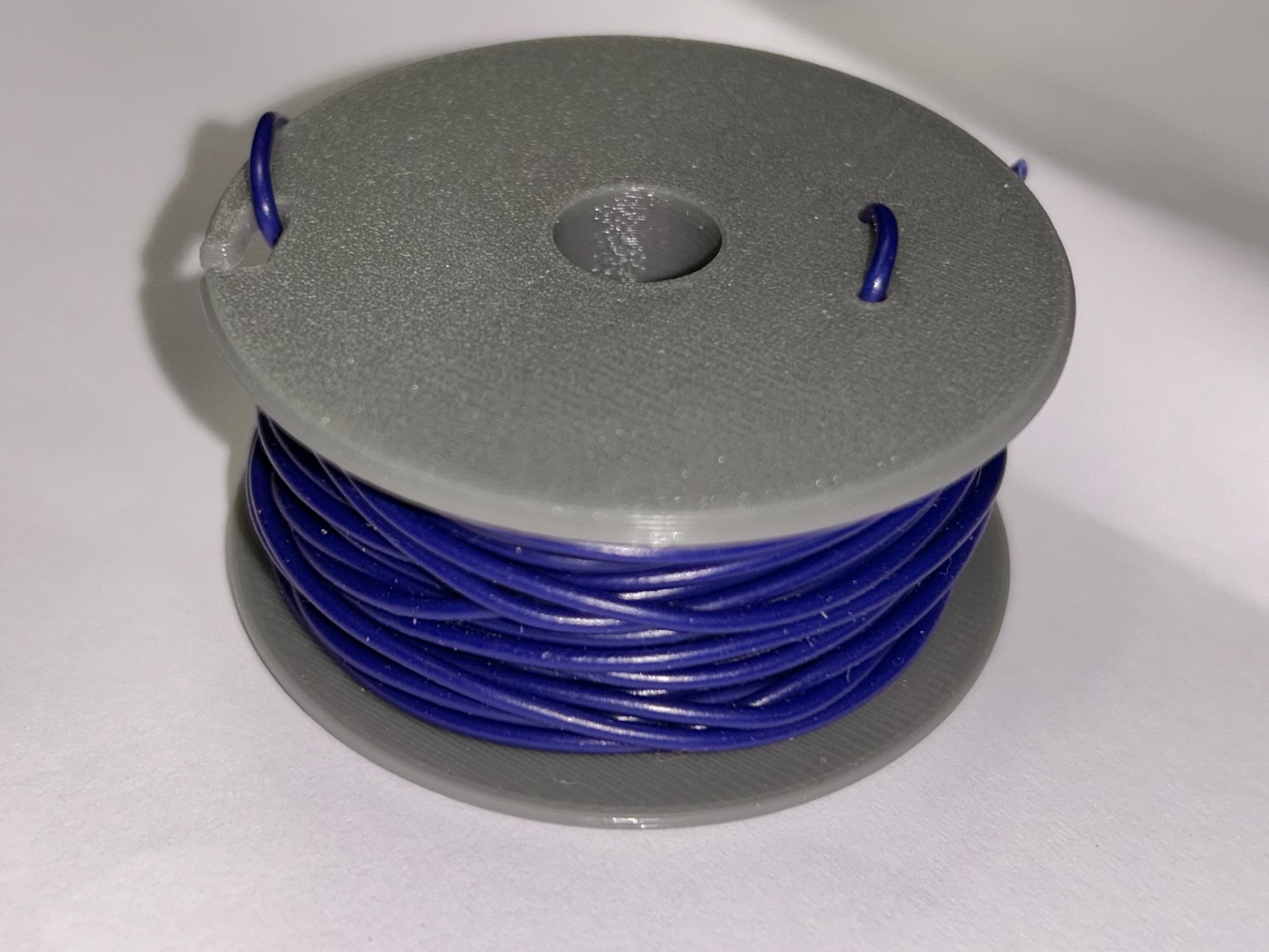

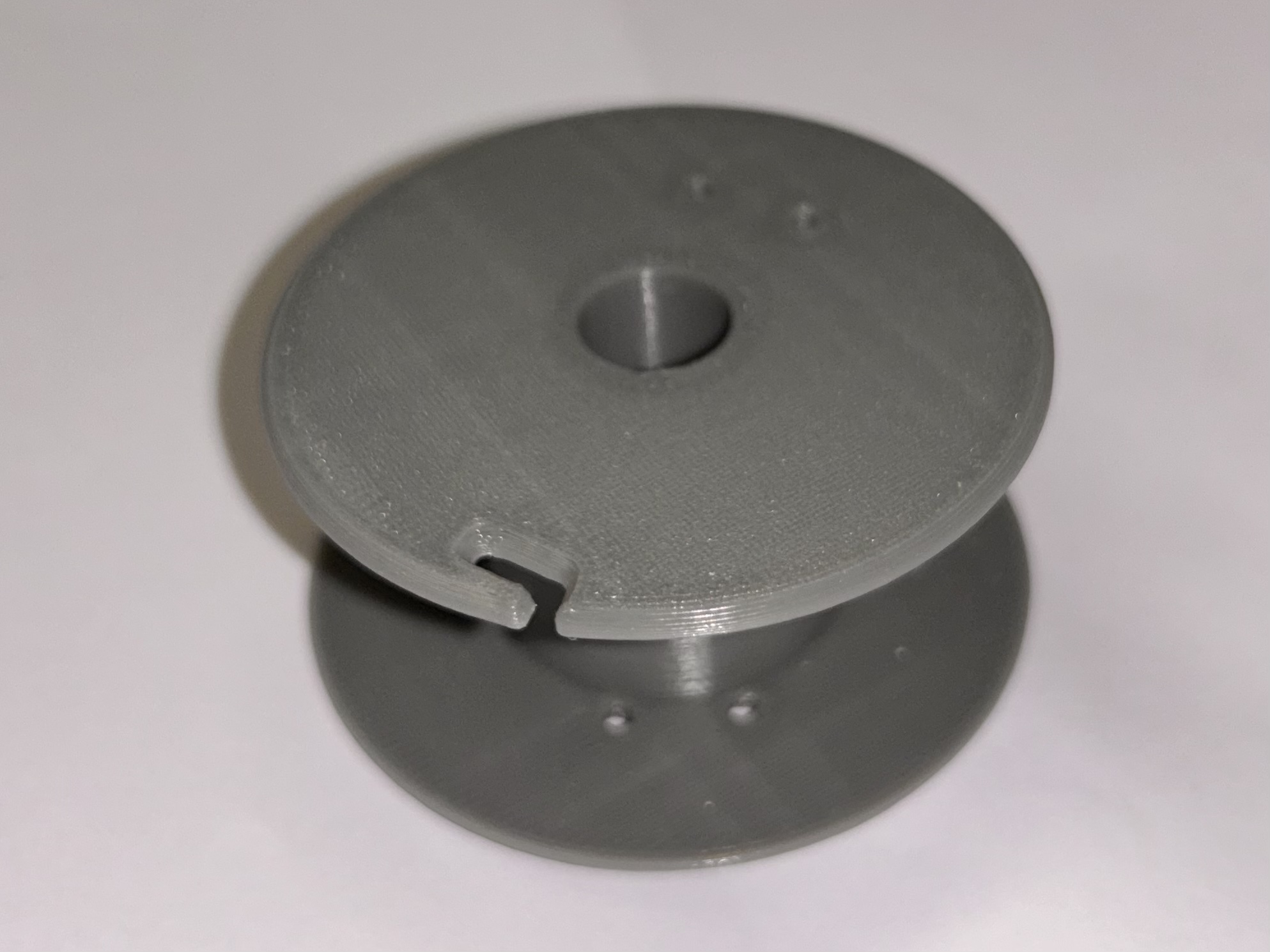

This model is a parametrized design for a spool for smaller wires or alike which prints in two identical halfes which can be press-fitted together.

The attached FreeCad file is provided with a few parameters that can help to tweak the design to your needs:

Parameter	Description	Default
wheel_dia	The outer diameter of the spool	50 mm
inner_dia	The inner diameter of the spool	25 mm
rod_dia	The diameter of the cutout for a rod in the middle	10 mm
base_height	The height (= width) of the inner cylinder (please be aware that the final dimension will be twice that size (due to the two halfes put together)	10 mm
side_height	The height( = width) of the outer wheel	1.5 mm
fit_gap	The tolerance for fitting the two halfes (please adjust this to your printer)	0.2 mm

The model's repo can be found on [https://github.com/chof747/wire-rolls](https://github.com/chof747/wire-rolls)
