Modelo 3D Floating Corner Shelf por blecheimer no Printables

Descrição

It is a struggle - the more you print the more space you need to showcase all the makes.
But wait! Now you can print space - with my new designed Floating Corner Shelf!

The size of the shelf is 185 x 185 x 240mm. You need 4x 4.5mm screws for assembly. Depending on your wall they need to be 45mm long. For my walls I am using 6x30mm wall plugs and 4.5x45mm screws.



Print preparation:
Make sure that your print bed is clean and grease-free and use a quality brand and dry filament. Calibrate your filament if necessary because the sliding mechanism has tight tolerances.


Print settings:
Use the 0.2mm standard settings for everything. I recommend support at least for the bracket. A brim for the shelf is recommended to increase the bed adhesion. Set the wall number to three for a robust print. 8% gyroid infill should be enough.
An MMU or AMS is not necessary. See my 3mf print profile for details (for Bambu Studio / Orca Slicer).


Assembly:

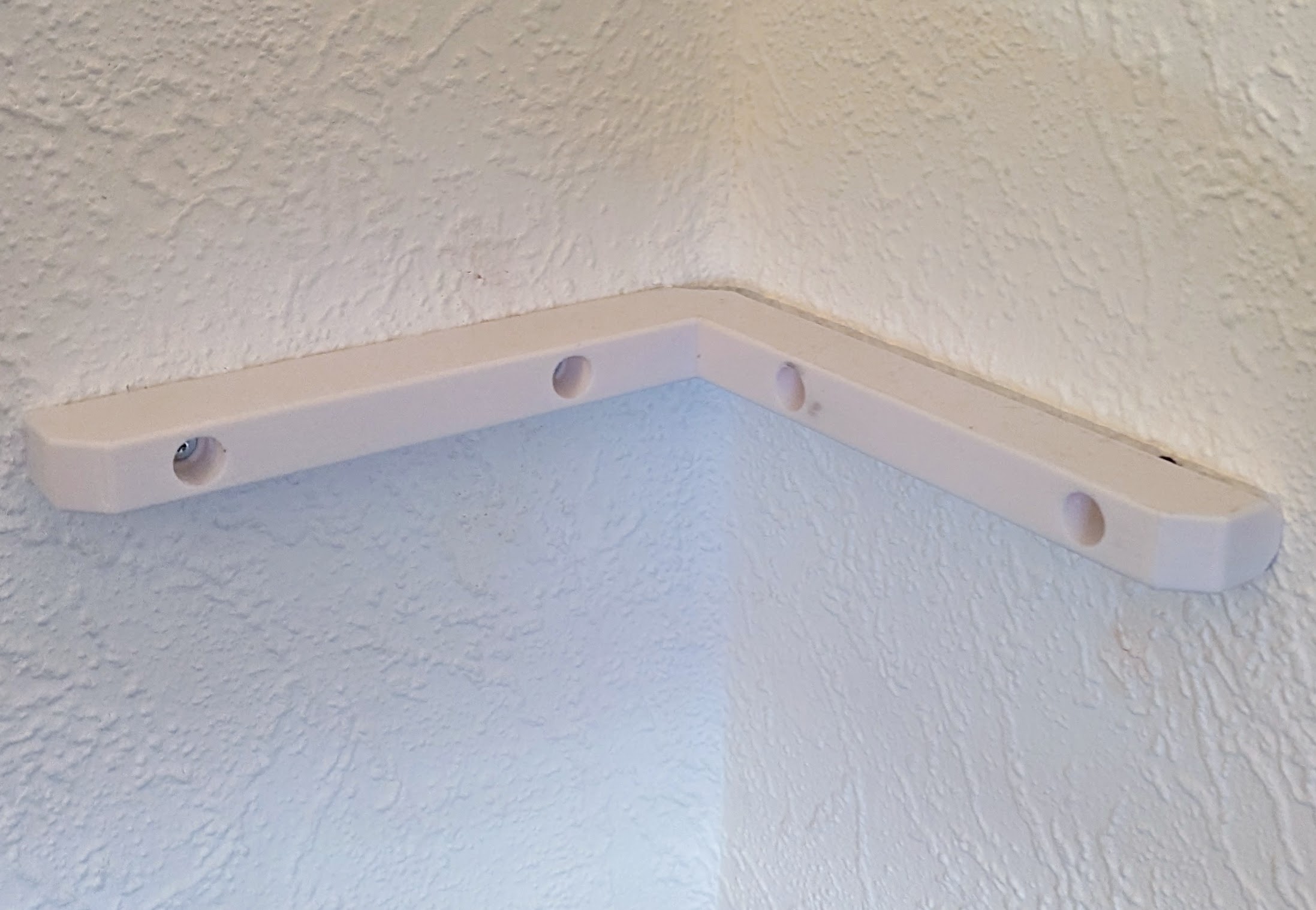

  • Attach the bracket to your wall.
  • Use a spirit level to align the bracket.
  • The holes in the bracket have 7mm diameter. This should give you some room for adjustments.

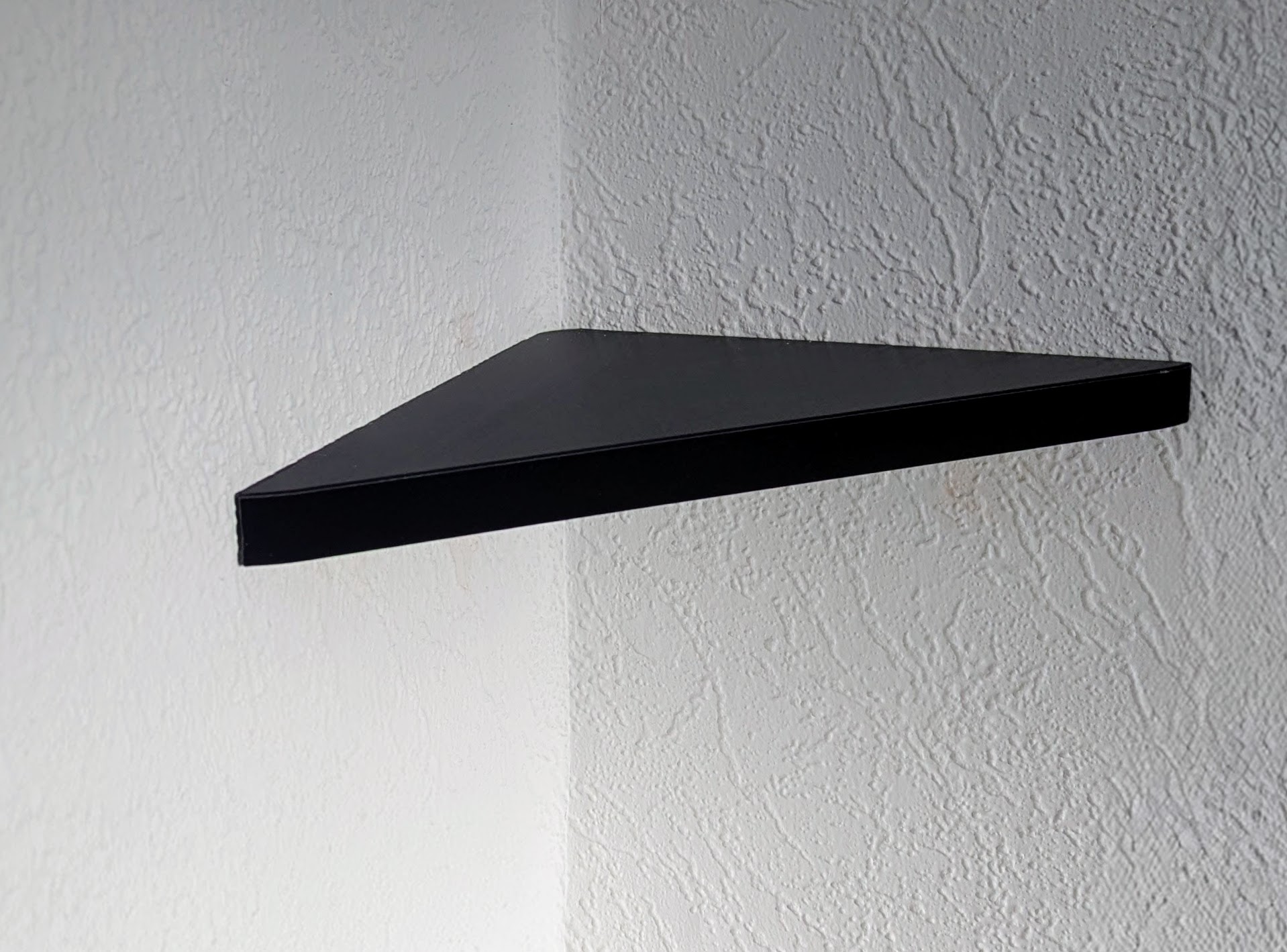

  • Slide the shelf over the bracket from one side.
  • Decorate your new corner shelf.



If you want to support me you can leave a tip at ko-fi.com/blecheimer.



Disclaimer:
This work by blecheimer is licensed under CC BY-NC-SA 4.0. The shown model must not be used commercially.
Copying this model to other 3D printing websites is not allowed without my permission.

Printables

Floating Corner Shelf

Publicado em 22 de mar de 2025

20
Curtidas
79
Downloads
Categoria Home Decor
Tags
shelf floating corner floatingshelf cornershelf
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (3)
corner shelf bracket.stl 968.6 KB
corner shelf.stl 292.2 KB
corner shelf.3mf 99.7 KB
