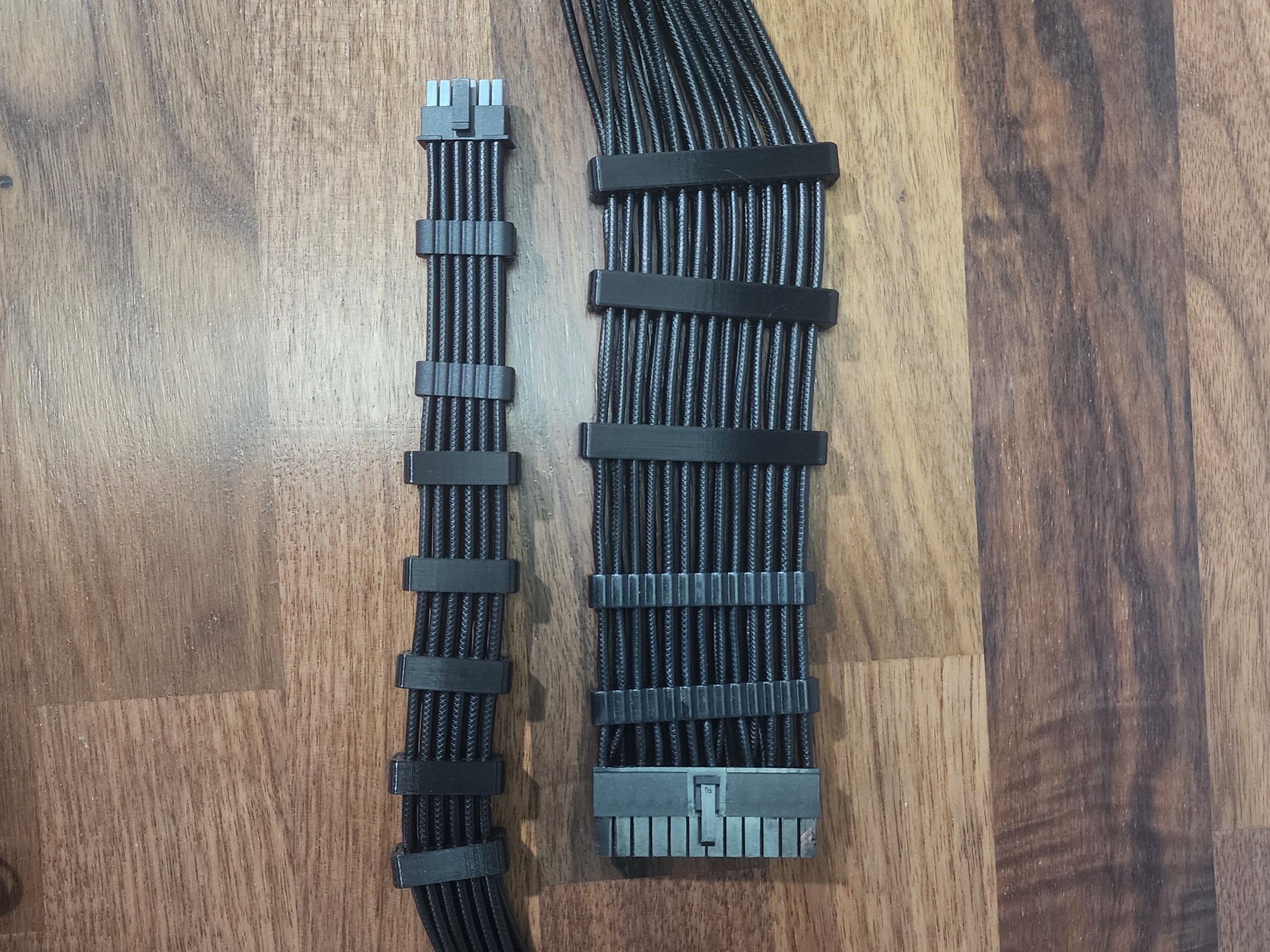

Parametric Cable Comb for your PSU Cables

Upgrade your PC cable management with the Parametric Cable Comb, designed specifically for PC PSU cables. This versatile and customizable cable comb is the perfect solution to neatly organize and arrange your power cables.

Key Features:

• 🔧 Fully Parametric Design: Adjust dimensions and parameters effortlessly to fit a wide range of cable sizes and spacing requirements.
• 🛠 Custom Cable Support: Easily configure the comb for 2 to 50 cables with customizable spacing to match your cable layout.
• 🎨 Aesthetic Appeal: Keep your PC build looking clean and organized with precisely aligned and evenly spaced cables.
• 🚀 Easy Installation: The simple 3-piece design makes cable management a breeze!

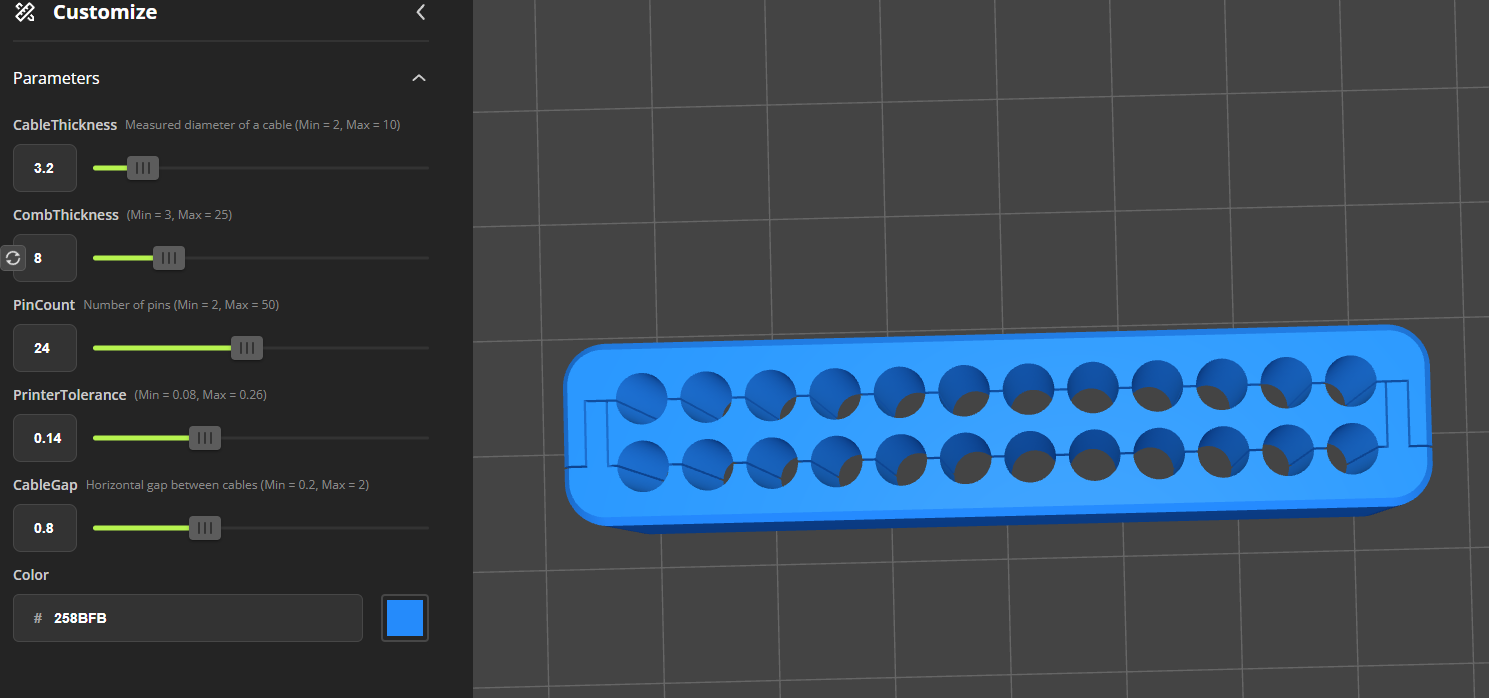

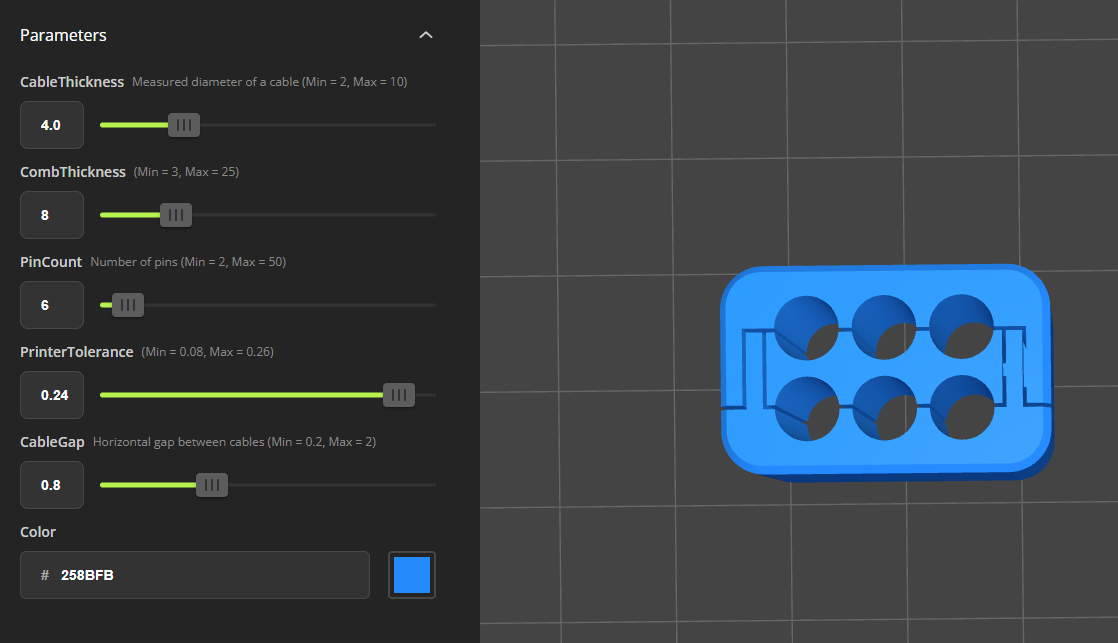

Technical Specifications:

• CableThickness: Diameter of a single cable (2 to 10 mm). Example: 4.0 mm for standard PSU cables.
• CombThickness: Thickness of the cable comb (3 to 25 mm).
• PinCount: Number of cable channels (2 to 50). Example: 24 for the motherboard.
• PrinterTolerance: Clearance adjustment for fitting (0.08 to 0.26 mm).
• CableGap: Space between adjacent cables (0.2 to 2 mm).
• While it is possible to print with a 0.4mm nozzle, a 0.2mm nozzle is recommended.

Future Features:

• A parametric option for 12VHPWR Sense Cables
