Descrição
I was inspired by the Under Desk Drawer 4x4 Gridfinity, but after a closer look, I noticed a few design limitations that could be improved. To maximize efficiency and usability, I created this remix, refining key details for a better fit, improved storage capacity, and seamless Gridfinity integration with original Under Desk Drawer v12.

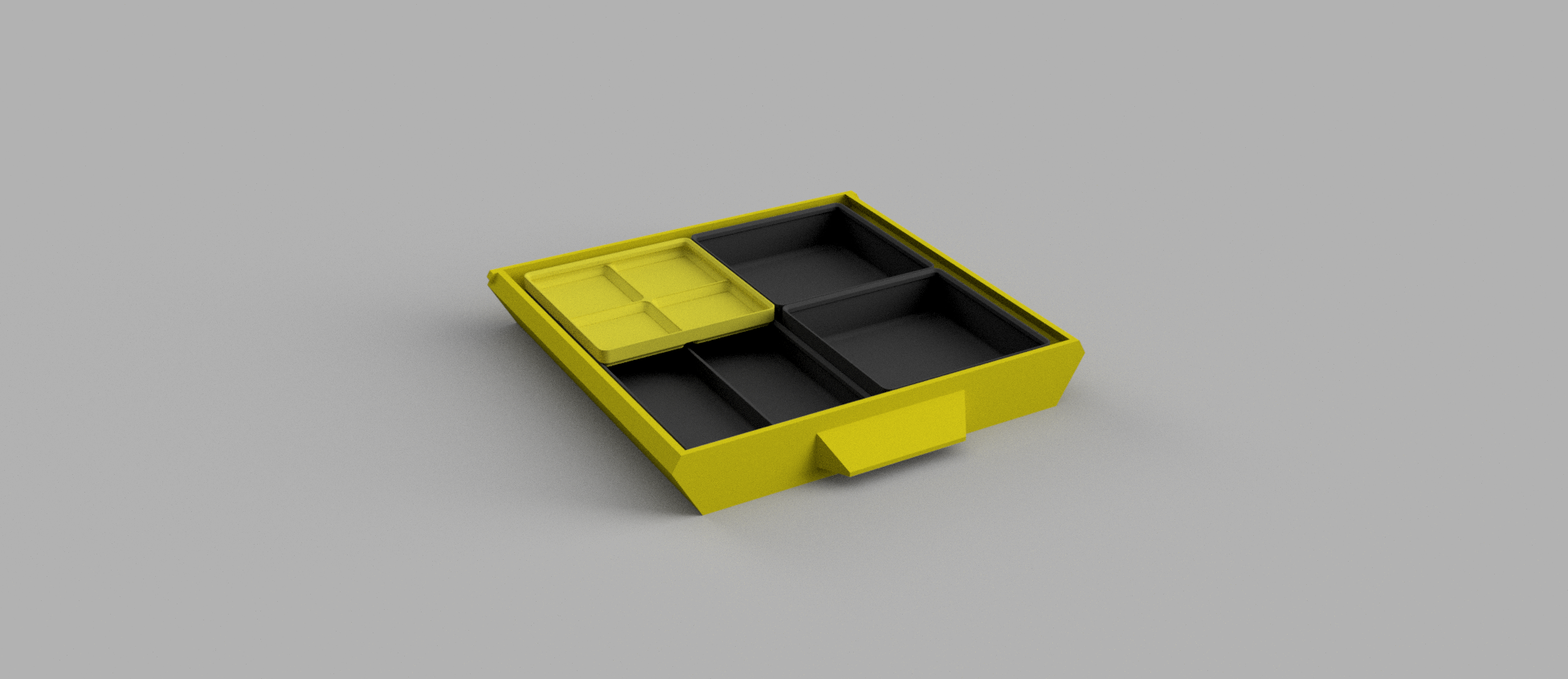

Model was designed to maximize space for Gridfinity boxes, accommodating sizes up to 4x4x3. It supports both standard 3U Gridfinity bins with Gridfinity Lid and non-standard 3.5U bins thanks to lightweight Gridfinity baseplate, which can be useful for additional storage. I also included custom boxes to optimize drawer space, along with a super low-profile 2x2x1 bin that can slide over the pen box of a 4x2x2.5 Gridfinity bin.

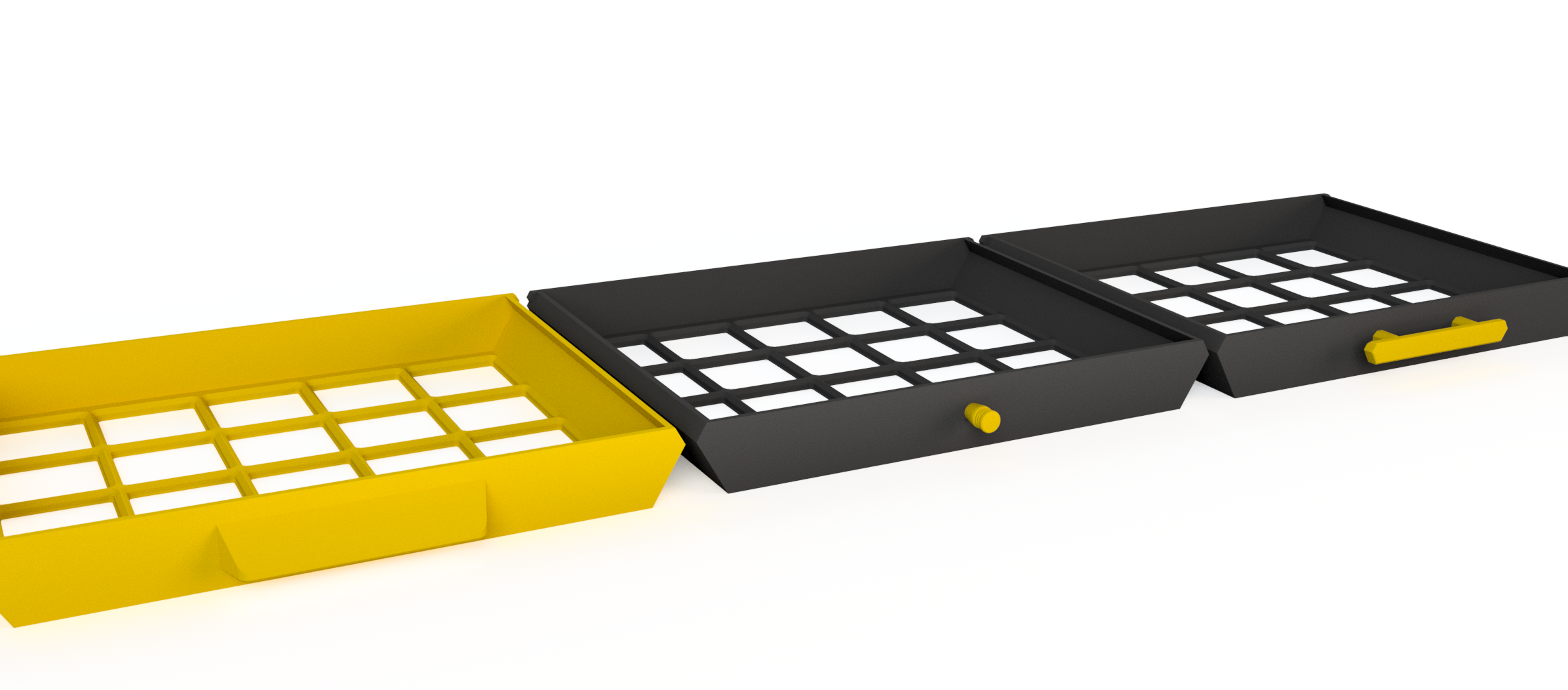

Generated with Fusion360 custom script.

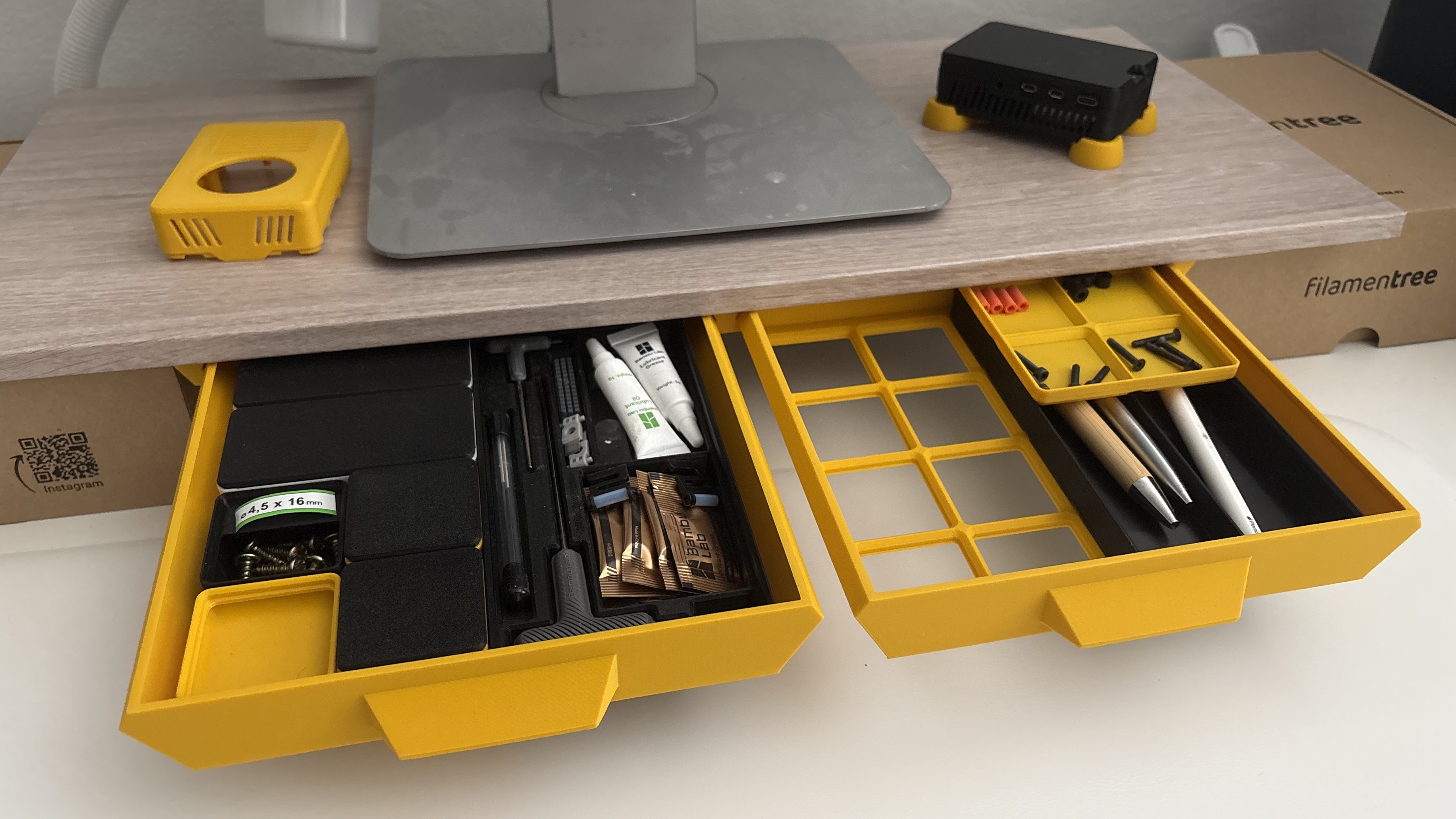

Printed with filamentree PLA Plus, Broom Yellow and Jet Black.
Accessories:
Gridfinity 608 Bearings Bin w Lid
Gridfinity Hinged SD Card Box
Gridfinity Weller Solder Tip Storage Box
Print settings can be same as original Under Desk Drawer model. Used original Zack Freedman gridfinity lightweight baseplate. To save even more material check Gridfinity Ultra Light Bins.
If you like this model, a Like, Comment, or sharing your Make would mean a lot to me! Thanks!
Under Desk Drawer - Gridfinity
Publicado em 10 de jun de 2025
