Meshtasitc Solar Node Mount

Mounting Bracket for IP67 Enclosure 150x100x70 TYP EC112170

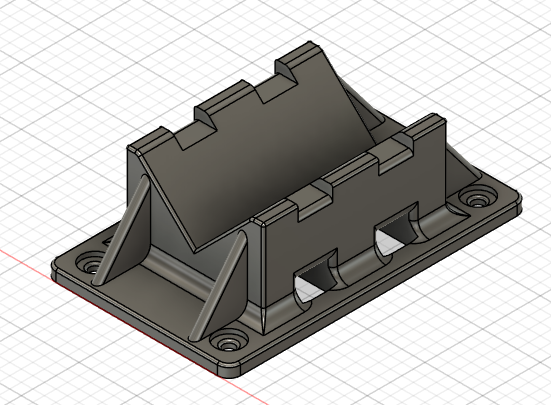

This mounting bracket is specifically designed for the IP67 enclosure with dimensions 150x100x70 mm, Type EC112170. It allows for secure attachment of the enclosure to poles, providing a stable mount for various applications.

✅ Compatibility

The bracket is a perfect fit for enclosures with the dimensions 150x100x70 mm, Type EC112170, and is suitable for use in outdoor or industrial environments.

🔗IP67 Waterproof Transparent Cover Enclosure Juction Box ABS Plastic Outdoor power distribution box Electronic Instrument Case - AliExpress

🔧 Mounting Details

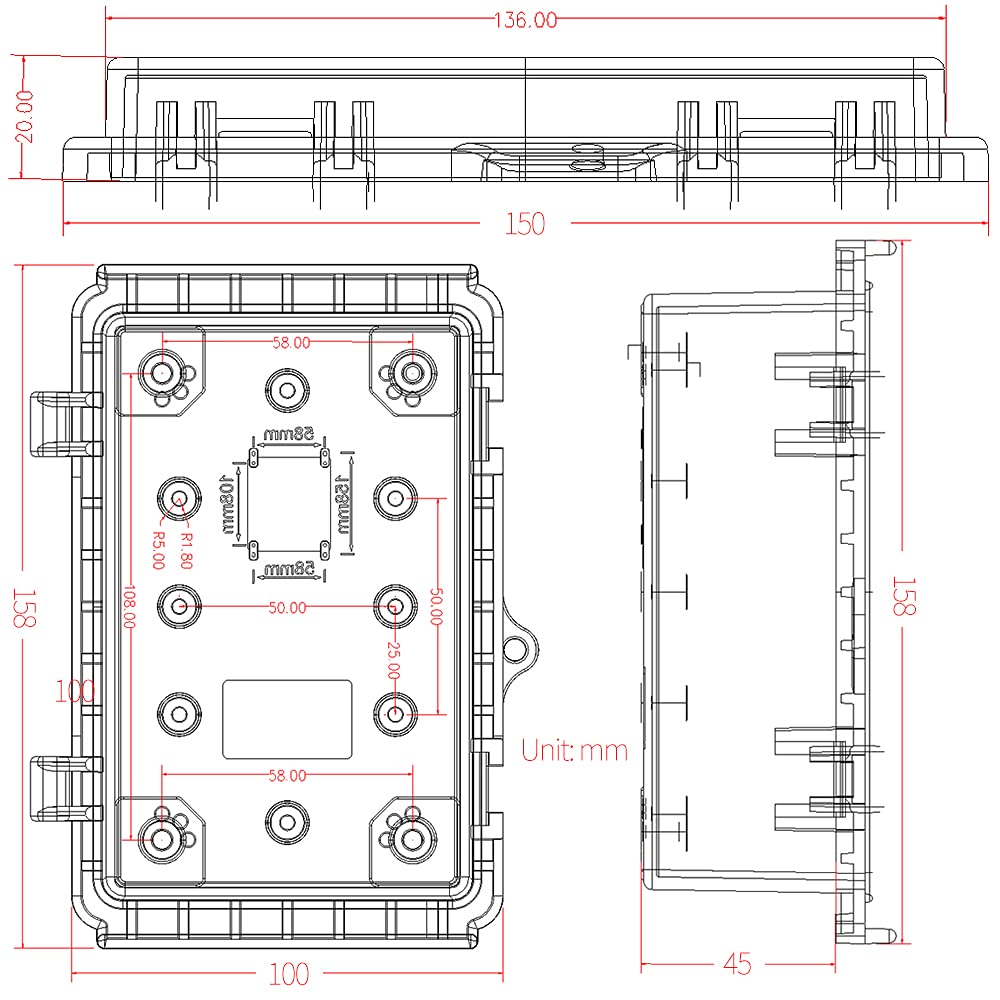

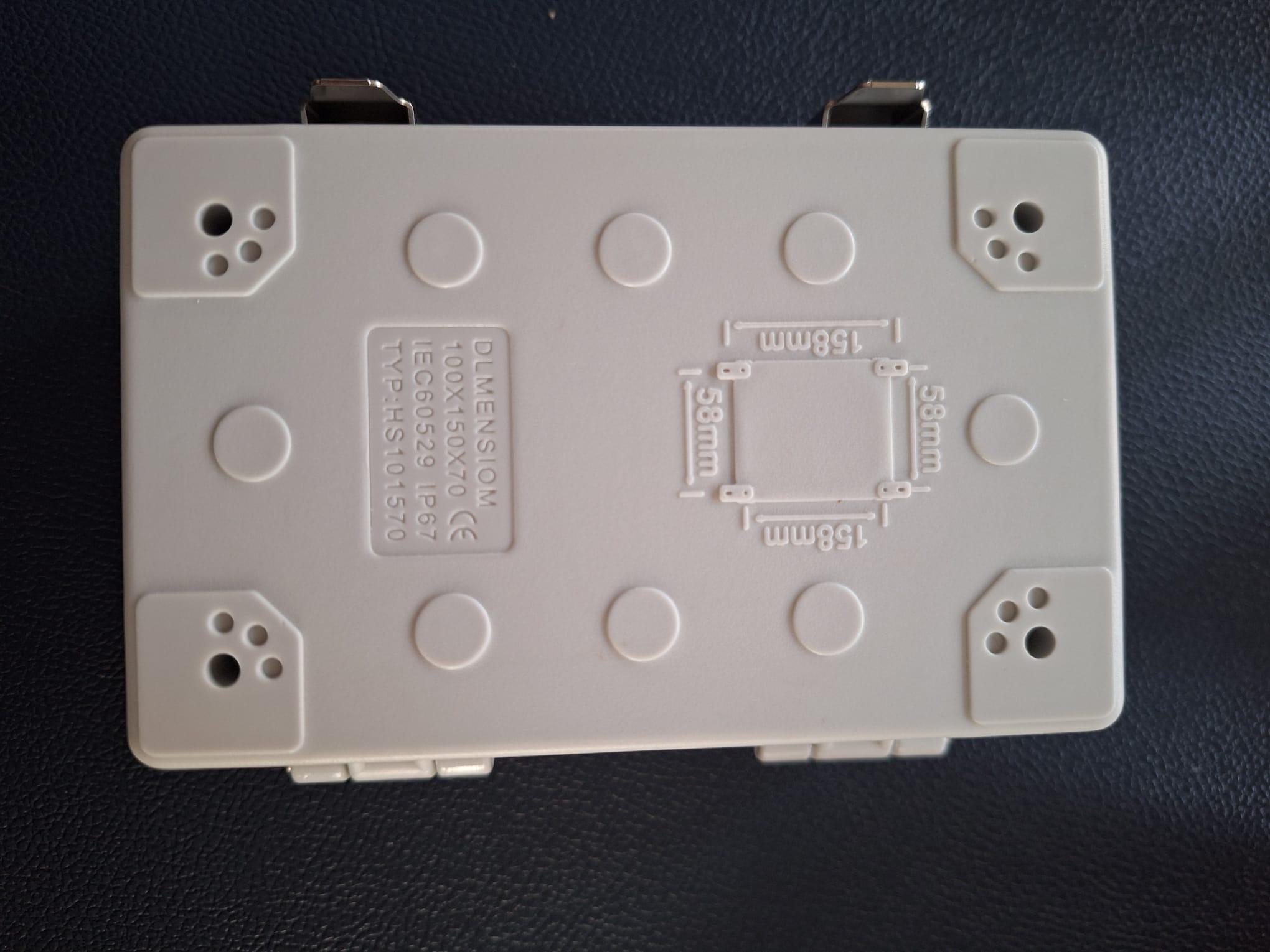

The bracket features 58 mm x 108 mm center-to-center hole spacing for easy screw attachment, perfectly matching the holes on the enclosure.

🛠 Recommended Print Settings

For printing this bracket, it is recommended to use PETG or preferably ASA. Both materials offer excellent weather resistance and strength, with ASA being particularly suitable for outdoor use due to its UV resistance, which ensures the bracket maintains its shape and strength under extreme weather conditions.

🌦 Use Cases

This mounting bracket is ideal for use in various projects that require securely mounting the enclosure to tubes or poles. It is especially well-suited for industrial applications, outdoor settings, or projects that require a durable and reliable mounting solution.

The IP67 enclosure, with its all-around gasket and top cover, makes this type especially suitable for outdoor use, as it provides reliable protection against rain, dust, and extreme weather conditions. This type of enclosure is very popular within the Meshtastic community, especially for setting up outdoor nodes to permanently expand the emergency radio network. Its high durability and environmental protection allow for continuous operation, helping to improve network coverage in rural or remote areas in a stable and reliable manner.

🧩 Design and Functionality

The bracket is designed for easy installation while providing a firm and stable connection without compromising the integrity of the enclosure.

The design allows for secure fixing of the enclosure, protecting it from external influences like vibrations or wind.

This bracket is the perfect solution for any project that requires a reliable mounting of IP67 enclosures to tubes or poles and is particularly suitable for expanding Meshtastic emergency radio networks in outdoor environments.

📋 Materials List

Here’s what you’ll need for a complete setup:

M5 12mm self tapping screws for plastic made of stainless steel with flat tip

🔗Related Models in My Collection

Please check out the following references too:

📦 Case Compatibility & Credits

There are also compatible mounting plates available for these type of waterproof cases — I highly recommend checking out the excellent designs by @Rinodods: Rinodods | Printables.com

His collection includes versatile pole-mounting solutions for the next larger size of this case. Proper credit is given to him, especially regarding the pole-mount concept, as the one I published for this case is now published under a remix-friendly license.

If you like this model, please make sure to share your likes with Rinodods.

Update 19.06.2025:

remove 3mf (export error, resize by factor 10 required)
add stl ready to print
