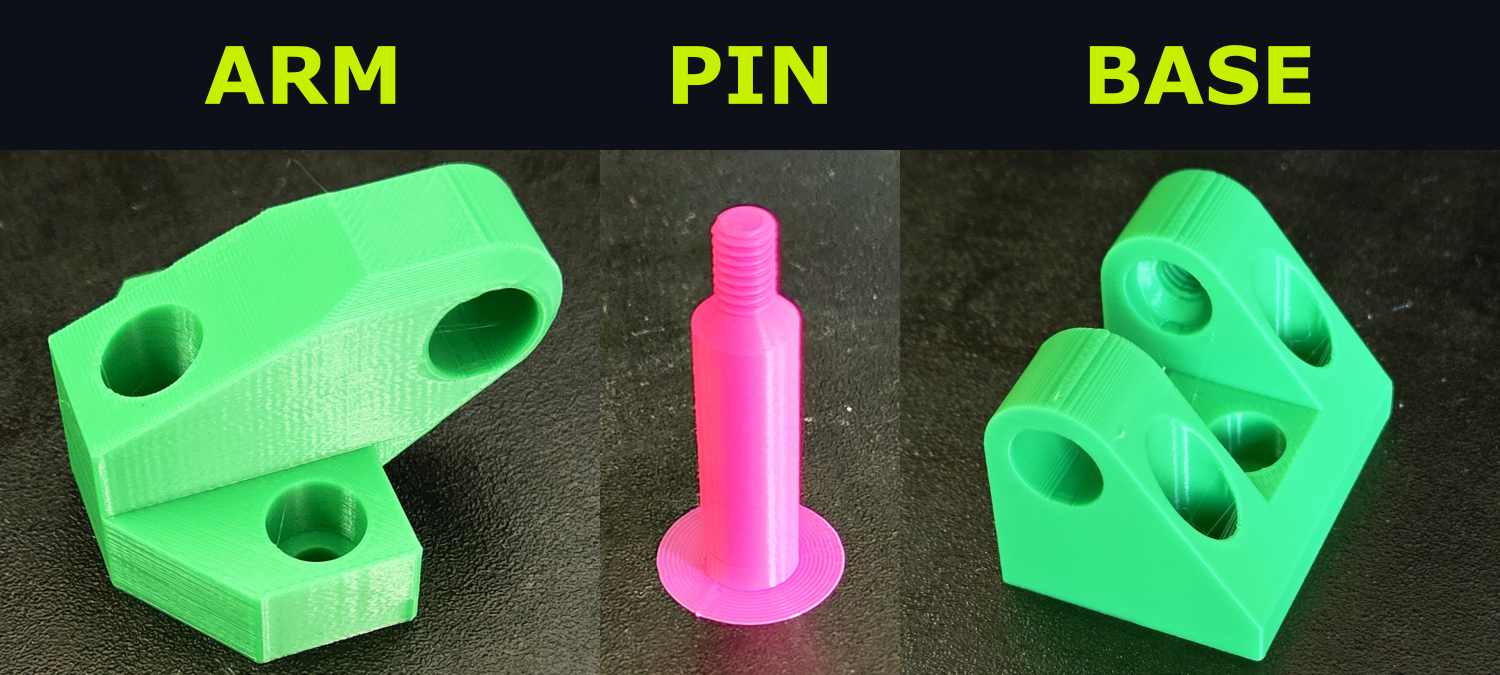

Model contains 3D-Printable M6 thread it is recomended to use 0.16 Layer height.

This model is primarily designed using FreeCAD. While FreeCAD is currently under heavy development and may not be the most stable software, I’ve made the model easy to work with.

You can download the .FCstd files and create your own variations thanks to the parametric features. Feel free to edit various parameters or even modify the shape by adding fillets or chamfers. Please check github for detailed instruction

Have fun customizing my files! 😊


ParametricHinge R1C51 on Gighub

• check DurableHinge V1 designed for full strength.

• check DurableHinge V2 it supports either metal pin and 3D printed pin.

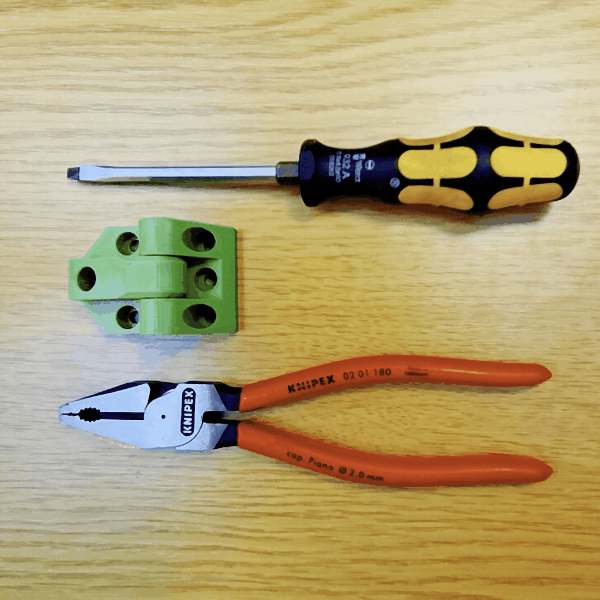

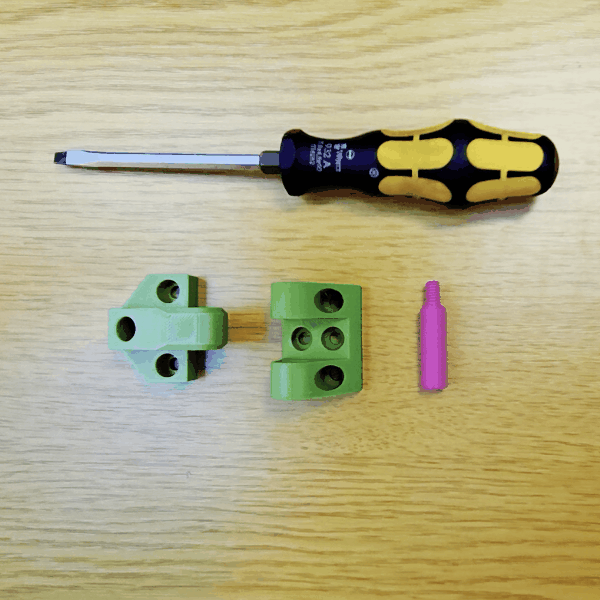

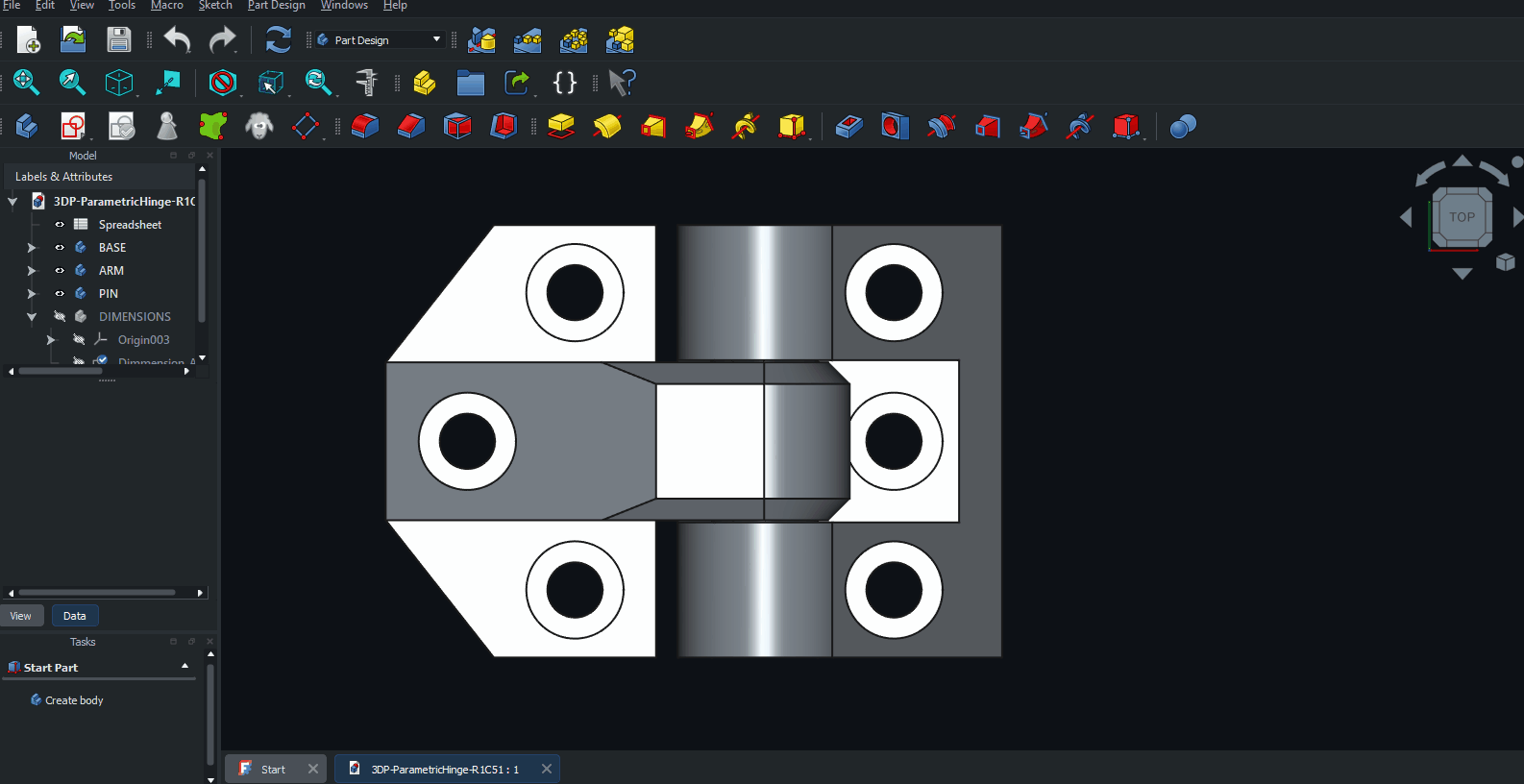

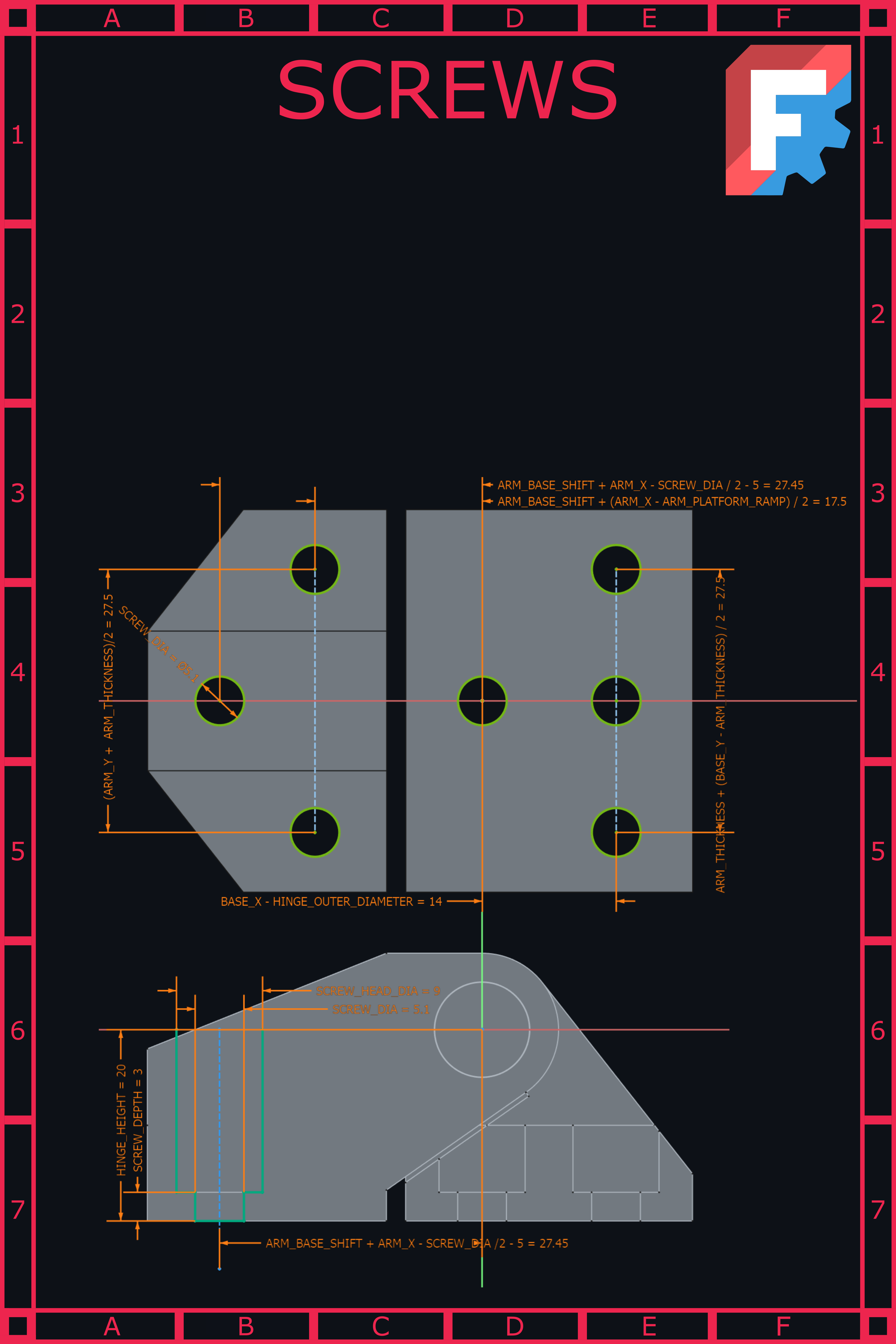

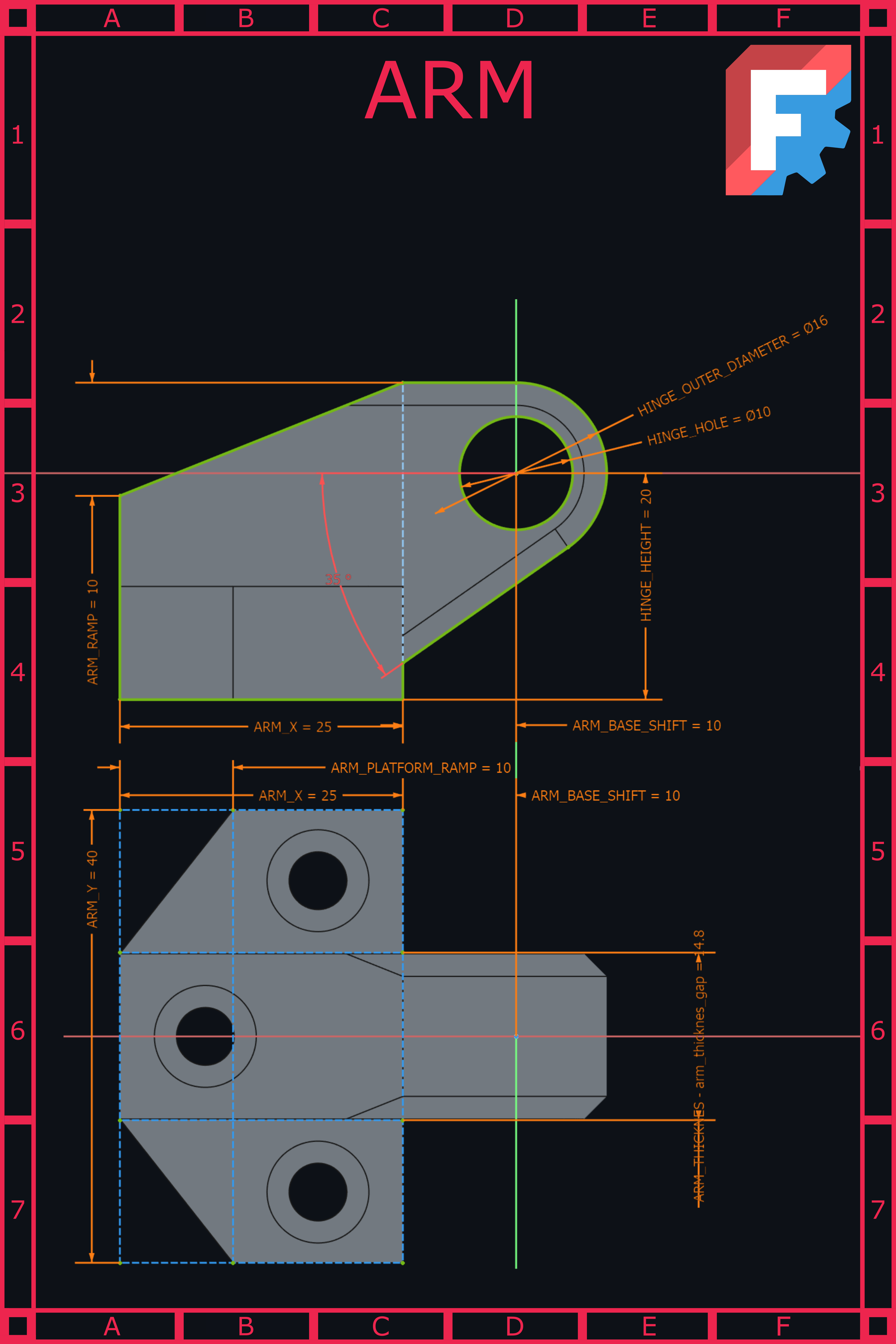

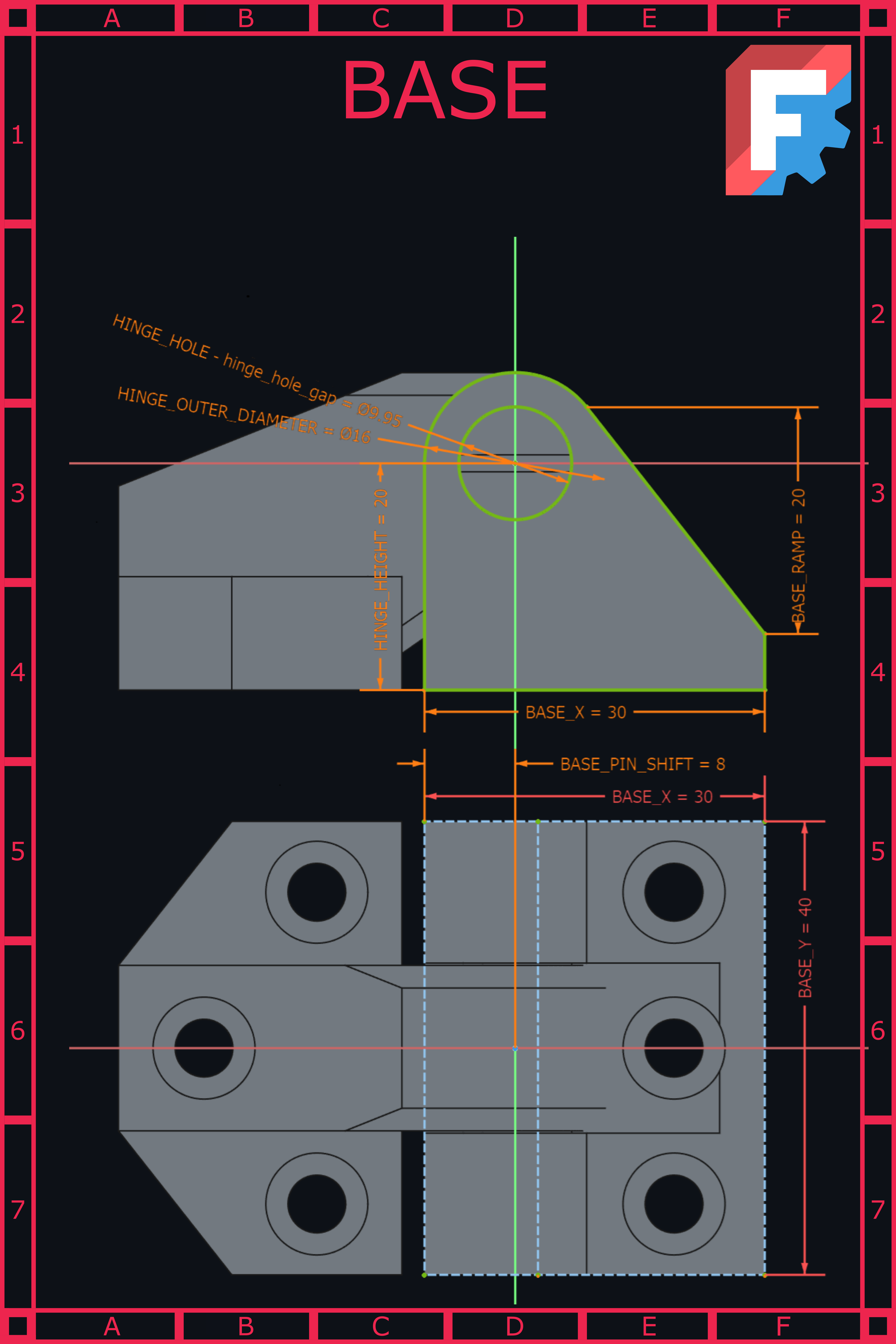

Example dimensions change:

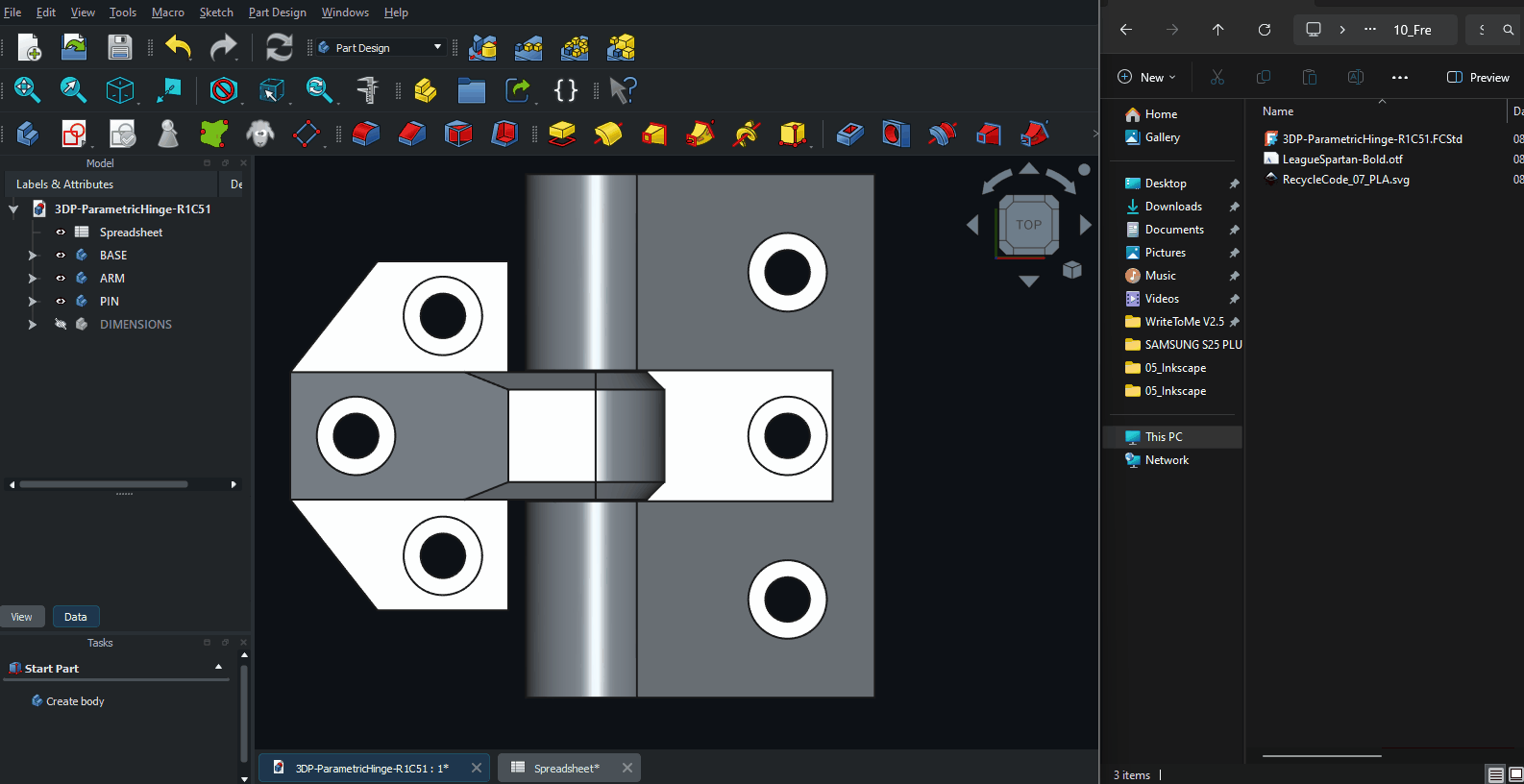

Example .stl export:

<><><><><><><><><><><><><><><><><><><><><><><><><>
