Modelo 3D HSW Command Hook Adapter por RoboticPotatoes no Printables

Descrição

How to use:

  1. Print adapter, the stock Insert-empty, and the HSW panel of choice
  2. Install insert-empty into HSW and press adapter into the insert-empty
  3. Install command strip onto backing plate.
  4. Install adapter onto command hook backer plate - the large slot catches on the command hook backing plate the same way a normal command hook does.
  5. peel off backing from command strip and press HSW panel onto wall.

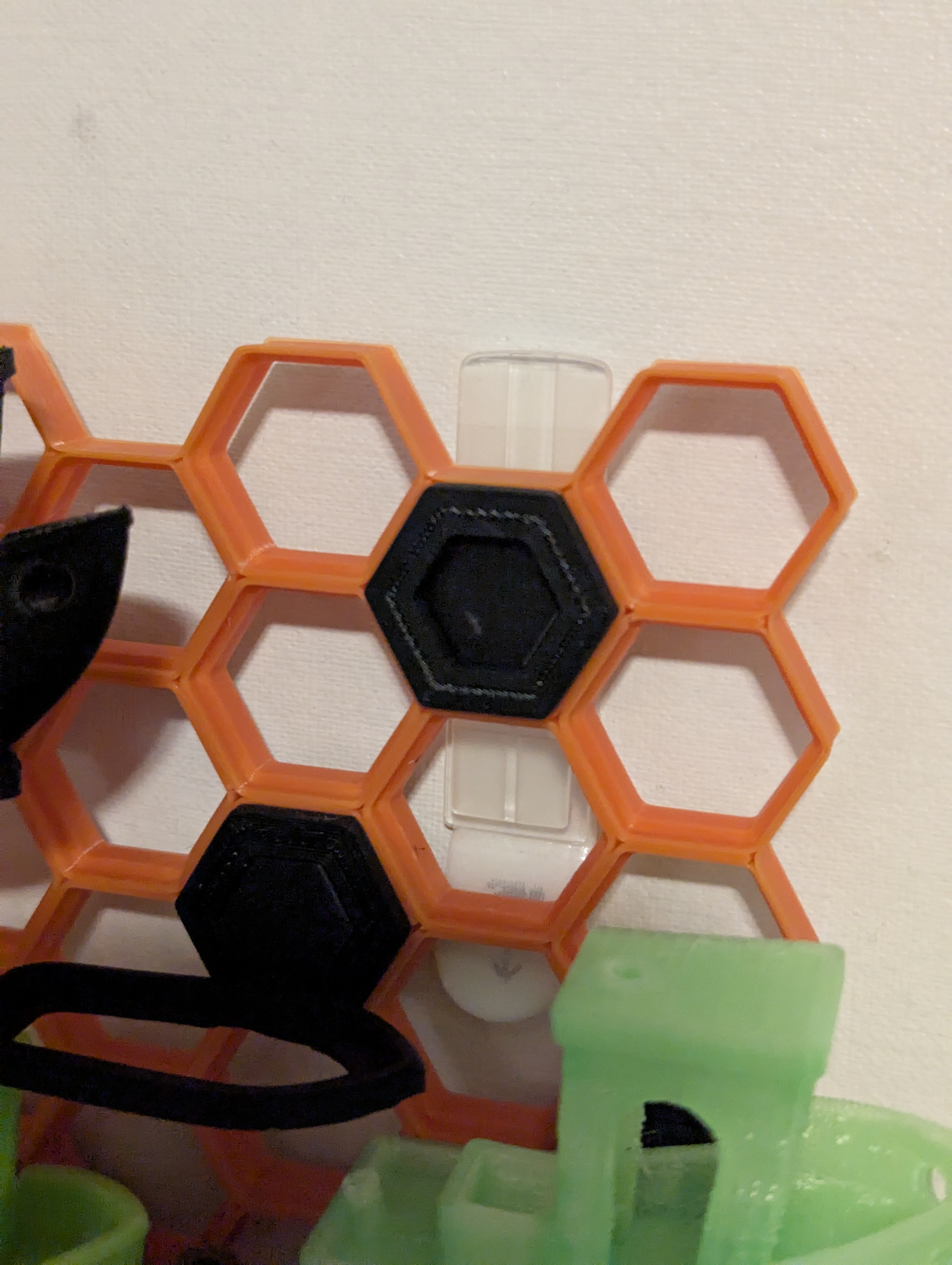

It is recommended to use at least two of these, one on the top left and one on the top right corners of a panel.

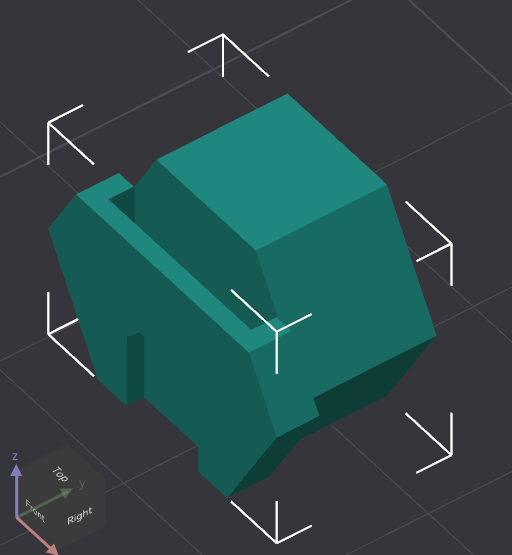

Recommended print orientation is with the wide slot facing upwards:


Please note: this is still a work in progress and you may have trouble sliding the adapter off of the command hook backing plate after installation. I have also only been using this design for a simple HSW benchy display, so I can not vouch for any real long term strength, but it has held up well so far.

It is recommended to print one and check the fit yourself before mounting this to your wall.

Printables

HSW Command Hook Adapter

Publicado em 18 de abr de 2025

17
Curtidas
32
Downloads
Categoria Organizers
Tags
commandhook hsw commandstrips hswmount
Licença Creative Commons — Attribution — Noncommercial
Arquivos (2)
HSW command hook adapter v2.stl 4.6 KB
HSW command hook adapter v2.step 40.9 KB
