Descrição
Update 14.3.2025
- improved lower screws for better durability
- improved threads for easier rotation
Update 28.3.2025
- Extended screws for attaching to the table
- Increased thickness of the main bolt cotter pin

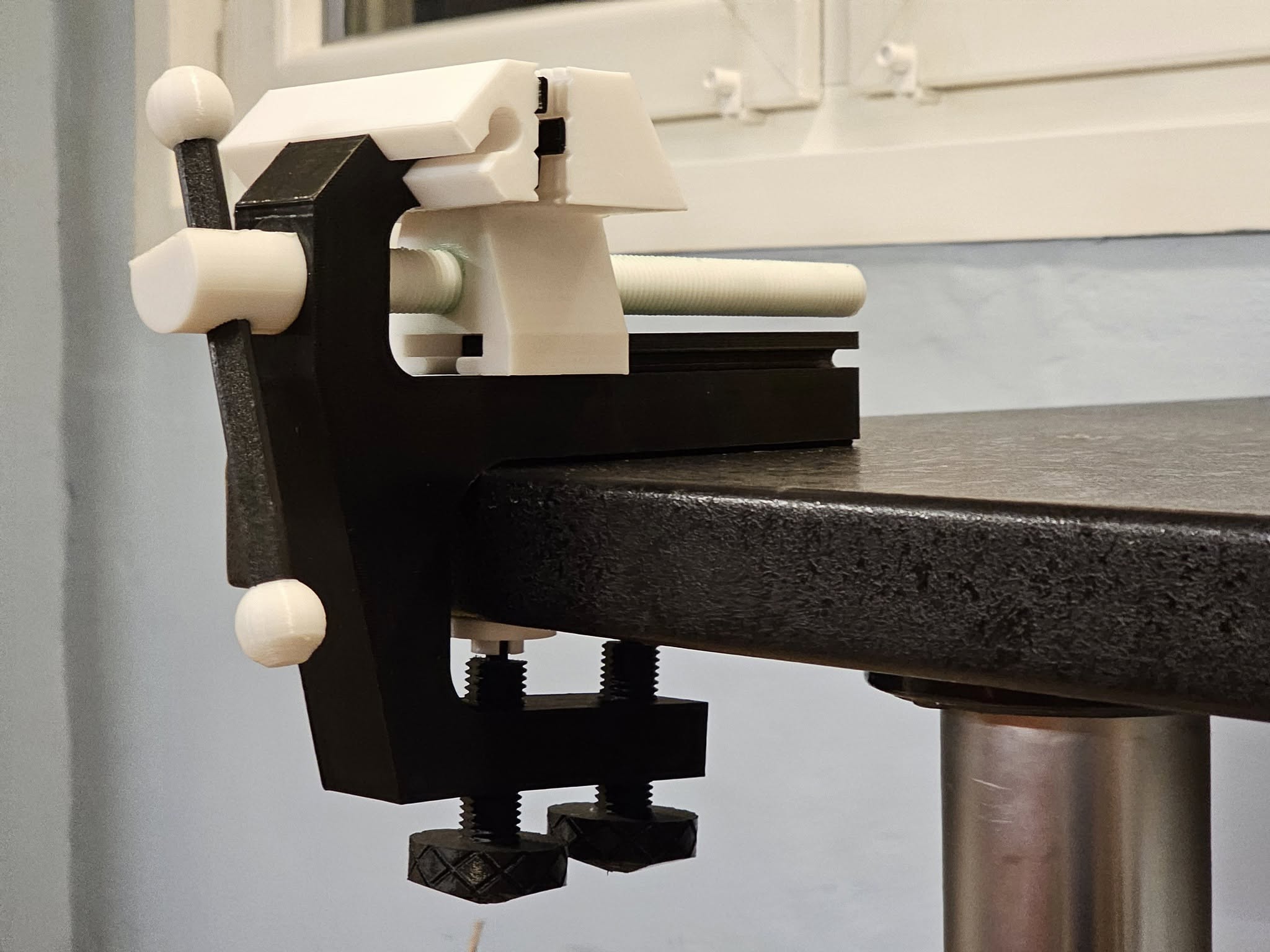

Table vise for table of maximum thicknes 50mm

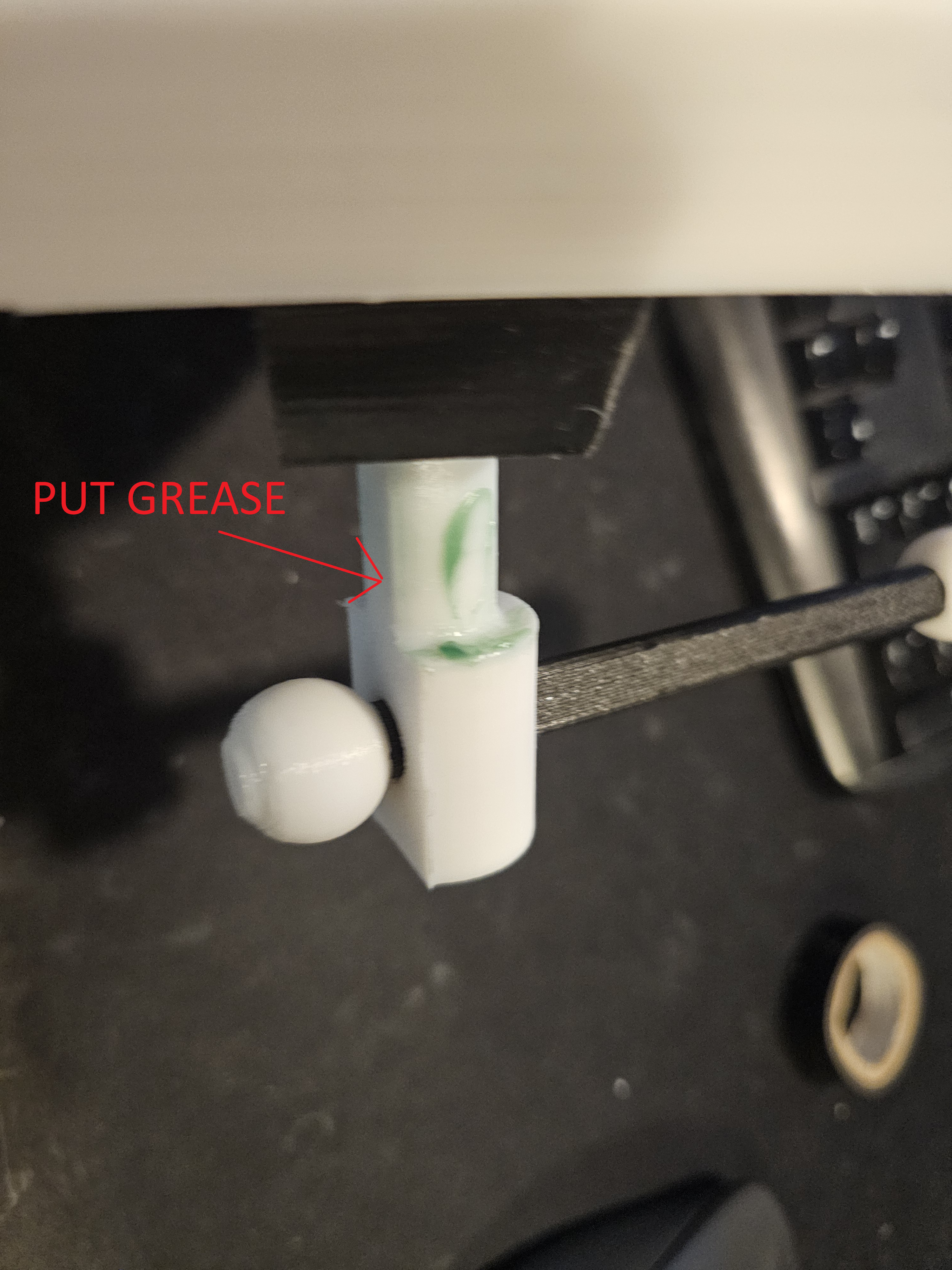

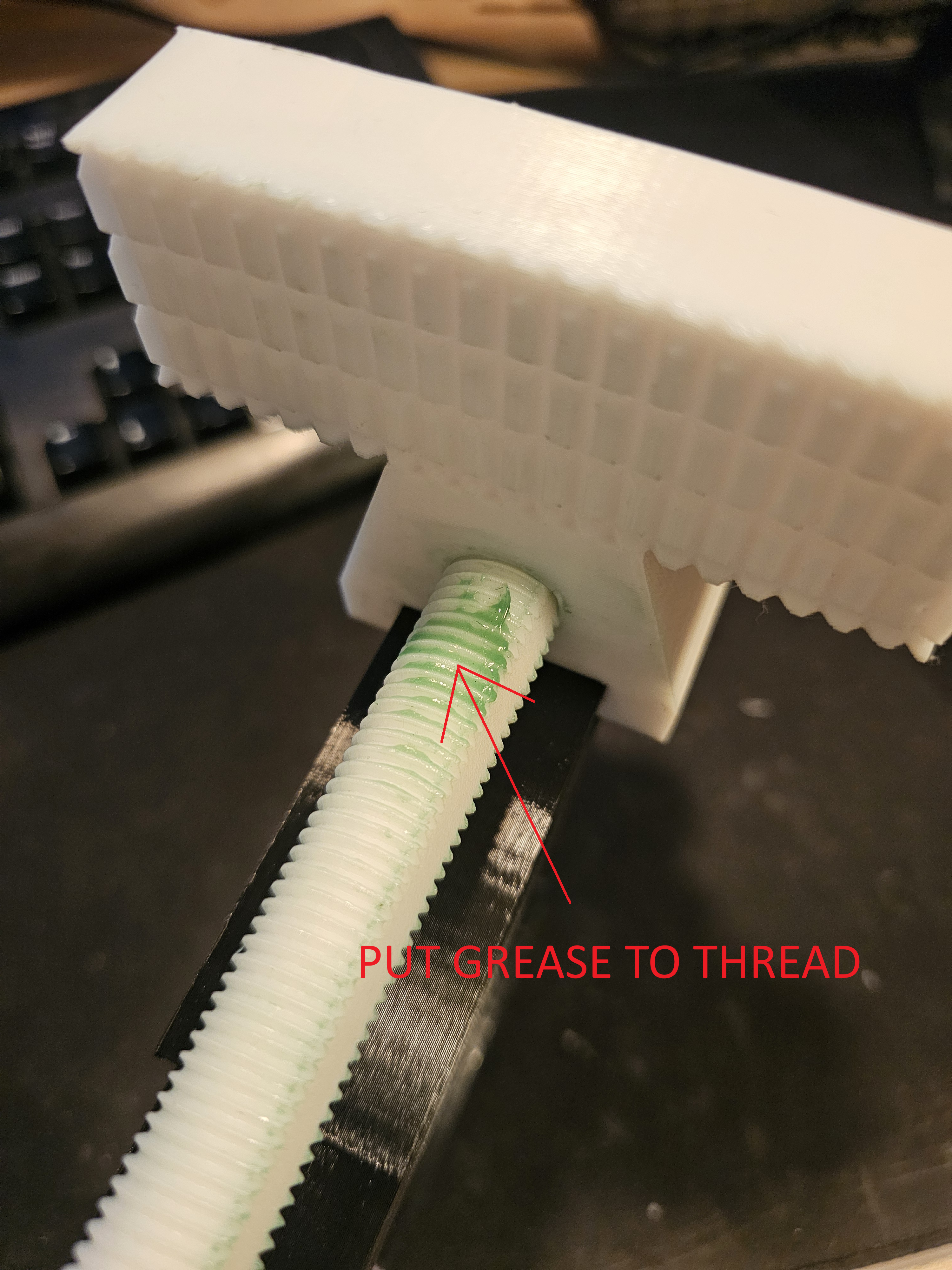

- Use grease or petroleum jelly for threads.
- The span of the handles is 130mm.
- Mnimum thick of desk is 25mm

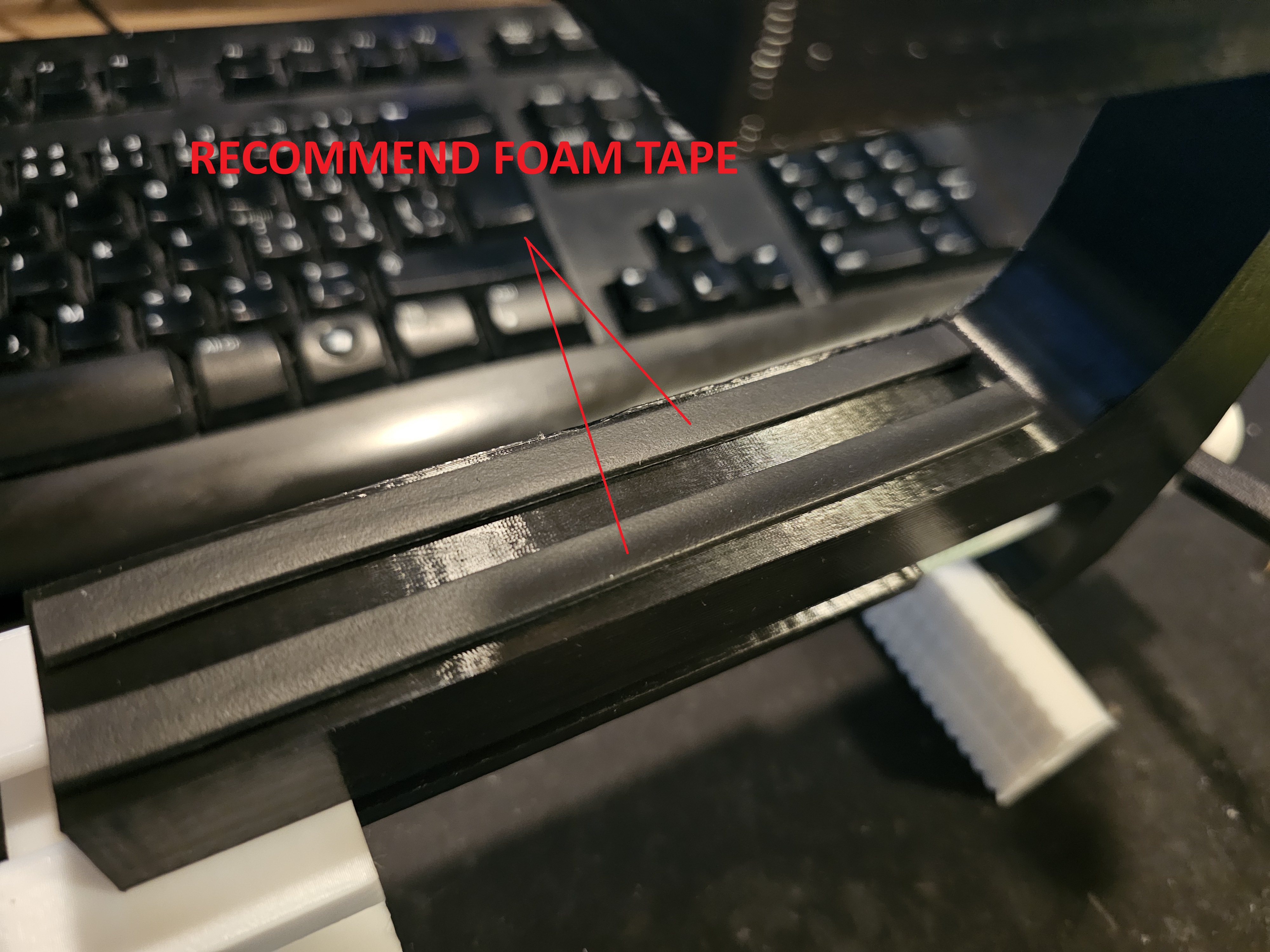

- Use rubber or foam tape betwen table and mount for better adhesion.
3D printing settings
- Printed from PETG.
- print settings are written for each stl file

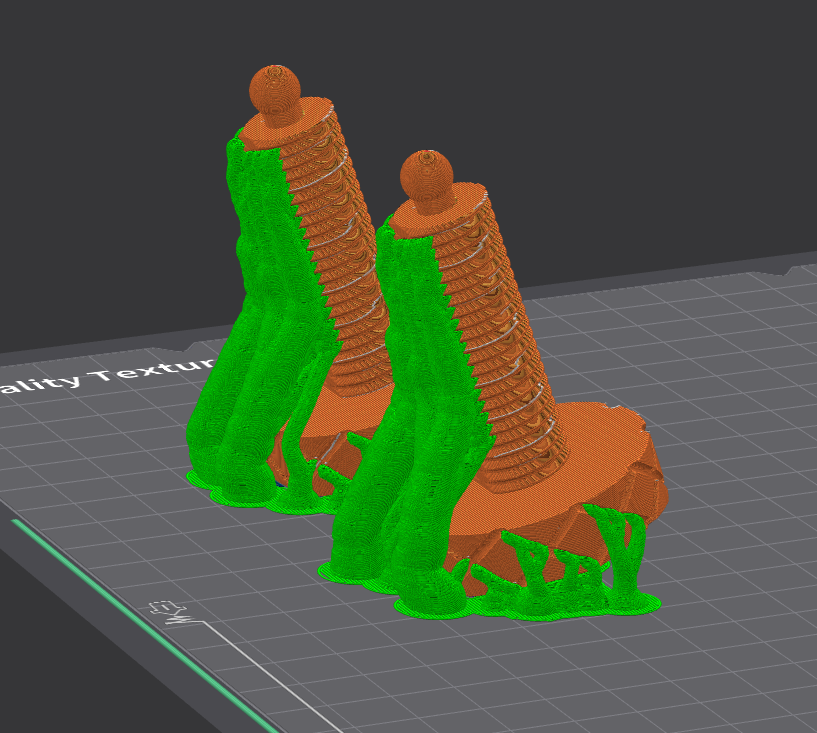

- YES really print Lower Screws in position like on photo for better layer cohesion.
You can also use additional area for vise. Link here
500
Curtidas
1,949
Downloads
4
Impressões
Categoria
Tools
Tags
table
vice
vise
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (3)
table vise parts 3 - (0,1 layer, 6 walls, 30% infill, organic tree supports 25 degrees).stl
2.1 MB
table vise parts 2 - (0,2 layer, 6 walls, 30% infill, organic tree supports 25 degrees).stl
1.7 MB
table vise pats 1 - (0,2 layer, 10 walls, 30%infill, organic tree supports 25 degrees).stl
3.8 MB
