Customizable Bottle Drying Rack

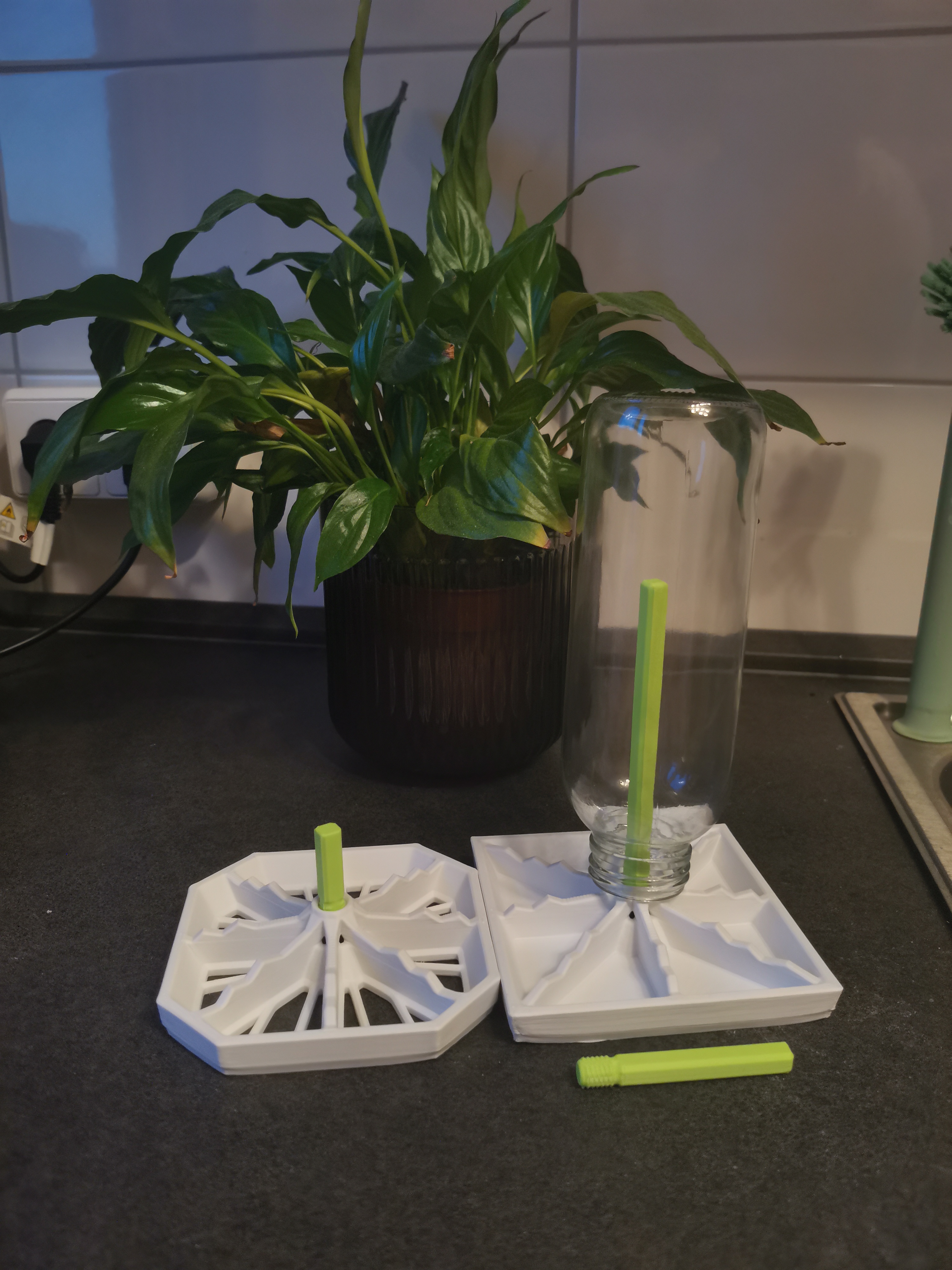

This simple and practical bottle drying rack features a sturdy square design for stability and efficient drying. Its customizable design saves space and allows for easy customization and expansion when needed. The hollow structure ensures good airflow for quick drying, making it great for baby bottles, water bottles, and more. Perfect for keeping your kitchen organized.

This model is the customizable version of my Stackable Bottle Drying Rack (5 variations) model.

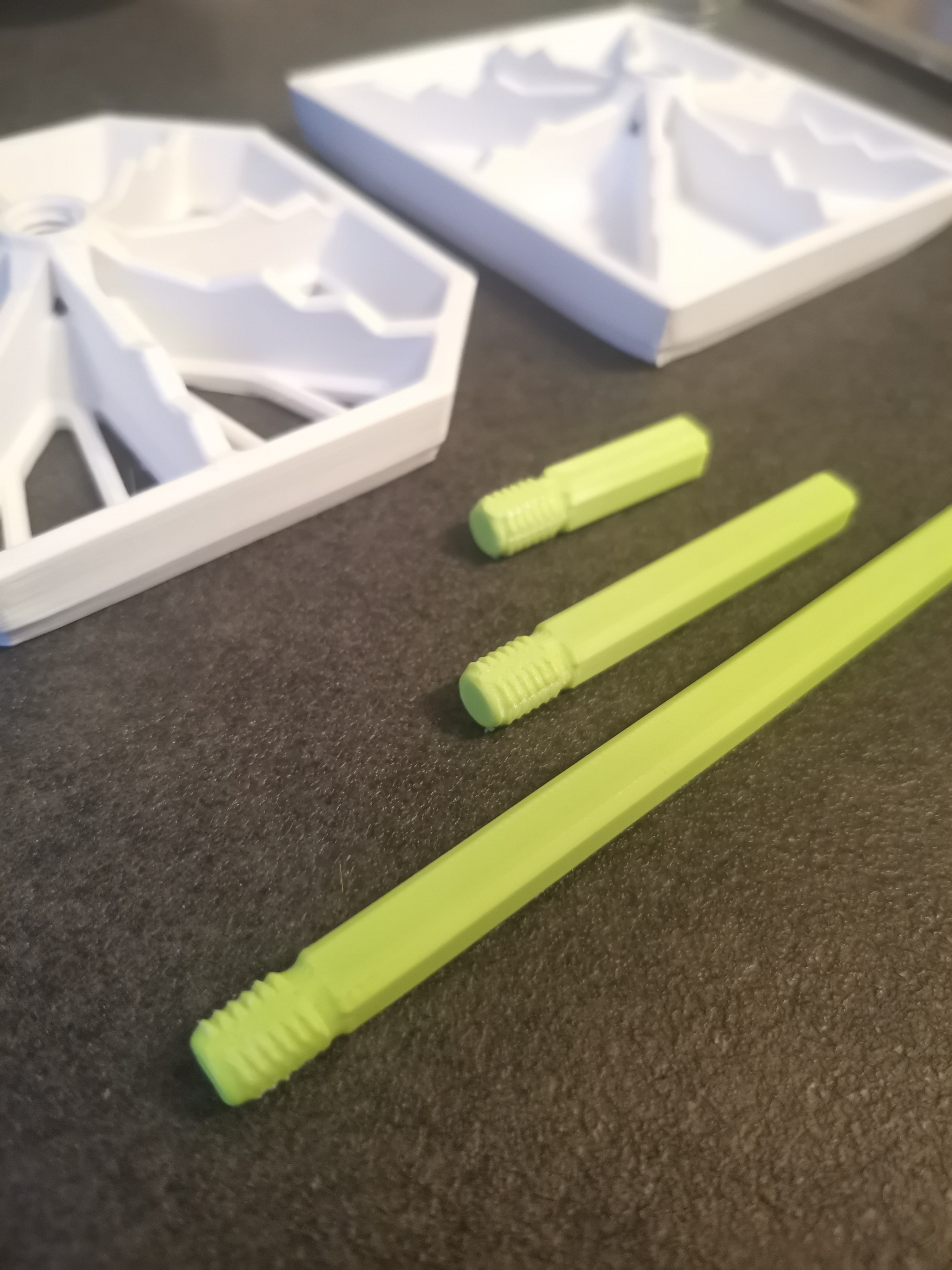

Choose the insert according to your bottle height or easily design your own insert for your own needs! Simply screw the insert into the M10 interface on the base part.
The following inserts are available:

• 4cm

• 7cm

• 10cm

• 10cm - sodastream

• 10cm - sodastream glass

• 13cm

• 16cm

• 16cm - sodastream

• 16cm - sodastream glass

• 24cm

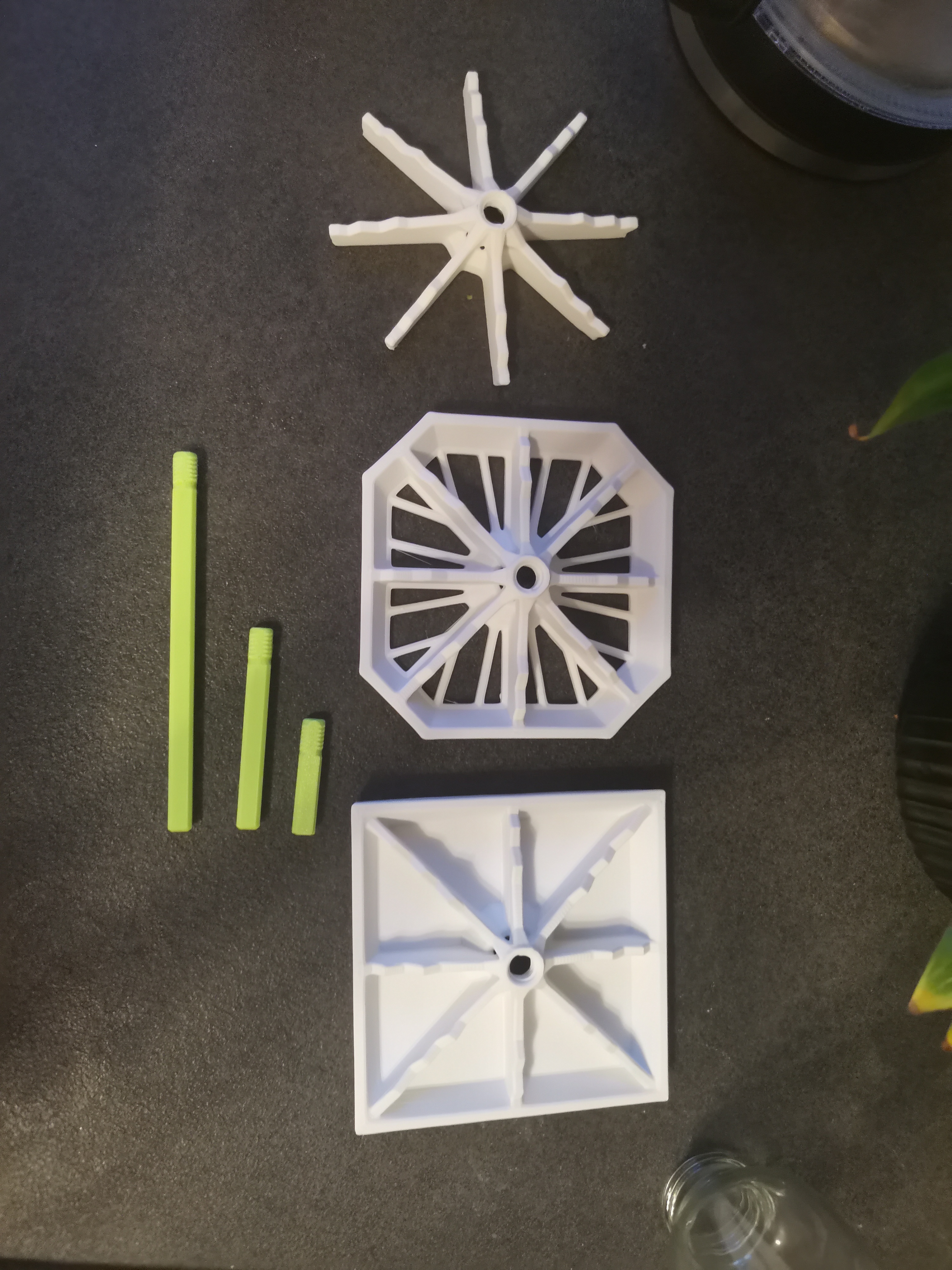

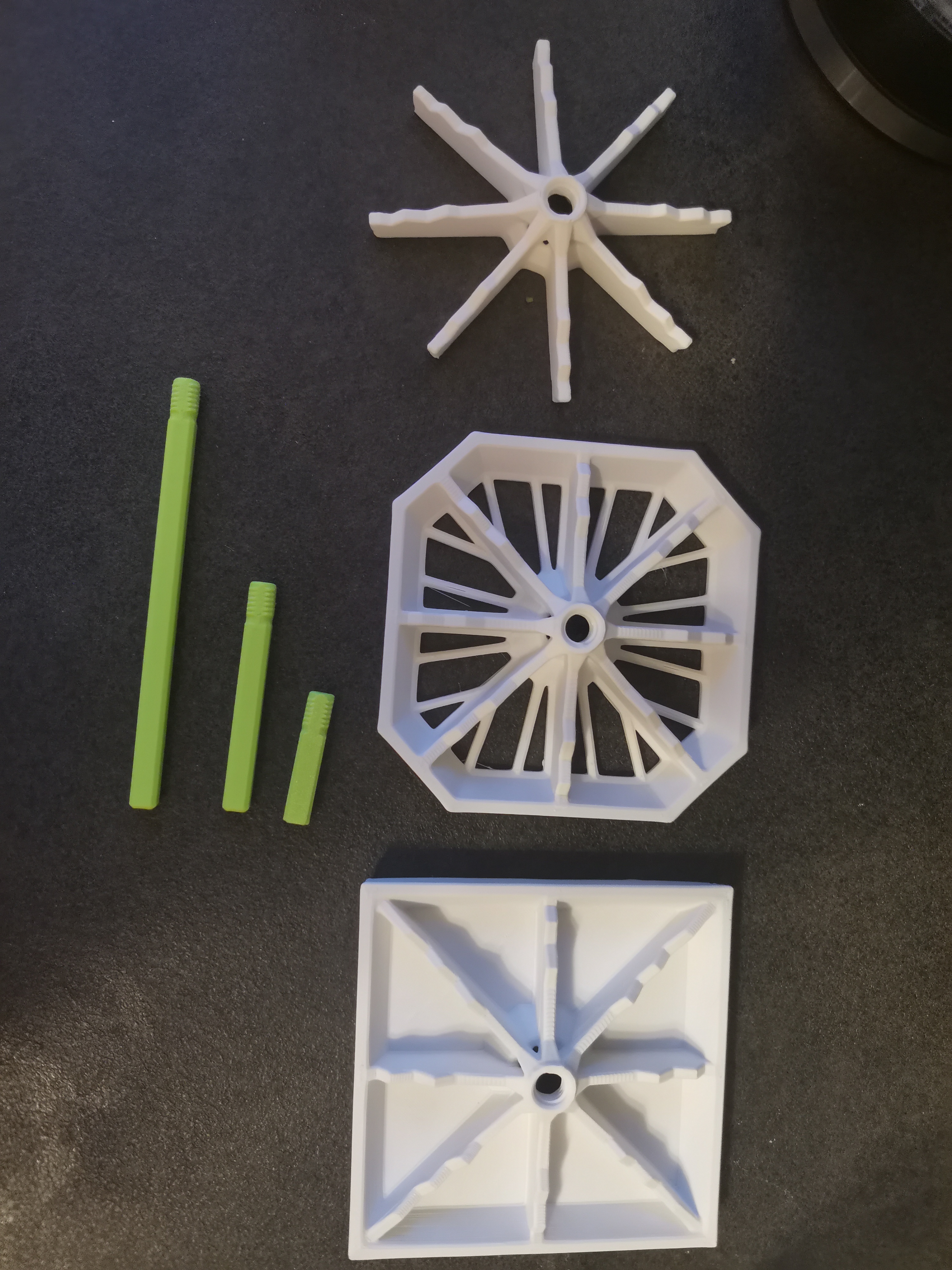

There are 5 base versions available:

• with holes (for e.g. on top of a drying mat)

• without holes (for e.g. on the countertop or delicate materials)

• with holes (octagon)

• without holes (octagon)

• bare

Print Settings

The models are optimized for printing and do not require any support structures.
I recommend the following settings:

• 0.2mm

• arachne wall generator

• 4 walls

• mouse ear brims for bare and square base versions

Attribution

• M10 interface achieved using [https://makerworld.com/en/models/1055250-screw-generator-parametric-screws-nuts-washer](https://makerworld.com/en/models/1055250-screw-generator-parametric-screws-nuts-washer) by [https://makerworld.com/en/@koolm](https://makerworld.com/en/@koolm)

Change Log

• [16.02.25] adds sodastream inserts (10 & 16cm tall)

• [02.01.26] adds sodastream glass inserts (10 & 16cm tall) and 24cm insert

• [08.03.26] fixes sodastream glass inserts
