Smart Laser Pointer for Pets – Interactive Toy for Animals Introduction

Want to keep your cat (or curious dog) entertained without manually moving the laser pointer? The Smart Laser Pointer for Pets is the perfect solution! This automatic device moves the laser randomly using two servo motors controlled by an Arduino Nano, stimulating your pet’s hunting instincts and keeping them active, fit, and mentally engaged.

Designed to be compact, easy to print, and simple to assemble, this toy is perfect for DIY enthusiasts who want to create an interactive experience for their pets.

How does it work?

At the core of this project is an Arduino Nano, which controls two servo motors to move the laser across two axes, creating random patterns that keep pets engaged. The algorithm can be customized in the code to modify laser behavior, adjusting speed, movement angles, and trajectories.

The laser pointer is powered by a 5V 1A/2A power supply, making it flexible and easy to use in different environments.

Required Materials

Electronic Components:

🔹 Microcontroller: Arduino Nano + Nano Shields
🔹 Laser Diode: powered directly by Arduino
🔹 2x MG996 or MG995 Servo Motors for movement
🔹 Jumper Wires for connections
🔹 Power Supply: Battery or 5V 1A/2A adapter

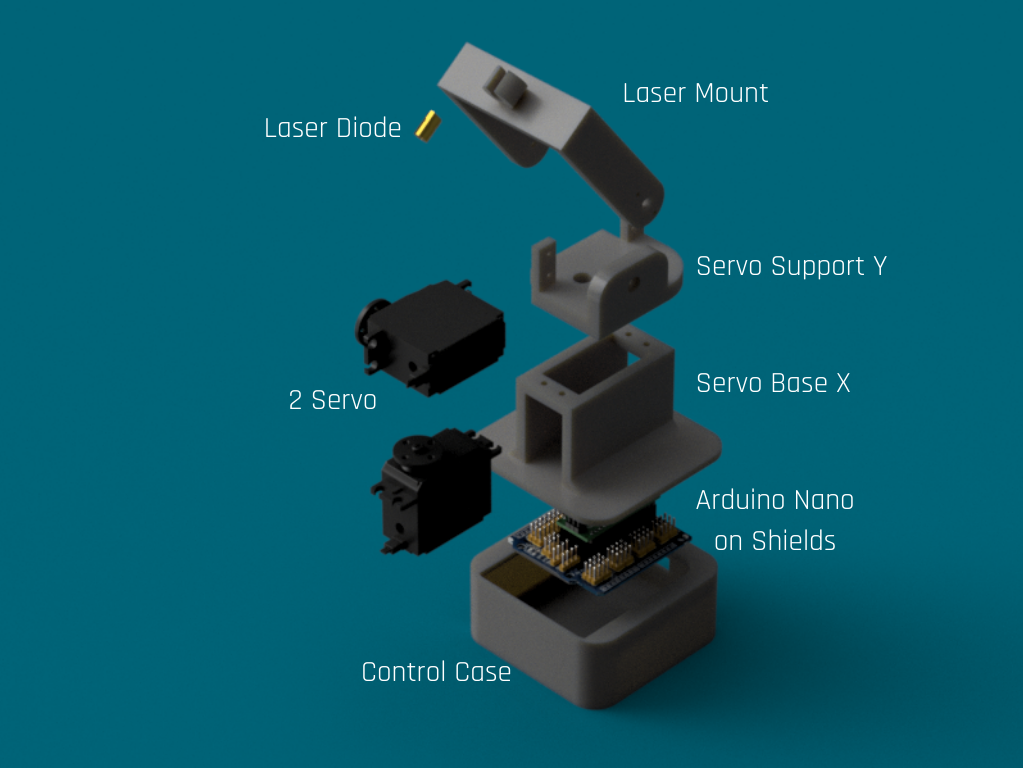

3D Printed Parts:

🔸 Laser Mount – support for the laser module
🔸 Servo Support Y – vertical movement structure
🔸 Servo Base X – horizontal movement structure
🔸 Control Case – housing for the electronics

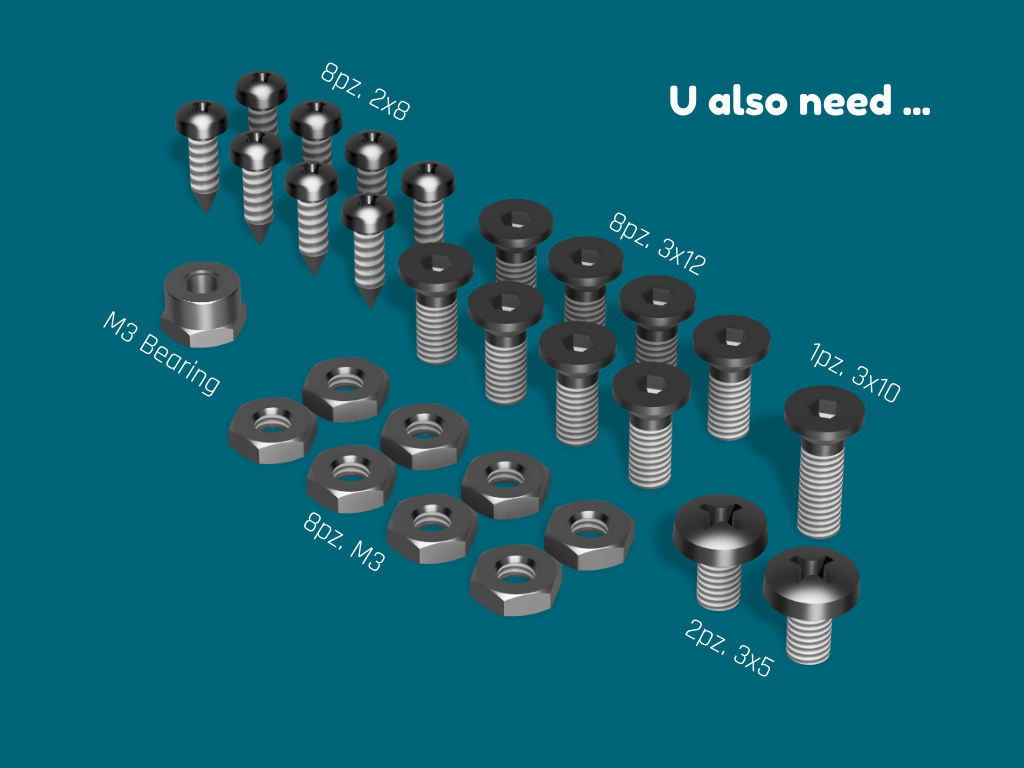

Screws and Fasteners:

✔ List in image presentation

Assembly and Calibration: FOLLOW THE ASSEMBLY INSTRUCTION PDF

1 Print all components in PLA/PETG without supports
2 Assemble the structure and secure parts with screws or glue (if needed)
3 Upload the main code to Arduino and enjoy!

⚠ Important: Before gluing parts together, make sure all servos and the laser are connected properly.

Code and Customization:

The code is written in Arduino C++ and allows you to:
U can see some code example in file section, this is a preview…

Pinout and Connections

• Servo X → Arduino Pin 9
• Servo Y → Arduino Pin 10
• Laser → Arduino Pin 5
• Power Supply → 5V and GND
• SEE THE PDF IN FILE SECTION

You can easily tweak the code to suit your pet’s needs, experimenting with different movement patterns.

Why choose this project?

🎯 Guaranteed fun – Keeps your pet active and entertained
🛠 DIY and customizable – Modify the code and settings as you like
🎨 Optimized design – Compact, easy to print, and support-free
🔋 Simple power supply – Works with any standard 5V USB adapter

📥 Download the model, print it, and share your feedback! If you enjoyed this project, leave a like and a comment on Printables. 😊
