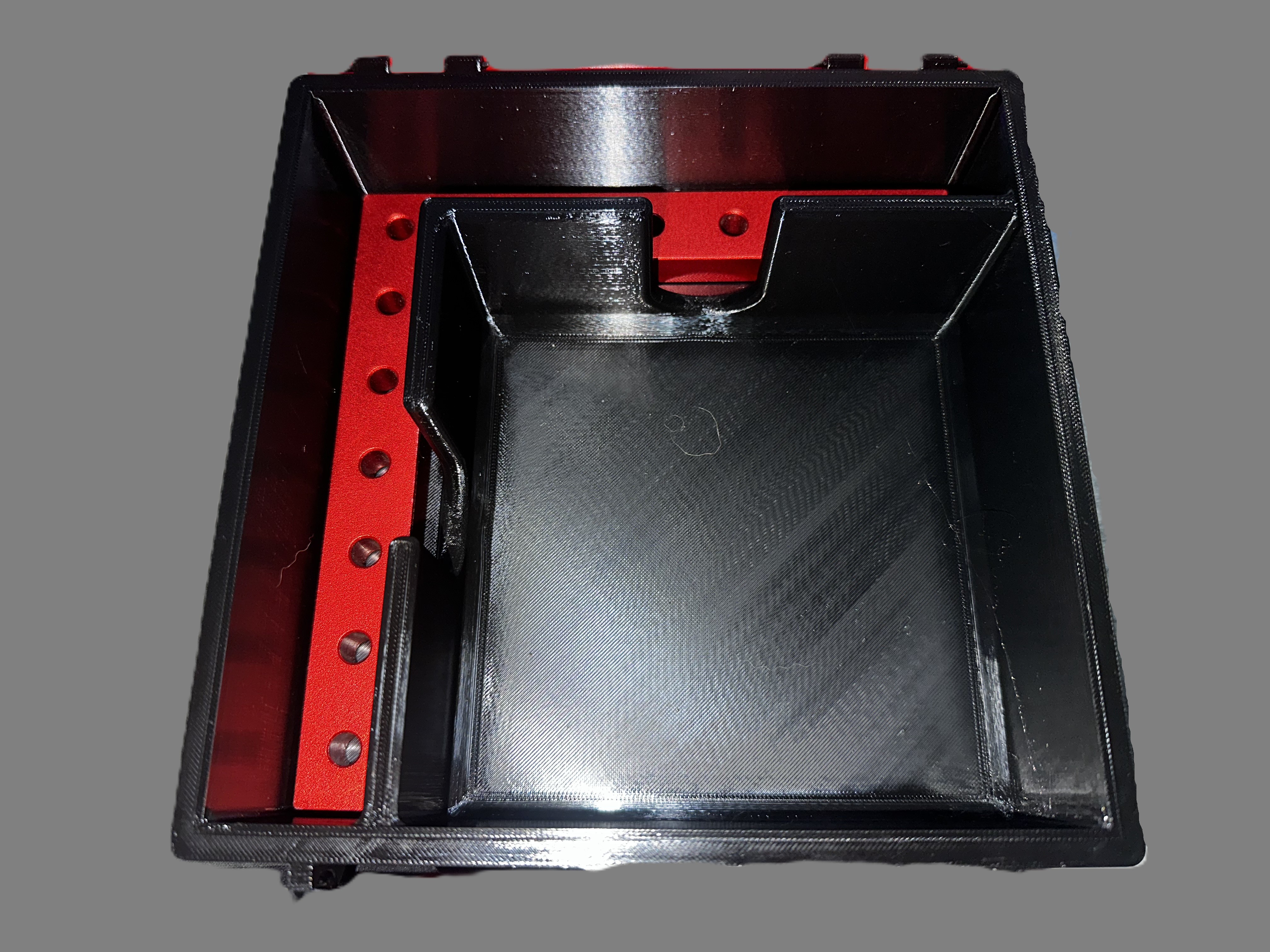

Right Angle Square Clamp Storage Box.

Assembly instructions

1.

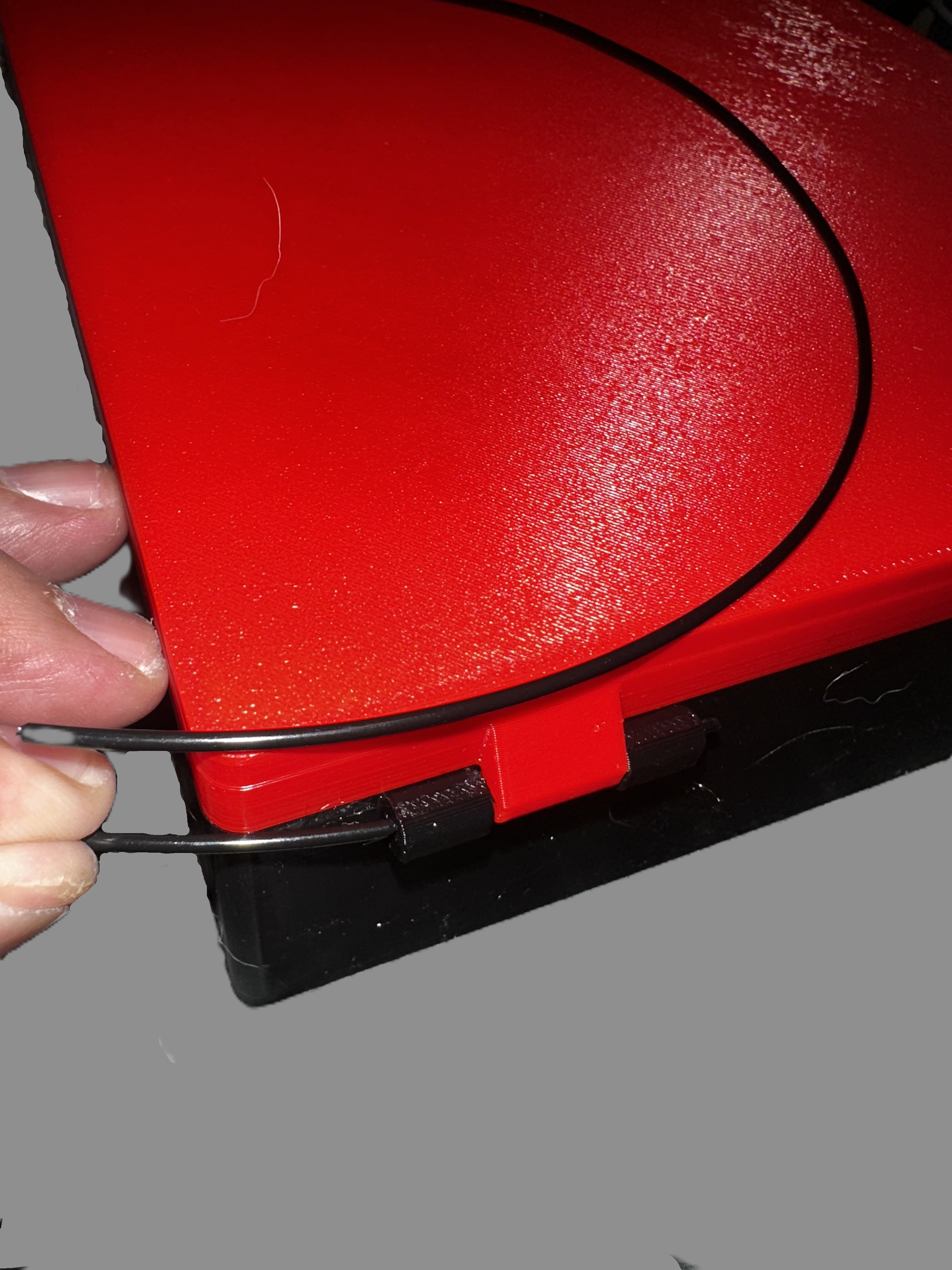

Put the lid on the bottom and take normal 1.75mm filament (preferably PETG) and press it into the opening until you can see it at the front.

2.

Cut the filament flush and do exactly the same on the other side

3.

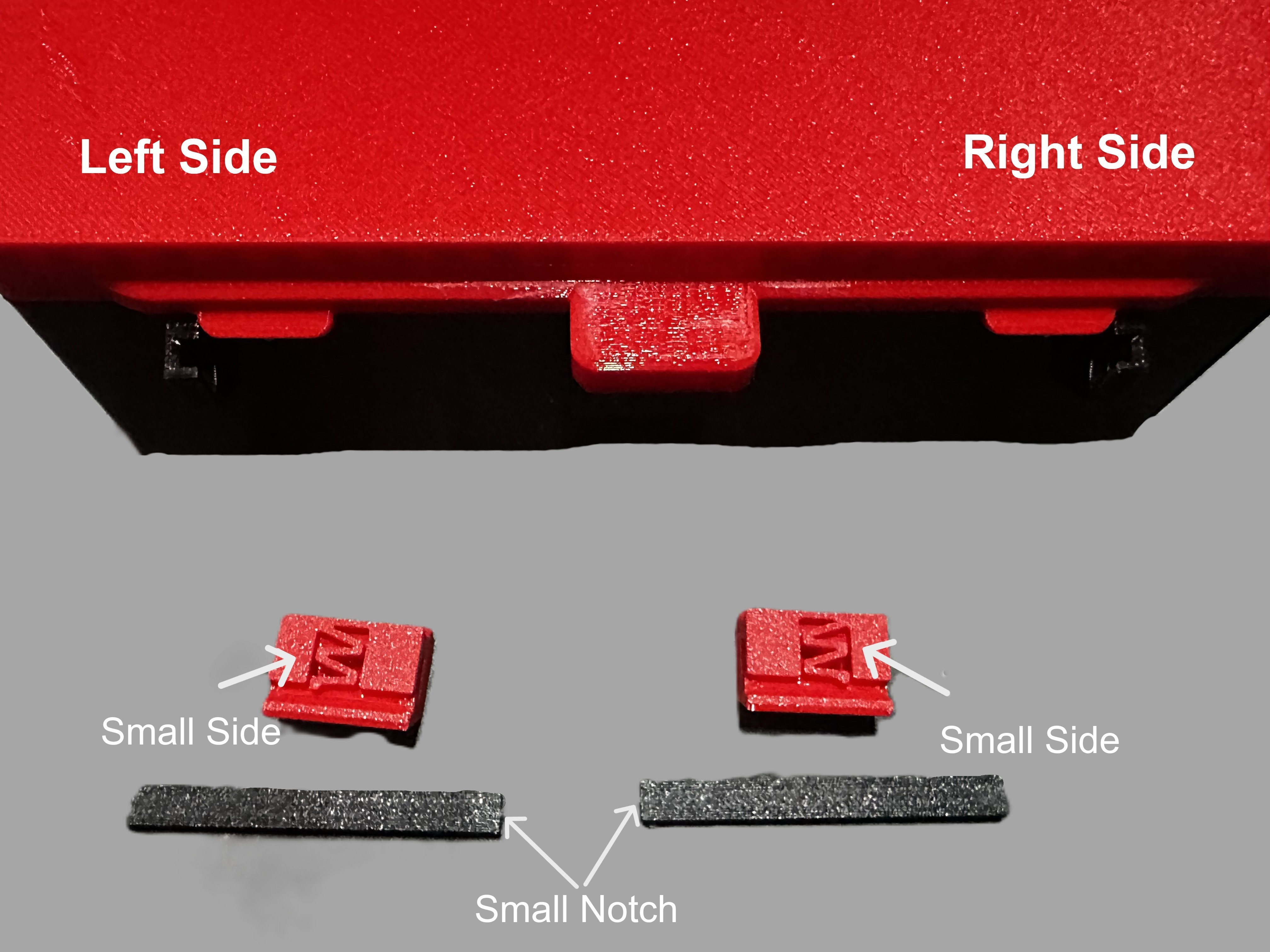

Slide the rail into the slide lock left. Note that the small side must face to the left and the notch from the rail must face to the right.

4.

Press the rail on the right side down Make sure that the notch in pointing to the middle

5.

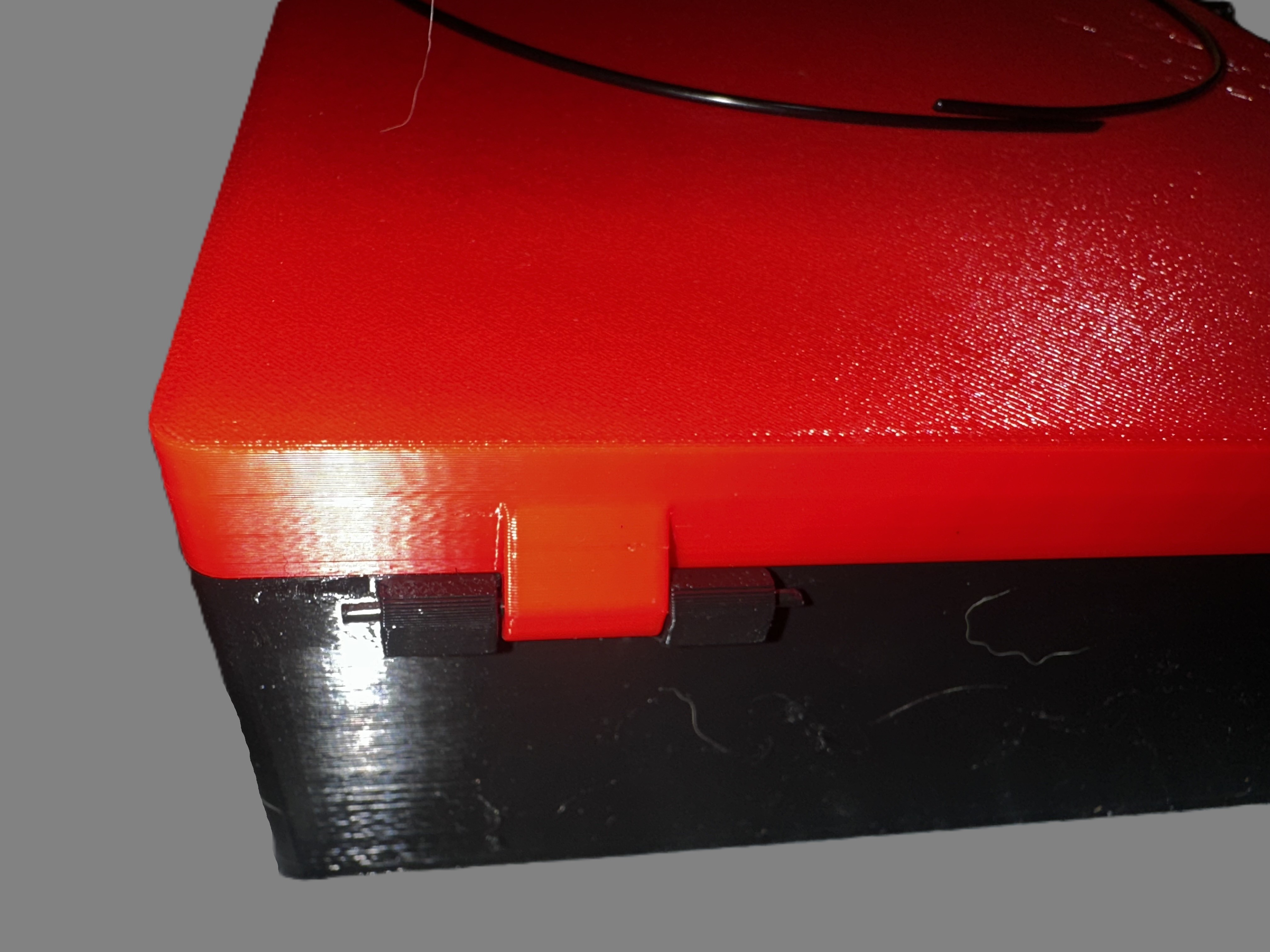

It must look like this! When the rail is to loose you can add a little bit of glue! Do this on the other side as well. Make sure that the two slide locks can be moved easily. If not, file away a bit.  May need to sand the rails to get them to move smoothly,

the lock is base in this design
