Modelo 3D Round Floating Wall Shelf - Parametric por A Crab no Printables

Descrição

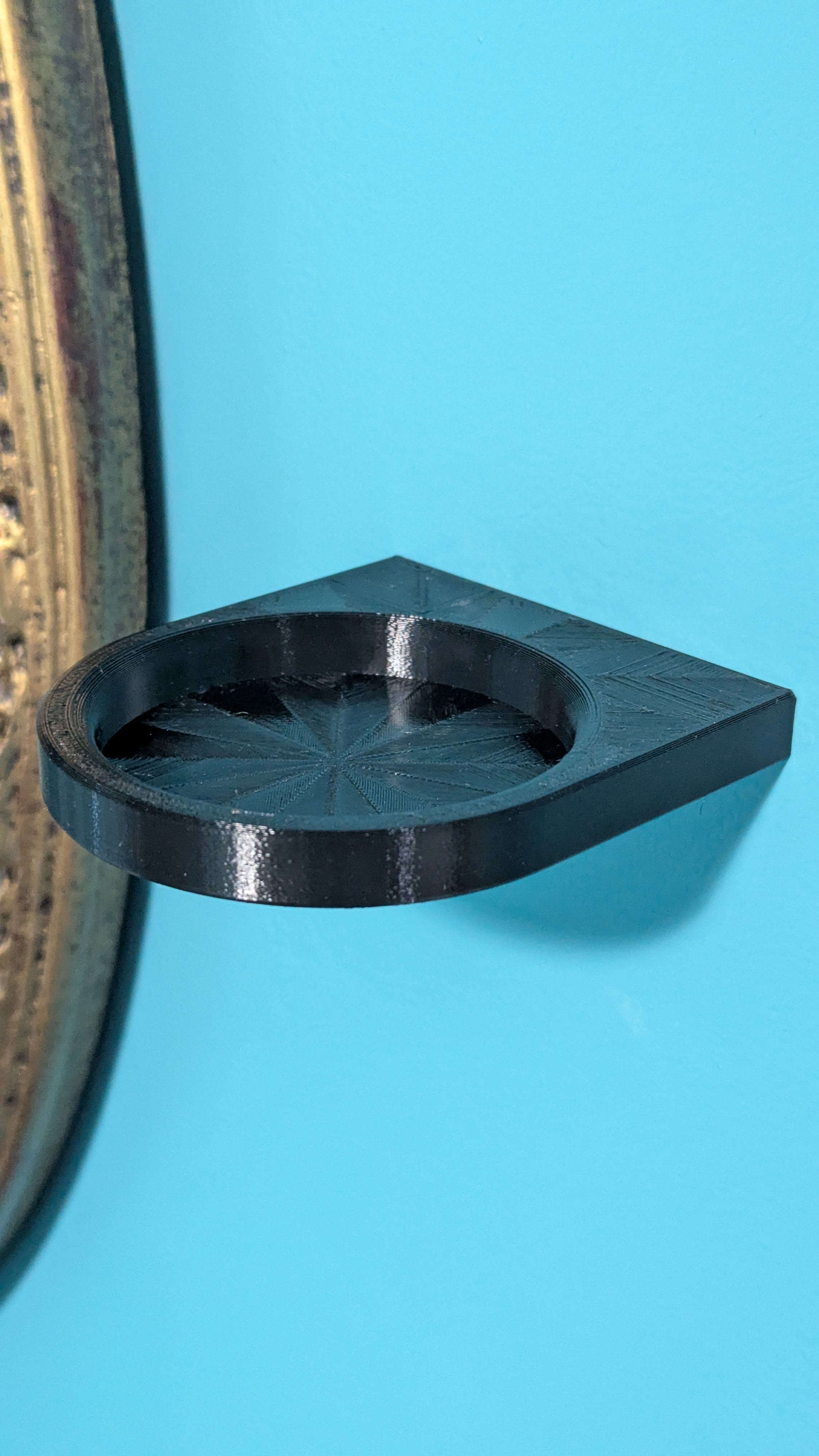

Built for simplicity, not sturdiness, so don't expect it to hold a lot of weight. The parameters in the included F360 file should make it easy to tweak any dimension you need to get a perfect fit, but I included a batch of possible sizes which you might want. Cover photo is the D80 with Octogram Spiral top and bottom fill patterns.

Notable features:

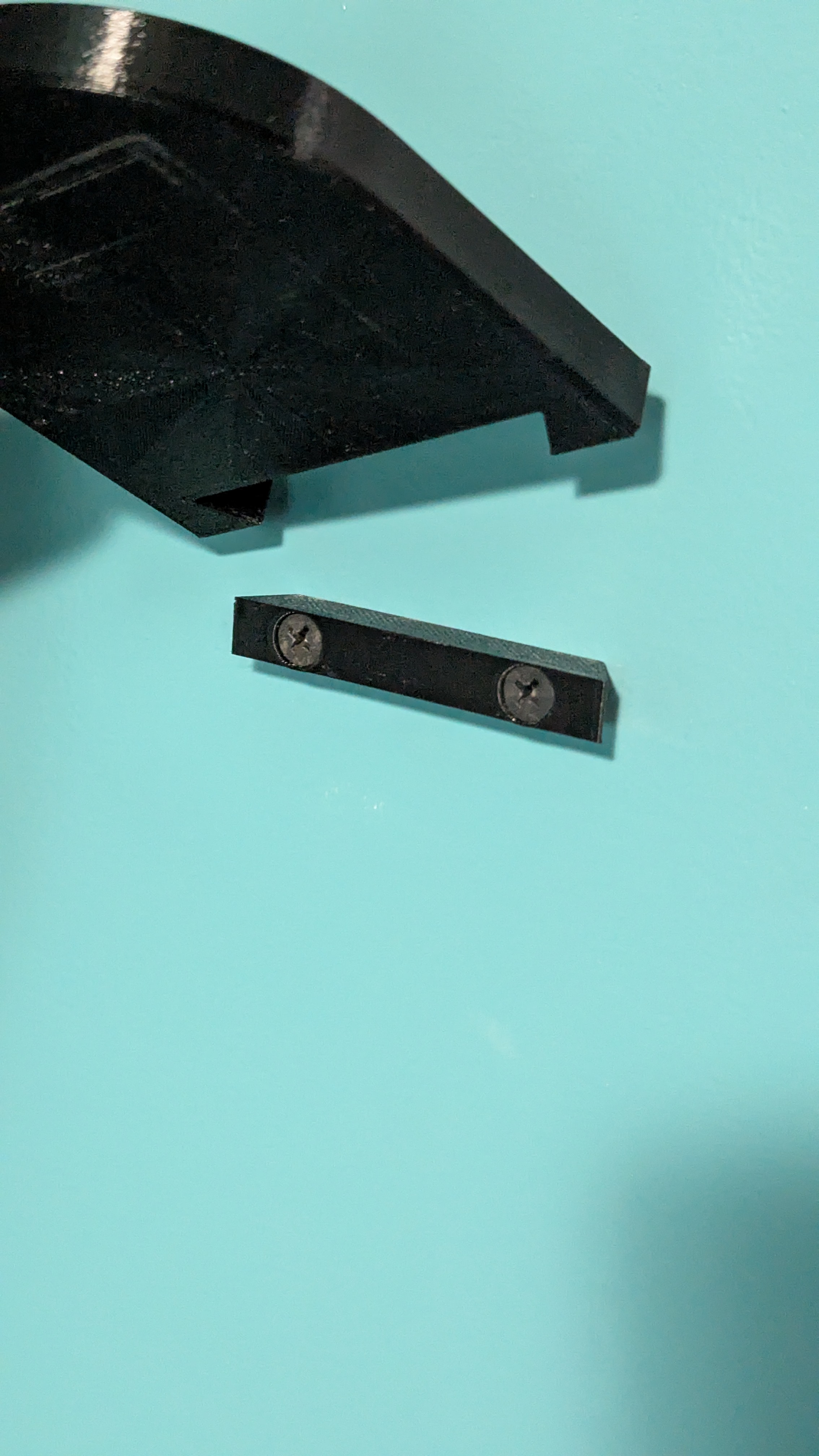

  • Separate wall mount piece makes it easy to install and then slide the main shelf into place on top.
  • Wall mount includes countersunk screw holes.

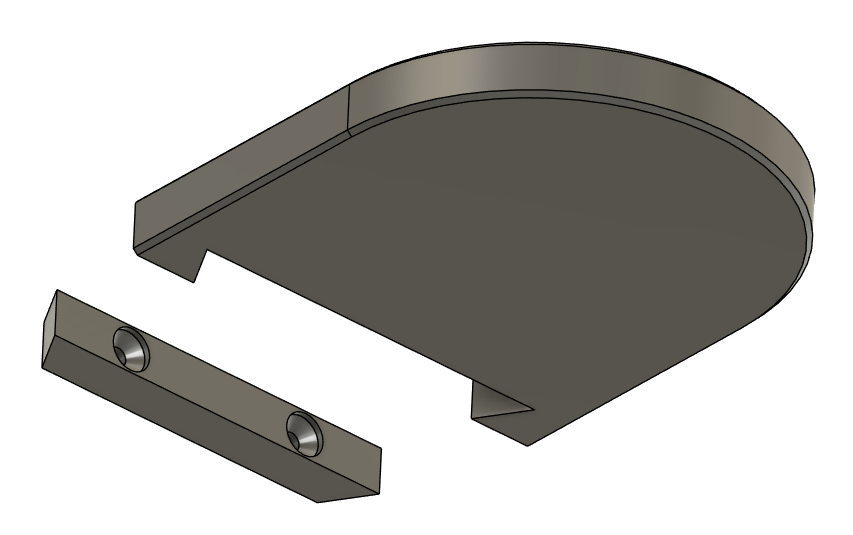

  • Supports only needed for underside of main shelf piece where wall mount slides into place, not visible after installation.

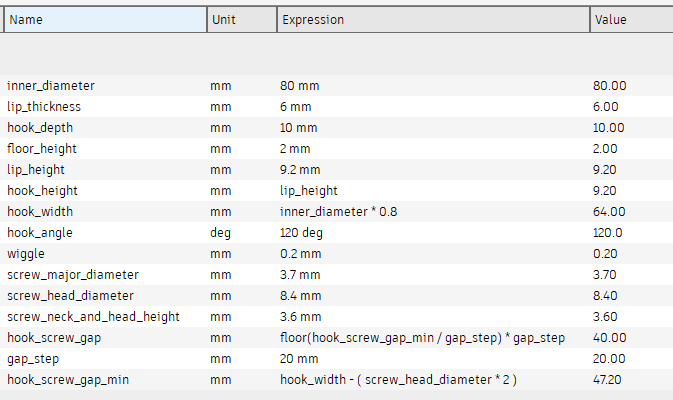

Parameter notes:

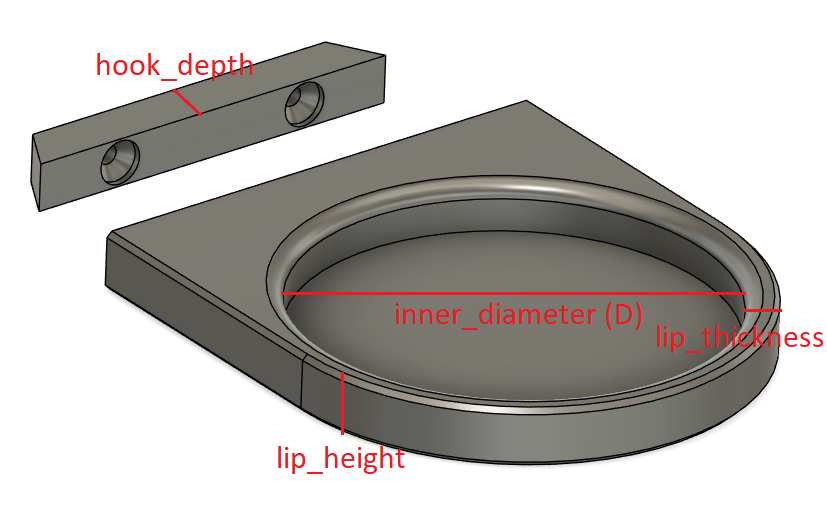

  • Main parameters that you're likely to tweak are mentioned in red in the one image.
  • The ‘wiggle’ parameter determines how much of a gap there is between the wall mount piece and the shelf piece that slides on. Current value feels like a perfect fit on my MK4S, but if it doesn't slide right on for you, increase it.
  • Screw dimensions can be entered to get perfect countersinking flushness,  but the default is pretty generous.
  • The gap between the screw holes (hook_screw_gap) auto-increments of steps of 20, meaning you'll be able to use the same screw holes in your wall if you print a few similar-but-not-quite-the-same sized shelves in a row, without having to re-drill wall holes.

Use “Supports on build plate only”.

Printables

Round Floating Wall Shelf - Parametric

Publicado em 1 de mar de 2025

14
Curtidas
38
Downloads
Categoria Home Decor
Tags
shelf wallmount wallmounted wallholder shelfmount potholder floatingshelf planterholder
Licença Creative Commons — Attribution
Arquivos (7)
Round Floating Wall Shelf V1 D50.3mf 76.6 KB
Round Floating Wall Shelf V1 D60.3mf 71.8 KB
Round Floating Wall Shelf V1 D70.3mf 77 KB
Round Floating Wall Shelf V1 D80.3mf 79.6 KB
Round Floating Wall Shelf V1 D90.3mf 75.3 KB
Round Floating Wall Shelf V1 D100.3mf 76.5 KB
Round Floating Wall Shelf v1.f3d 107.3 KB
