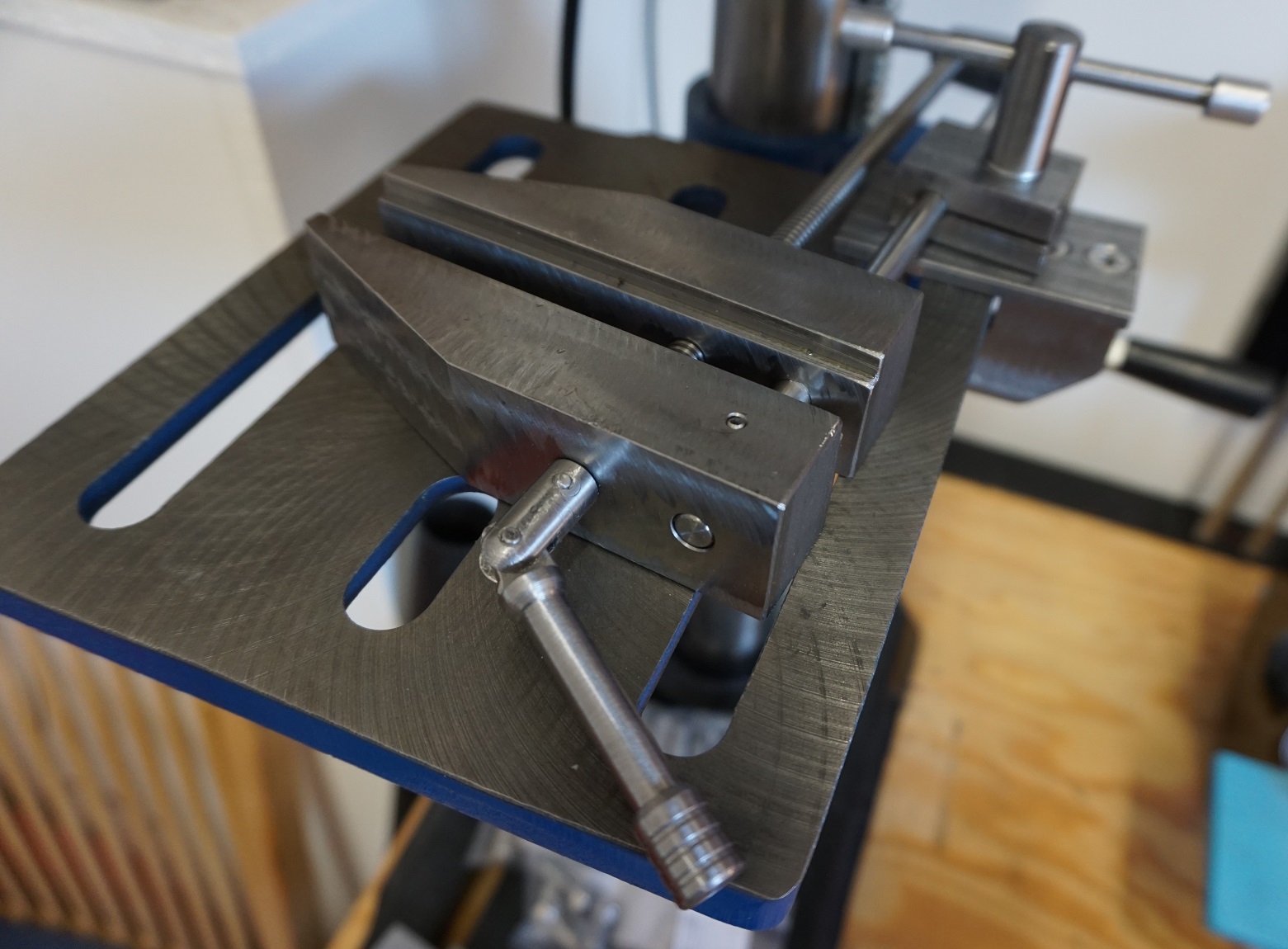

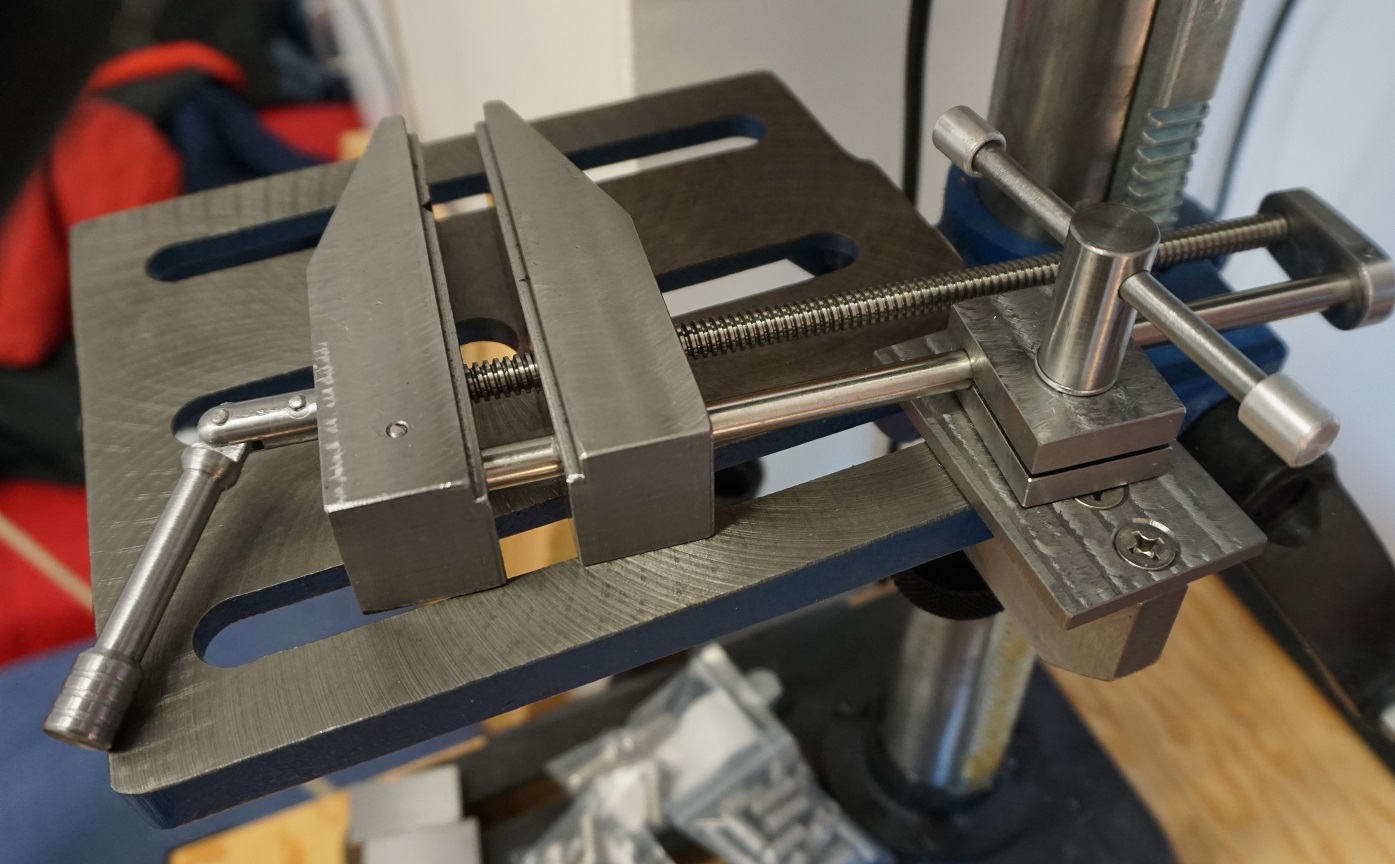

Parametric Floating Lock Vise.
This thing has been inspired by the design of MrPete. The design has been converted to metric and made suitable for a smaller drill press table (165mmx190mm).
The dimensions I have chosen for the trapezoidal lead screw (TR8x2) and guide rod (8 mm) are based on parts I had available from an old 3D printer. Since the model is parametric, the STLs can be easily rendered for other sizes of those parts.
Required machined parts:
- FloatLockVise_FixedJaw.stl or FloatLockVise_FixedJawWithGrooves.stl (1x)
- FloatLockVise_MovingJaw.stl (1x)
- FloatLockVise_EndPlate.stl (1x)
- FloatLockVise_LeadScrew.stl (1x)
- FloatLockVise_Rod.stl (1x)
- FloatLockVise_ClampBlockBottom.stl (1x) + FloatLockVise_ClampBlockTop.stl (1x) or FloatLockVise_SinglePieceClampBlock.stl (1x)
- FloatLockVise_CrankConnector.stl (1x)
- FloatLockVise_Brace.stl or FloatLockVise_Brace_Short.stl (1x)
- FloatLockVise_CrankConnector.stl (1x)
- FloatLockVise_CrankHandle.stl (1x) or FloatLockVise_CrankSpeedHandle.stl (1x)
- FloatLockVise_Handle.stl (1x)
- FloatLockVise_MountingPlate.stl (1x)
- FloatLockVise_ClampHandle.stl (1x)
- FloatLockVise_ClampHandleTip.stl (2x)
Required other parts:
- cone head screw M6x20 (2x)
- hex head screw M8x50 (1x)
Optional 3D printed parts:
- FloatLockVise_BraceMountKnurlScrew.stl (1x)
