Modelo 3D Switch Pro Controller Mount (not Lite edition) por Marius no Printables

Descrição

Update: 2024-04-14
New centered version with access to charging jack of the switch.
The down side now is that is consists of two parts. They interlock via a dovetail-connection so they dont come apart when the switch is in there. :-)



Original Post

This design Mounts the Nintendo Switch to the official Pro Controller in a simple, light design.

My Goal was not to use supports at any costs. This is how the non centered version came to life.
The most recent version has it all: No supports needed and access to the charging jack.

The Fusion 360 files and step are included as well, if you want to tinker with it.

Versions:

  1. Basic Version:

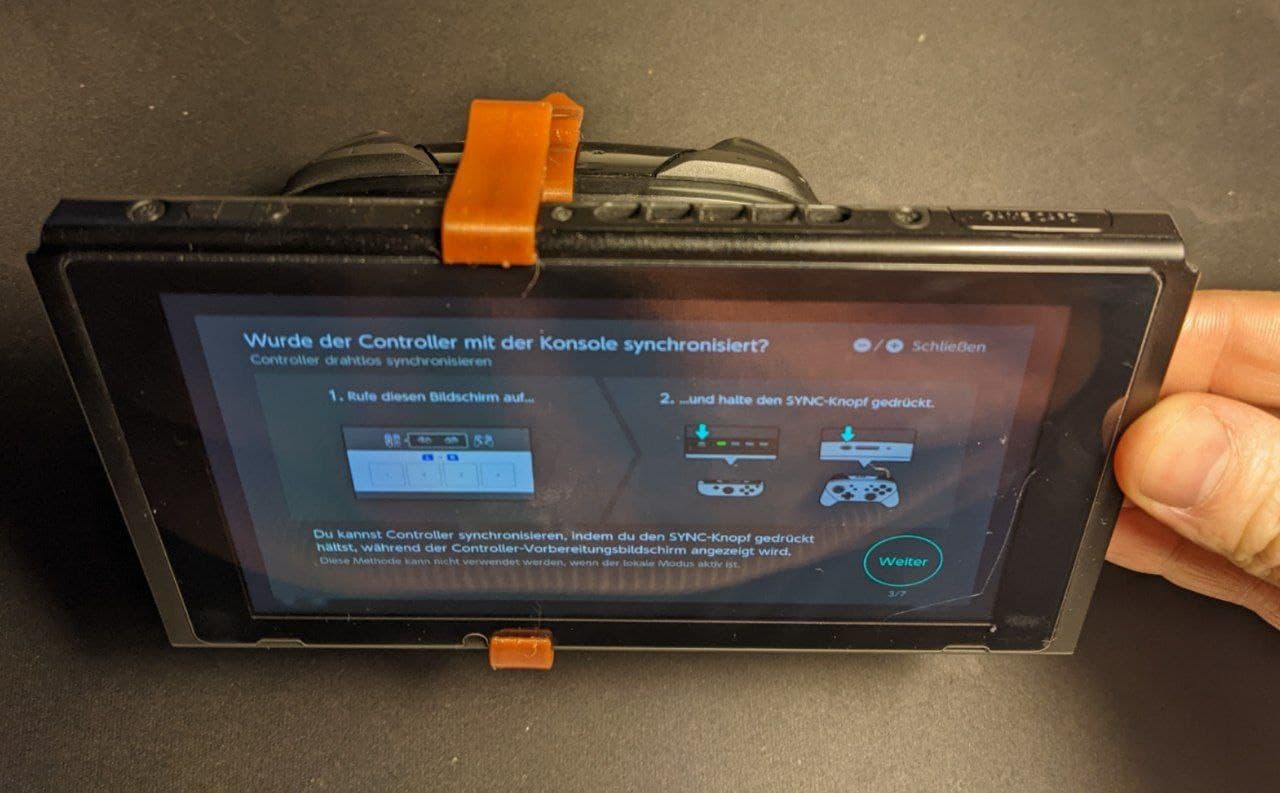

    Mounts Switch in the center, but the charging jack ist covered. (pictures 5, 6 and 7)
  2. Non-Centered Version: charging jack is accessible & clip does not cover up venting holes (pictures 8 and 9)

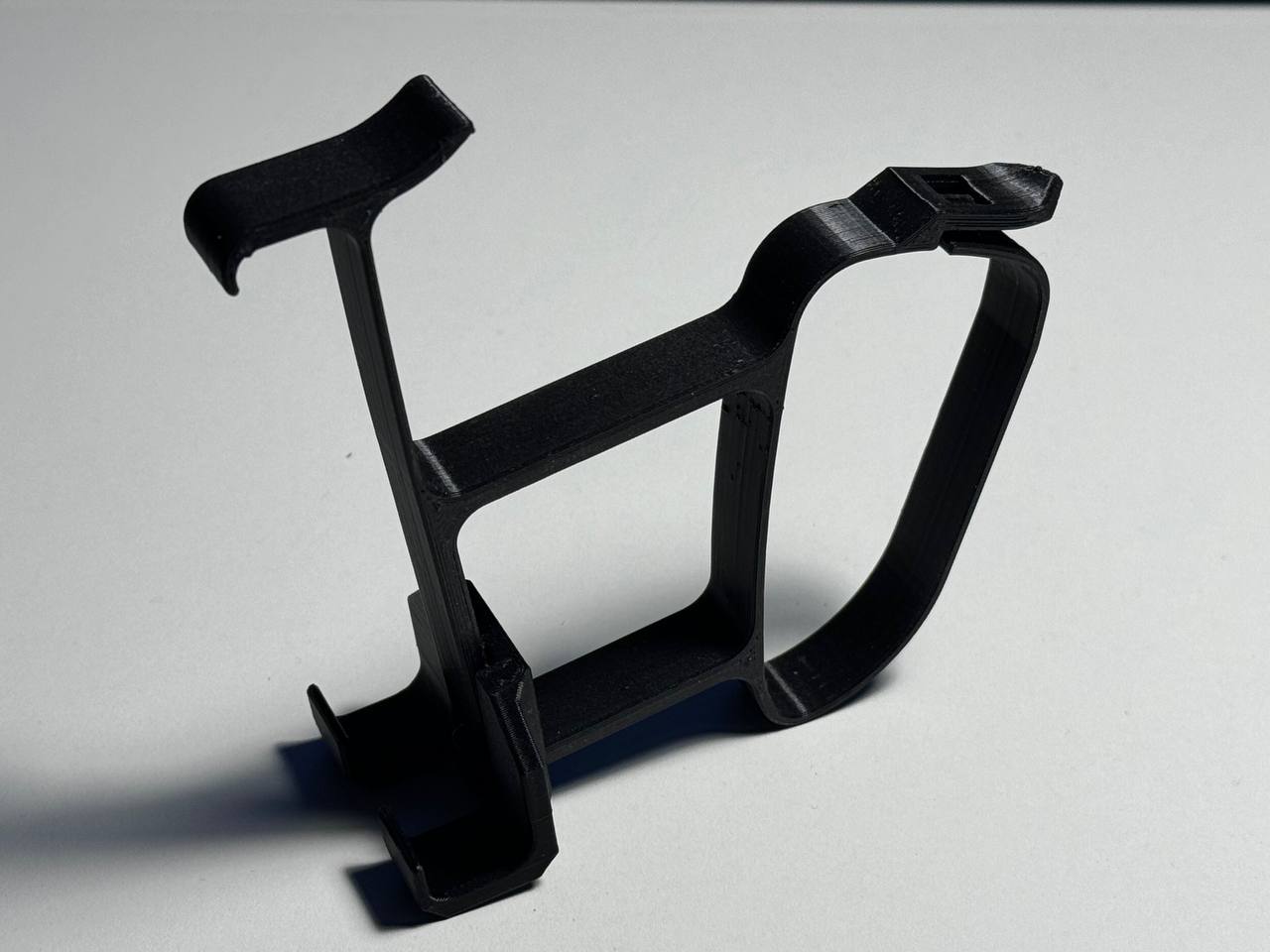

  3. NEW (April 2024) centered version with access to charging
    consists of two parts as shown in the pictures 1-4.

I reccomend the new centered version.

The Print was done in PETG to give the part a litte bit of flexibility.
If you have any suggestions, like a different angle something, please let me know.

Printables

Switch Pro Controller Mount (not Lite edition)

Publicado em 14 de abr de 2024

106
Curtidas
598
Downloads
14
Impressões
Categoria Electronics
Tags
nintendoswitch switchprocontroller
Licença Creative Commons — Attribution
Arquivos (9)
Switch pro controller holder non-center v2.stl 141.2 KB
Switch pro controller holder non-center v2.step 330.9 KB
Switch pro controller holder non-center v2.f3d 537.7 KB
Switch_Pro_Controller_Mount.stl 151.2 KB
Switch_Pro_Controller_Mount.step 346.3 KB
Switch_Pro_Controller_Mount.f3d 642 KB
Switch_ProcontrollerHolder_V3_BottomClamp.3mf 11.5 KB
Switch_ProcontrollerHolder_V3_MainPart.3mf 41.2 KB
Switch_ProcontrollerHolder_V3.f3d 485.3 KB
