Gridfinity box (4x2x7 units – 167.5 x 83.5 x 52.65 mm) tailored to fit WAGO 221 series connectors.
Holds up to:

• 45x 221-2411
• 36x 221-412
• 54x 221-413
• 18x 221-415

Available with or without integrated labeling and external labels, depending on your preference.

Options

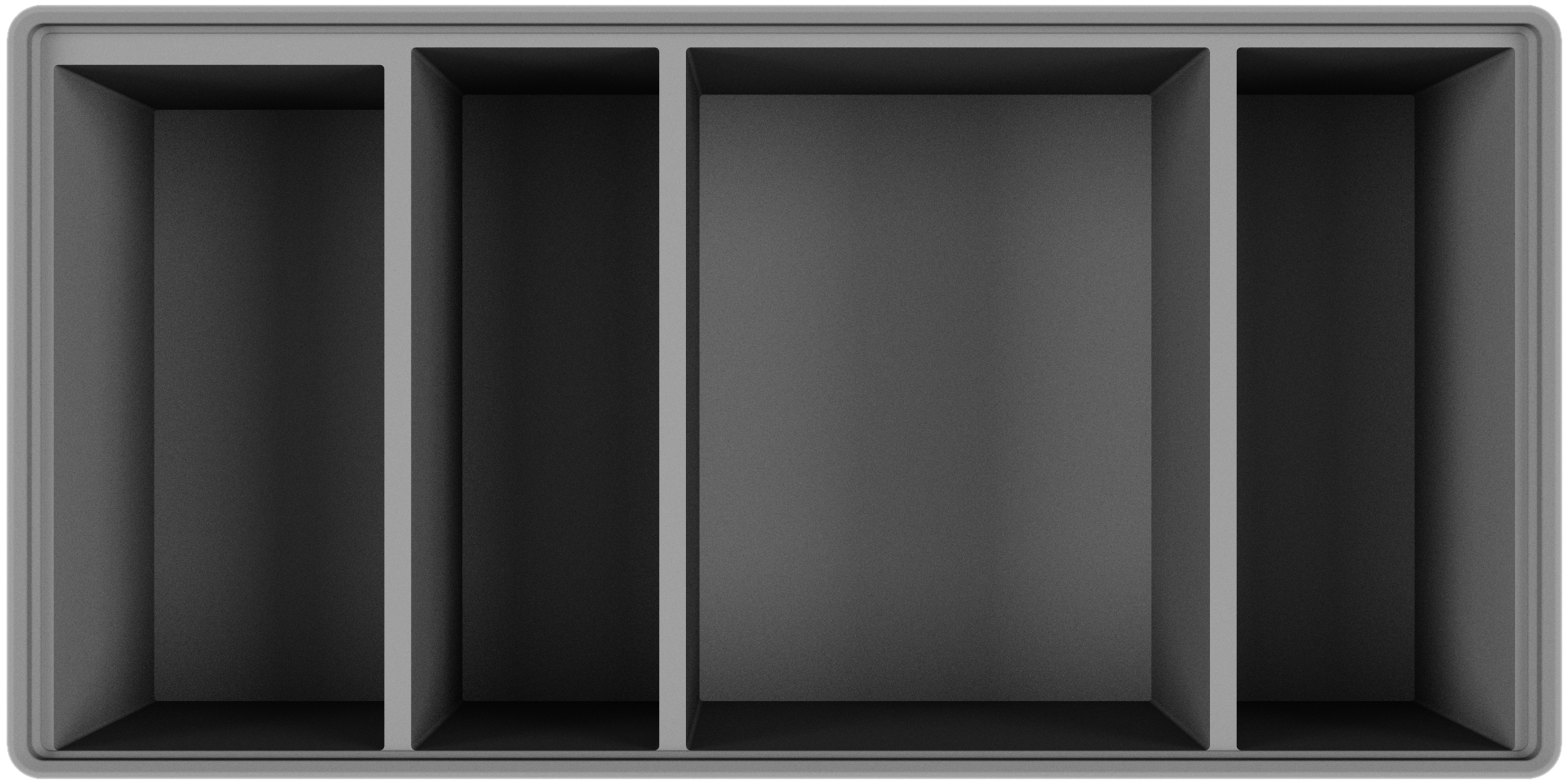

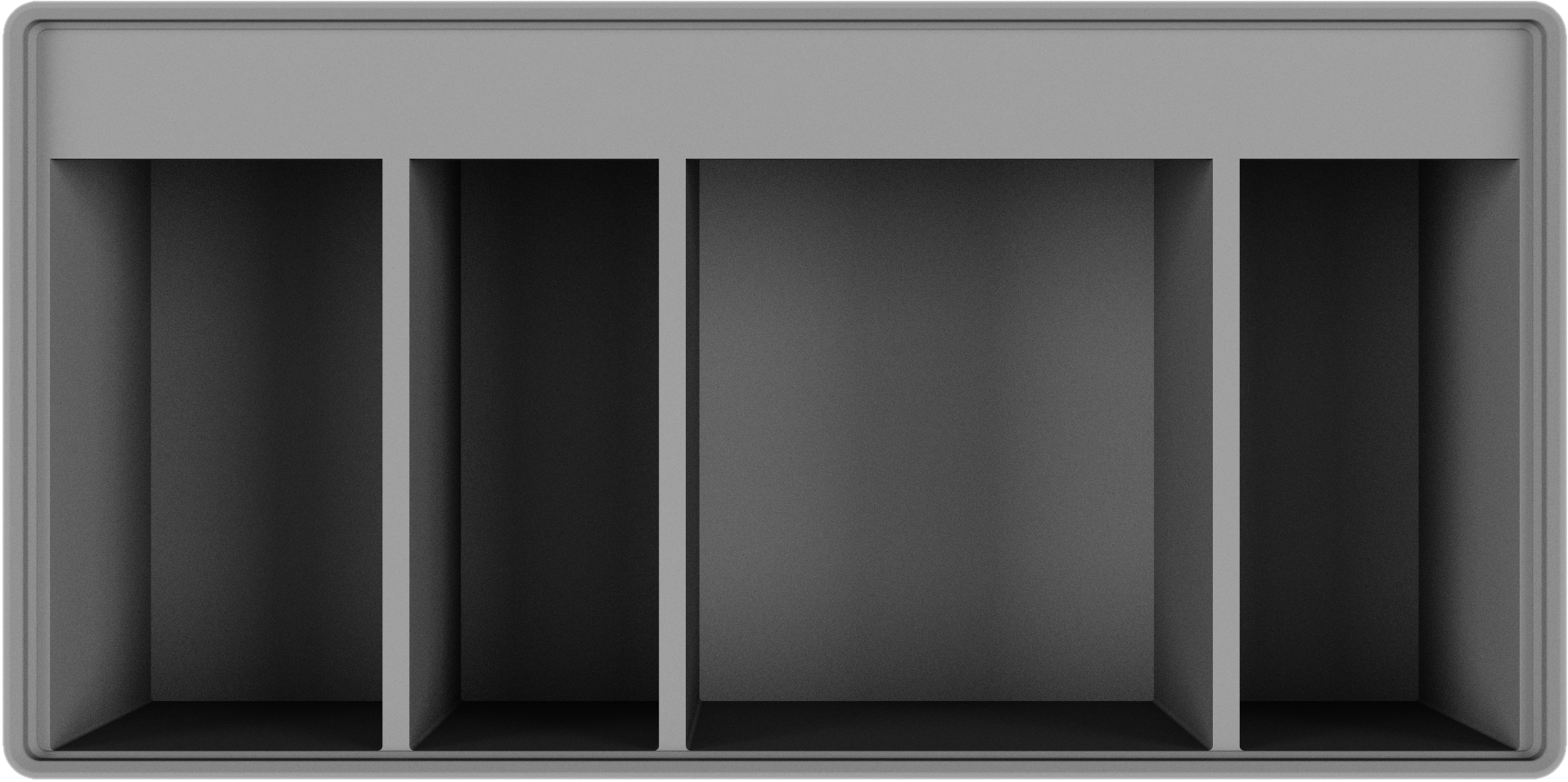

Plain	Label Blank

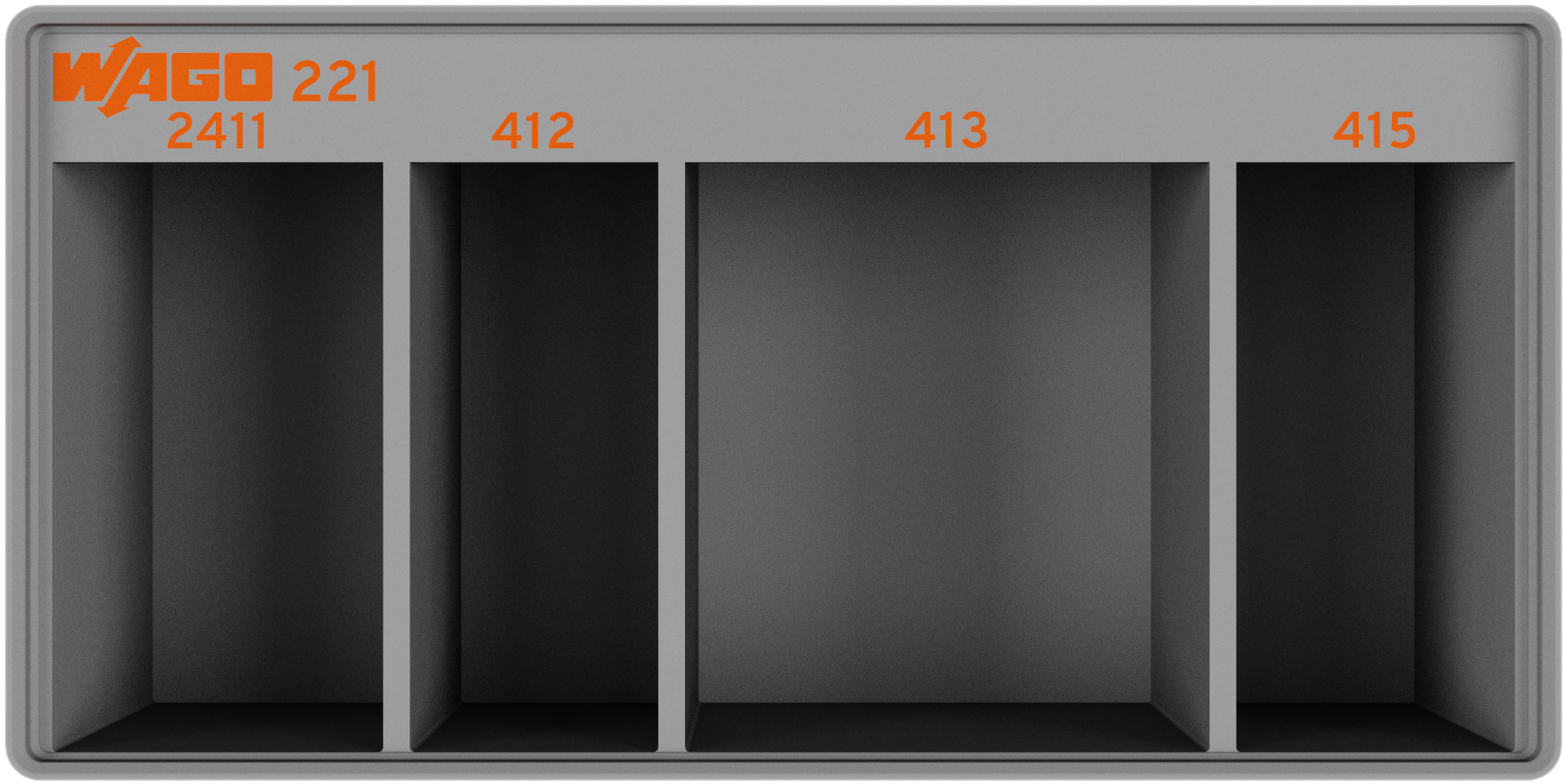

Label Logo	Label Inscription

Printing Instructions

If you want to print the boxes with a logo or labeling in two colors, you can use the provided STEP files.
In your slicer, select "Objects" to assign a different color to the inlay.
Alternatively, the inlays can be printed separately and glued in afterwards if preferred.
