Modelo 3D Floating Pool Bridge por Byron Montgomerie no Printables

Descrição

We had a member of our pool league join our team and he is in a wheelchair but because of the height of the chair he was unable to reach very far with his cue. We all brainstormed ideas to make a bridge for him that could be lifted up after shooting and with flexible options by putting it on it's side.  I did the final design and iterations of testing and printing.  This is version 6 of the designs I made.

I did this one in PC filament, 50% infill, gyroid pattern, rather slow 50ish mm/s max.  PLA works fine as well, just may not last as long and if you are in a wamer climate, may sag.

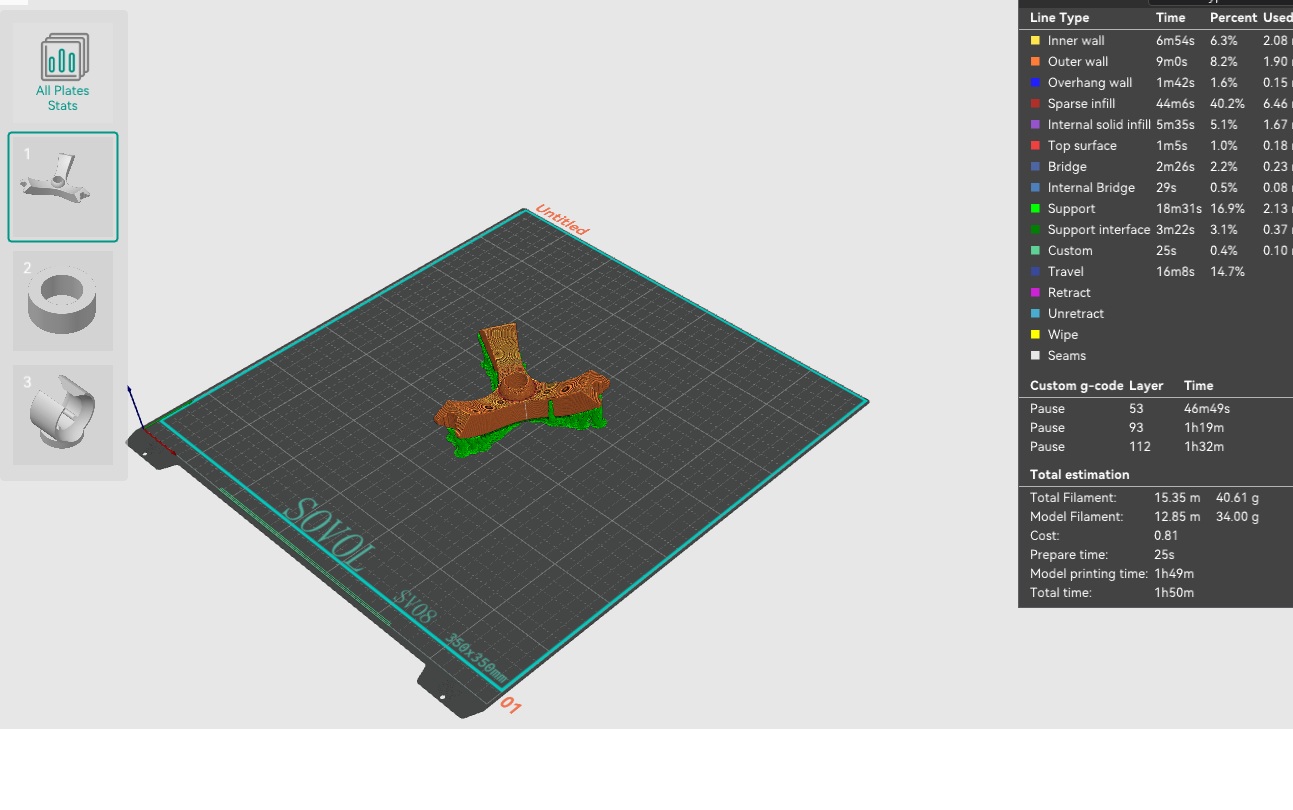

There are pause points to insert a bearing and to fill the legs with weights, I used some lead fishing weights and cut them as needed, then poured in some candle wax, how you do this isn't critical, but some extra weight seems to be beneficial.   I use a short m8 bolt to attach the parts, friction fit.

EDIT:

Added bridge2 and bridgecap files, for avoiding the second pause and just inserting the lead in afterword. Just glue the cap on. Also added the Freecad file.

Printables

Floating Pool Bridge

Publicado em 21 de fev de 2025

2
Curtidas
18
Downloads
Categoria Indoor Sports
Tags
wheelchair billiards apa 8ball 9ball cpa
Licença Creative Commons — Public Domain
Arquivos (6)
bridgespacer.step 5.3 KB
bridgetop.step 176.2 KB
bridge.step 730.7 KB
bridgecap.step 11.7 KB
bridge2.step 814.9 KB
bridge3.fcstd 5.5 MB
