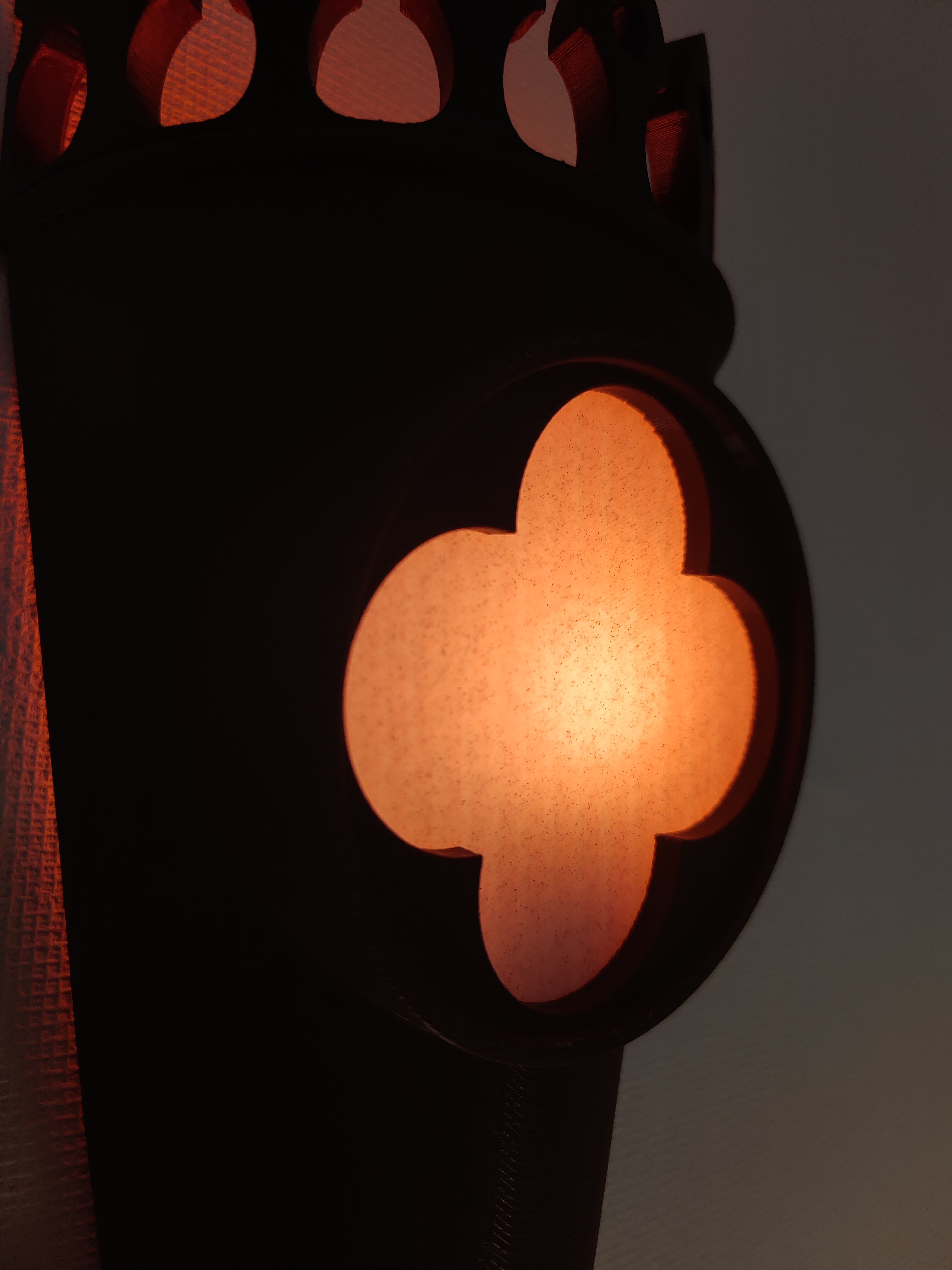

Danse Macabre - Efteling Wall Lamp

This is a recreation of the lamps seen in the queue of Efteling's new ride, Danse Macabre. (also as seen in the former Spookslot)

Printing Details

The parts are designed to fit on a standard Prusa build plate (tested on an MK3s+).

Body

• Printed using brown or bronze-colored PLA.
• Requires supports: Position the part that will face the wall downward on the print bed.
• Print the top crown facing upwards with snug supports (as shown in the picture).

Diffuser

• Printed using marble PLA.
• Recommended settings: 3 layers at 0.2mm layer height.

Assembly

• Slide the parts into the slots, securing them with a generous amount of hot glue.
• The diffuser should fit snugly through friction.

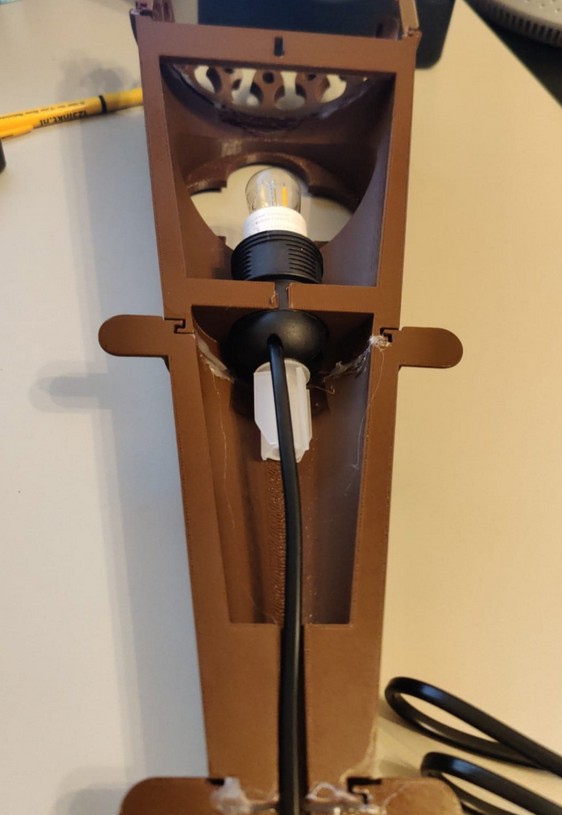

• For the light source, I used an E27 fitting with an attached cord (see picture).
• To achieve a fire/candle effect, I used an E27-to-E14 adapter to fit a Philips Hue E14 color bulb.

Customization

I've included the Fusion 360 file, allowing you to modify the design if certain parts are unavailable in your area. Additionally, there's an uncut version of the model, enabling you to print it as a single piece (excluding the diffuser). If you plan to scale the design down, be sure to adjust the diffuser proportionally.
