Modelo 3D Shaper Origin spindle light (USB) por MDinside no Printables

Descrição

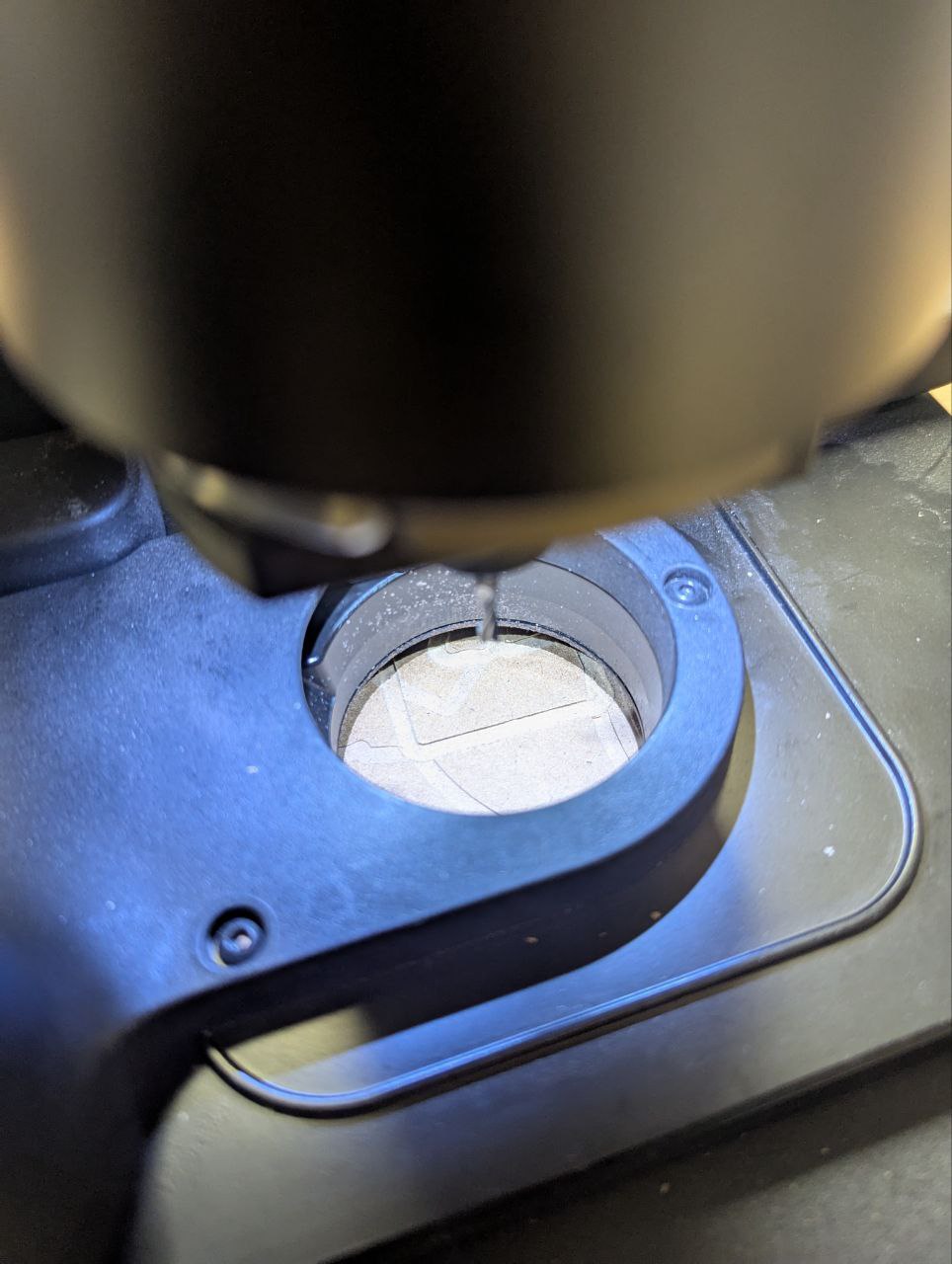

A simple USB light to fit directly on the Shaper Origin spindle.
I used two superbright LED and the Origin USB-C port (with an adapter) to power it.
--Some basic soldering skills are required--

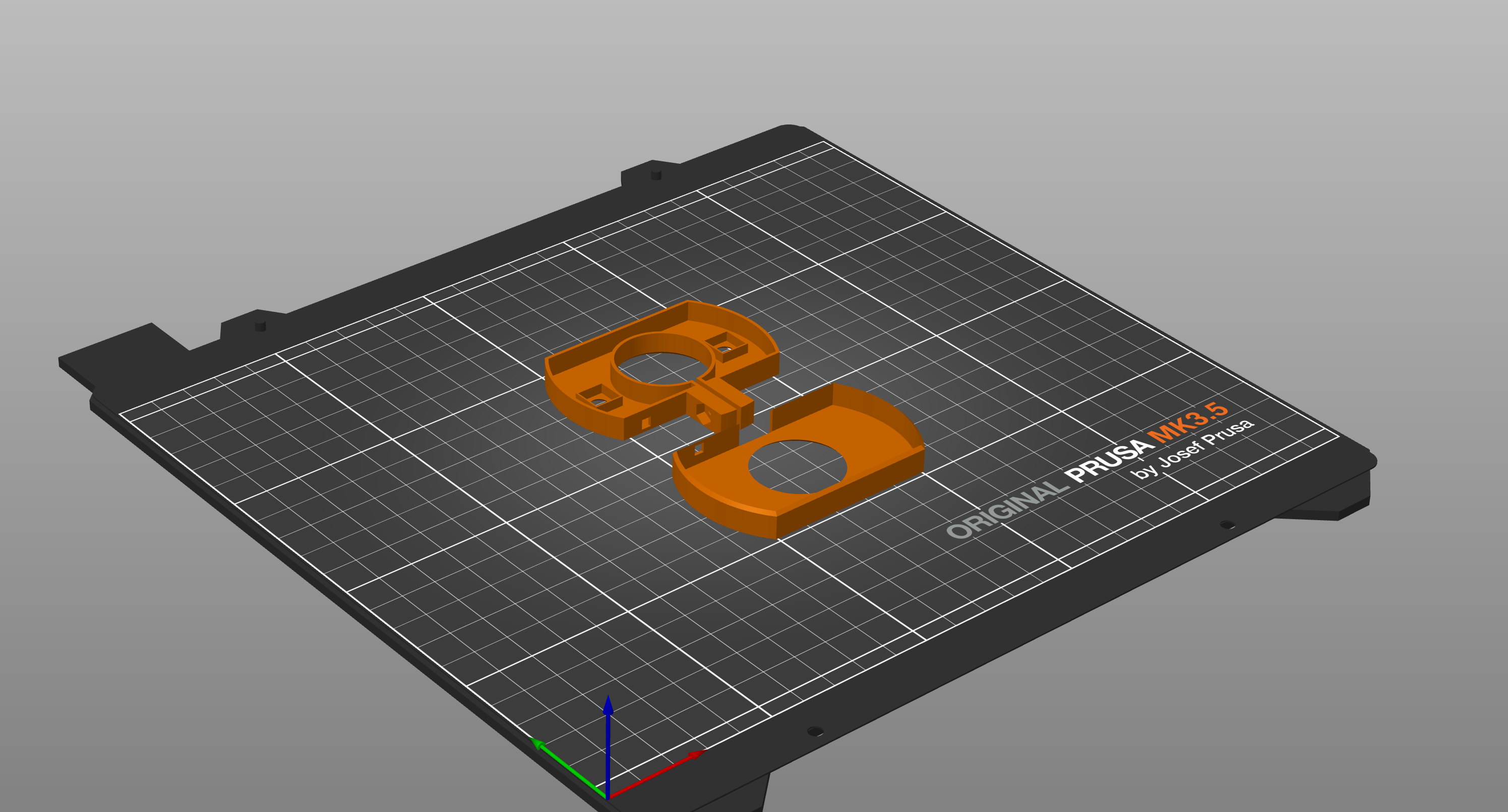

Printing Instructions:

Material: ASA (recommended, PETG should work as well)
Infill: 100%
Supports: NO
Slow down the speed!


Hardware:

n.1 M3 bolt and nut
n.2 squared LED superbright (7,5x7,5mm). If you want to buy these look for LED 5mm piranha.
n.2 100 Ohm resistors (1/4W)

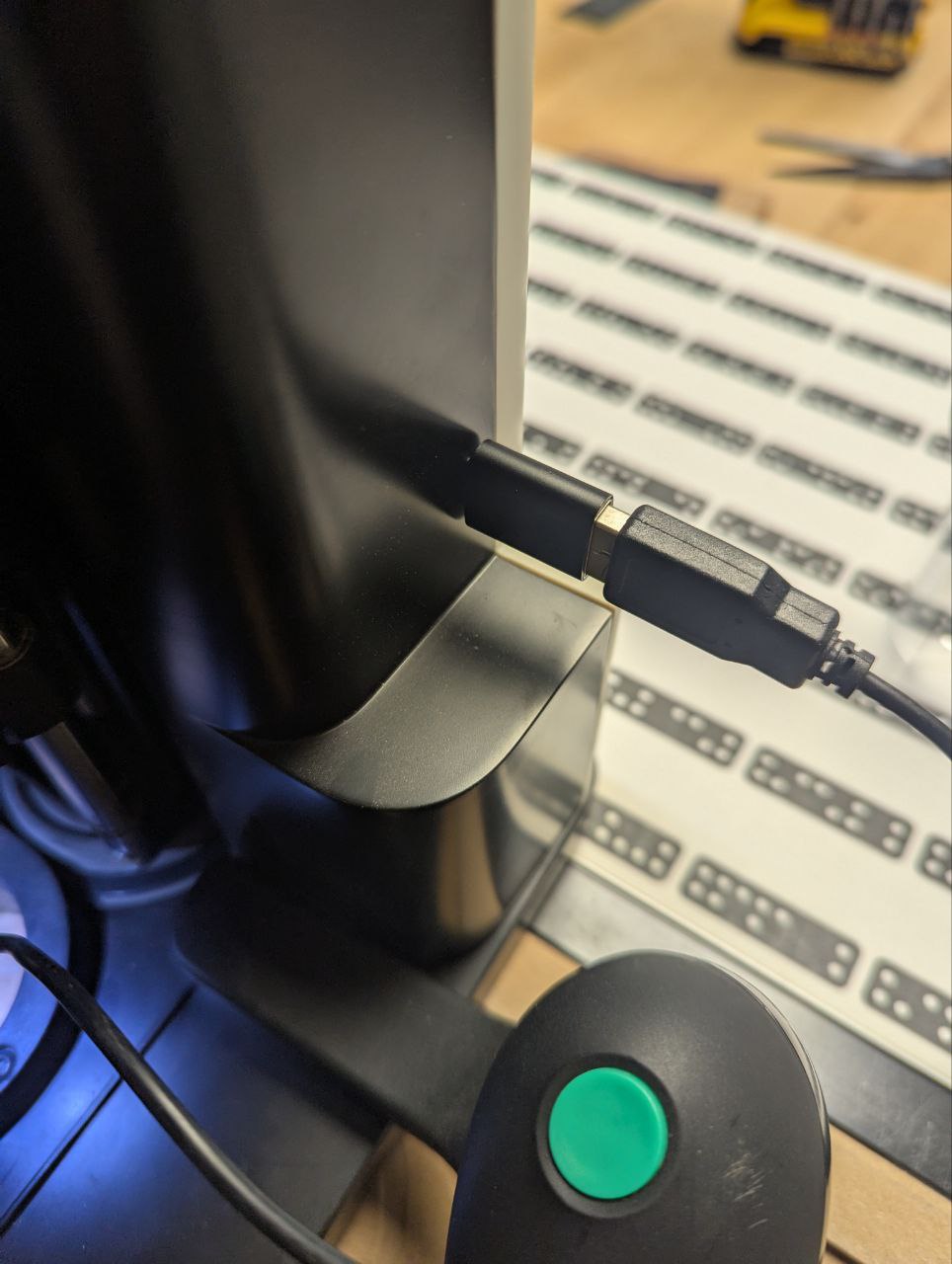

Optional: a USB-C to USB2.0 adapter, see picture (or you can use a USB-C cable directly)

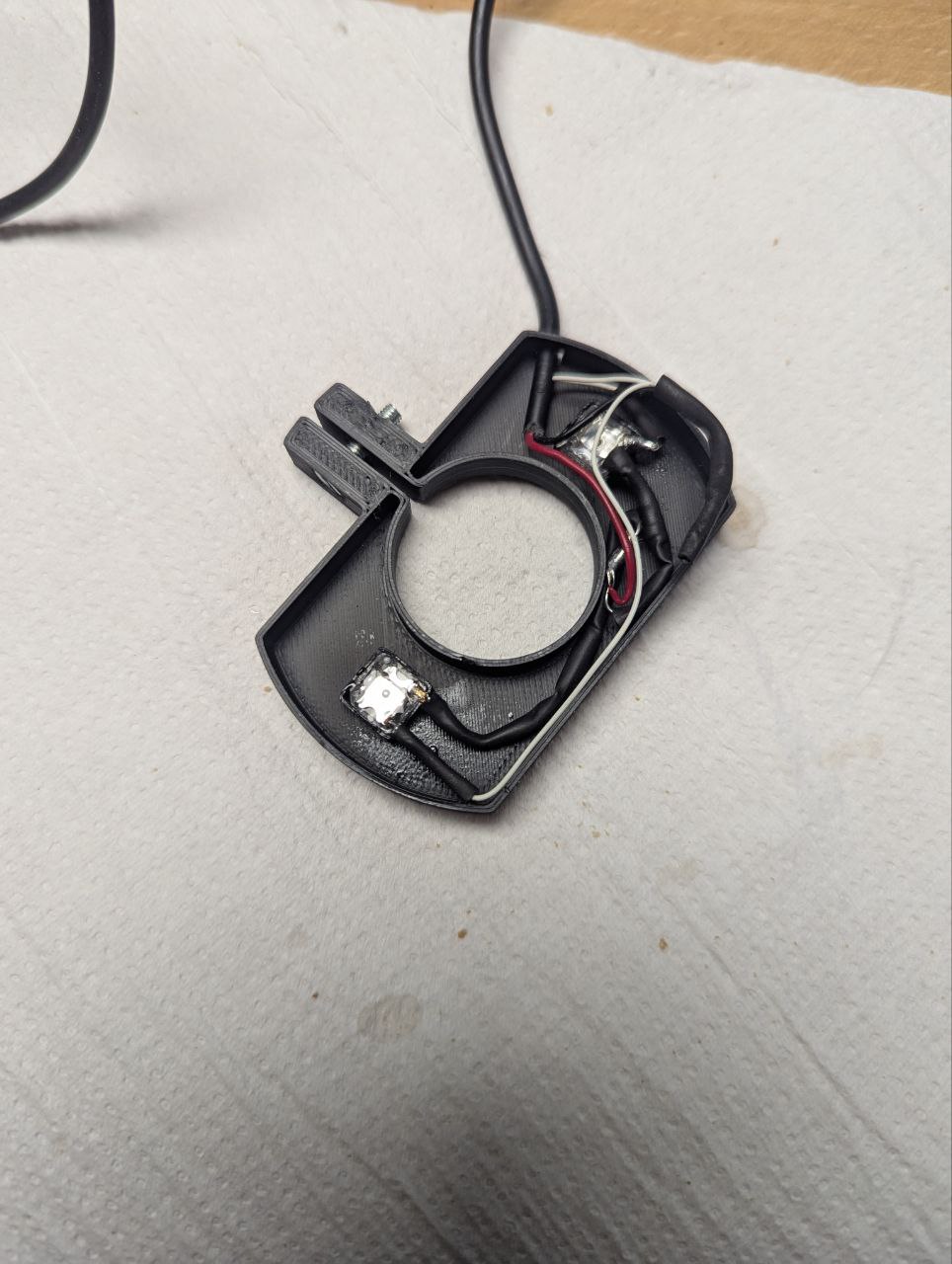

Soldering Instruction:

LEDs needs to be soldered in parallel, so, for each LED:
+ to the resistor, then to the anode (led+)
- to the cathode (led-)


I also attached the .step file in case you want to use different hardware or made some changes.



Printables

Shaper Origin spindle light (USB)

Publicado em 18 de fev de 2025

29
Curtidas
89
Downloads
1
Impressões
Categoria Tools
Tags
shaperorigin shaper shapertool
Licença Creative Commons — Attribution — Share Alike
Arquivos (4)
body.stl 155.9 KB
top.stl 60.7 KB
shaper_spindle_light.3mf 83.9 KB
Shaper_spindle_light.step 128.3 KB
