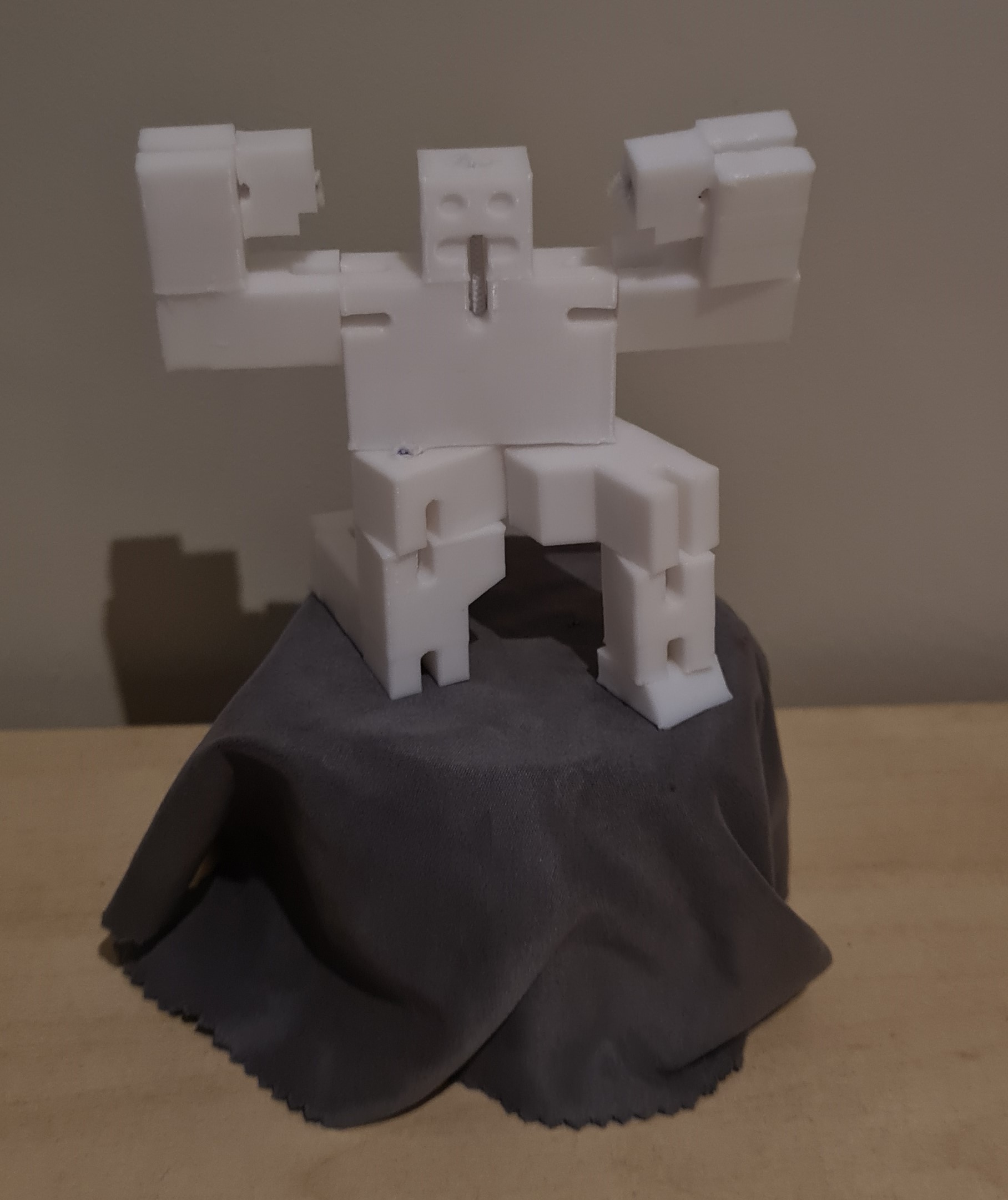

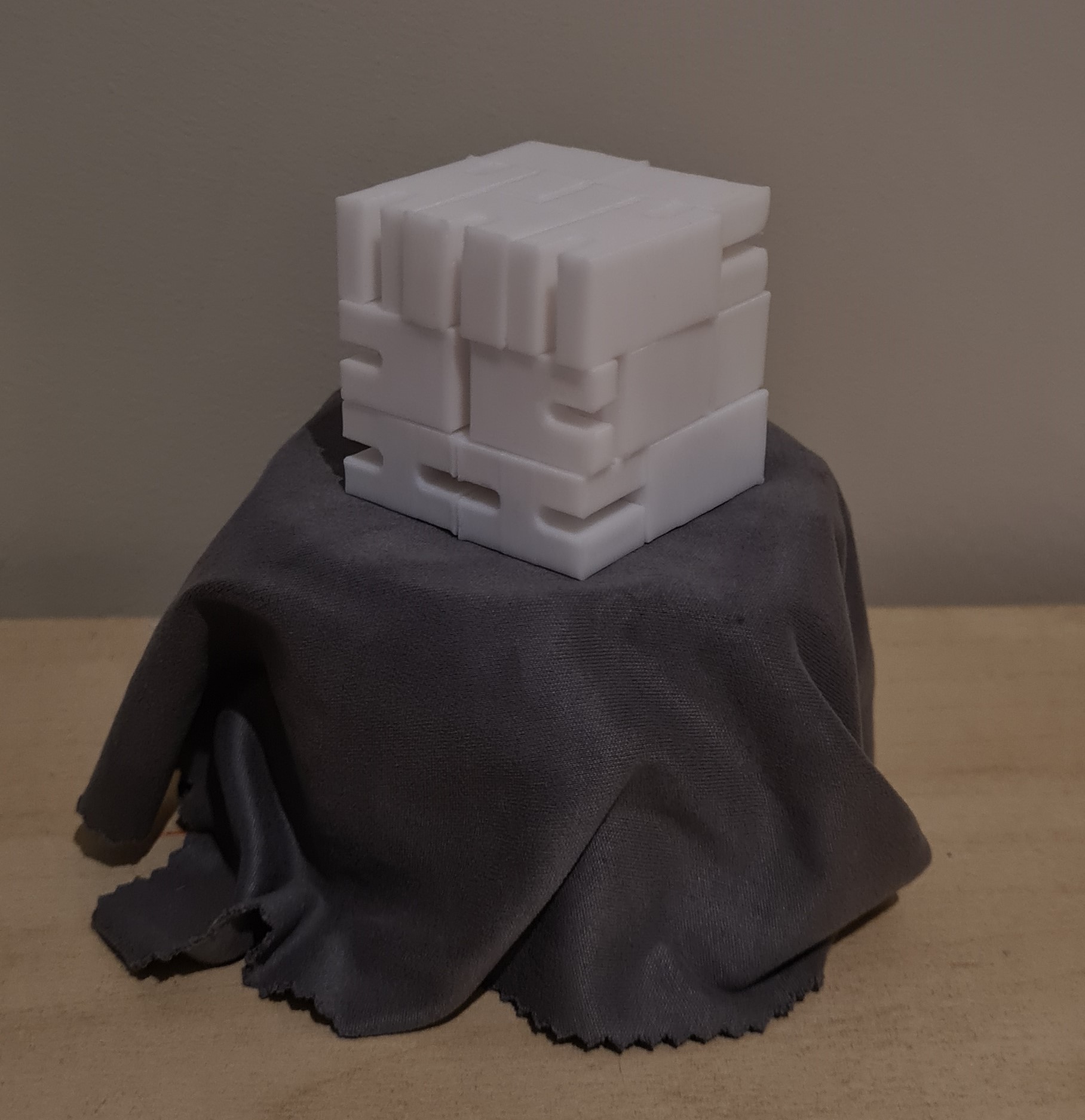

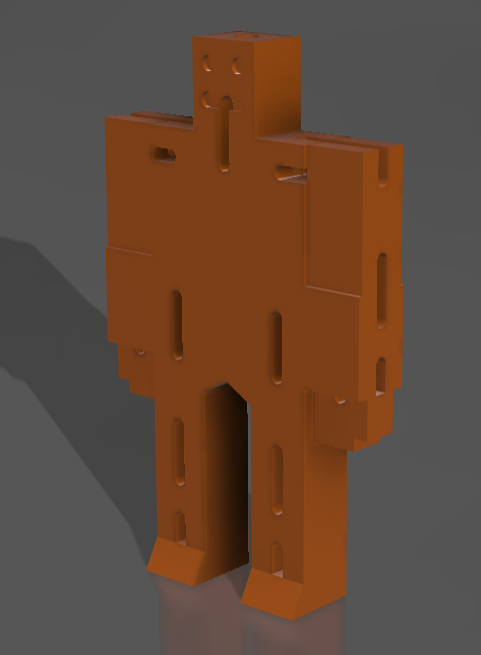

105mm tall robot that turns into a 38mm³ cube. this model is designed to use 2mm thick elastic cord.

I printed mine with:

• Ender 3 Neo
• 0.4mm nozzle
• 0.2mm layer height
• 10% infill
• PLA+ from inkstation
• Only the torso requires supports
• I would recommend mouse ears for the foot piece
• I would recommend sanding contact areas with rough(ish) sandpaper to stop joints from spinning easily

Parts list:

1x head

1x torso

1x hip

2x hand

2x lower arm

2x upper arm

2x thigh

2x lower leg

2x foot

the lower arm and lower leg are interchangeable

[https://www.officeworks.com.au/shop/officeworks/p/kadink-white-round-elastic-2mm-x-5m-showk0124](https://www.officeworks.com.au/shop/officeworks/p/kadink-white-round-elastic-2mm-x-5m-showk0124)

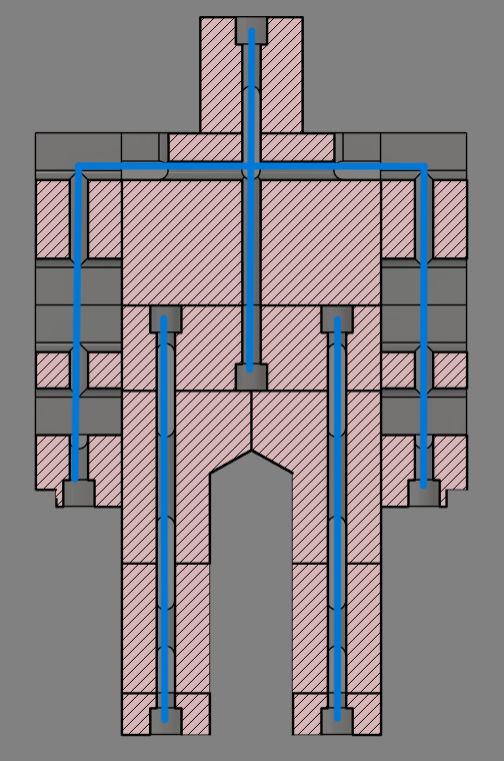

Stringing guide:

blue line is elastic cord

1. Thread foot, lower leg, thigh and hip, tie a knot one one side
2. Stretch the elastic on the non-knotted side and tie a knot as close as you can to the plastic parts, repeat for the other leg
3. thread the hip, torso and head and repeat the knotting process
4. you should know how to thread the arms by now.

Additional info:

dm me for design files, don't ask for me for other choices for the elastic cord.
