This has 7 slots for the following sizes:

Imperial:  3/16 , ¼ , 5/16, 11/32, 3/8, 7/16, 1/2

Metric: 5 , 6 , 7 , 8 , 9 , 10 , 11

Single file for both sets.  Please read Version Notes.

Label:

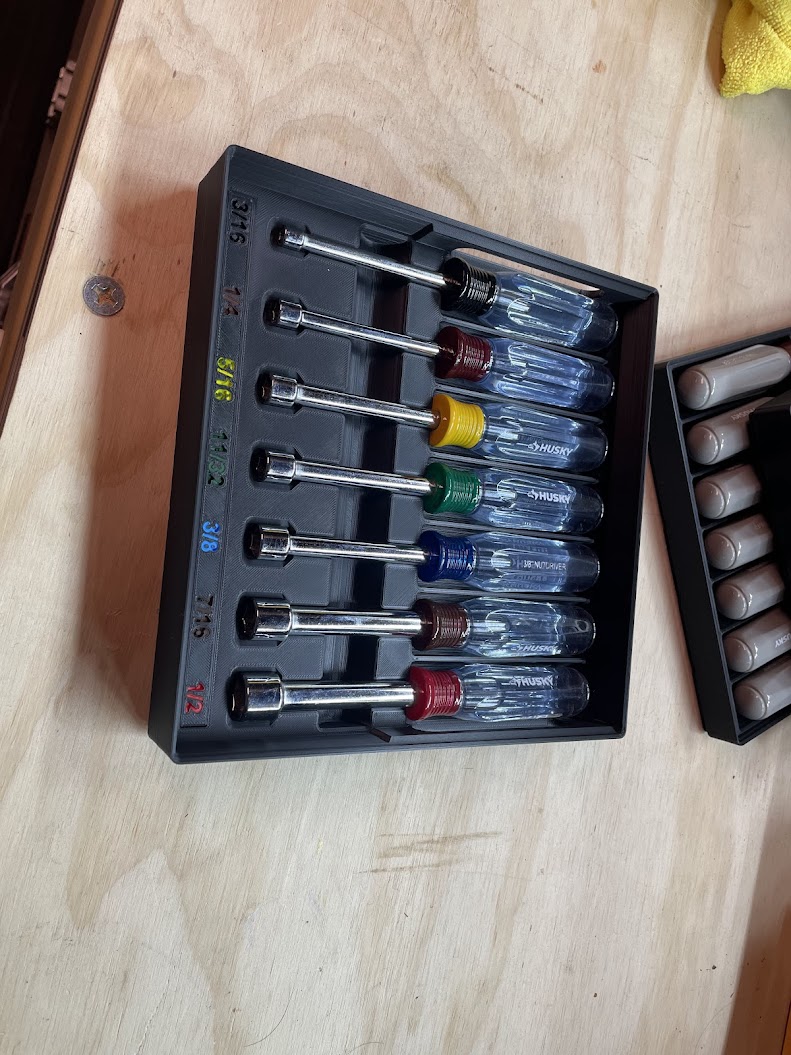

A receptacle for the “size label” is at the tool end and the orientation of the “size text” can be switched depending which direction it faces. In my photos it shows proper orientation with the tool side facing down. If you prefer it tool side facing up, the text would be upside down. The text is negative for filling/color. Currently only one orientation is uploaded.

Features:

There is a cutout for your fingers to grab the shank of the tool. there are others that I took inspiration from, but I was aiming to fit all the tools in a 5x5 for my MK4. I created a tall enough wall so that the bins are stackable and added a handle for easier lifting, but it is currently untested, so print at your own adventure. The base of the tray is a 5 x 5 array of gridfinity redefined screw connectors.

Inspiration source: [https://www.printables.com/model/996025-gridfinity-husky-nut-drivers](https://www.printables.com/model/996025-gridfinity-husky-nut-drivers)

Version Notes:

V1: The handle cutout length is 3.937in long. The tools were sliding excessively in my drawer. Still works fine

V2: The handle cutout length is 3.819in long. Less sliding noise when i open my drawer.

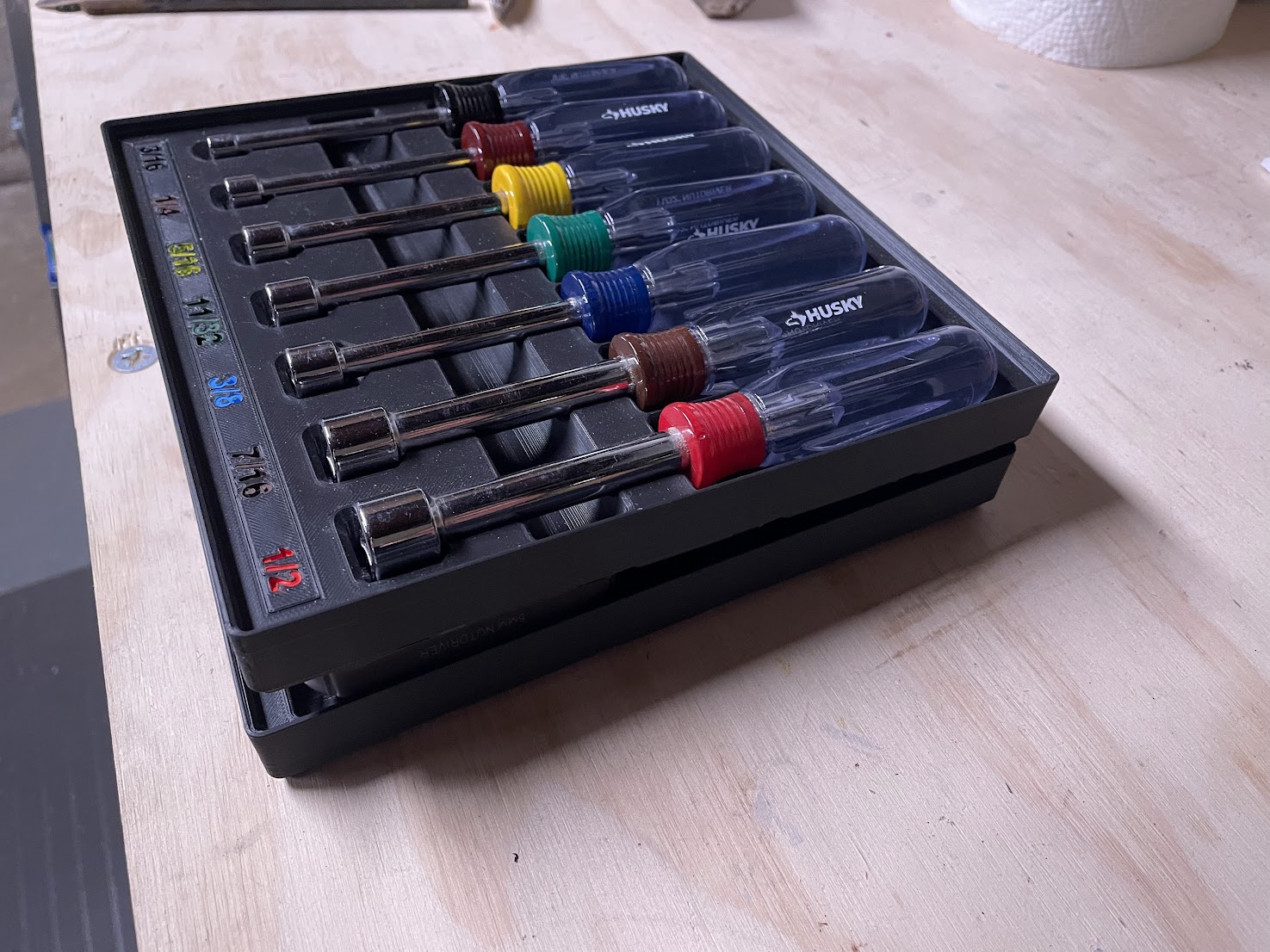

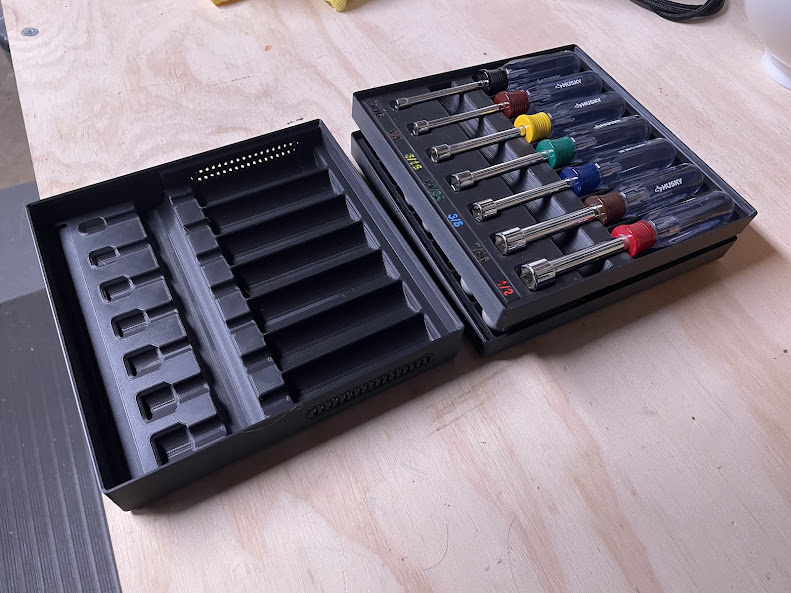

V3: I increased the wall height to enable stacking. I added handle holes to the sides for easier stacking/lifting. I reinforced the wall for thickness. (I leave mine stacked…)
