have 3 type

1. patch panel

2. patch panel NUC - some NUC higher than 1U and i dont want to create specific shelf for every of it, so i make this type to fix it by make more space under keystone (14.5mm)

3. patch panel with label - read below

My print settings

• layer height: 0.2

• wall: 3

• infill: 15%

•

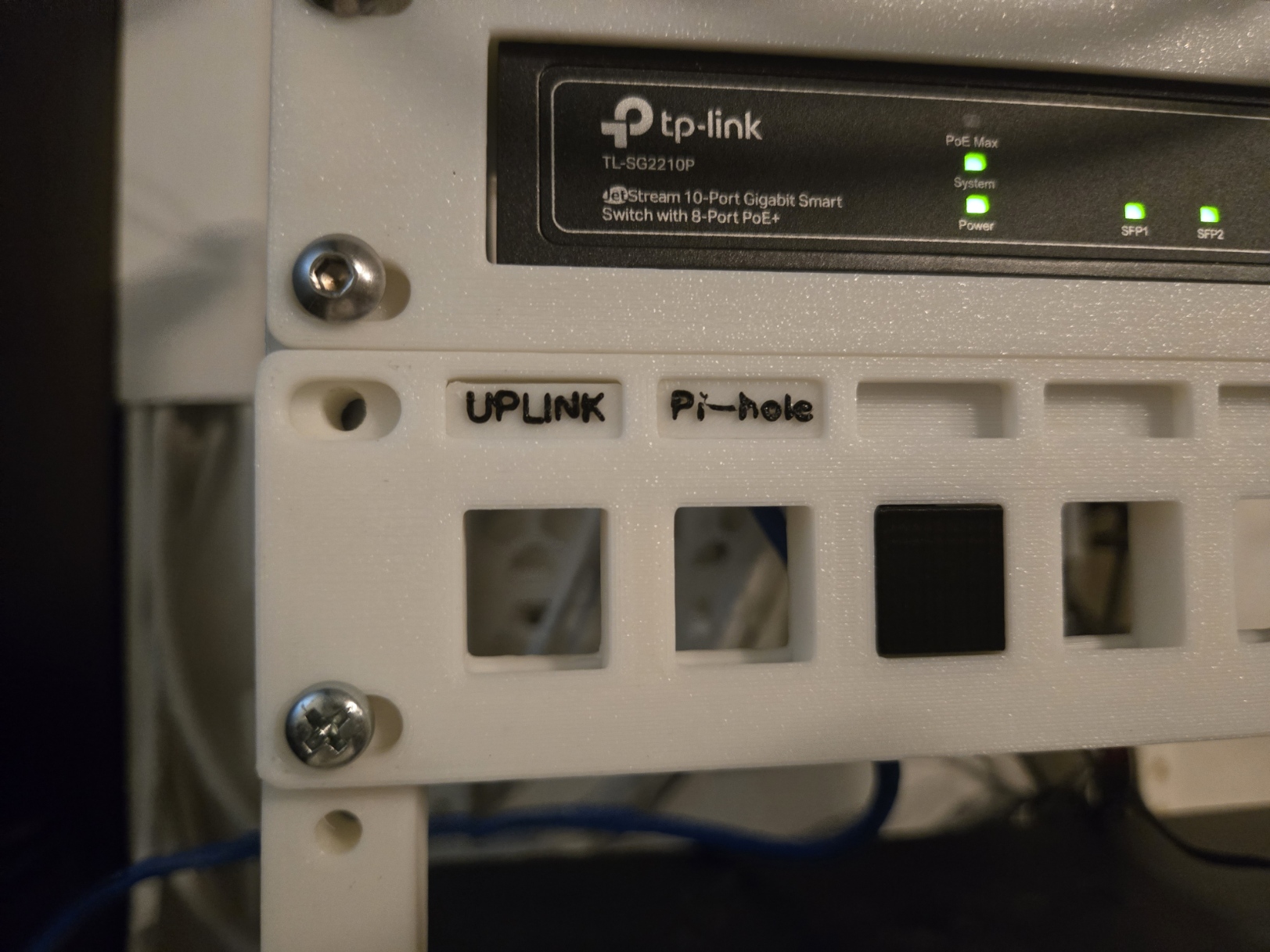

Patch Panel with Label

Create Label

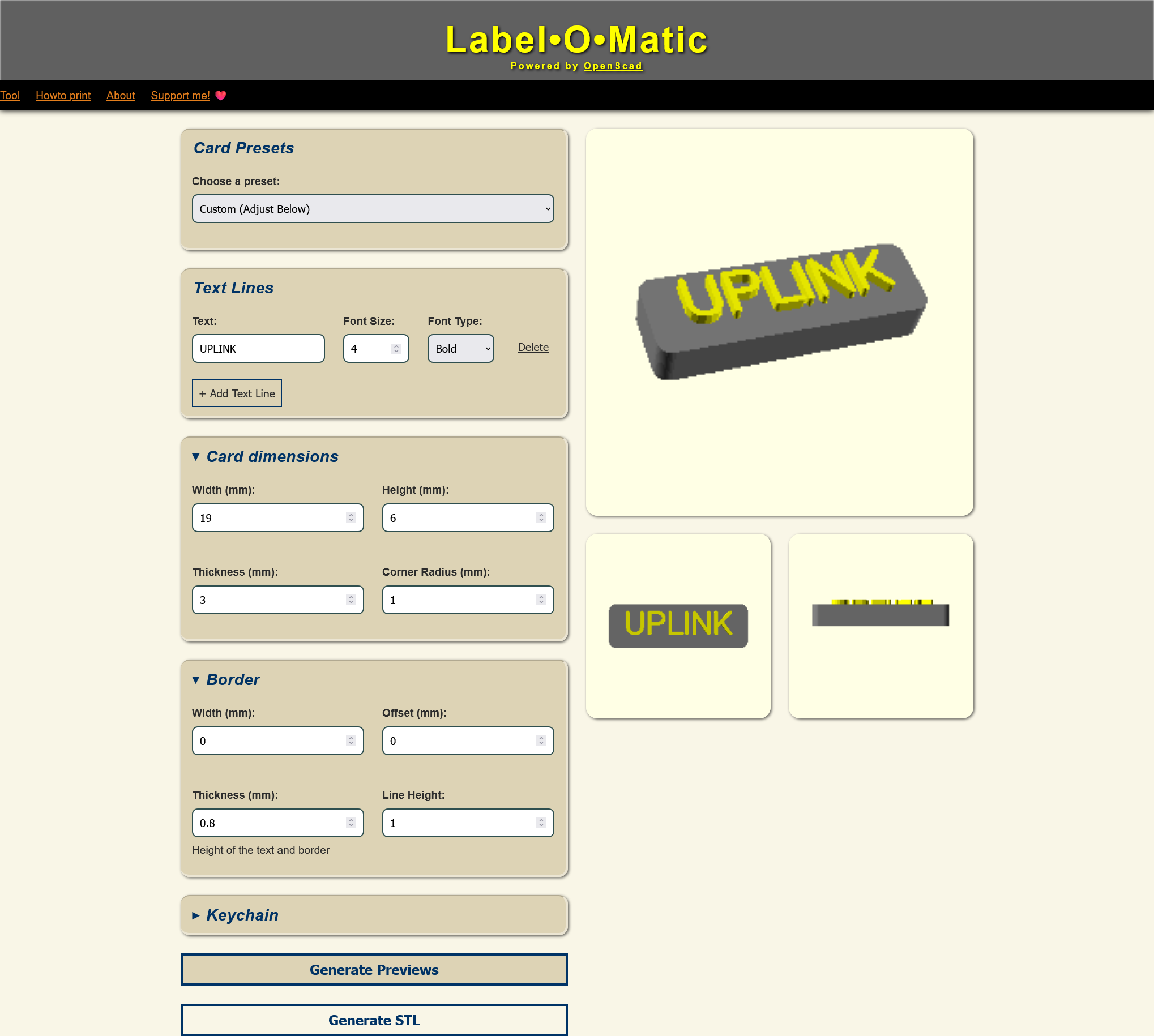

i use Label•O•Matic website to generate label or you can create by your self use label size below

Label•O•Matic

• read how to print in website first

• card preset: custom

• label size

  • width: 19

  • height: 6

  • thickness: 3

  • corner radius 1

• font size 4 or bigger

• border

  • width: 0

  • offset: 0

  • thickness: 0.6, 0.8 or 1 (this will be your text when change filament color mid print)

  • line height: 1

• check preview and generate stl

Print Label

• at the start of printing text layer add code to pause/change filament or read how to

• my printer is Creality so i follow this guide Color Change ?  and add custom G-code “M600” before sent to print text layer

• after change filament color dont forget to extrude old filament color before resume print

If you enjoy my work, please consider support at link in profile.

Change Log

• 2025/10/16

  • add model with description

    • Patch Panel with Label 8 port

• 2025/03/11

  • add model with description

    • Patch Panel 8 port

    • Patch Panel NUC 8 port

• 2025/03/07

  • add model with description

    • Patch Panel

    • Patch Panel NUC
