10" Mini Server Rack – 3D Printable

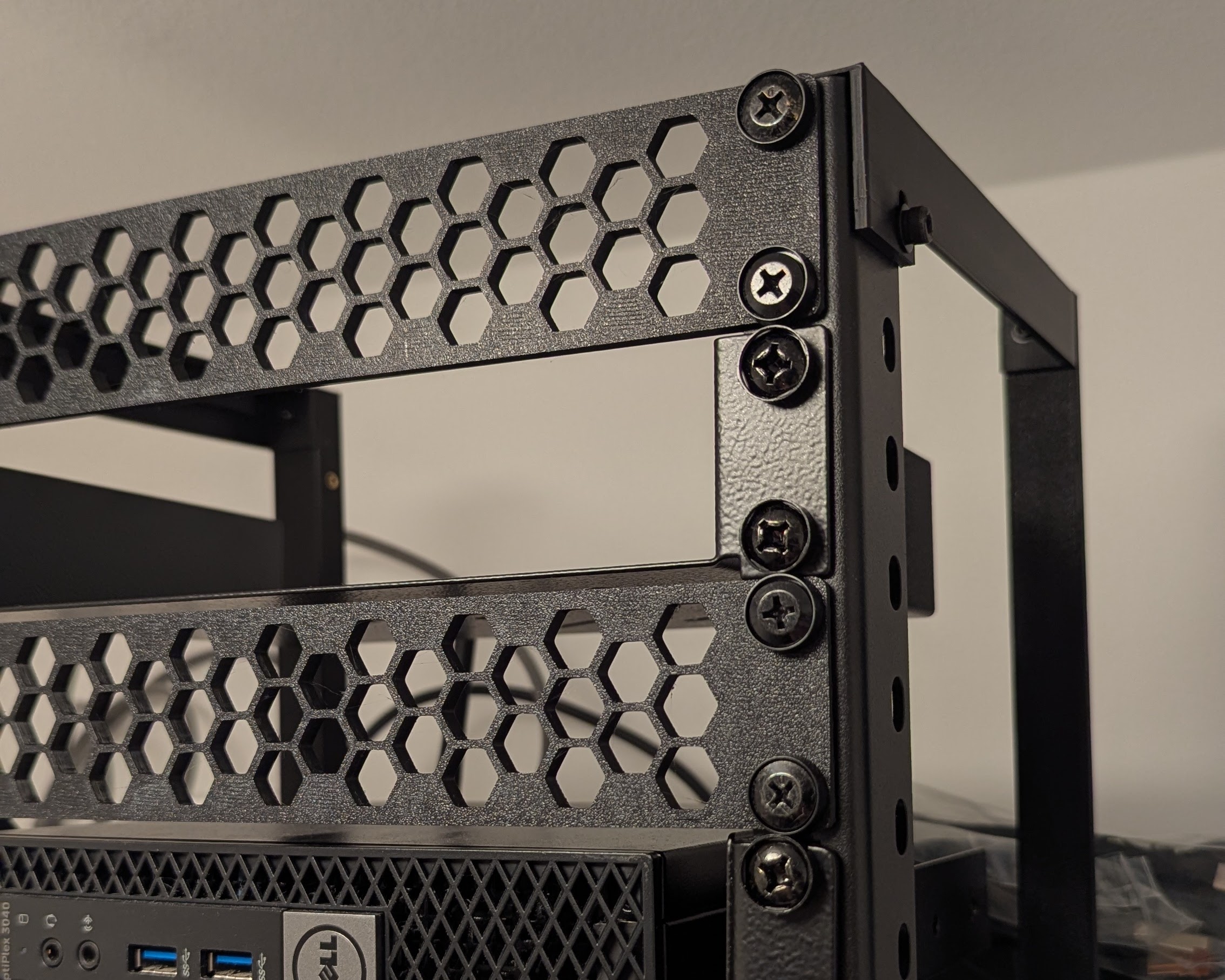

This is a compact Mini Server Rack, designed to be mostly 3D-printed with just two standard rack rails required. The goal was to create a modular and customizable rack solution that is easy to assemble and modify.
The rack rails provide enough stability on their own, so no additional rear support is strictly necessary. However, I plan to add an optional rear mounting solution in a future update.

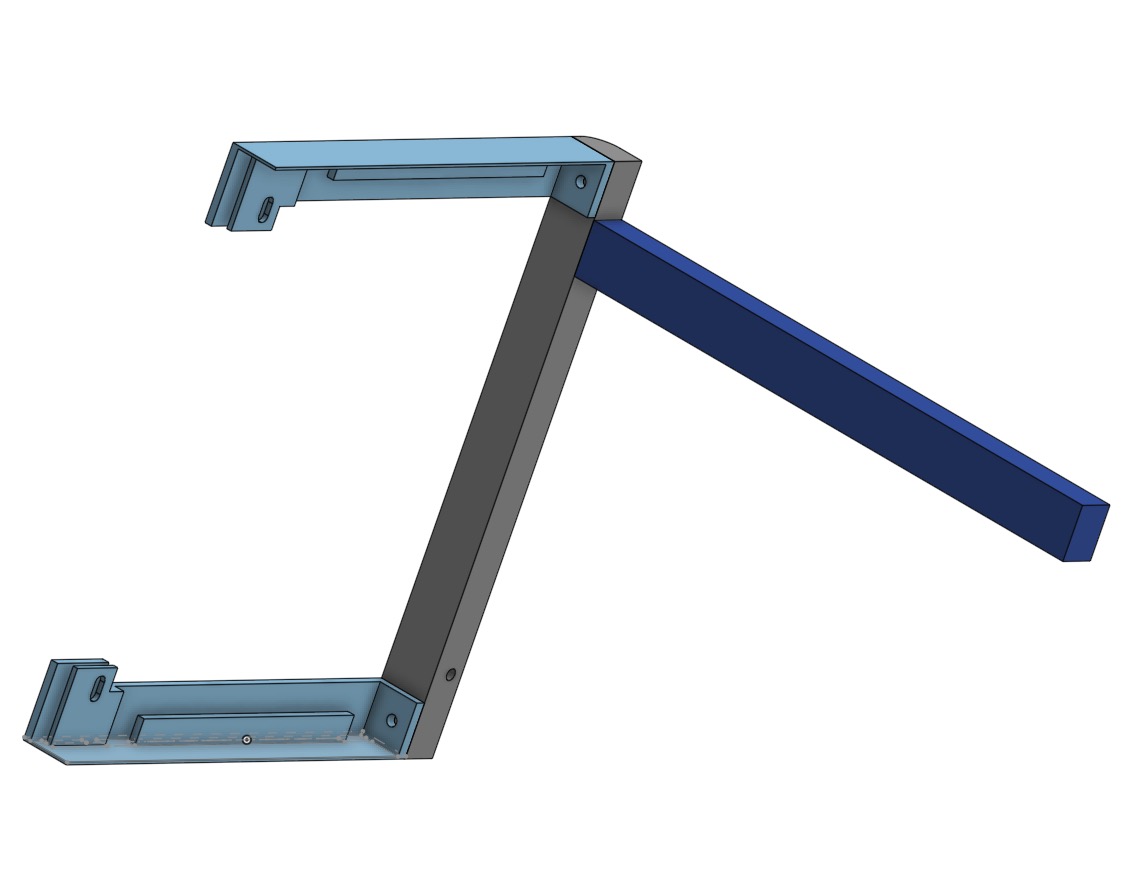

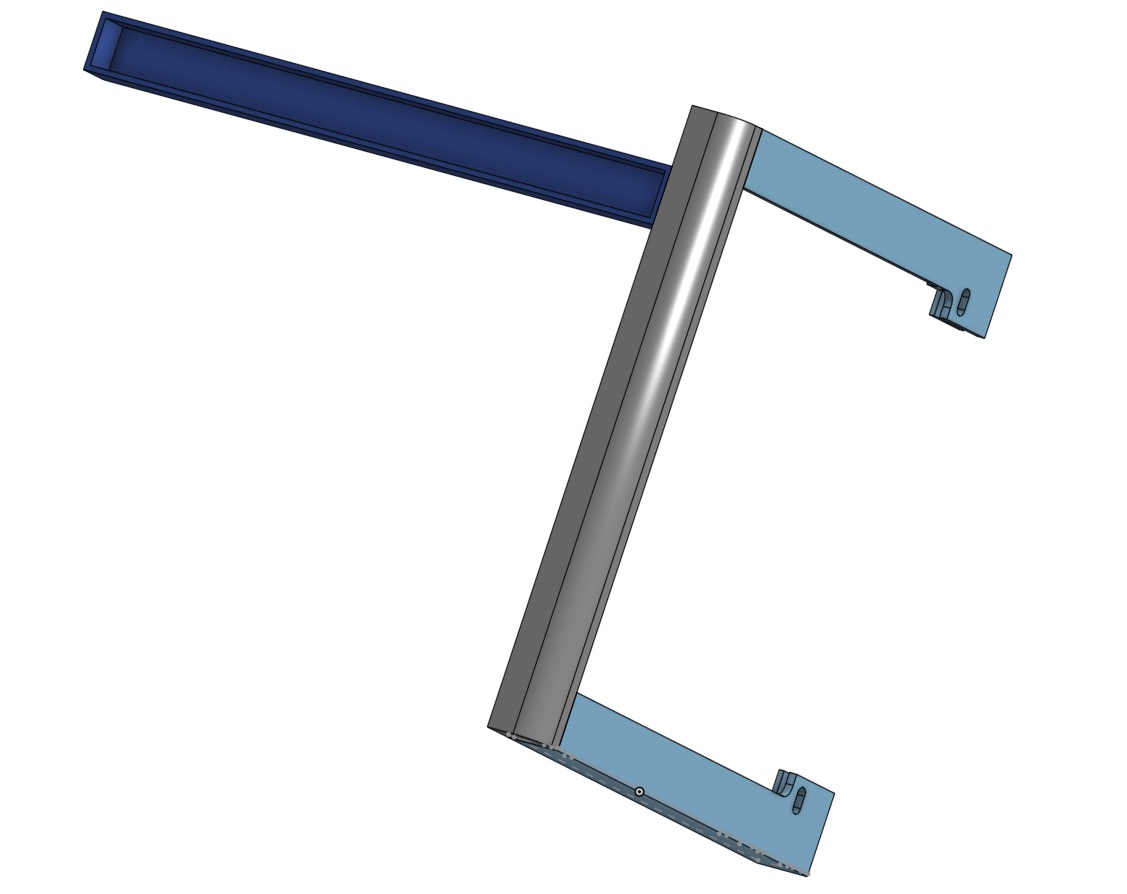

Each part needs to be printed twice and then assembled in a mirrored configuration.

Additional Parts needed:

2x HMF 66805-02 Rackprofiles 5HE
8x M3 Inserts
8x M3x8 Screws

Work in Progress:

• Side panels that can be simply slotted in – no screws required
• Adding a horizontal bar to hang it to the wall
• Adding inserts to the back for more stability
• Creating panels
• Further optimizations for stability and ease of printing

Feel free to test, modify, and give feedback! 🚀

You can find the front panels I used here: [https://www.printables.com/model/427461-10-inch-server-rack/files](https://www.printables.com/model/427461-10-inch-server-rack/files)
