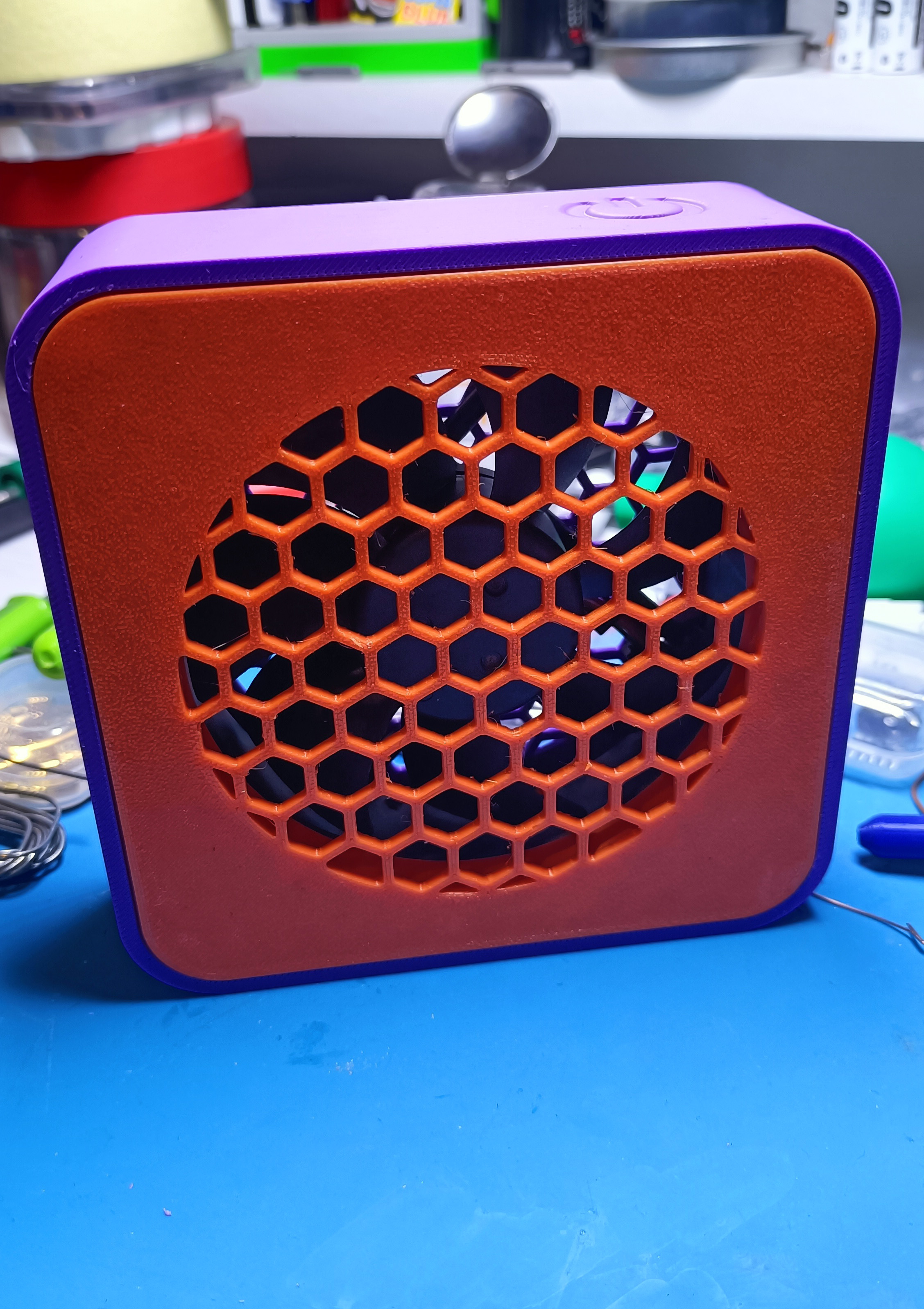

Compact Solder Smoke Extractor – Simple, Efficient, and Practical 🔥💨

Soldering can be a rewarding task, but dealing with smoke is never fun. That's where this Compact Solder Smoke Extractor comes in! Designed with simplicity and efficiency in mind, this small yet powerful device keeps your workspace cleaner and safer without unnecessary complexity.

Key Features:

🔹 Minimalist and Functional Design: Forget about complicated electronics! This smoke extractor is designed to be as simple and practical as possible. Just a touch sensor (TTP223) to turn it on, a USB-C connection, and a 90mm fan—that's it!

🔹 USB-Powered for Convenience: While the fan is originally 12V, it runs smoothly at 5V from a USB port, making it ultra-quiet and energy-efficient. No extra power adapters needed! Just plug it in and enjoy a smoke-free workspace. Anyway you can buy 5V version.

🔹 Easy Assembly & Readily Available Components: With only four M3 screws holding it together, assembling this extractor is a breeze. Plus, all parts are easy to find and affordable, so anyone can build it without hassle.

🔹 Future Upgrades: The current setup performs excellently, but if adjustments are needed (like increasing fan speed), updates will be shared. Simplicity and functionality are the core principles of this design.

Bill of Materials:

• 1x 90mm Fan (Standard 12V fan or 5V)

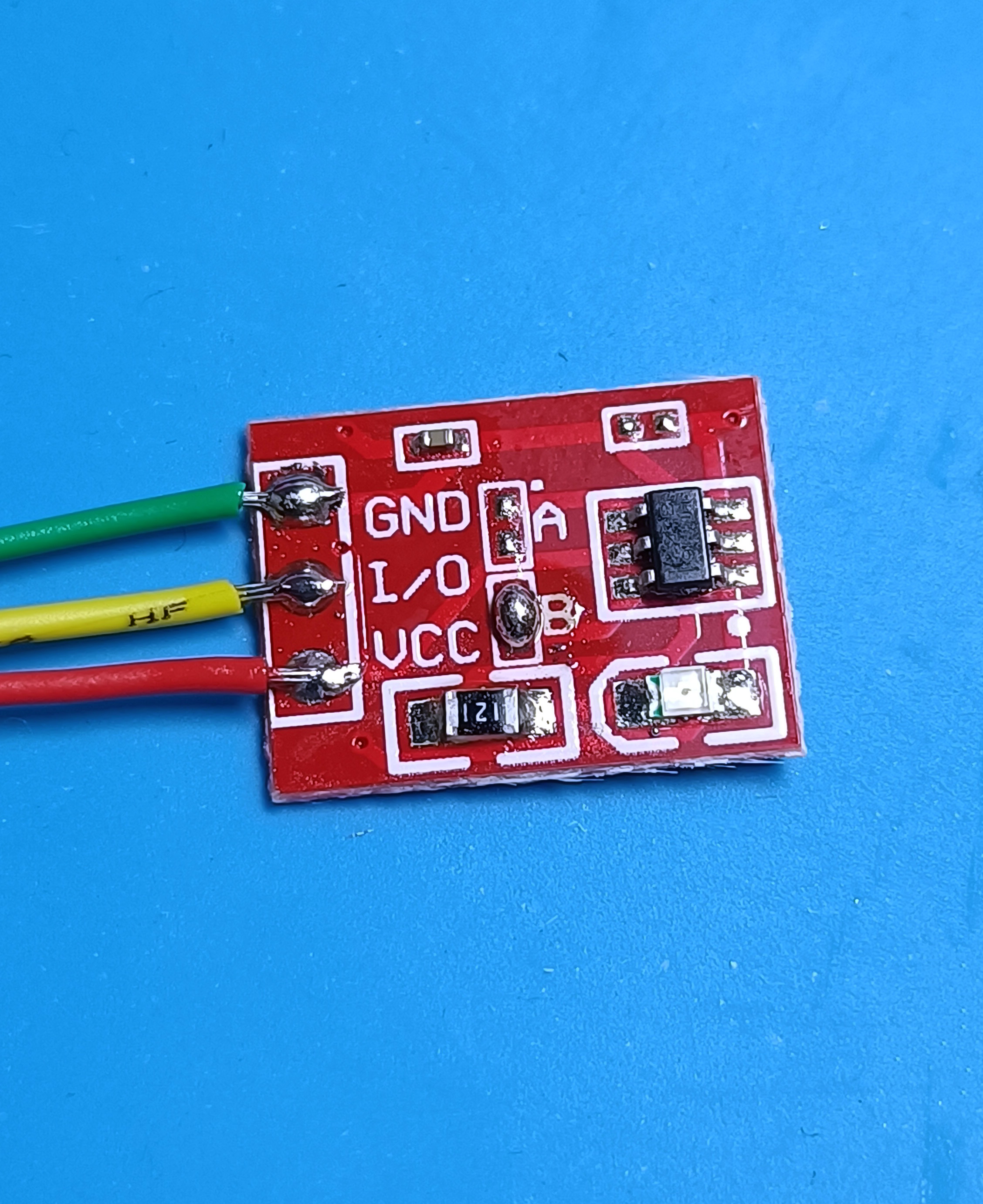

• 1x TTP223 Touch Sensor (For power control)
• 1x USB-C Connector (Power input)

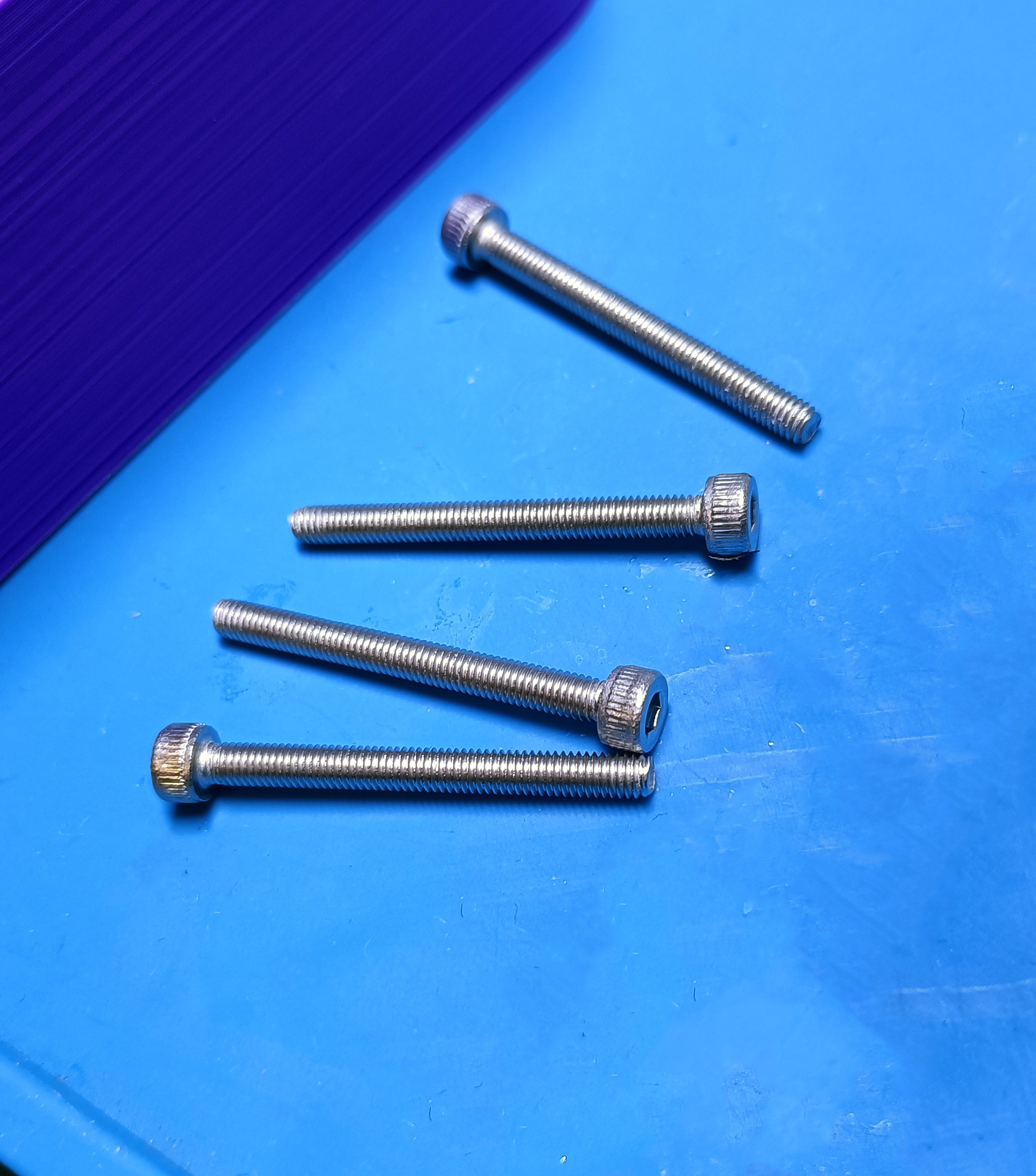

• 4x M3x30mm Screws (For securing the assembly)
• 1x 3D Printed Case (Designed for optimal airflow and compactness)

Links:

90mm Fan
[https://amzn.to/4jSuQrp](https://amzn.to/4jSuQrp)
[https://s.click.aliexpress.com/e/_omILJ2P](https://s.click.aliexpress.com/e/_omILJ2P)

TTP223 Touch Sensor
[https://amzn.to/3Q7o0AK](https://amzn.to/3Q7o0AK)
[https://s.click.aliexpress.com/e/_oEU8poL](https://s.click.aliexpress.com/e/_oEU8poL)

M3x30mm Screws
[https://amzn.to/3EpWBaO](https://amzn.to/3EpWBaO)
[https://s.click.aliexpress.com/e/_omNYb2J](https://s.click.aliexpress.com/e/_omNYb2J)

USB-C Connector
[https://amzn.to/4i7laIb](https://amzn.to/4i7laIb)
[https://s.click.aliexpress.com/e/_oCr4mB5](https://s.click.aliexpress.com/e/_oCr4mB5)

This 3D model allows you to print and assemble your own smoke extractor effortlessly. Whether you're a hobbyist or a professional, this is a cost-effective and highly functional solution for keeping your workspace free from soldering fumes.

💡 Simple, efficient, and easy to build—what more could you ask for? Let us know your thoughts and stay tuned for possible improvements! 🚀
