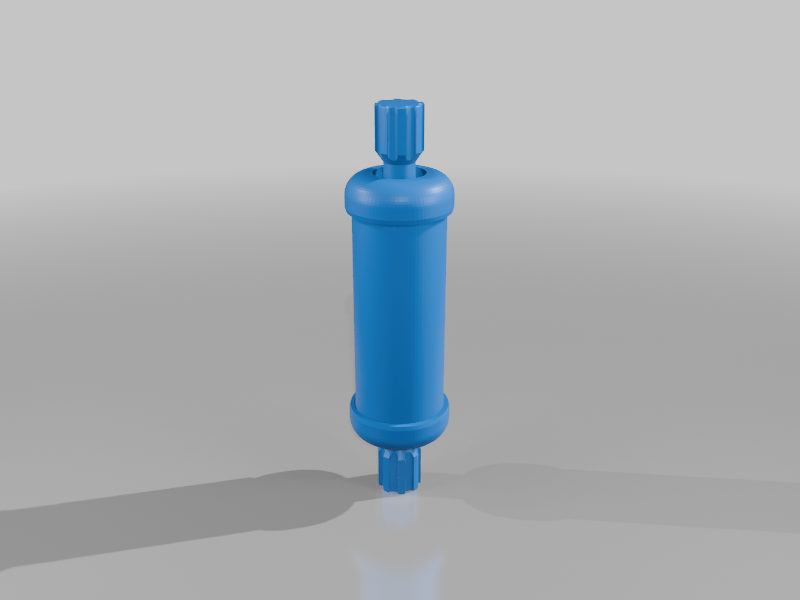

Improvement on Shogun81's Mini Scroll

Remix features:

1. Add gap between the cap and the spinning core. This reduces friction when turning the knob and allow paper to come out easier.
2. Split the spinning core so you can just put the paper in easily. The original design as a long hole. My print came out with a piece of string in the end and paper can't get in that easily. So, this design helps.
3. A fila-lock hole on the spinning knobs. To use it, put the paper between the two pieces of the core. Put the end into the spinning knob. Once in, thread a 1.75 filament through the hole. The filament will lock the core with the knob and it will never come out.
4. To print it, simply put everything on the plate. No support needed. Choose the body to be printed last. Print object by object.

Thank you Shogun81 for the original design. I use it to write down my crypto private keys.
