03.07.2025 update

Added STL files for those having trouble with the 3mf file.

Print settings - 0.2 mm layer height with two walls, 5 top and bottom shell layers and 15% gyroid infills

-----------------------------

02.06.2025 update

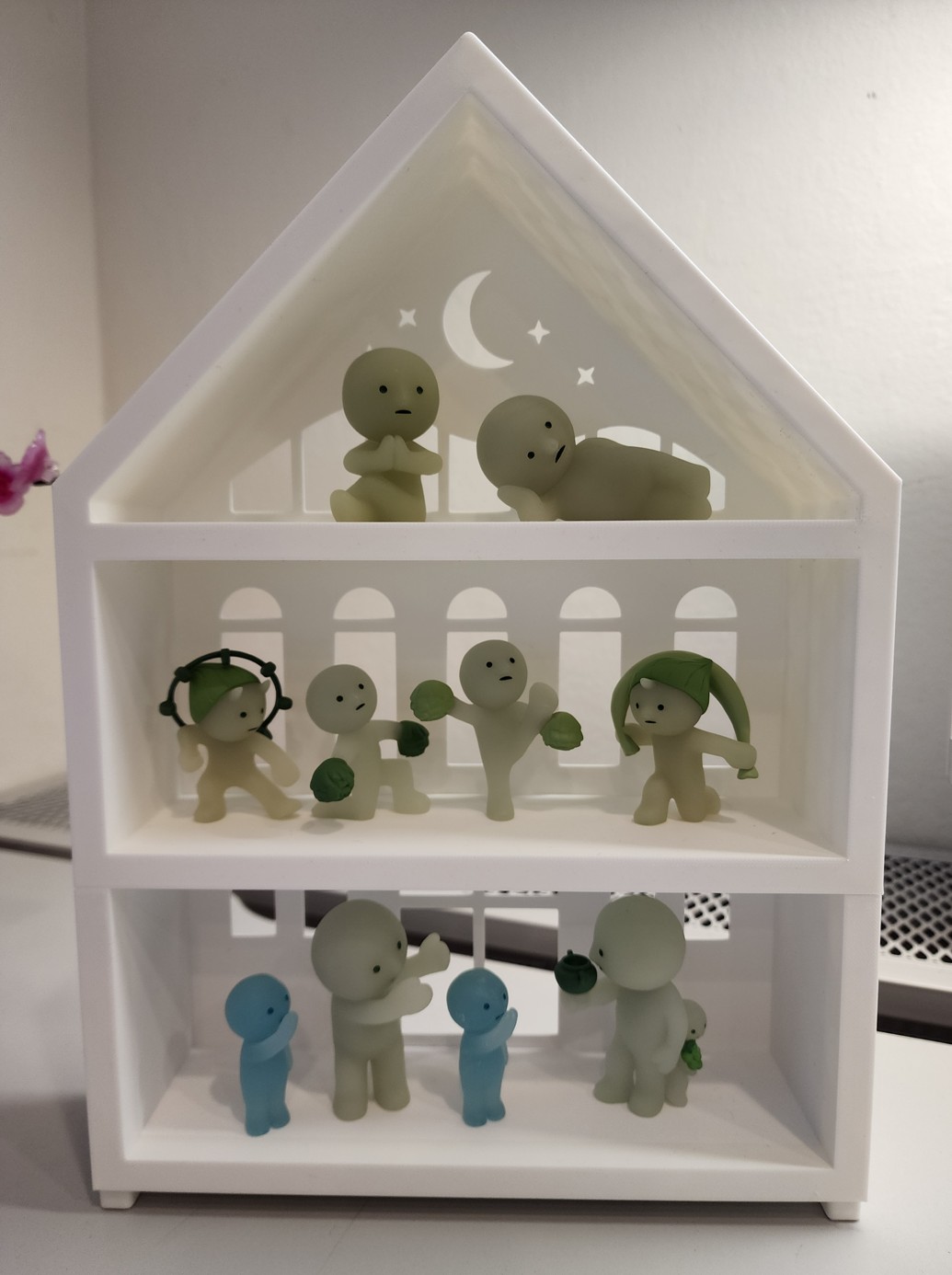

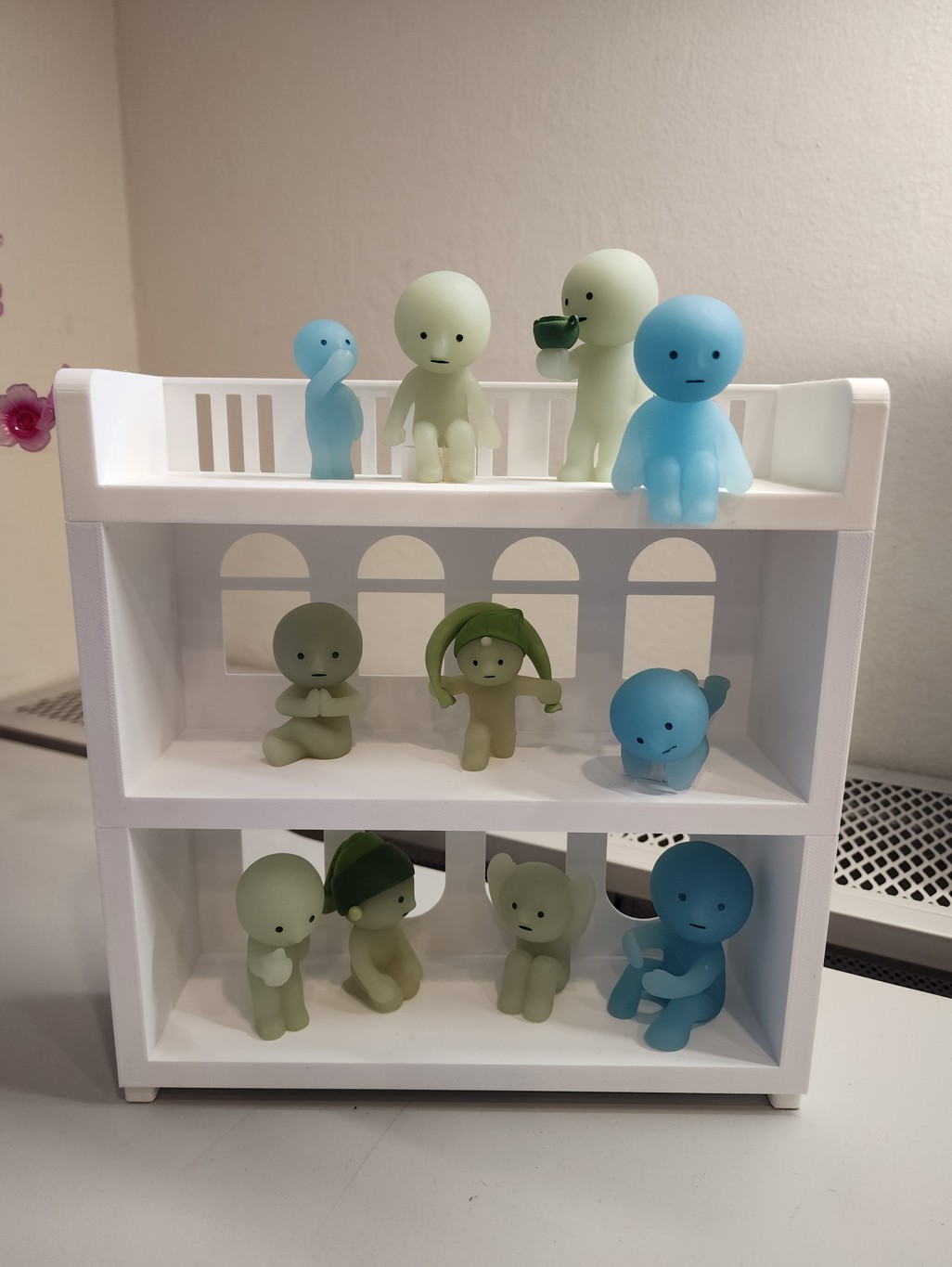

I have added two new top shelves ( triangle and open style) and optional feet to leave it on a desk. Please check out new photos !

-----------------------------

Original Description

I designed modular mini figure display shelves for my daughter's growing miniature collection - something functional, clean, and decorative.

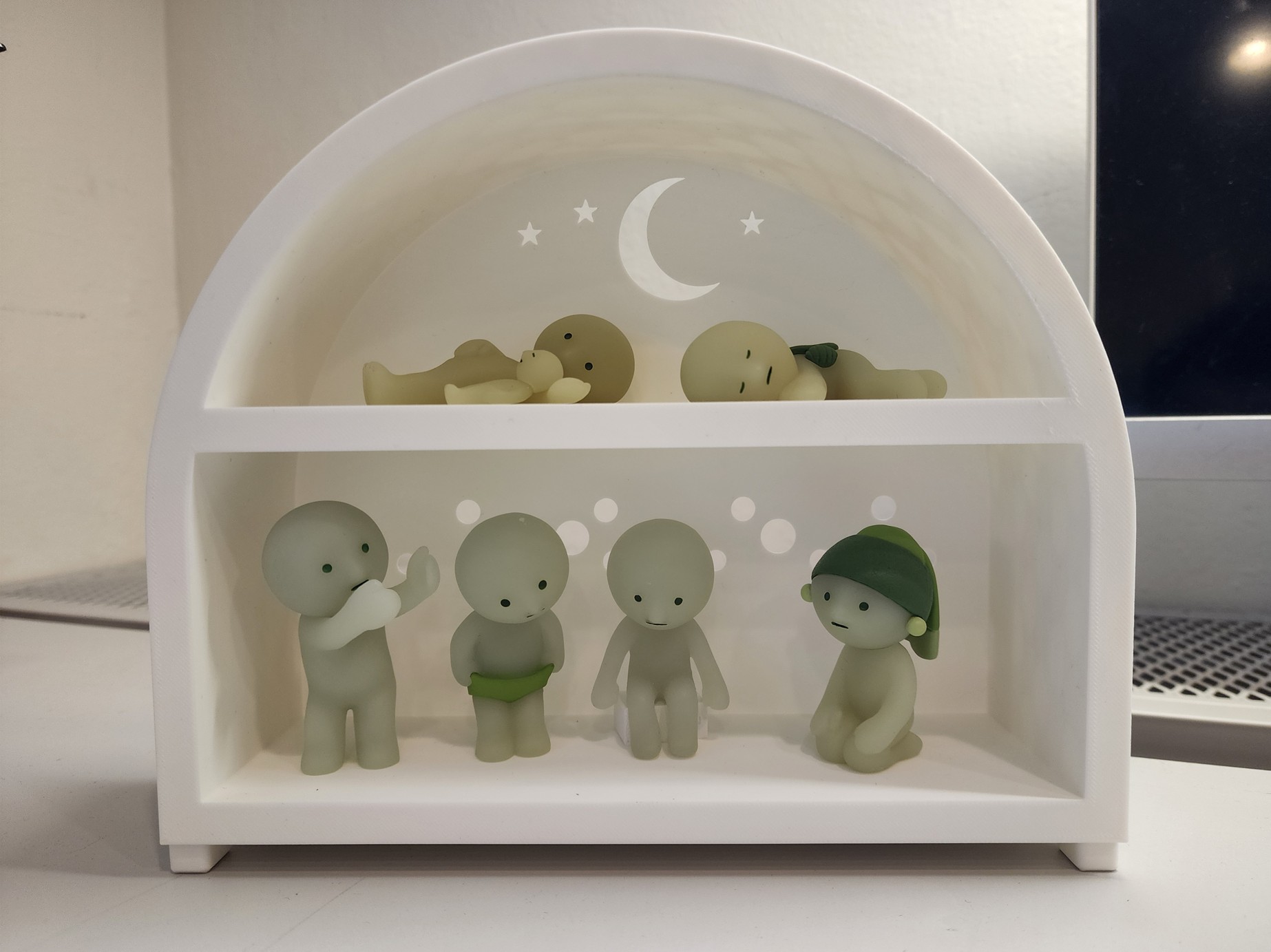

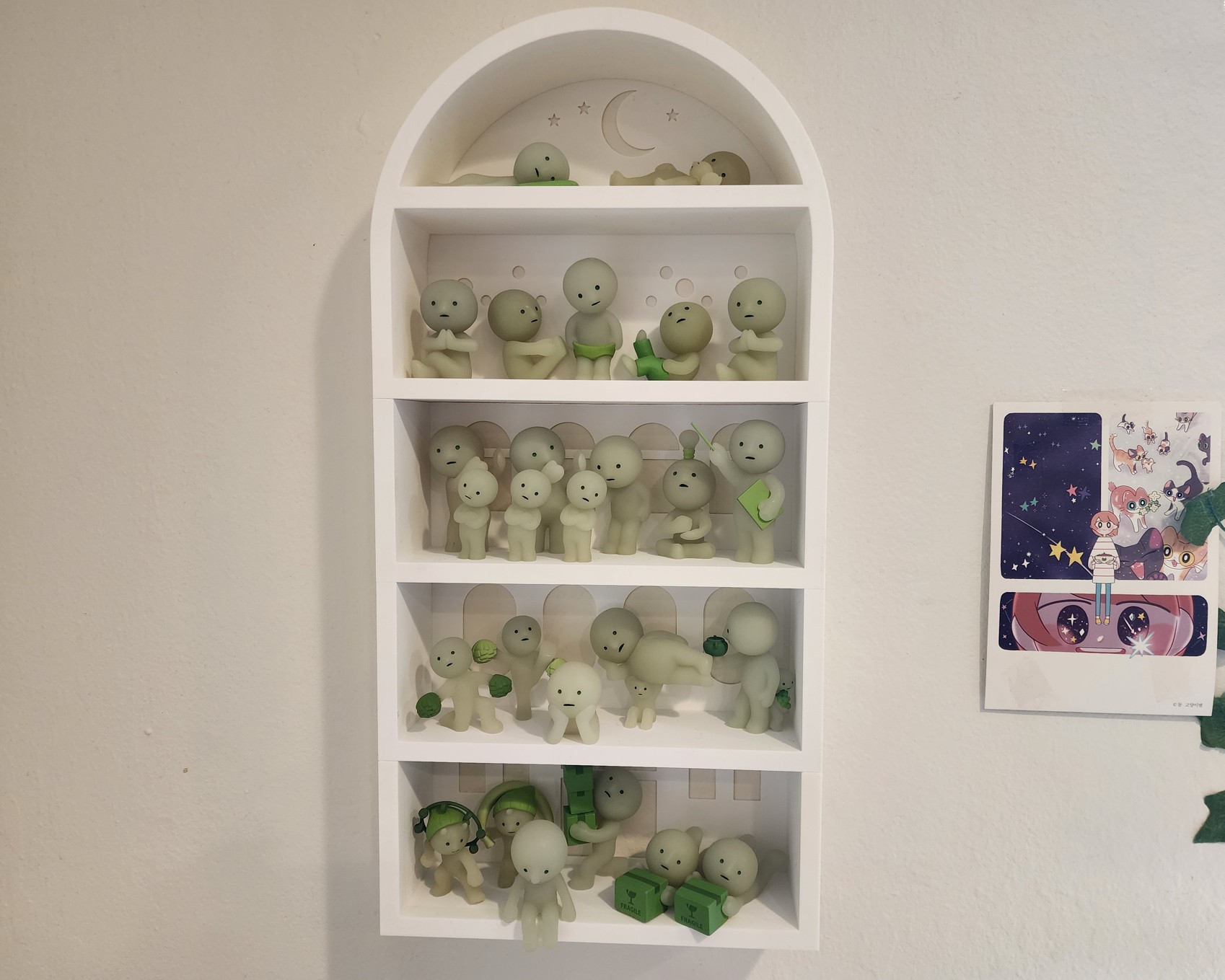

The main top piece starts with two shelves, and you can add more as needed, choosing from three different designs. The extra shelves attach using snug dovetail joint - no glue or hardware needed! If you want to hang it on the wall, there are hidden screw holes for a clean look. The whole shelf in the main photo measures 220x450x60mm (W x H x D). Each shelf has an inner dimension of 200x80x60mm, making it easy to fit most miniatures.

Hope you and/or your kids enjoy my cute and neat shelves !

Printing and Assembly Suggestion

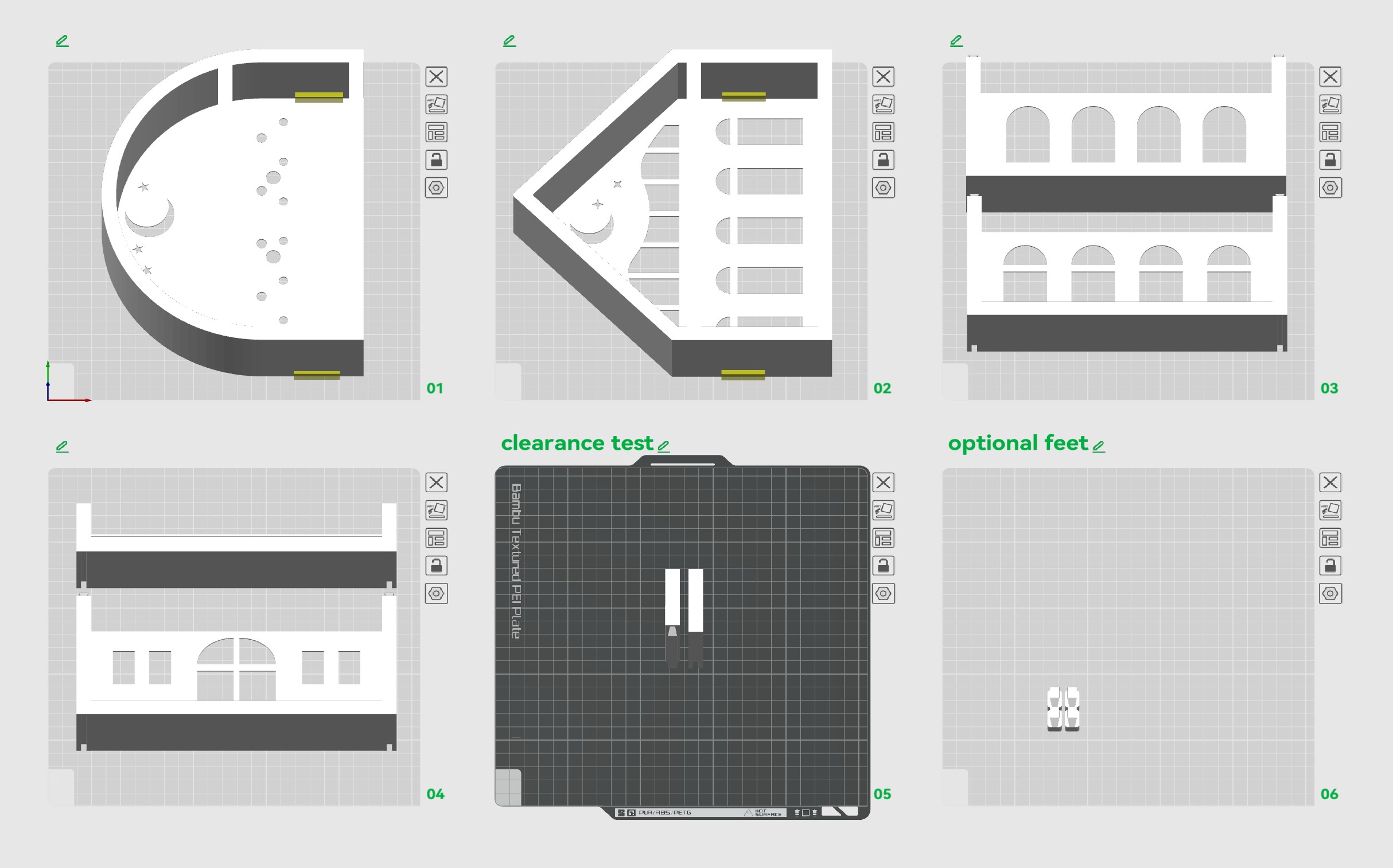

• The included print profile setting is what I tested and confirmed working for the joint.
• I also included a clearance test plate for the dovetail joint to make sure it works with your printer and a filament of your choice.
• Since it is tight fit, I recommend using small rubber mallot or similar to fit them all the way in.
