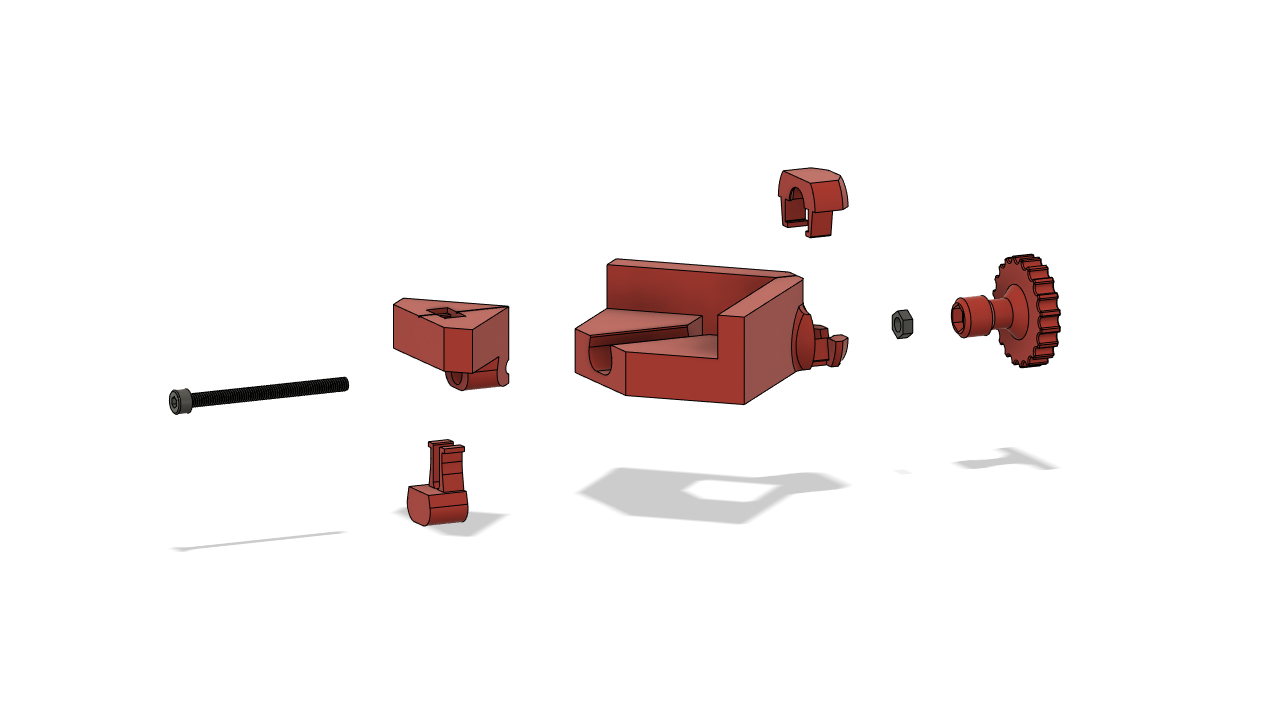

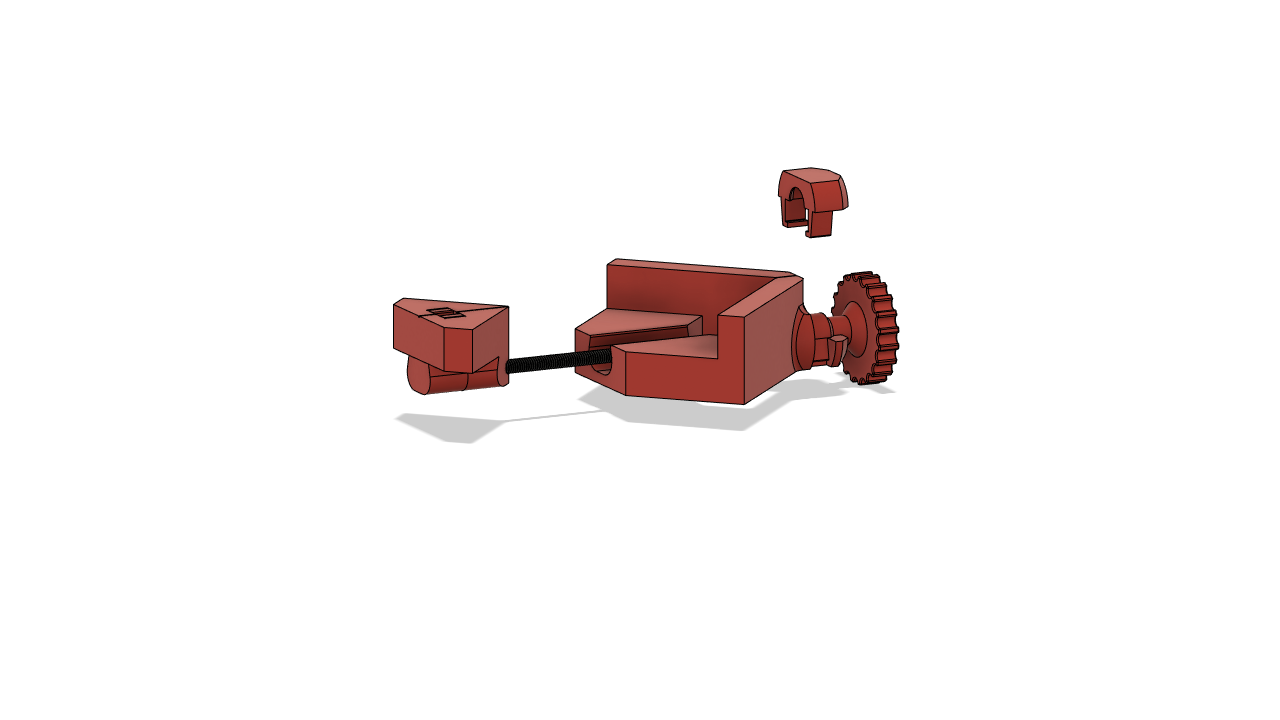

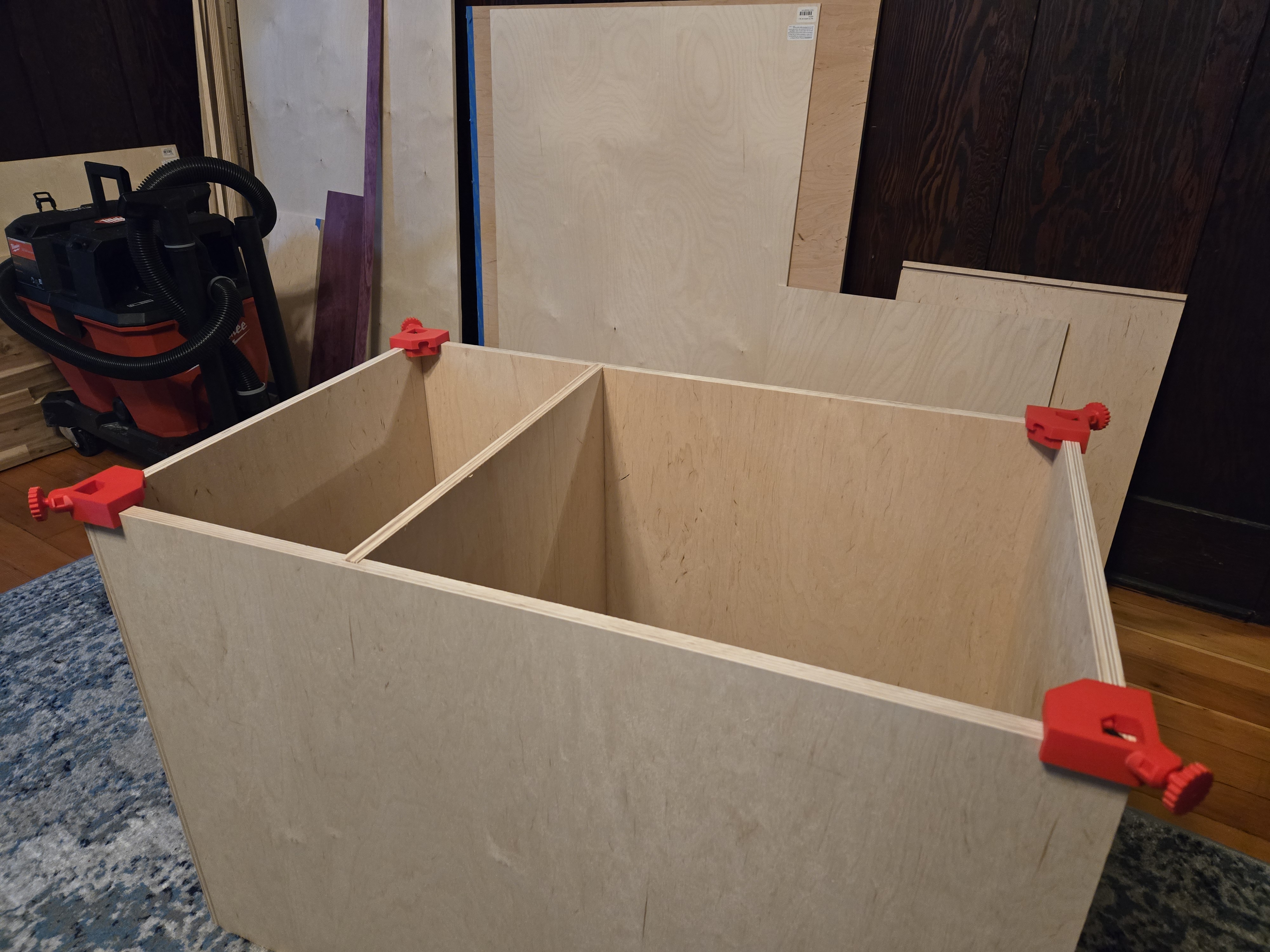

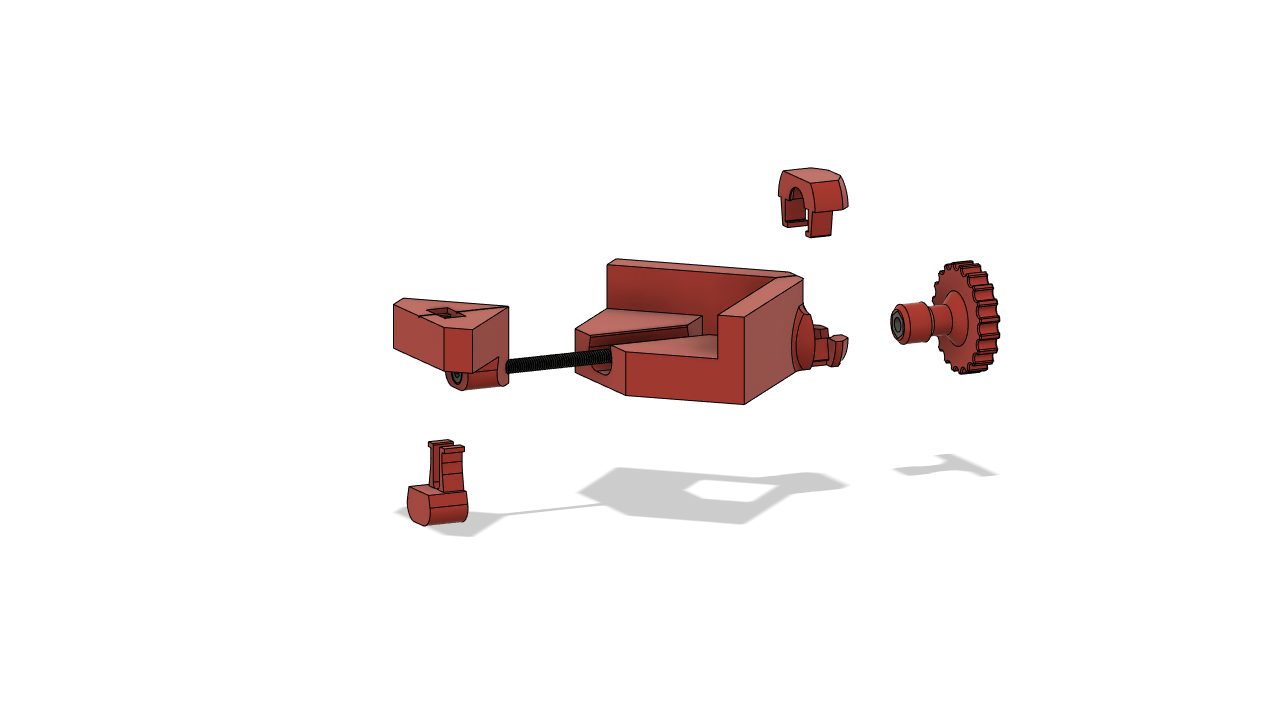

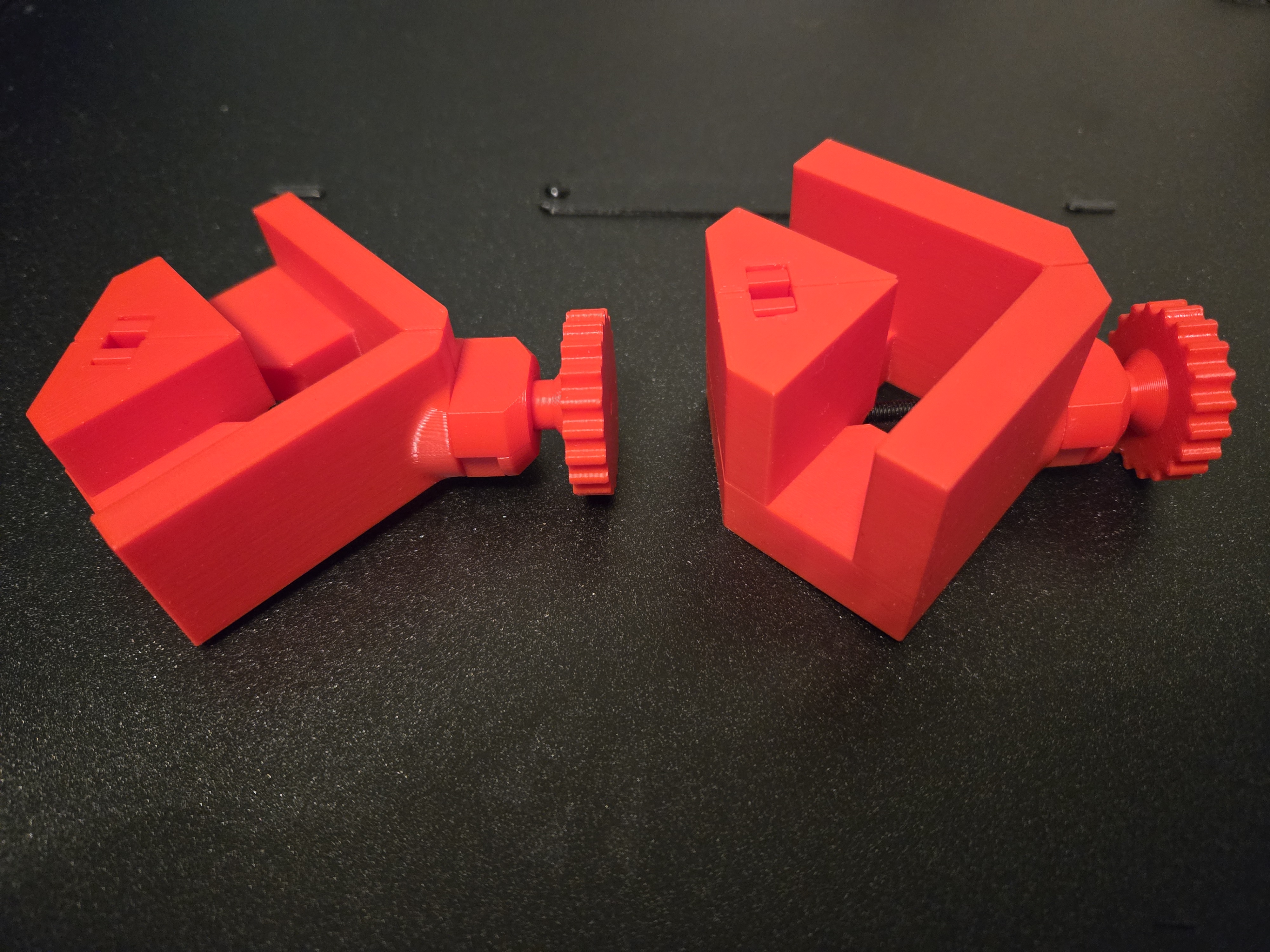

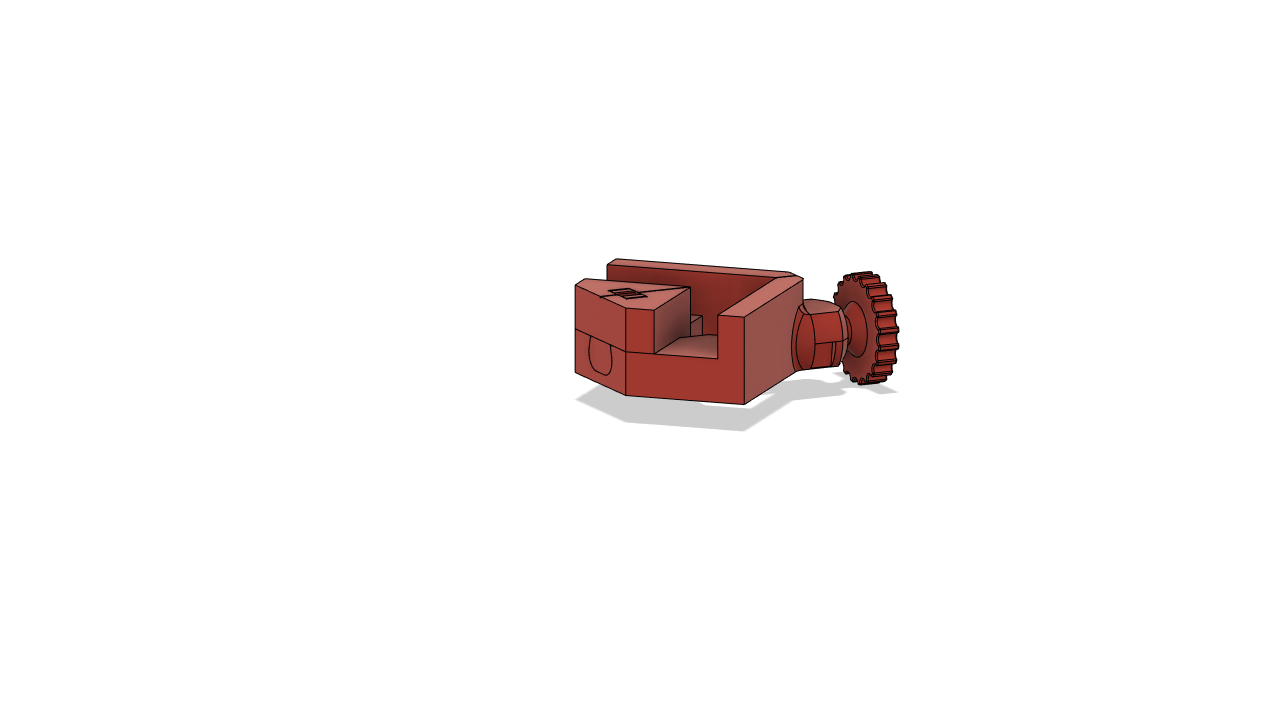

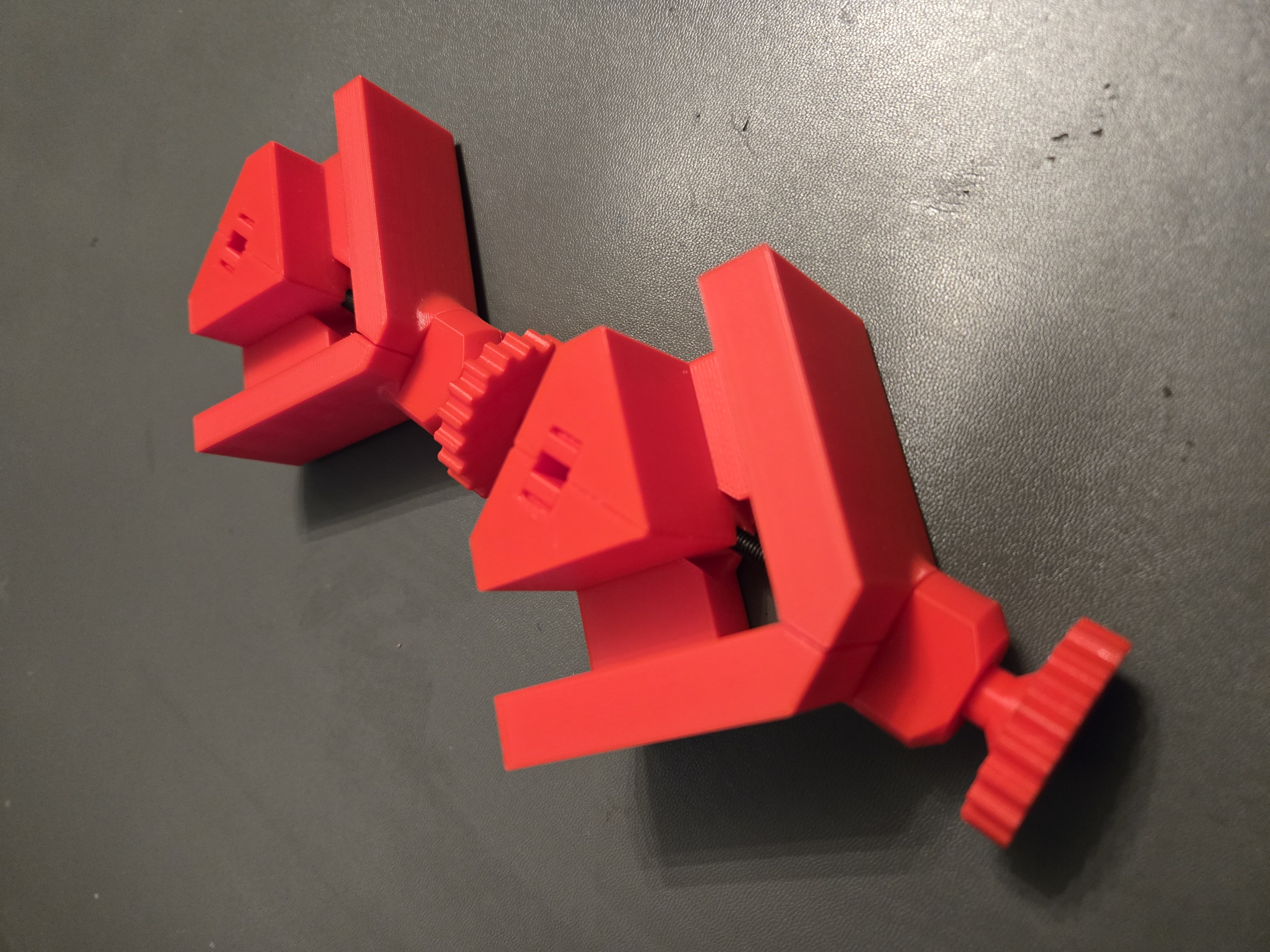

Right Angle Clamp comprised of 5 separate printed parts that snap together to encapsulate a single m4x50mm Socket Head Cap Screw and nut to temporarily hold two boards together at a right angle. Can Hold boards up to ¾" thick. Current configurations include a 0.5" wall height and 1.0" wall height. (edited: sorry, I had 25mm, it needs to be 50mm)

Some Features include:

-Viewing window at corner to allow visual inspection and ensure no lateral misalignment of boards.

-1/64" Fillet wedge tip and outer wall relief slit to provide a flush corner connection without any miscellaneous printing corner fillet interpretations.

-Bevel cut connection edge reference line on top of slide.

Non-printed items:

-(1) m4x50mm Socket Head Cap Screw (edited: sorry, I had 25mm, it needs to be 50mm)

-(1) m4 Hex Nut

(I purchased the Iexcell m4 675 pcs kit)

Recommendation:

I encountered minor speaking due to plastic rubbing inside the knob recess that was remedied by a little synthetic grease.
