Recommended parameters for 3D printing and others

Material used: PLA

Nozzle: 0.8mm

Layer Height: 0.5

Filling: 10%

Support: yes

Top Z distance of bracket: 0.5 mm

Separation between the object and its support in XY: 1mm

Pattern: Straight

Generate table-only support and enable bridging

Print speed: 40mm/s

Temperature: 205 to 210ºC

For small parts such as connecting rods, pins and pistons, it is recommended to use a 0.4mm nozzle with the normal quality standard.

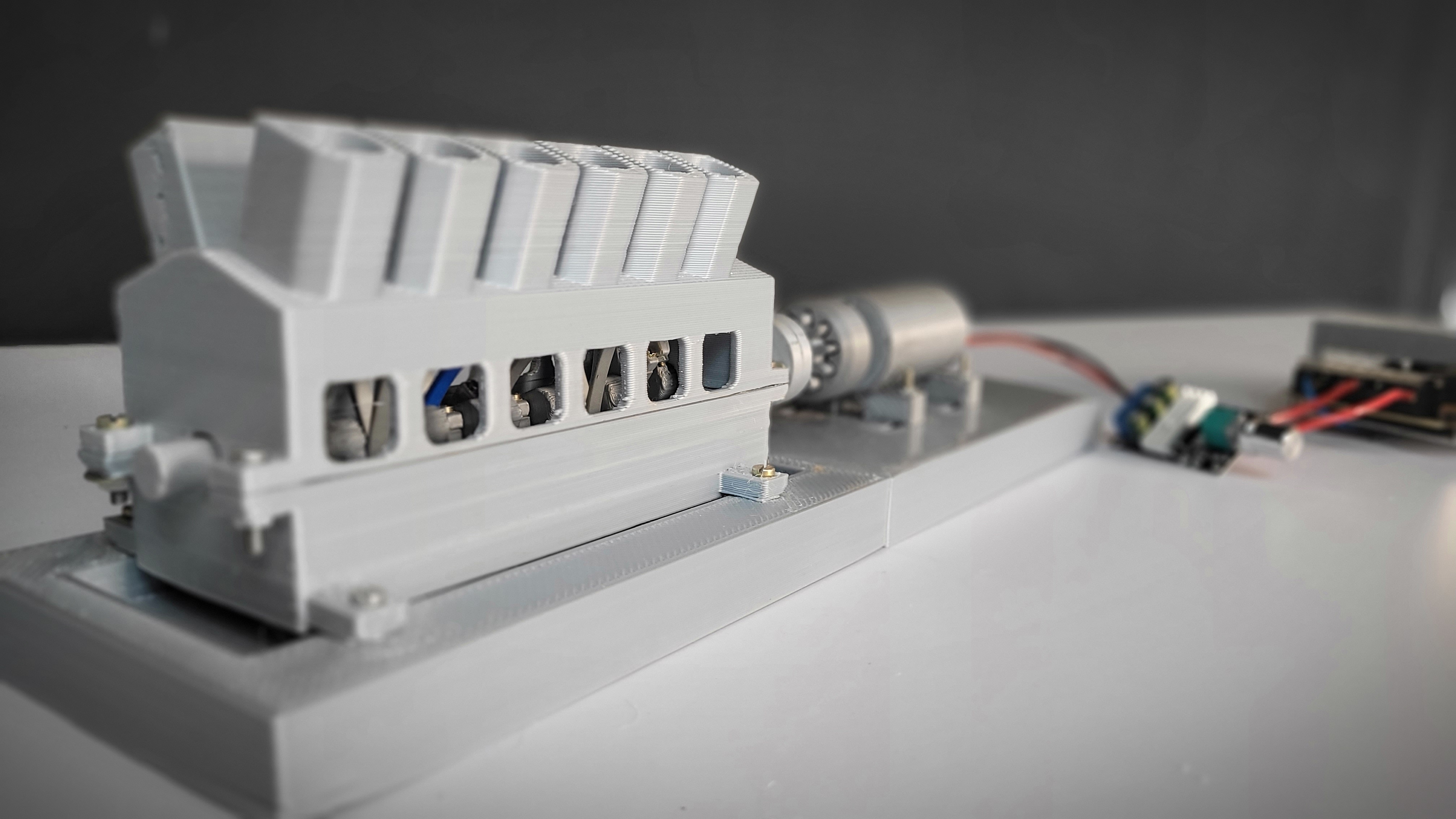

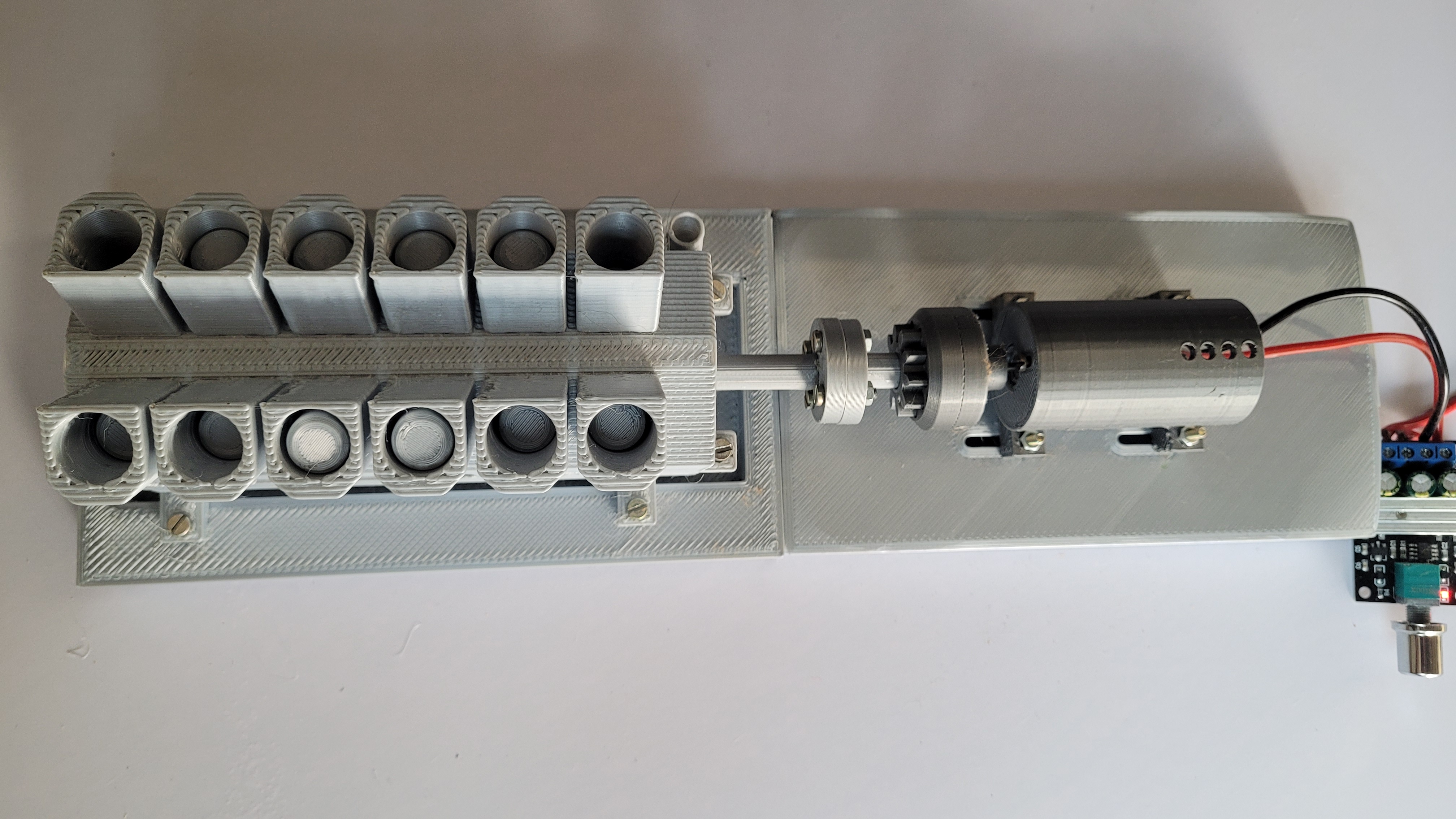

Designed for 12v 7000rpm micro motor with 27.4mm diameter and with PWM speed controller

bolts and nuts

M3 x 20mm
M2 x 10
