A Small collection of accessories for the Modular 10 Inch Server Rack - Reworked project.

These have yet to be printed, so no guaranties that they work.

The included models are:

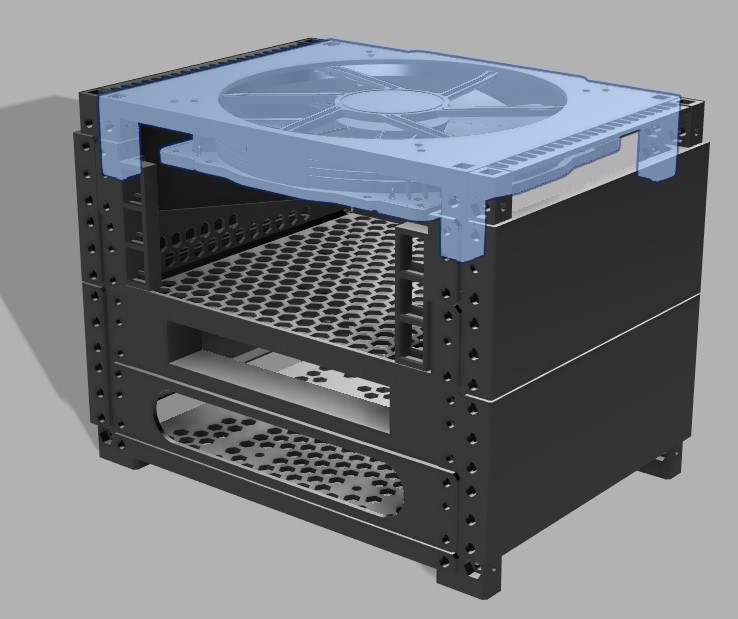

200mm Fan Topper

An Alternative topper that's designed to fit the 200mm Noctua fans:

NF-A20 PWM

NF-A20 FLX

NF-A20 5V PWM

NF-A20 5V

Rail connectors

A rail connector. The use case for this is where two vertical rails need to connect where an open front or rear is required. For example, above a shelf to give more clearance, or to connect the topper.

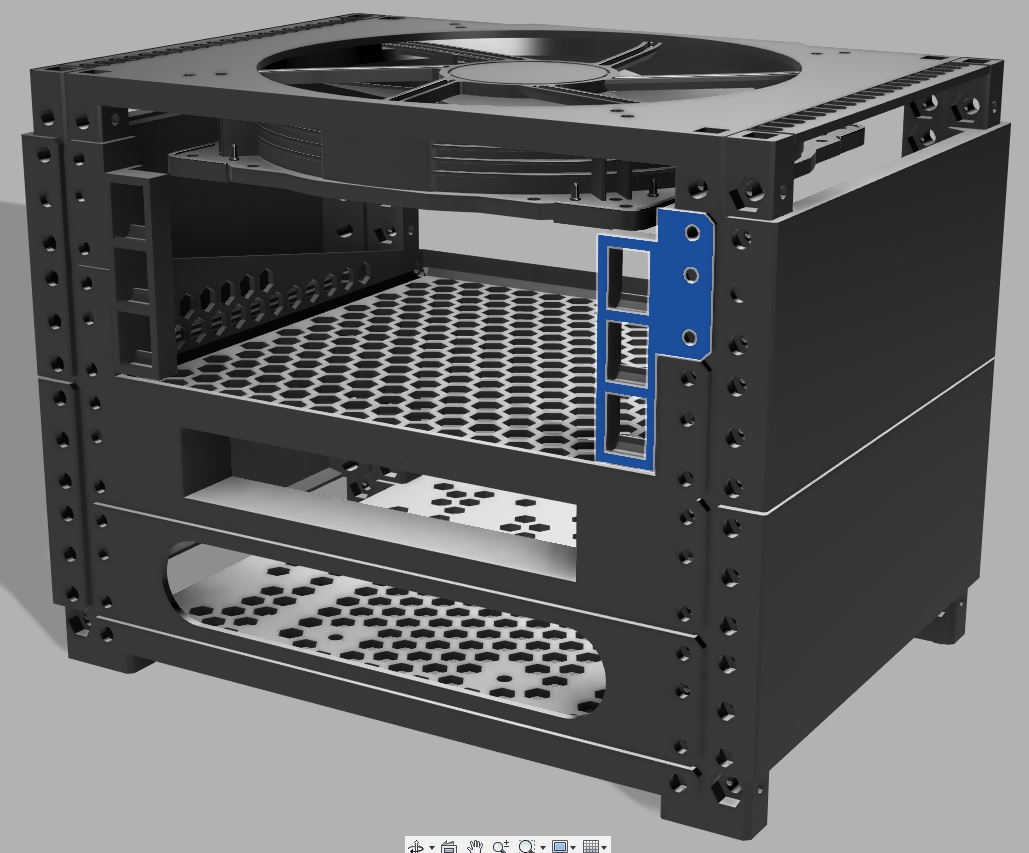

Keystone Ears (temporarily removed)

Allows 6 keystone jacks to overlap into the space of a shelf placed below. Prehaps a bit of a niche use case. Can be used as a Rail connector.

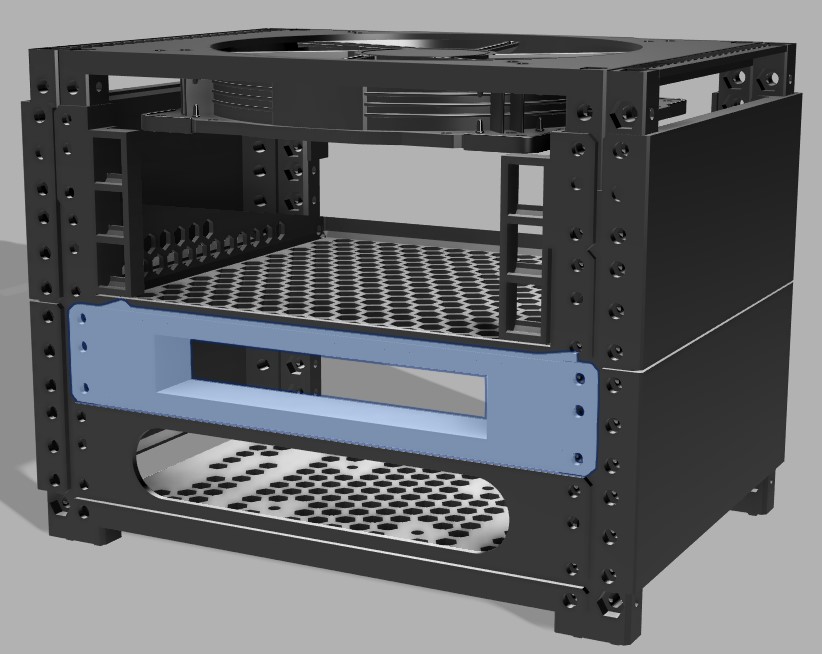

TL-SG608E Mounting Panel

A faceplate to mount the TP link TL-SG608E managed 8 port network switch.

This is a modification of Celeste's project with the faceplate edited to match the style of the server rack Project.

[https://www.printables.com/model/967188-sturdy-10-inch-rack-mount-for-the-tl-sg108-consume](https://www.printables.com/model/967188-sturdy-10-inch-rack-mount-for-the-tl-sg108-consume)

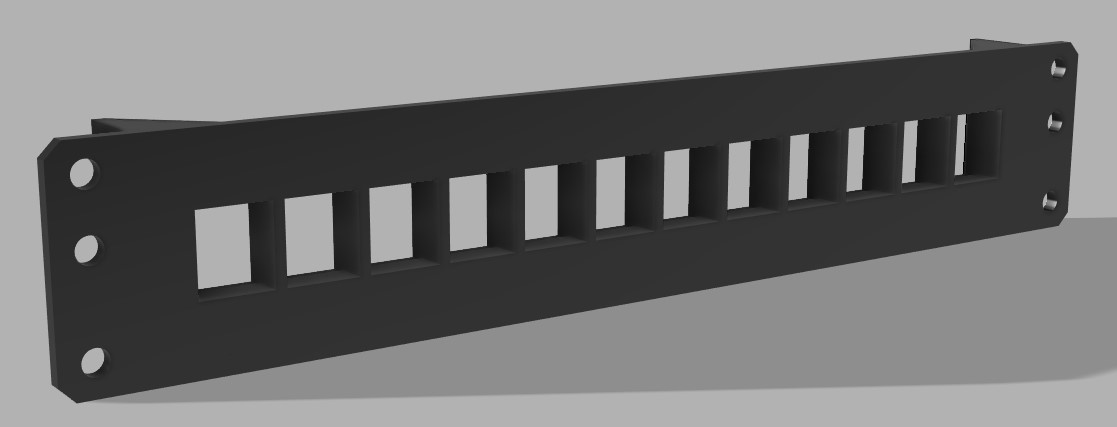

1U 12 Port Keystone

A faceplate featuring 12 slots for keystone jacks.

The keystone dimentions are measured from a CCS UTP Tool-less Keystone Module

Thanks to Natalie T and Celeste for their projects and the original files.
