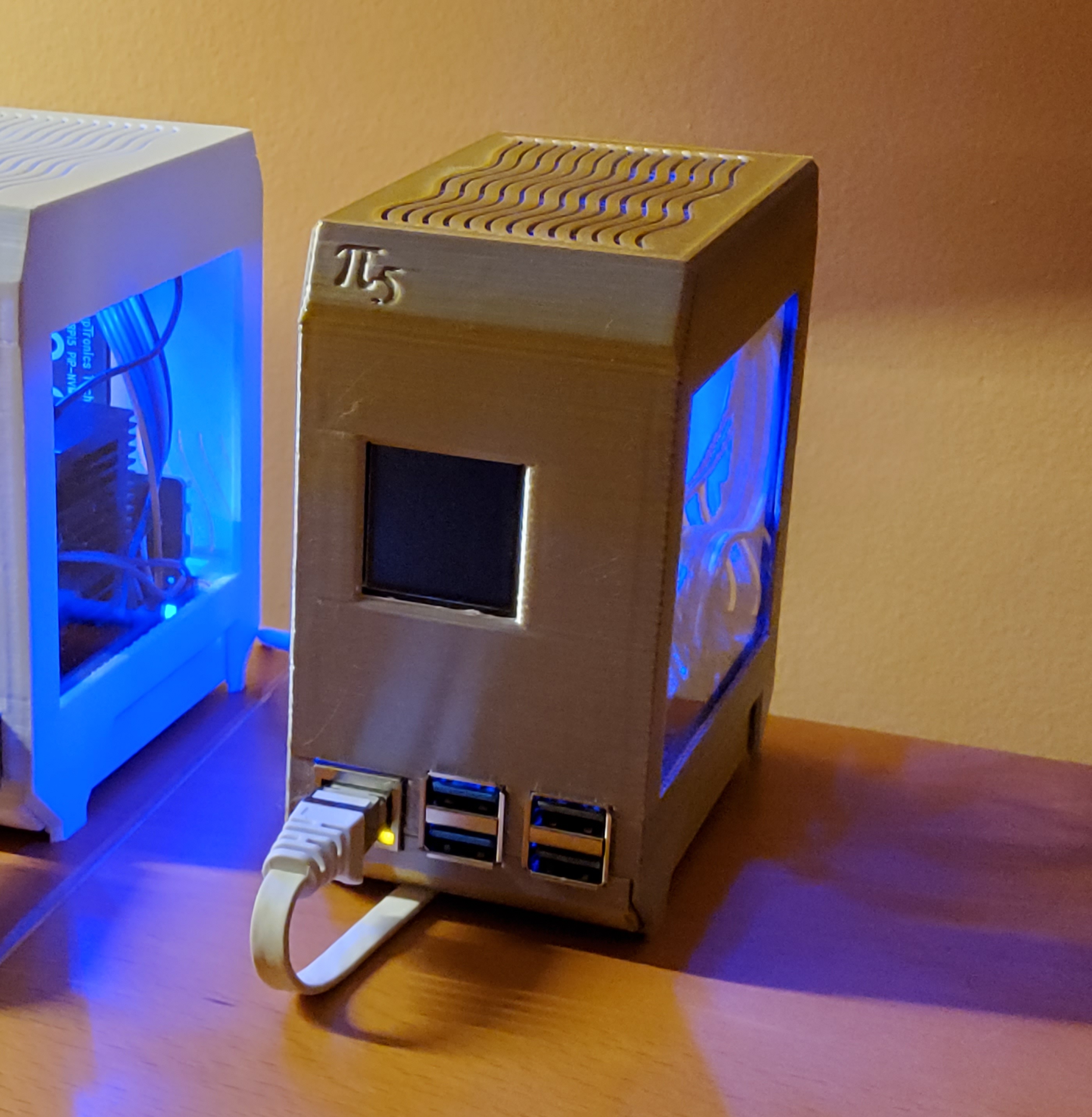

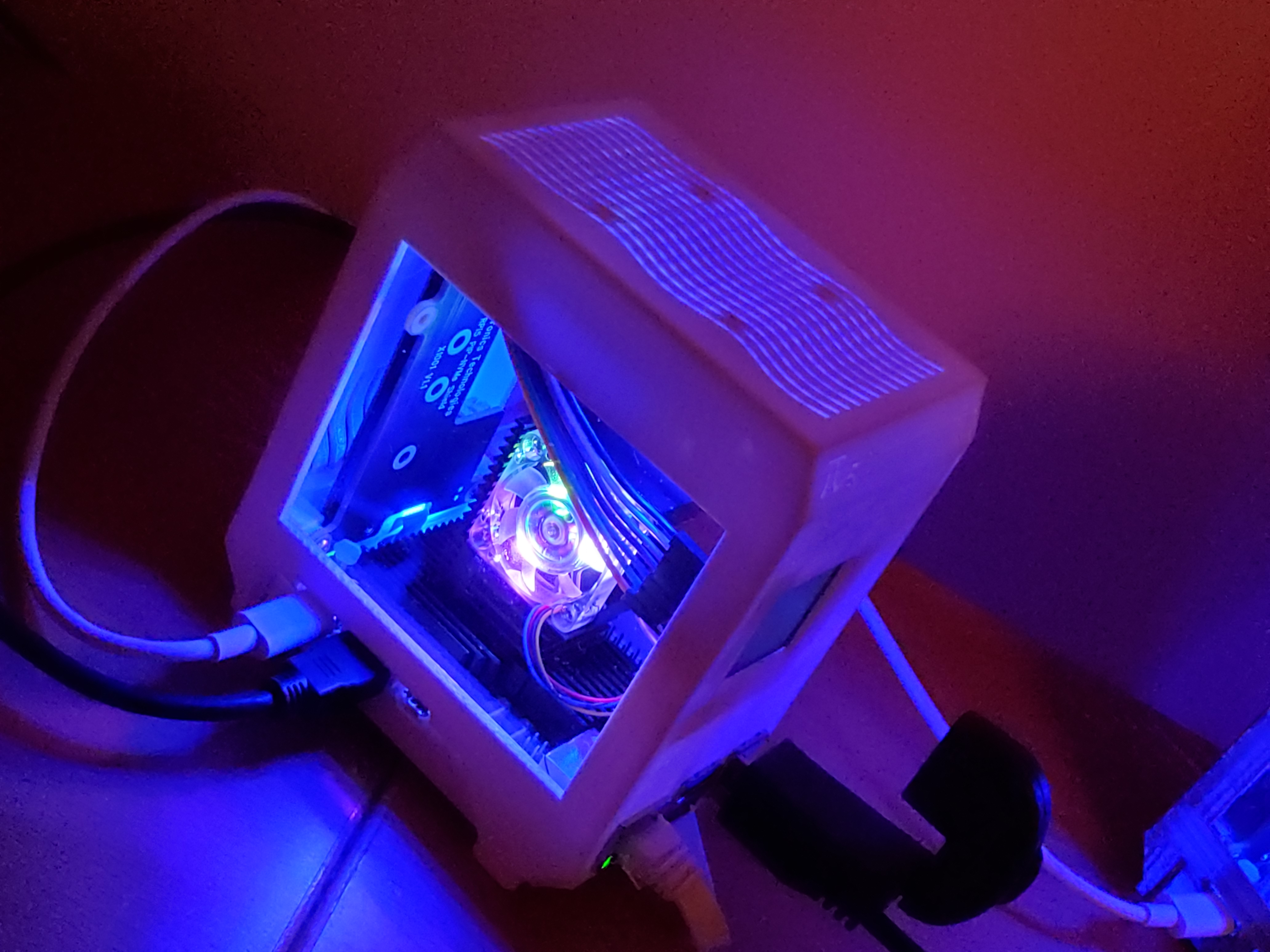

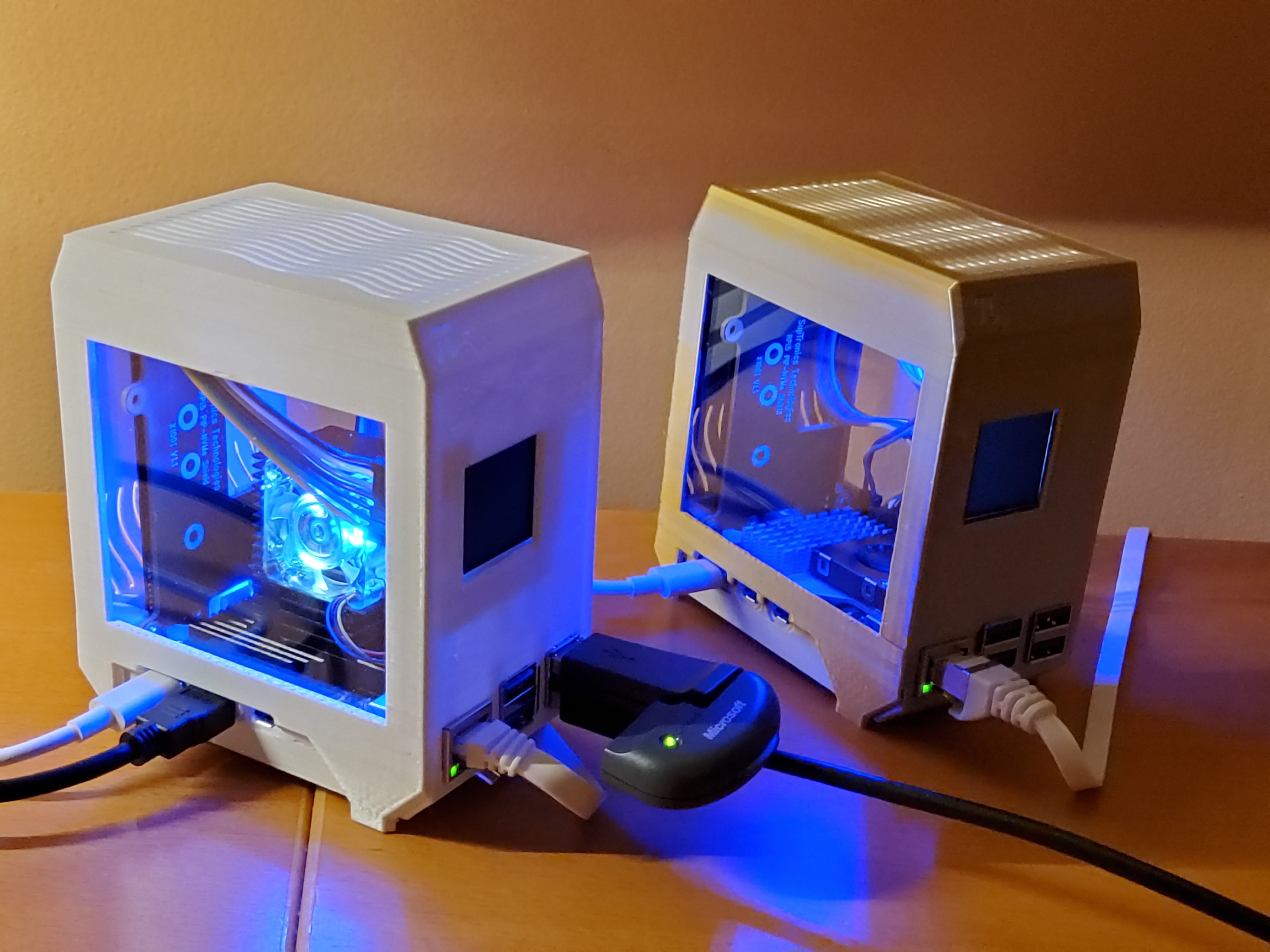

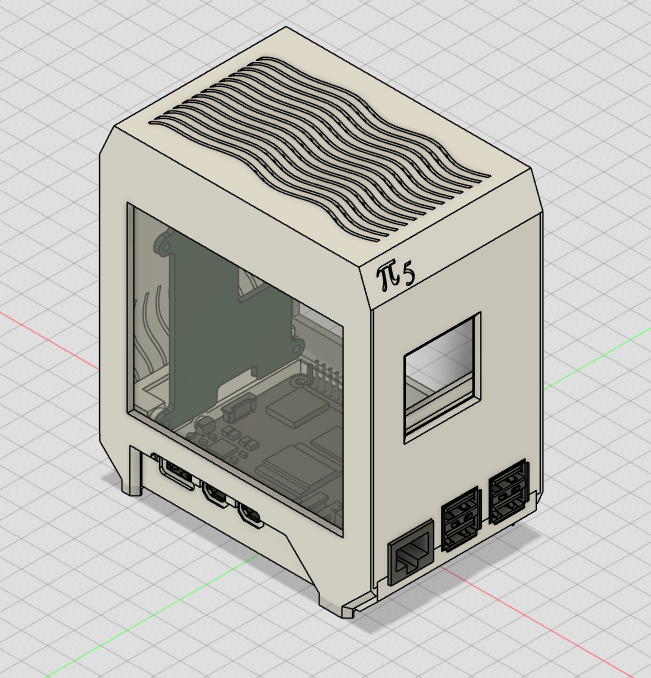

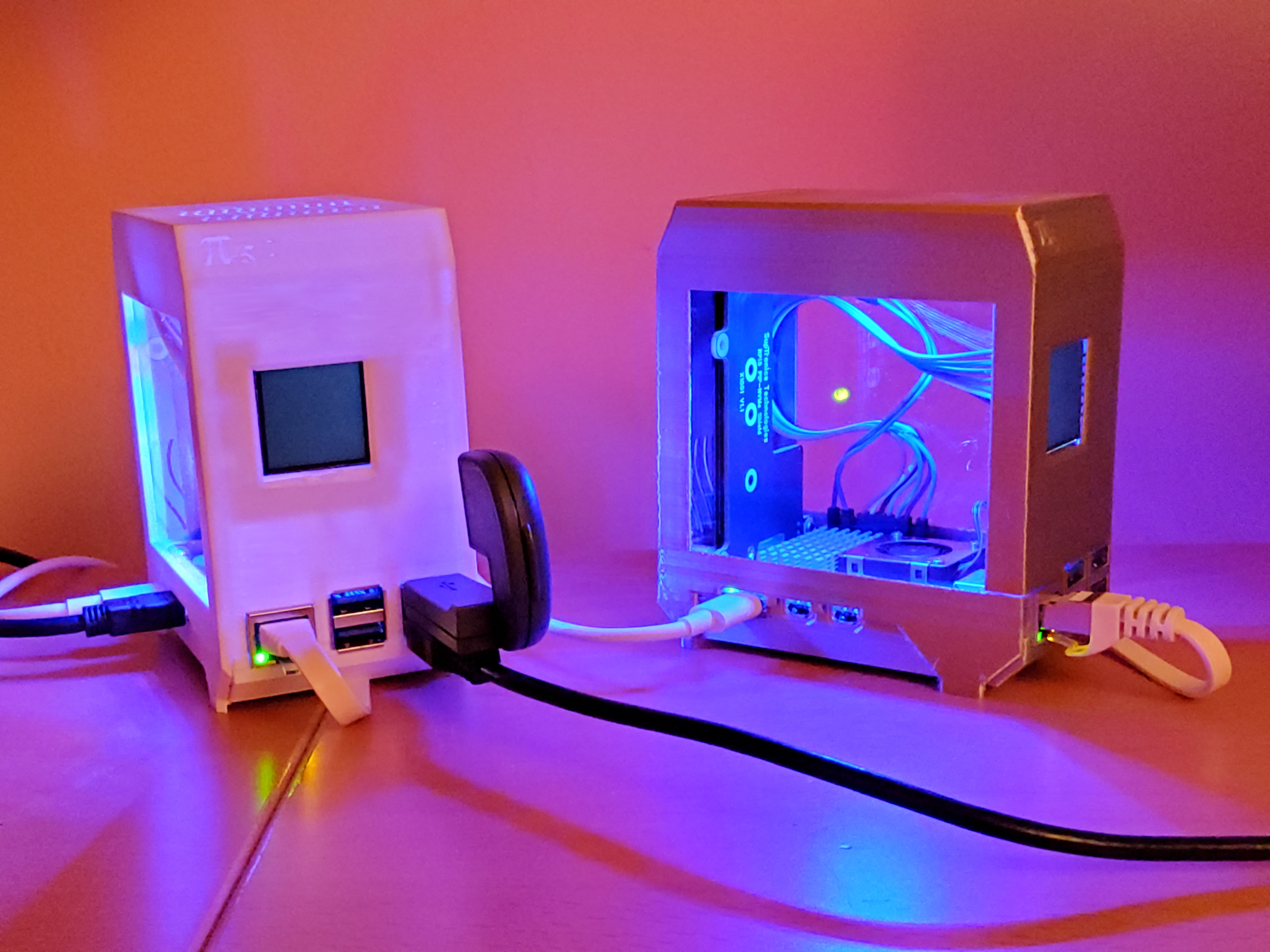

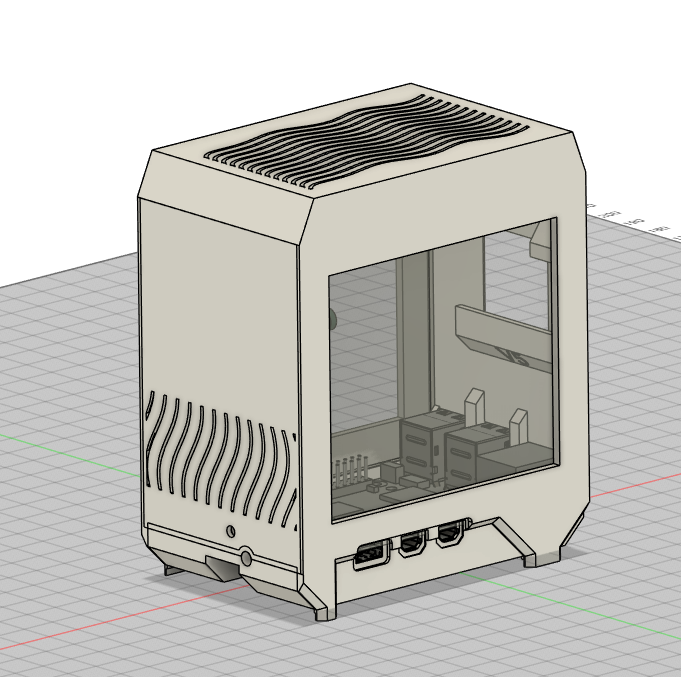

Mini-Tower Computer Case for the Raspberry Pi 5 with acrylic windows and NVME daughter board. Any NVME HAT should do the trick but I used the slim ElectroCookie one for its minimalist style and quality.

The case clips. You can add a M3 screw in the back of the case but it is optional.

I used 2mm acrylic windows because they are easy to cut to size (98mm x 87 mm). You can use the many 4-inch or 3.5-inch or 7-inch or 100mm ones sold online and remove just a tiny bit of material. I did not glue the windows as I designed the case to hold them in place.

DO NOT USE MY GCODE FILES. I have a MK4 with the MMU3. Simply reslice for your printer. I provided the gcode files for proper time estimates in printables.com. These gcode files use the first and second colors. This model is single-colored, though.

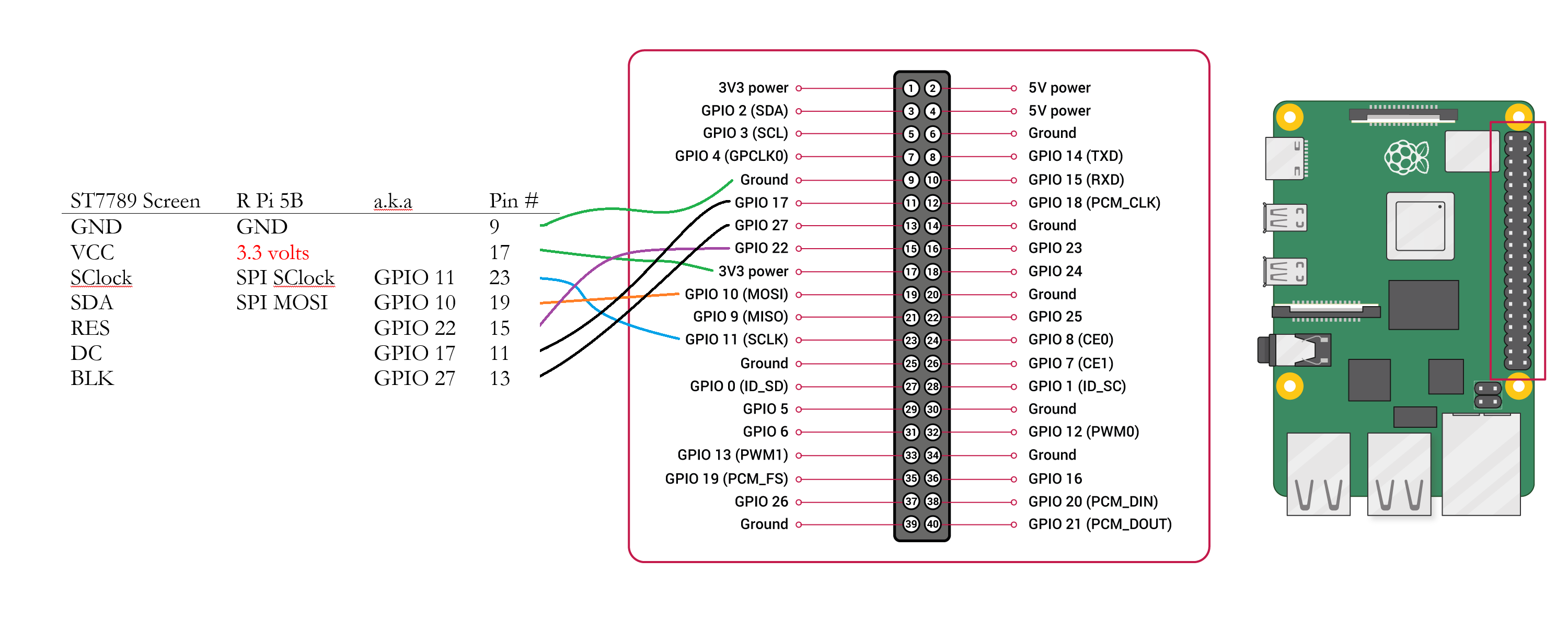

The ST7789 screen was meant to eventually display CPU load, free disk space %, swap file use, etc. I wrote some basic (meaning awful…) Python code to test it, which can be found at [https://github.com/PhLacoude/FrontScreenST7789](https://github.com/PhLacoude/FrontScreenST7789)

List of components

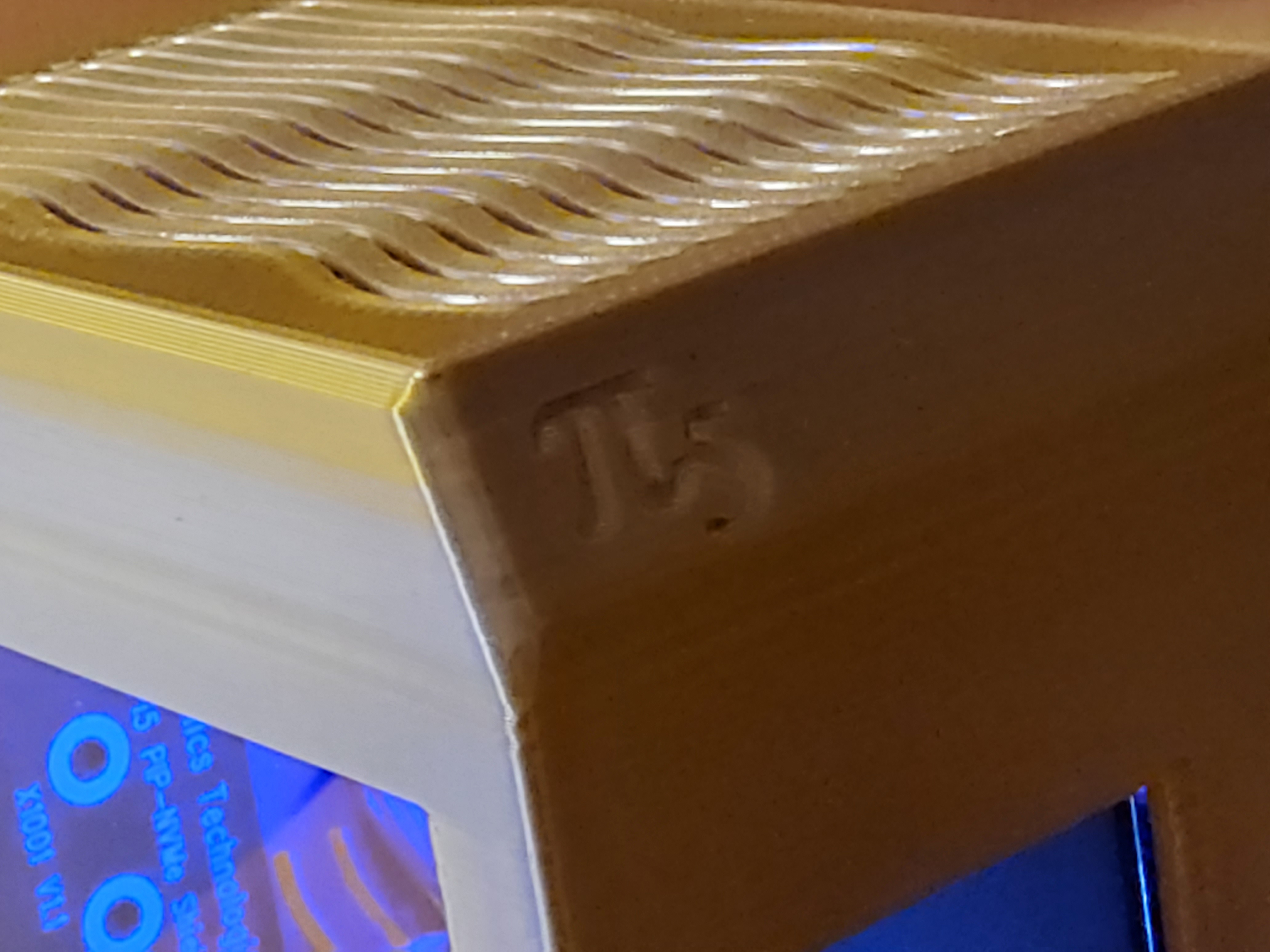

• 3D-printed top and bottom of the case (PLA or PETG)

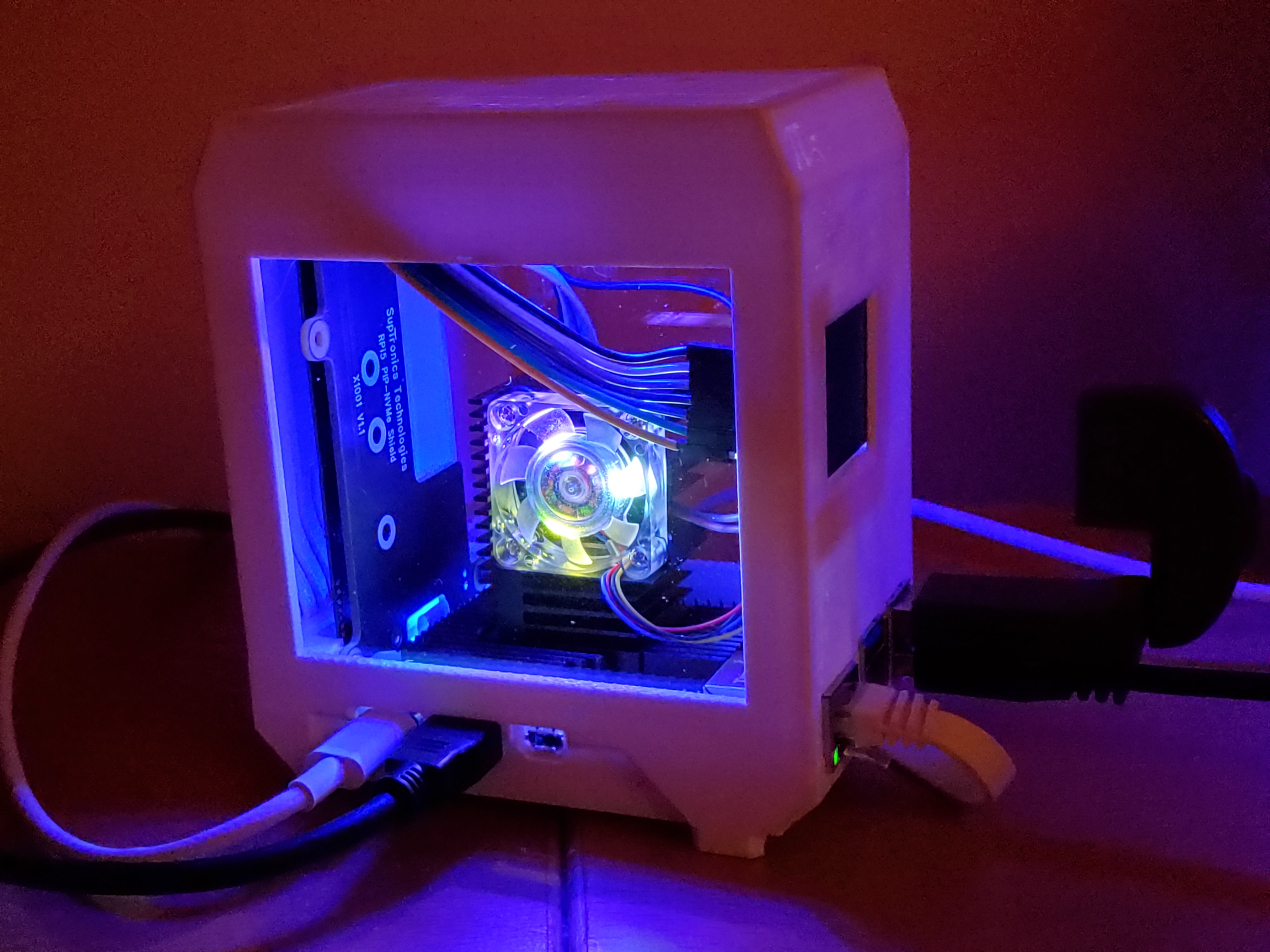

• One CPU cooler [https://www.amazon.com/dp/B0CZ3G3DL8](https://www.amazon.com/dp/B0CZ3G3DL8)
• Acrylic glass windows 98 mm (~ 4 inches) x 87 mm (~ 3.5 inches) [https://www.amazon.com/dp/B0CZHLDFK8](https://www.amazon.com/dp/B0CZHLDFK8)
• 1 M3 x 5mm hex screw (optional, for the back of the case)
• 6 M2.5 x 5mm hex screws (Raspberry Pi and NVME board) [https://www.amazon.com/dp/B0CLMBFGS9](https://www.amazon.com/dp/B0CLMBFGS9)

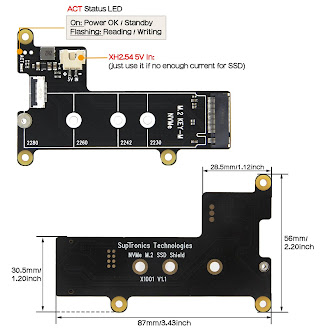

• ElectroCookie X1001 PCIe to M.2 NVMe SSD HAT Board for Raspberry Pi 5 [https://www.amazon.com/dp/B0DLW8RYD2](https://www.amazon.com/dp/B0DLW8RYD2)
• 40mm (~ 1.3 inch) SPI TFT LCD Display Screen Module ST7789 240x240 3.3 volts [https://www.amazon.com/dp/B0D5HD5VFK](https://www.amazon.com/dp/B0D5HD5VFK)
• Some wires [https://www.amazon.com/dp/B01EV70C78](https://www.amazon.com/dp/B01EV70C78)
• One fan [https://www.amazon.com/dp/B084RCBSBX](https://www.amazon.com/dp/B084RCBSBX) for the top of the case.
