Additional Sparkcube Parts

After 4 full years of printing and a few km of filament i decided to revision my first 3D Printer.

Add-Ons

I added:

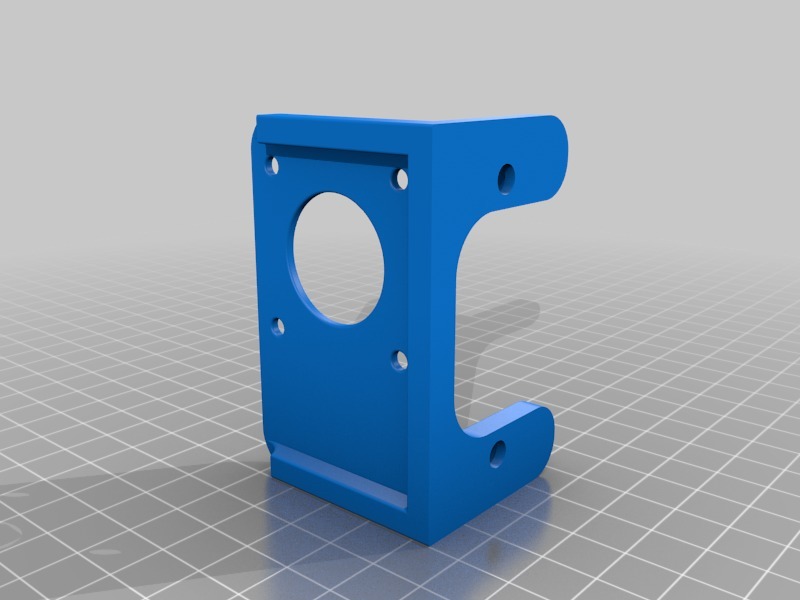

• e3d Titan Extruder with a slim NEMA 17 Motor (direct drive)
• A new Endstop for the Z-Axis with a bigger screw for more precision

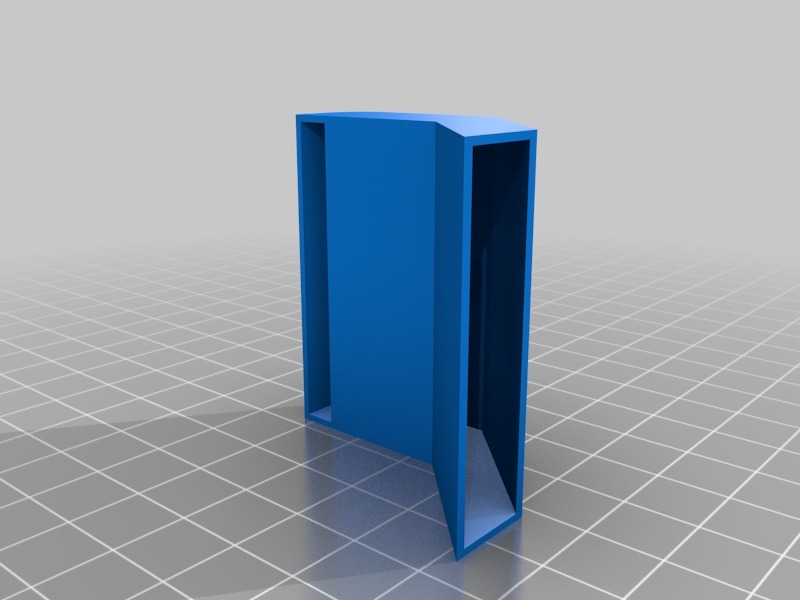

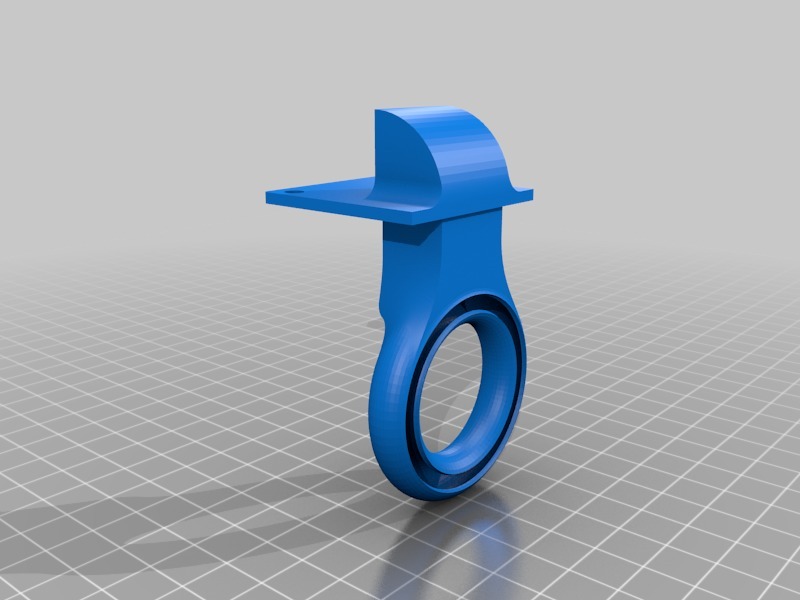

• A linear fan mounted on the X-Carriage for cooling the filament
• A linear fan mounted on the X-Carriage for cooling the hotend

• A new power supply i got from and old ps3 All parts presented are made using Inventor 2018, since i use a students license i'm not sure if i am allowed to upload those files.

  Please respect, that i am not allowed to do any profit with this files, neither i can grant it to anybody.

  For more details visit my blog
  Additional Pictures incoming

  Print Settings

Printer:

marckube

Rafts:

Doesn't Matter

Resolution:

15%

Filament: dasfilament.de PLA doesn't matter

Notes:

Category: 3D Printer Parts
