Descrição
Intro
After designing a GoPro Hero 10 battery case ( [https://www.prusaprinters.org/prints/114279-gopro-hero-10-battery-case](https://www.prusaprinters.org/prints/114279-gopro-hero-10-battery-case) ) I made a hollow version to use as small parts storage or organizer. I find it very useful for my EDC and work-related things I need to store somewhere.
Choose the right size for you!
I made 3 different sizes, for now, to choose from. I'll upload different box sizes if you need to have one.
- Small ( Internal dimensions: 80mm x 42mm x 16.5 mm )
- Medium ( Internal dimensions: 90mm x 55mm x 15 mm )
- Large ( Internal dimensions: 90mm x 55mm x 25 mm )

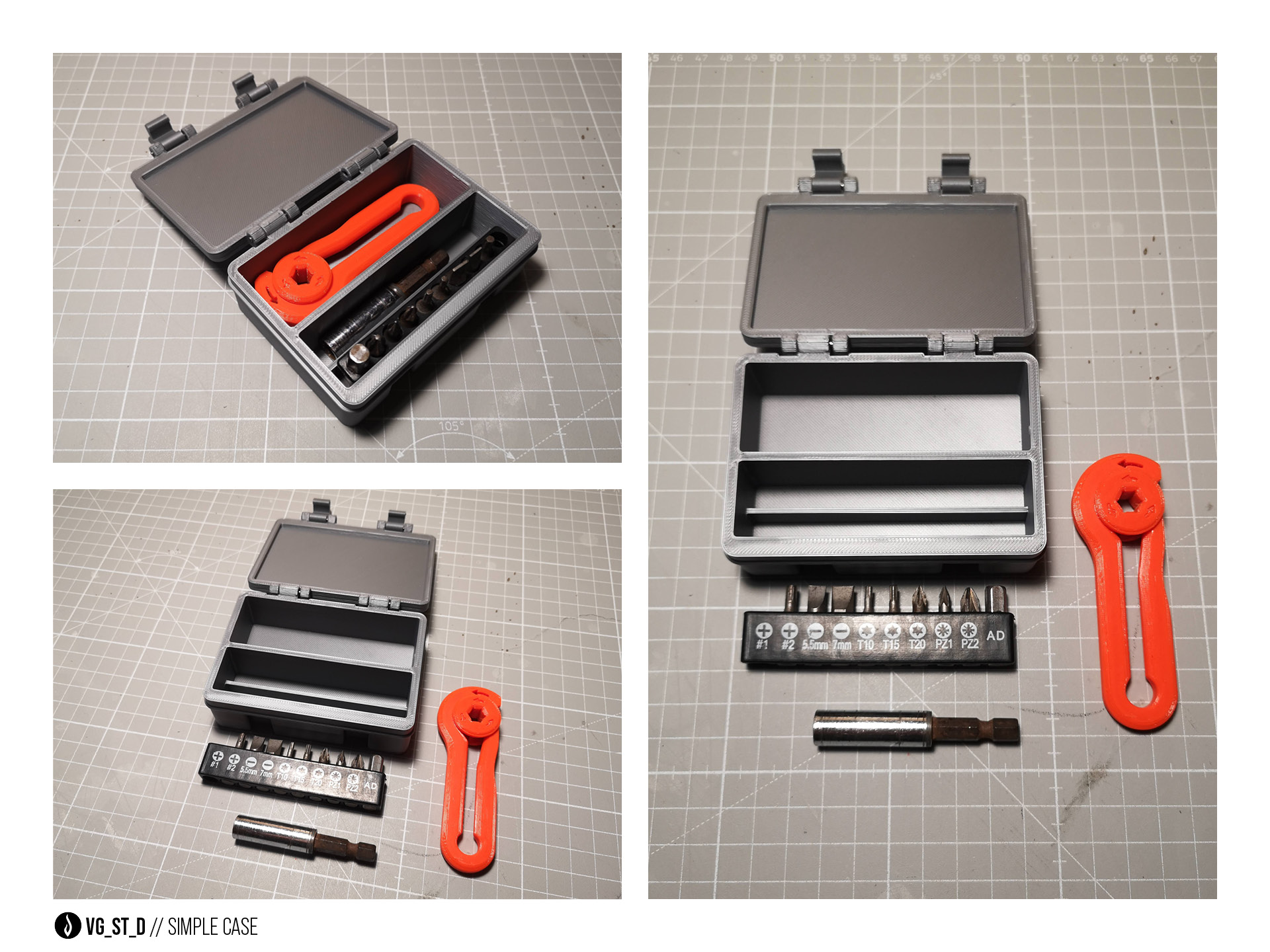

- I also made a box for 1/4" Hex Bit Ratchet Wrench Tool and FIDGET TOY!!!
Made by Lumanieri, a really great tool to have every time with you! Check it out!
( [https://www.prusaprinters.org/social/102193-lumanieri/prints](https://www.prusaprinters.org/social/102193-lumanieri/prints) )
( [https://www.prusaprinters.org/prints/88474-14-hex-bit-ratchet-wrench-tool-and-fidget-toy](https://www.prusaprinters.org/prints/88474-14-hex-bit-ratchet-wrench-tool-and-fidget-toy) )
Print Settings
I always use PrusaSlicer settings as a start point and tweak some parameters based on the filament I use or characteristics I need from the final print.
For this one, I only change print speed by making it a bit faster.
No need for support on this print.
Additional Materials

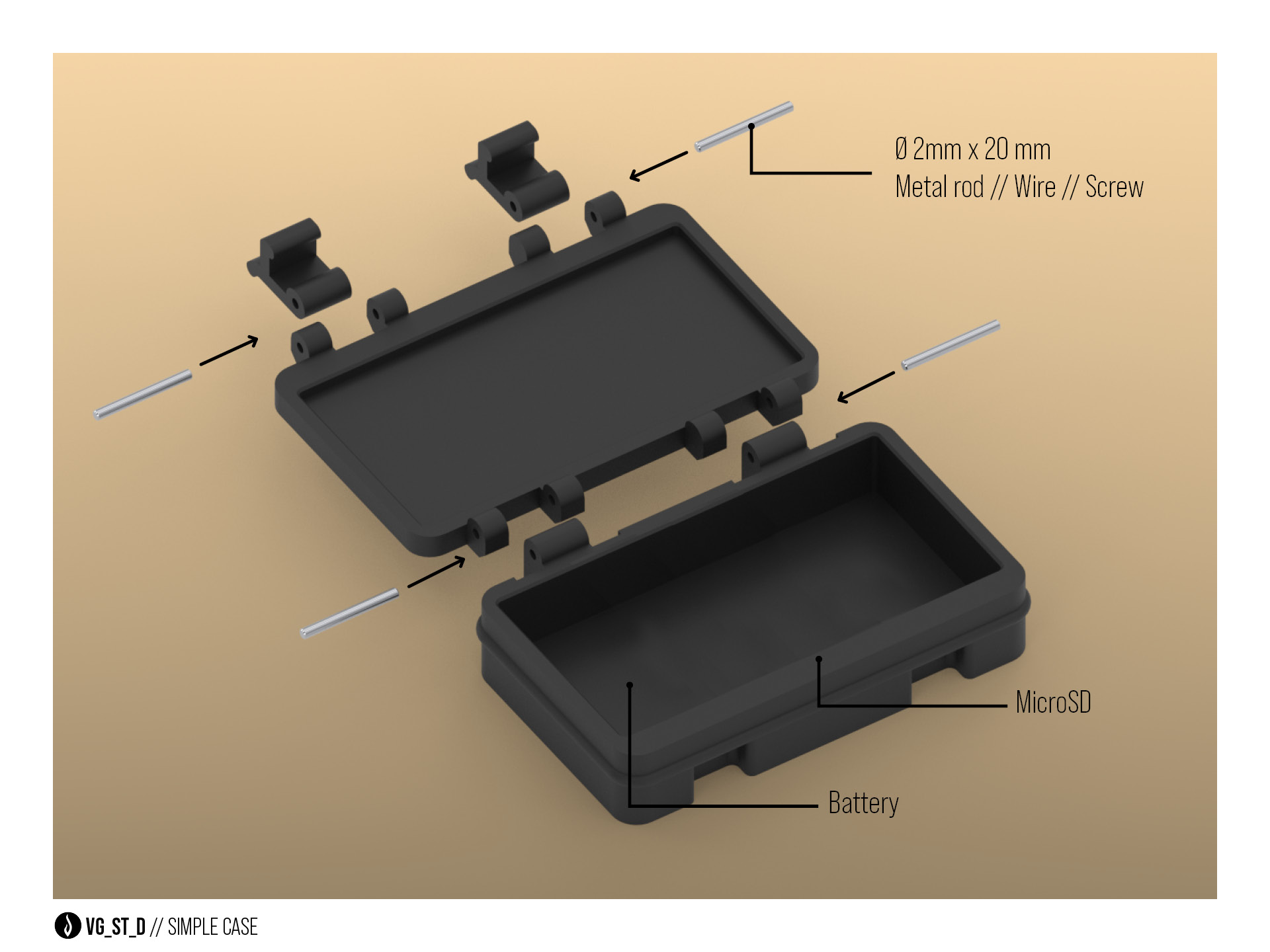

For this assembly, you will need some kind of metal rods with a diameter of around Ø 2mm and a length of 20 mm. You can use a wire, plastic rods, even m2 screws. The idea is to make a point of rotation for the hinges on the box.
Assembly
The assembly is pretty straightforward. Use the image I uploaded which illustrates step by step how to put everything together.
