Modelo 3D Electroinstallation Level and drilling template por Leon no Printables

Descrição

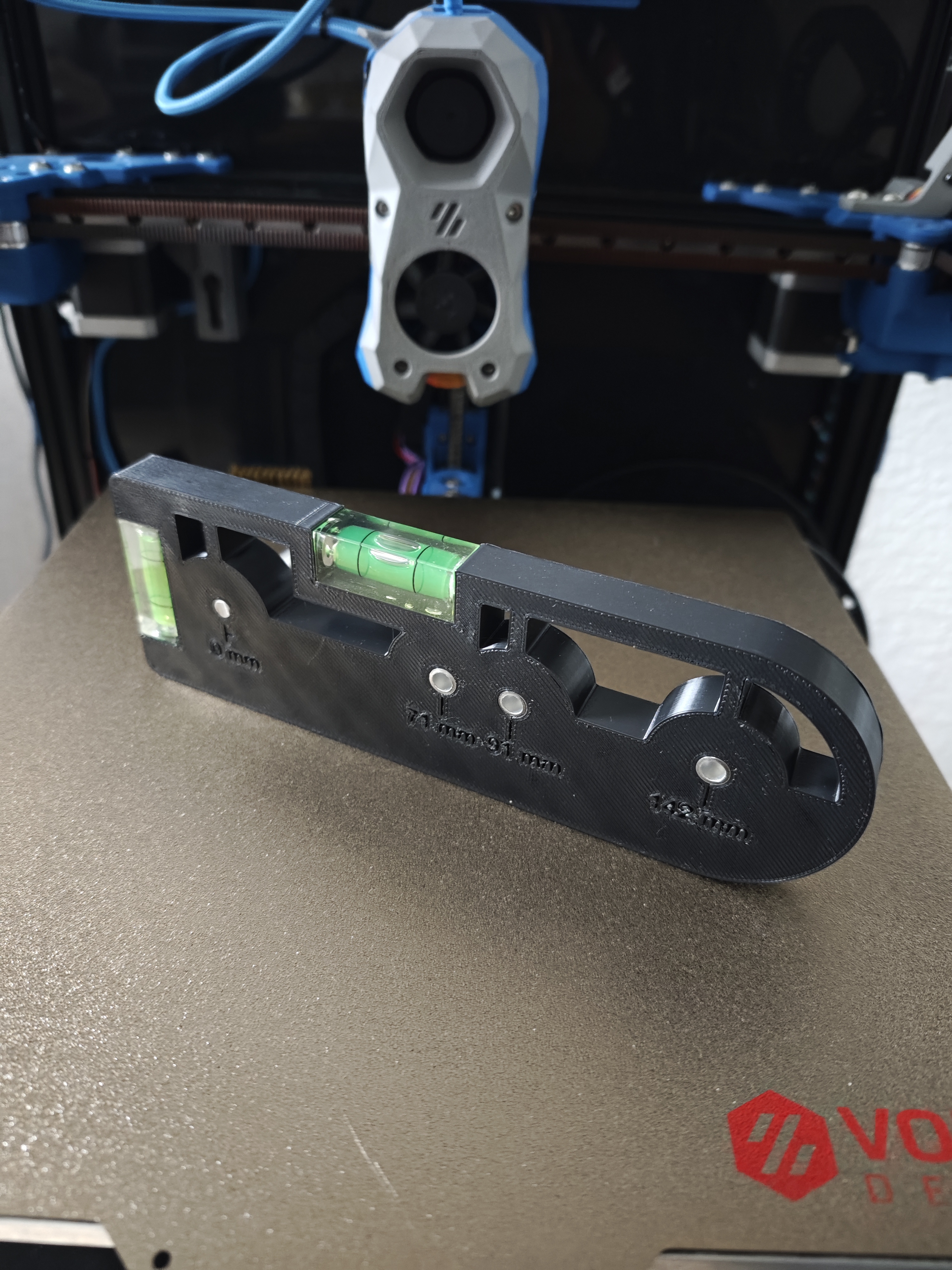

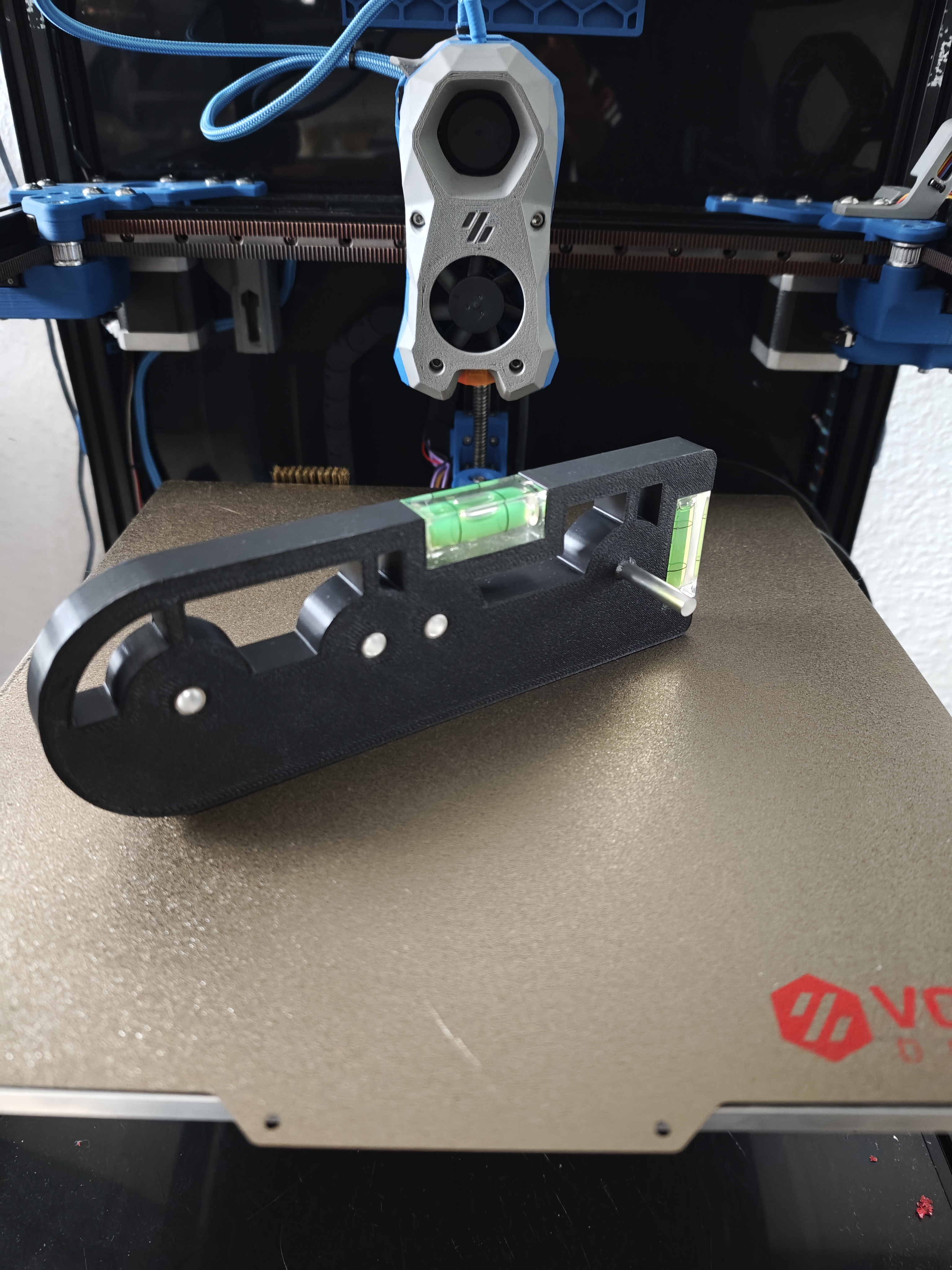

Features of my interpretation of a portable electroinstallation level:

  • Horizontal and vertical level
  • 6 mm center rod for drill guiding
  • 6 mm reinforced drill guides with distance marking
  • 71 mm and 142 mm distance from center rod for 2 x and 3 x flush mounted boxes
  • 91 mm distance from center rod for 2 x Single flush mounted boxes

Additional hardware needed:

  • 15 x 15 x 40 mm levels (can easily be found on aliexpress)
  • 6 mm rod (I used 45 mm aluminium rod due to availability)
  • 8 mm pipe with 6 mm inner diameter
  • Some kind of glue like superglue or epoxy

Printing:

  • Nothing special required



Printables

Electroinstallation Level and drilling template

Publicado em 18 de jan de 2025

1
Curtidas
9
Downloads
Categoria Tools
Tags
bohrschablone wasserwaage elektroinstallation
Licença Creative Commons — Attribution — Noncommercial
Arquivos (2)
Elektro-Wasserwaage.f3d 1.2 MB
Elektro-Wasserwaage.stl 1.6 MB
