Modelo 3D Tiny Pocket Spectrometer por gheja no Printables

Descrição

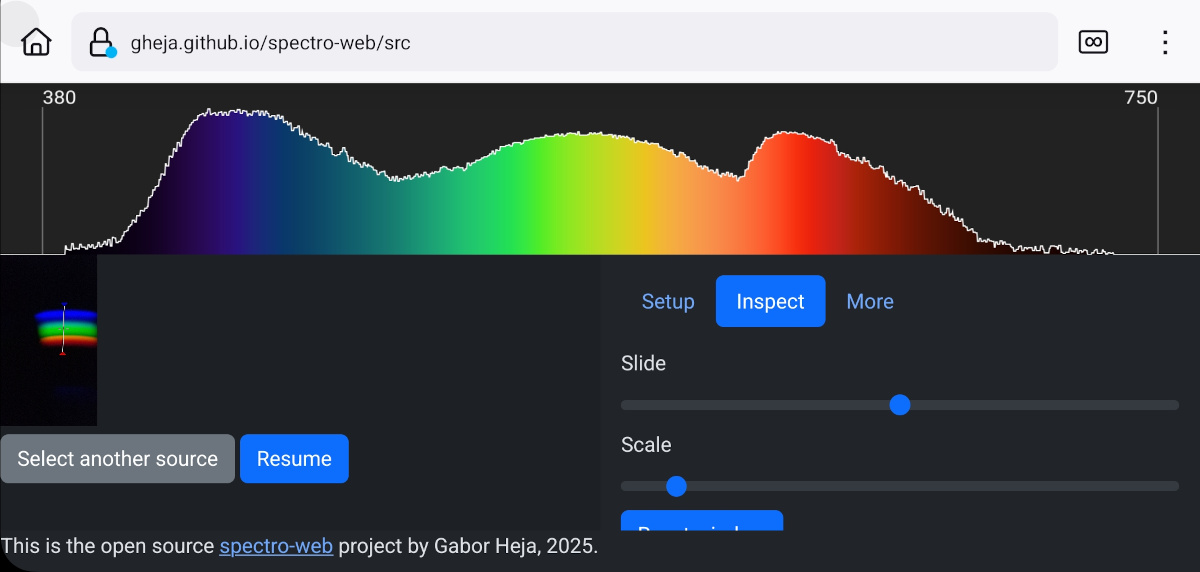

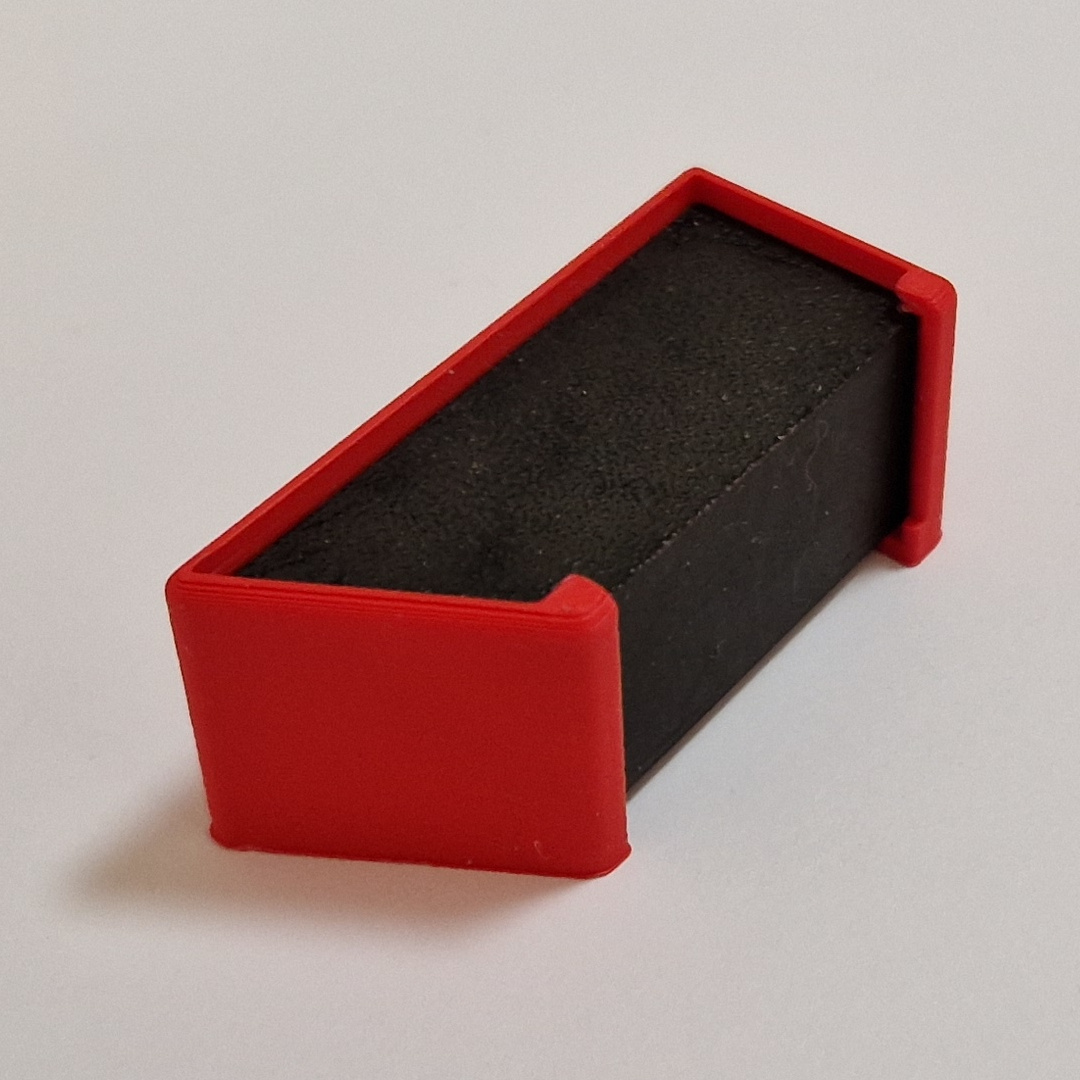

This spectrometer is small enough to fit in your pocket and can be used on your mobile phone with a web based spectrometer like spectro-web. I also added a case to protect it from dust and scratches.

I recommend to try the 0.6 mm slit at first, then adjust if needed - they are separate and interchangeable, only the slit cover needs to be printed.

The only extra material needed is a DVD (CD, Blu-Ray, etc. won't work as they have different track pitch, leading to different diffraction), see this post for instructions on how to prepare it.

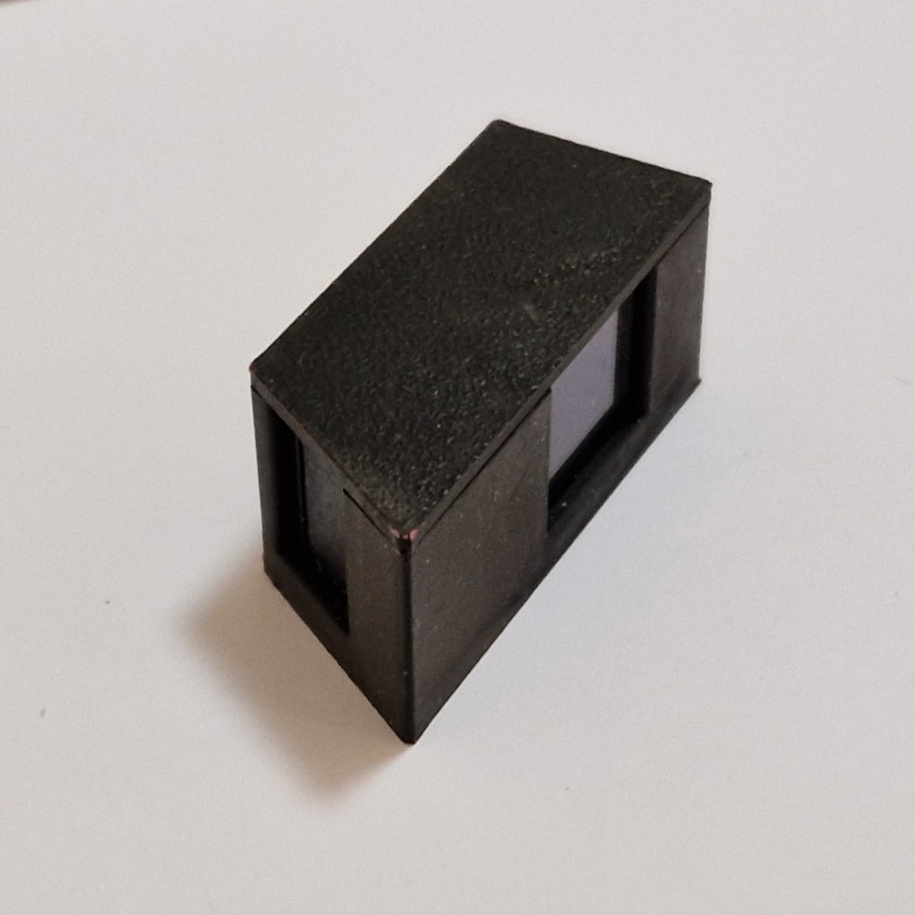

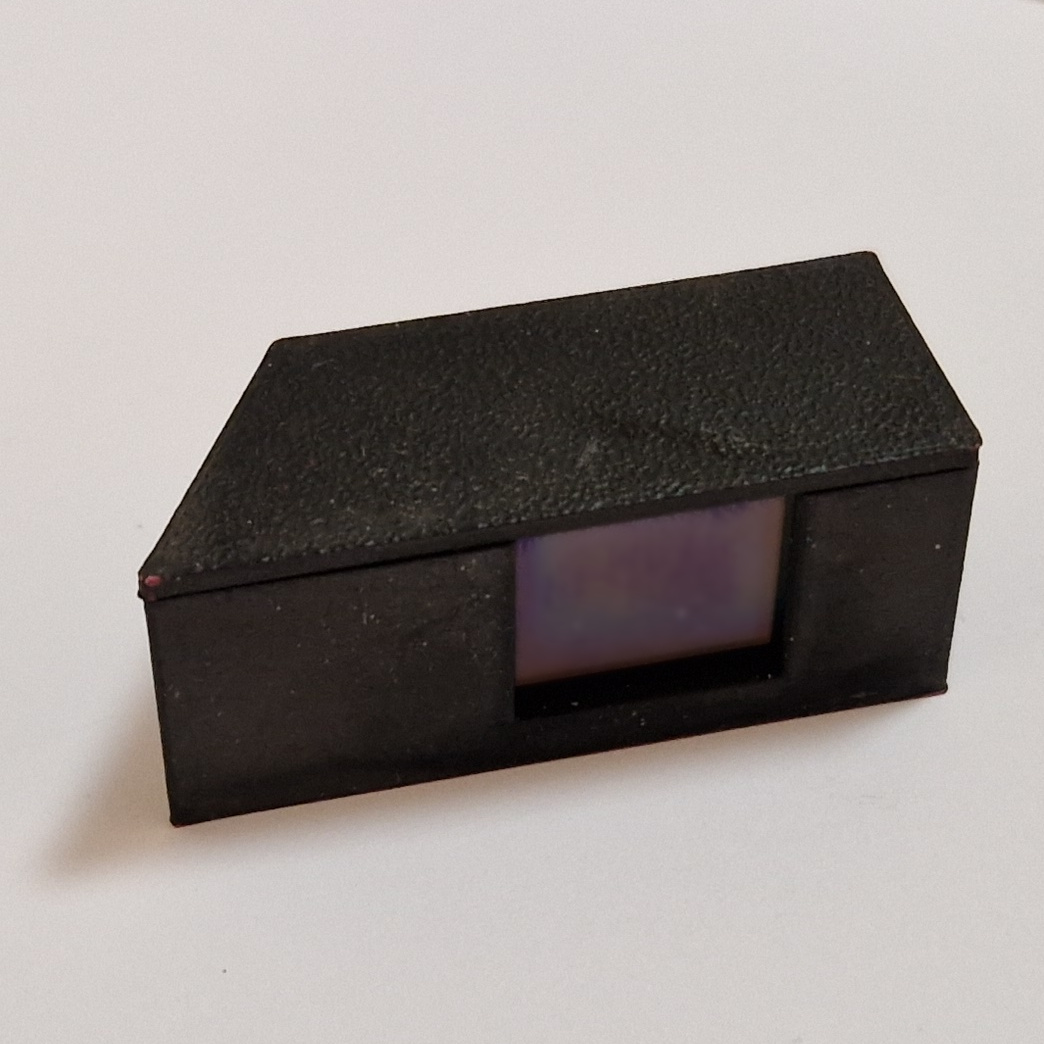

Use black filament or spray paint black (as in the pictures) to reduce reflection inside.

This is a toy, not a scientific instrument, aimed at curious people.

Printables

Tiny Pocket Spectrometer

Publicado em 16 de jan de 2025

7
Curtidas
45
Downloads
Categoria Physics & Astronomy
Tags
rainbow stem gadget learning optical spectrometer optics spectra diffraction spectrum spectroscopy spectral
Licença Creative Commons — Attribution
Arquivos (10)
spectro_2_v11-PartBaseBody.stl 7.5 KB
spectro_2_v11-PartTopBody.stl 17.9 KB
spectro_2_v11-PartMainCoverBody_0.6mm.stl 1.6 KB
spectro_2_v11-PartCaseBody.stl 196.4 KB
spectro_2_v11.fcstd 177.3 KB
spectro_2_v11-PartMainCoverBody_0.4mm.stl 1.6 KB
spectro_2_v11-PartMainCoverBody_0.3mm.stl 1.6 KB
spectro_2_v11-PartMainCoverBody_0.5mm.stl 1.6 KB
spectro_2_v11-PartMainCoverBody_0.8mm.stl 1.6 KB
spectro_2_v11-PartMainCoverBody_1.0mm.stl 1.6 KB
