A small off/on or pole-reversing switch for the fischertechnik construction toy system. Uses a 8x8 mm push-button switch found as a no name item on ebay, I assume it's a K8-8081D-L1 from Korean manufacturer HRO.

The off/on version needs no soldering. Simply cut off the middle contacts, bend the remaining four contacts completely flat and insert the switch into the base part, securing it with the sleeve part and, if needed, a drop of super glue.

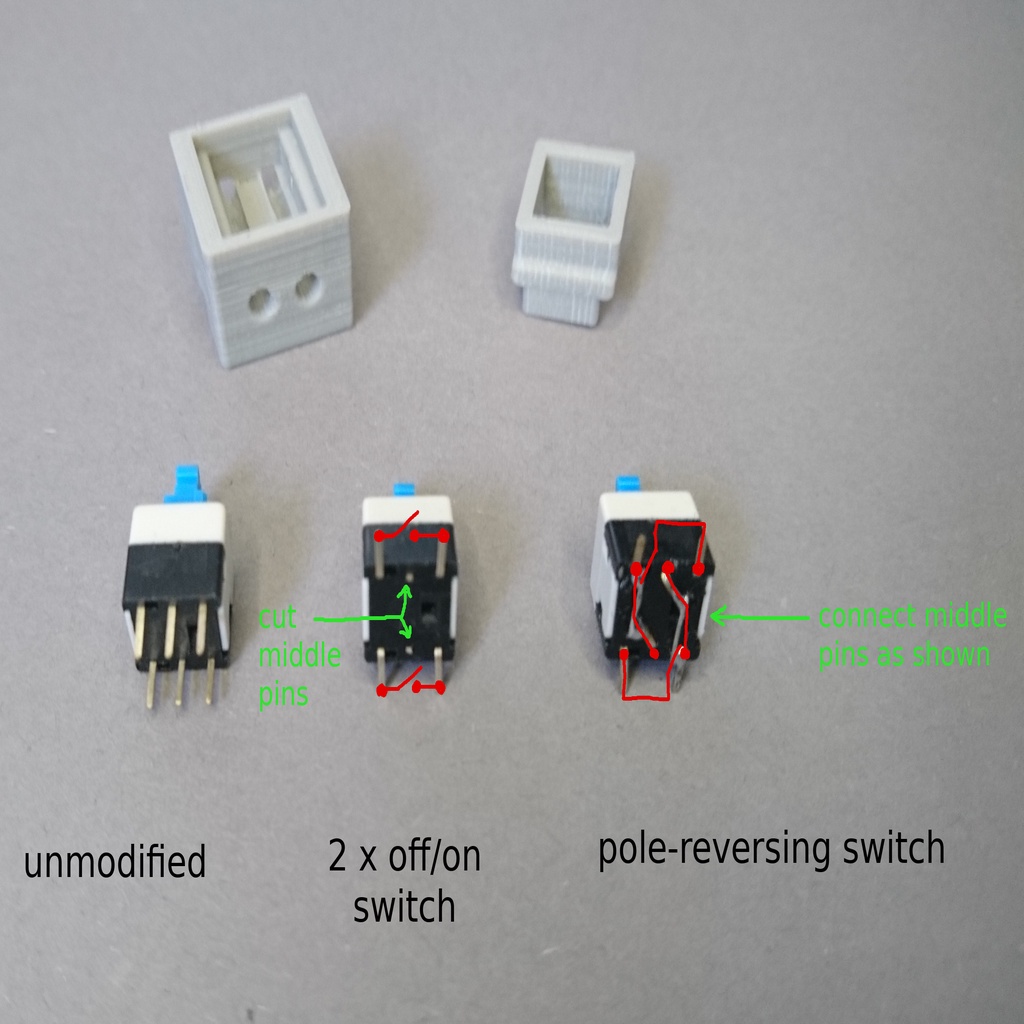

The pole-reversing version needs a bit of soldering, use the image provided as a guide. Watch out for the correct orientation when soldering, it only works in one way. For correct wiring, use two jacks diagonally opposite of each other as input and the remaining two as output.

Please consider leaving a "like" or posting your make as a token of appreciation for my work.

Find my other fischertechnik designs here.

[https://youtu.be/5TDJeOXbut4](https://youtu.be/5TDJeOXbut4)
[https://youtu.be/hU7KIjeh6Fw](https://youtu.be/hU7KIjeh6Fw)
keywords: fischertechnik pole-reversing Polwendeschalter push_button switch

Print Settings

Printer Brand:

Anet

Printer:

No

Supports:

.1 mm

Infill:

any PETG or PLA any

Category: Construction Toys
